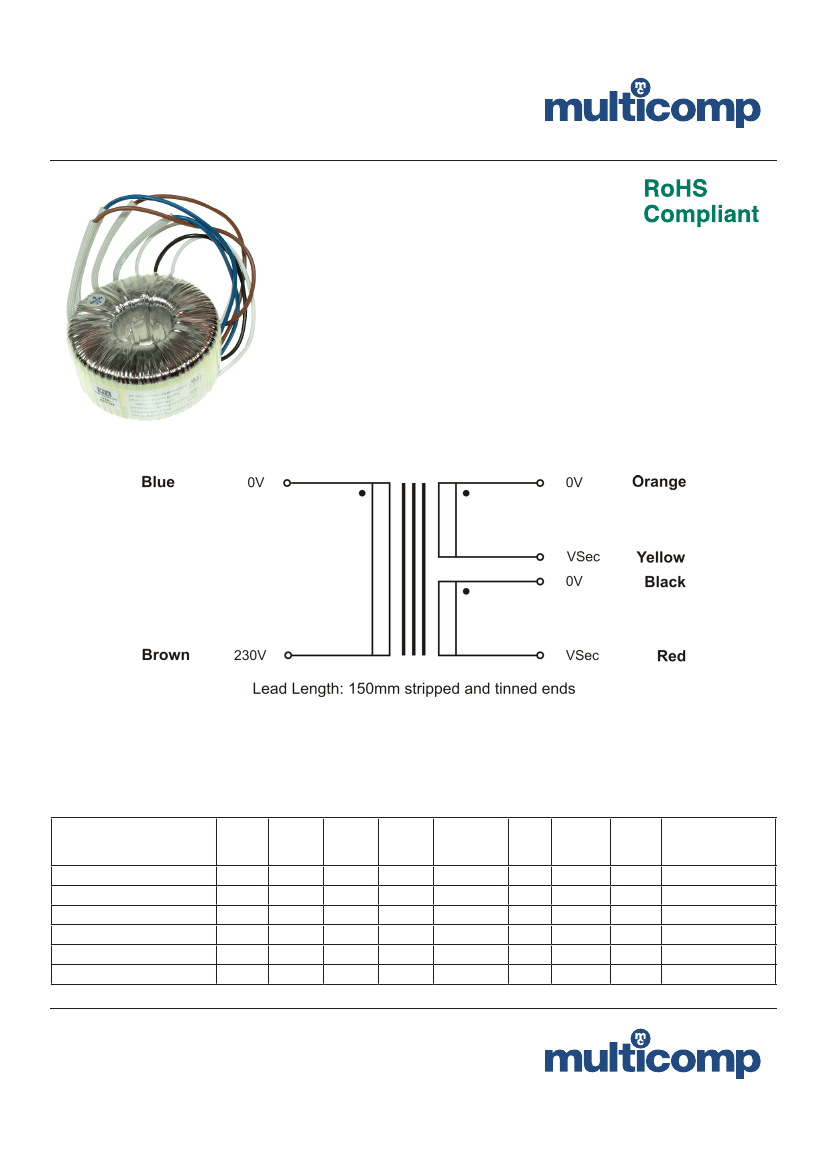

Transformer
Features:
•
•
•
•
High Quality Open Style Toroidal Transformer
Single Primary/ Dual Secondary windings
Very low level radiated magnetic field
Supplied with mounting Kit
Part Number Table
Description
Transformer, 15VA, 2 × 6V
Transformer, 15VA, 2 × 9V
Transformer, 15VA, 2 × 12V
Transformer, 15VA, 2 × 15V
Transformer, 15VA, 2 × 18V
Transformer, 30VA, 2 × 9V
VA
Rating
15
15
15
15
15
30
Input
Voltage
(V AC)
230
230
230
230
230
230
Output
Voltage
(V AC)
2×6
2×9
2 × 12
2 × 15
2 × 18
2×9
Output
Current
(A)
1.25
0.83
0.63
0.5
0.42
1.67
Regulation
(Typ. %)
16
16
16
16
16
14
Temp
Rise
(°C)
26
26
26
26
26
40
Height
× Dia.
(mm)
28 × 60
28 × 60
28 × 60
28 × 60
28 × 60
31 × 74
Weight
(Kg)
0.3
0.3
0.3
0.3
0.3
0.48
Part No
VTX-146-015-106
VTX-146-015-109
VTX-146-015-112
VTX-146-015-115
VTX-146-015-118
VTX-146-030-109
www.element14.com
www.farnell.com
www.newark.com
Page <1>
10/04/15
V1.0
Transformer
Description
Transformer, 30VA, 2 × 12V
Transformer, 30VA, 2 × 15V
Transformer, 30VA, 2 × 18V
Transformer, 30VA, 2 × 25V
Transformer, 50VA, 2 × 6V
Transformer, 50VA, 2 × 9V
Transformer, 50VA, 2 × 12V
Transformer, 50VA, 2 × 15V
Transformer, 50VA, 2 × 18V
Transformer, 50VA, 2 × 25V
Transformer, 50VA, 2 × 55V
Transformer, 80VA, 2 × 9V
Transformer, 80VA, 2 × 12V
Transformer, 80VA, 2 × 15V
Transformer, Toroidal,
2 × 18V, 80VA
Transformer, 80VA, 2 × 25V
Transformer, 80VA, 2 × 55V
Transformer, 120VA, 2 × 12V
Transformer, 120VA, 2 × 15V
Transformer, 120VA, 2 × 18V
Transformer, 120VA, 2 × 25V
Transformer, 120VA, 2 × 55V
Transformer, 160VA, 2 × 12V
Transformer, 160VA, 2 × 15V
Transformer, 160VA, 2 × 18V
Transformer, 160VA, 2 × 25V
Transformer, 160VA, 2 × 30V
Transformer, 160VA, 2 × 55V
Transformer, 225VA, 2 × 12V
Transformer, 225VA, 2 × 15V
Transformer, 225VA, 2 × 18V
Transformer, 225VA, 2 × 25V
Transformer, 225VA, 2 × 30V
Transformer, 225VA, 2 × 55V
Transformer, 300VA, 2 × 25V
Transformer, 300VA, 2 × 30V
Transformer, 300VA, 2 × 35V
Transformer, 300VA, 2 × 55V
VA
Rating
30
30
30
30
50
50
50
50
50
50
50
80
80
80
80
80
80
120
120
120
120
120
160
160
160
160
160
160
225
225
225
225
225
225
300
300
300
300
Input
Voltage
(V AC)
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
Output
Voltage
(V AC)
2 × 12
2 × 15
2 × 18
2 × 25
2×6
2×9
2 × 12
2 × 15
2 × 18
2 × 25
2 × 55
2×9
2 × 12
2 × 15
2 × 18
2 × 25
2 × 55
2 × 12
2 × 15
2 × 18
2 × 25
2 × 55
2 × 12
2 × 15
2 × 18
2 × 25
2 × 30
2 × 55
2 × 12
2 × 15
2 × 18
2 × 25
2 × 30
2 × 55
2 × 25
2 × 30
2 × 35
2 × 55
Output
Current
(A)
1.25
1
0.83
0.6
4.17
2.78
2.08
1.67
1.39
1
0.45
4.44
3.33
2.67
2.22
1.6
0.73
5
4
3.33
2.4
1.09
6.67
5.33
4.44
3.2
2.67
1.45
9.38
7.5
6.3
4.5
3.75
2.05
6
5
4.28
2.73
Regulation
(Typ. %)
14
14
14
14
14
14
14
14
14
14
14
11
11
11
11
11
11
10
10
10
10
10
8
8
8
8
8
8
7
7
7
7
7
7
6
6
6
6
Temp
Rise
(°C)
40
40
40
40
42
42
42
42
42
42
42
50
50
50
50
50
50
55
55
55
55
55
55
55
55
55
55
55
60
60
60
60
60
60
60
60
60
60
Height
× Dia.
(mm)
31 × 74
31 × 74
31 × 74
31 × 74
34 × 81
34 × 81
34 × 81
34 × 81
34 × 81
34 × 81
34 × 81
40 × 90
40 × 90
40 × 90
40 × 90
40 × 90
40 × 90
44 × 98
44 × 98
44 × 98
44 × 98
44 × 98
46 × 105
46 × 105
46 × 105
46 × 105
46 × 105
46 × 105
50 × 110
50 × 110
50 × 110
50 × 110
50 × 110
50 × 110
54 × 125
54 × 125
54 × 125
54 × 125
Weight
(Kg)
0.48
0.48
0.48
0.48
0.6
0.6
0.6
0.6
0.6
0.6
0.6
1
1
1
1
1
1
1.32
1.32
1.32
1.32
1.32
1.6
1.6
1.6
1.6
1.6
1.6
2.2
2.2
2.2
2.2
2.2
2.2
2.8
2.8
2.8
2.8
Part No
VTX-146-030-112
VTX-146-030-115
VTX-146-030-118
VTX-146-030-125
VTX-146-050-106
VTX-146-050-109
VTX-146-050-112
VTX-146-050-115
VTX-146-050-118
VTX-146-050-125
VTX-146-050-155
VTX-146-080-109
VTX-146-080-112
VTX-146-080-115
VTX-146-080-118
VTX-146-080-125
VTX-146-080-155
VTX-146-120-112
VTX-146-120-115
VTX-146-120-118
VTX-146-120-125
VTX-146-120-155
VTX-146-160-112
VTX-146-160-115
VTX-146-160-118
VTX-146-160-125
VTX-146-160-130
VTX-146-160-155
VTX-146-225-112
VTX-146-225-115
VTX-146-225-118
VTX-146-225-125
VTX-146-225-130
VTX-146-225-155
VTX-146-300-125
VTX-146-300-130
VTX-146-300-135
VTX-146-300-155
www.element14.com
www.farnell.com
www.newark.com
Page <2>
10/04/15
V1.0
Transformer
Description
Transformer, 500VA, 2 × 25V
Transformer, 500VA, 2 × 30V
Transformer, 500VA, 2 × 35V
Transformer, 500VA, 2 × 40V
Transformer, 500VA, 2 × 45V
Transformer, 500VA, 2 × 50V
Transformer, 500VA, 2 × 55V
Transformer, 625VA, 2 × 45V
Transformer, 625VA, 2 × 55V
Transformer, 800VA, 2 × 40V
Transformer, 800VA, 2 × 50V
Transformer, 800VA, 2 × 55V
Transformer, 1000VA,
2 × 40V
Transformer, 1000VA,
2 × 45V
Transformer, 1000VA,
2 × 50V
Transformer, 1000VA,
2 × 55V
VA
Rating
500
500
500
500
500
500
500
625
625
800
800
800
1000
1000
1000
1000
Input
Voltage
(V AC)
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
Output
Voltage
(V AC)
2 × 25
2 × 30
2 × 35
2 × 40
2 × 45
2 × 50
2 × 55
2 × 45
2 × 55
2 × 40
2 × 50
2 × 55
2 × 40
2 × 45
2 × 50
2 × 55
Output
Current
(A)
10
8.33
7.14
6.25
5.56
5
4.55
6.95
5.68
10
8
7.27
12.5
11.11
10
9.09
Regulation
(Typ. %)
6
6
6
6
6
6
6
5
5
5
5
5
4
4
4
4
Temp
Rise
(°C)
68
68
68
68
68
68
68
70
70
72
72
72
75
75
75
75
Height
× Dia.
(mm)
59 × 135
59 × 135
59 × 135
59 × 135
59 × 135
59 × 135
59 × 135
71 × 139
71 × 139
65 × 163
65 × 163
65 × 163
71 × 167
71 × 167
71 × 167
71 × 167
Weight
(Kg)
4.3
4.3
4.3
4.3
4.3
4.3
4.3
5.2
5.2
6.3
6.3
6.3
7.5
7.5
7.5
7.5
Part No
VTX-146-500-125
VTX-146-500-130
VTX-146-500-135
VTX-146-500-140
VTX-146-500-145
VTX-146-500-150
VTX-146-500-155
VTX-146-625-145
VTX-146-625-155
VTX-146-800-140
VTX-146-800-150
VTX-146-800-155
VTX-146-1000-140
VTX-146-1000-145
VTX-146-1000-150
VTX-146-1000-155
Important Notice :
This data sheet and its contents (the “Information”) belong to the members of the Premier Farnell group of companies (the “Group”) or are licensed to it. No licence is granted
for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change
without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any
error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any
assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the
Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence.
Multicomp is the registered trademark of the Group. © Premier Farnell plc 2012.
www.element14.com
www.farnell.com
www.newark.com
Page <3>
10/04/15
V1.0
