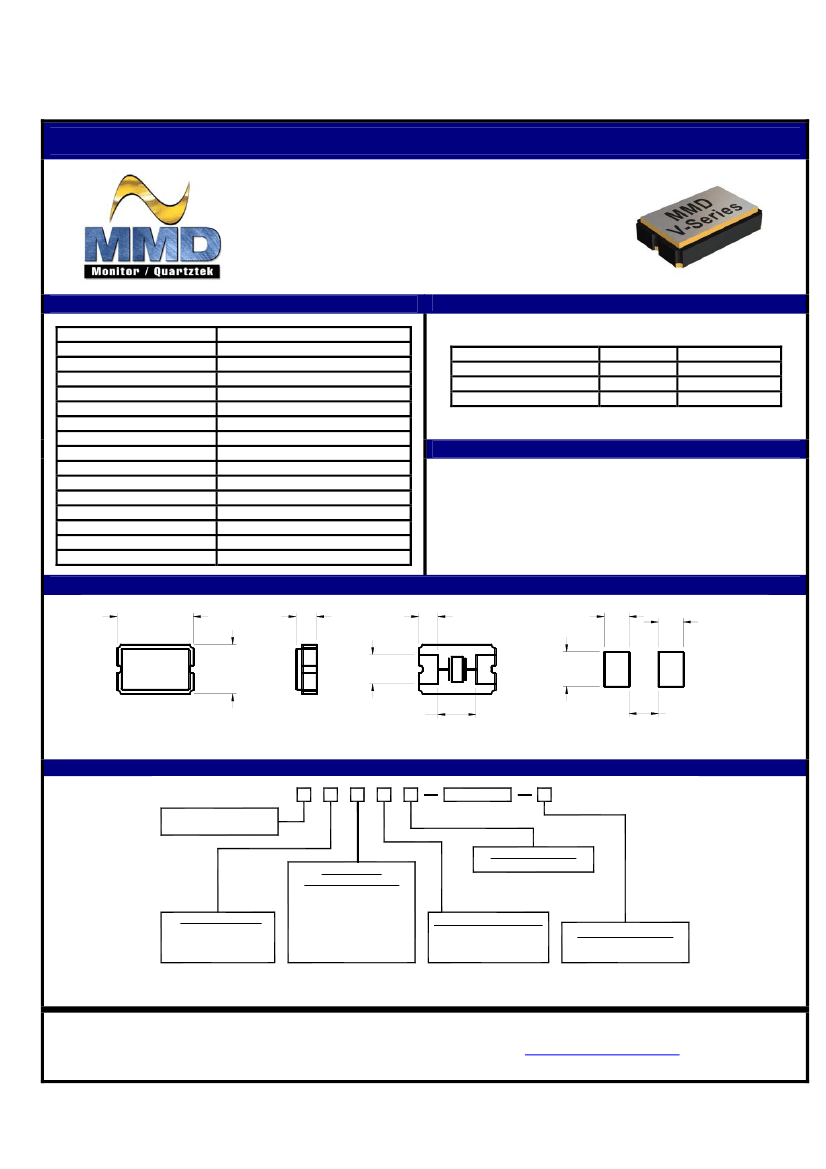

V Series Crystal
5.0mm x 3.2mm x 1.2mm 2 Pads
Ceramic Package
RoHS Compliant
Rugged AT-cut Crystal Construction
Tape and Reel Packaging Available
ELECTRICAL SPECIFICATIONS:
Frequency Range
Frequency Tolerance / Stability
Operable Temperature
Storage Temperature
Aging
Shunt Capacitance
Load Capacitance
Oscillation Mode
Drive Level
Insulation Resistance
Shock
Solderability
Solvent Resistance
Vibration
Gross Leak Test
Fine Leak Test
12.000 MHz to 50.000 MHz
(See Part Number Guide for Options)
(See Part Number Guide for Options)
-40°C to +85°C
±5 ppm per year
5 pF
(See Part Number Guide for Options)
Fundamental
10µW typ / 300 max
500 M ohms / 100 VDC
MIL-STD-883, Meth 2002, Cond B
MIL-STD-883, Meth 2003
MIL-STD-202, Meth 215
MIL-STD-883, Meth 2007, Cond A
MIL-STD-883, Meth 1014, Cond C
MIL-STD-883, Meth 1014, Cond A
ESR CHART:
Frequency Range
12.000MHZ to 30.000MHZ
30.001MHZ to 40.000MHZ
40.001MHZ to 50.000MHZ
ESR (Ohms)
60 Max
50 Max
40 Max
Mode / Cut
Fund / AT
Fund / AT
Fund / AT
MARKING:
Line 1: MXX.XXX
XX.XXX = Frequency in MHz
Line 2: SYMCCL
S = Internal Code
YM = Date Code (Year/Month)
CC = Crystal Parameters Code
L = Denotes RoHS Compliant
MECHANICALS DETAIL:
5.20 [.205]
MAX
1.40 [.055]
MAX
1.30 [.051]
1.70 [.067]
1.70 [.067]
3.40 [.134]
MAX
2.00 [.079]
2.40 [.094]
2.40 [.094]
DIMENSION IN BRACKETS ARE IN INCHES
2.00 [.079]
RECOMMENDED
LAND PATTERN
PART NUMBER GUIDE:
V
5mm X 3.2mm x 1.2mm
2 Pads
Mode of Operation
1 = Fundamental
Frequency
Load Capacitance
S = Series
20 = 20pF (Standard)
XX = XXpF (8pF to 50pF)
Temperature
Tolerance/Stability*
A = ±50 ppm / ±100 ppm
B = ±30 ppm / ±50 ppm
C = ±15 ppm / ±30 ppm
D = ±10 ppm / ±15 ppm
E = ±50 ppm / ±50 ppm
N = ±10 ppm / ±10 ppm
Operating Temperature
A = 0°C to +70°C
B = -20°C to +70°C
C = -40°C to +85°C **
Value Added Options
Blank = No Added Options
T = Tape and Reel
* Please consult with MMD sales department for any other parameters or options.
** Not all Frequency Tolerance/Stability options available at this temperature range.
MMD Components,
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Specifications subject to change without notice
Revision V052207C
