US1A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> US1A

US1A: Description1 A, 50 V, SILICON, SIGNAL DIODE, DO-214AC; CategoryDiscrete semiconductor diode; File Size193KB，2 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

US1A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	US1A	-	-	View	Buy Now

US1A Overview

1 A, 50 V, SILICON, SIGNAL DIODE, DO-214AC

US1A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SEMIKRON
Parts packaging code	DO-214AC
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	compli
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
JESD-609 code	e2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
Maximum reverse recovery time	0.05 µs
surface mount	YES
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

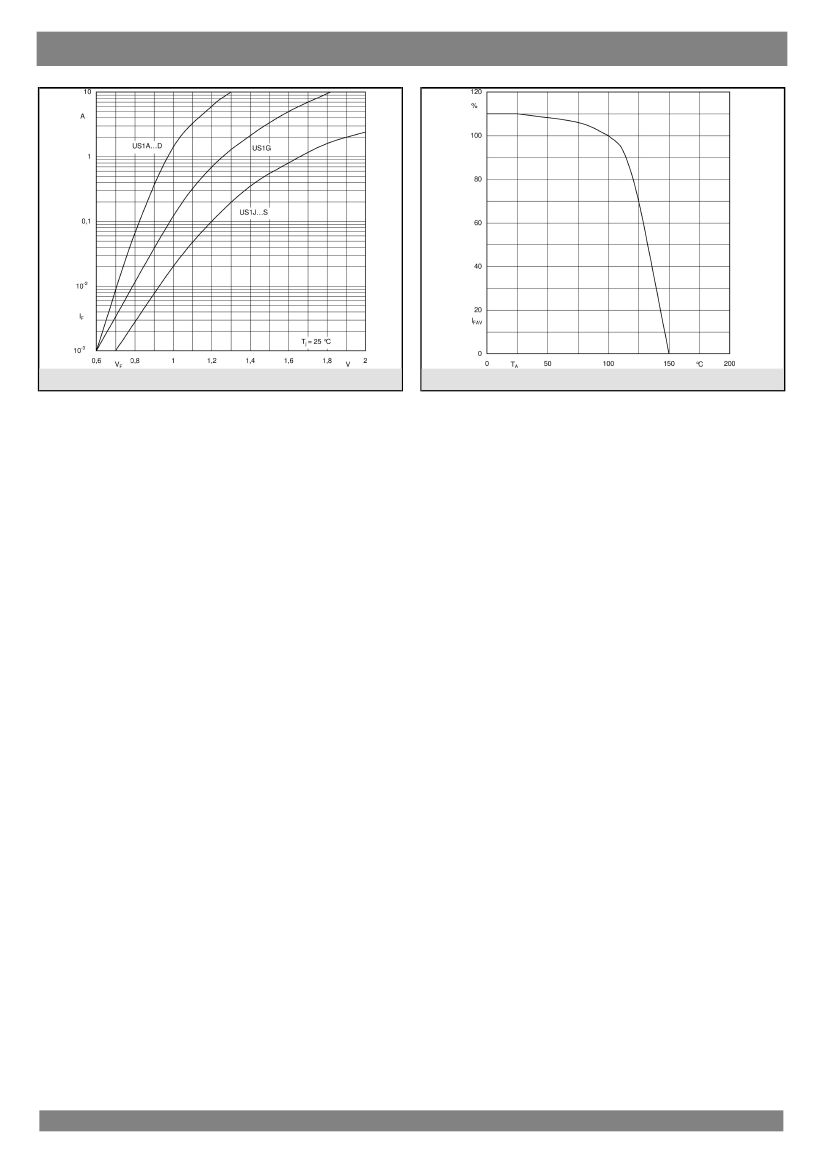

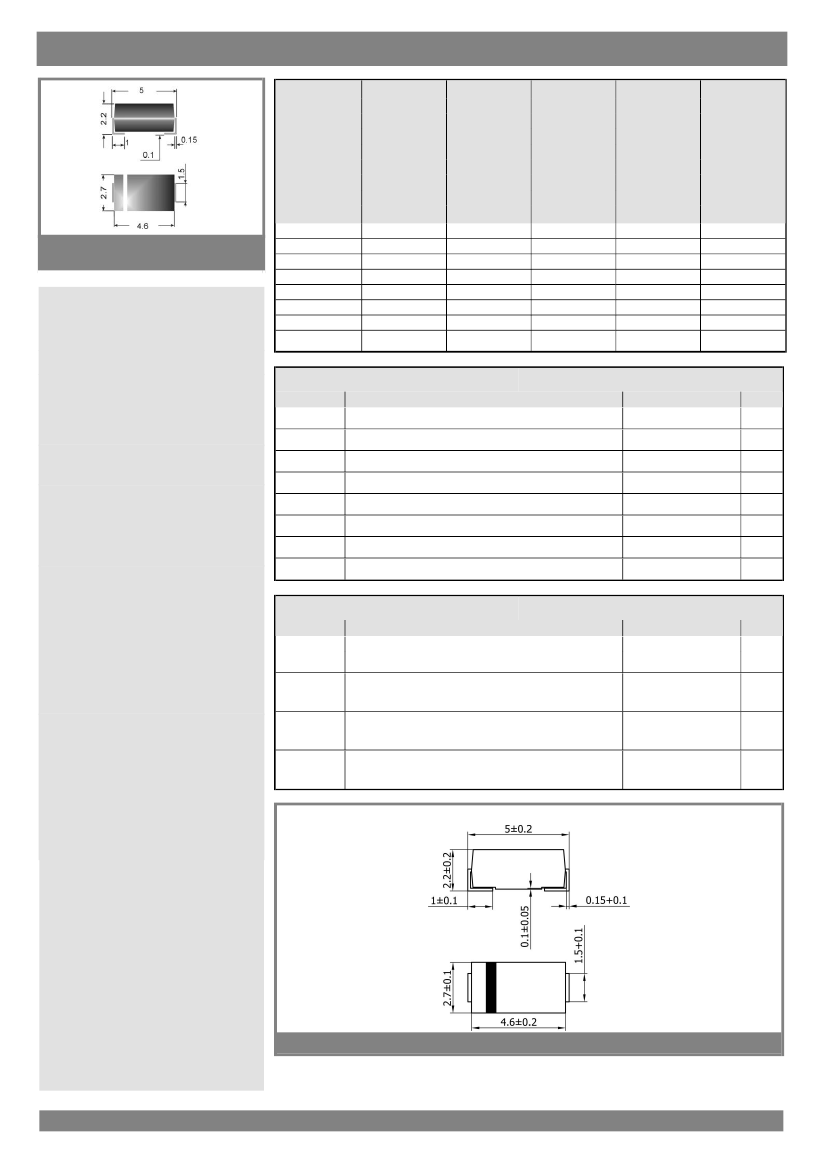

US 1A ... US 1S

Surface mount diode

Ultrafast silicon rectifier

diodes

US 1A ... US 1S

Forward Current: 1 A

Reverse Voltage: 50 to 1200 V

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Features

Mechanical Data

Characteristics

Symbol Conditions

Values

Units

Dimensions in mm

15-02-2008 MAM

US1A Related Products

	US1A	US1S	US1M	US1K	US1J	US1G	US1D	US1B	US1A_08
Description	1 A, 50 V, SILICON, SIGNAL DIODE, DO-214AC	1 A, 1000 V, SILICON, SIGNAL DIODE	1 A, 1000 V, SILICON, SIGNAL DIODE	1 A, 800 V, SILICON, SIGNAL DIODE	SIGNAL DIODE	1 A, 400 V, SILICON, SIGNAL DIODE, DO-214AC	1 A, 200 V, SILICON, SIGNAL DIODE, DO-214AC	1 A, 100 V, SILICON, SIGNAL DIODE, DO-214AC	1 A, 1000 V, SILICON, SIGNAL DIODE
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to	conform to	conform to	-
Maker	SEMIKRON	SEMIKRON	-	-	-	SEMIKRON	SEMIKRON	SEMIKRON	-
Parts packaging code	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC	-
package instruction	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	PLASTIC, SMA, 2 PIN	PLASTIC, SMA, 2 PIN	PLASTIC, SMA, 2 PIN	PLASTIC, SMA, 2 PIN	-
Contacts	2	2	2	2	2	2	2	2	-
Reach Compliance Code	compli	unknow	compli	compli	compli	compli	compli	compli	-
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
Configuration	SINGLE	SINGLE	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-
Diode component materials	SILICON	SILICON	-	SILICON	SILICON	SILICON	SILICON	SILICON	silicon
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	-	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	Signal diode
JEDEC-95 code	DO-214AC	DO-214AC	-	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC	-
JESD-30 code	R-PDSO-C2	R-PDSO-C2	-	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	-
JESD-609 code	e2	-	-	e2	e2	e2	e2	e2	-
Number of components	1	1	-	1	1	1	1	1	1
Number of terminals	2	2	-	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	-	150 °C	150 °C	150 °C	150 °C	150 °C	-
Minimum operating temperature	-50 °C	-50 °C	-	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-
Maximum output current	1 A	1 A	-	1 A	1 A	1 A	1 A	1 A	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	SMALL OUTLINE	SMALL OUTLINE	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Maximum repetitive peak reverse voltage	50 V	1200 V	-	800 V	600 V	400 V	200 V	100 V	1000 V
Maximum reverse recovery time	0.05 µs	0.075 µs	-	0.075 µs	0.075 µs	0.05 µs	0.05 µs	0.05 µs	0.0750 us
surface mount	YES	YES	-	YES	YES	YES	YES	YES	Yes
Terminal surface	Tin/Silver (Sn/Ag)	-	-	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	-
Terminal form	C BEND	C BEND	-	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	-	DUAL	DUAL	DUAL	DUAL	DUAL	pair
Maximum time at peak reflow temperature	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Maximum forward voltage (VF)	-	-	-	1.7 V	1.7 V	1 V	1 V	1 V	-
Maximum non-repetitive peak forward current	-	-	-	30 A	30 A	30 A	30 A	30 A	-
