UR1111C Overview

SINGLE COLOR LED, BLUE, 1.2 mm

UR1111C Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Number of functions	1
Number of terminals	2
Viewing angle	150 deg
Processing package description	1.60 X 0.80 MM, 0.70 MM HEIGHT, ROHS COMPLIANT PACKAGE-2
state	ACTIVE
structure	SINGLE
Optoelectronic device type	SINGLE COLOR LED
color	BLUE
Maximum continuous forward current	15 mA
LED height	0.7000 mm
lead gap	1.6 mm
Lens type	MILKY WHITE
light intensity	20.0
Installation features	SURFACE MOUNT
peak wavelength	465
shape	RECTANGULAR
size	1.2 mm

Preview

Download Datasheet

View All

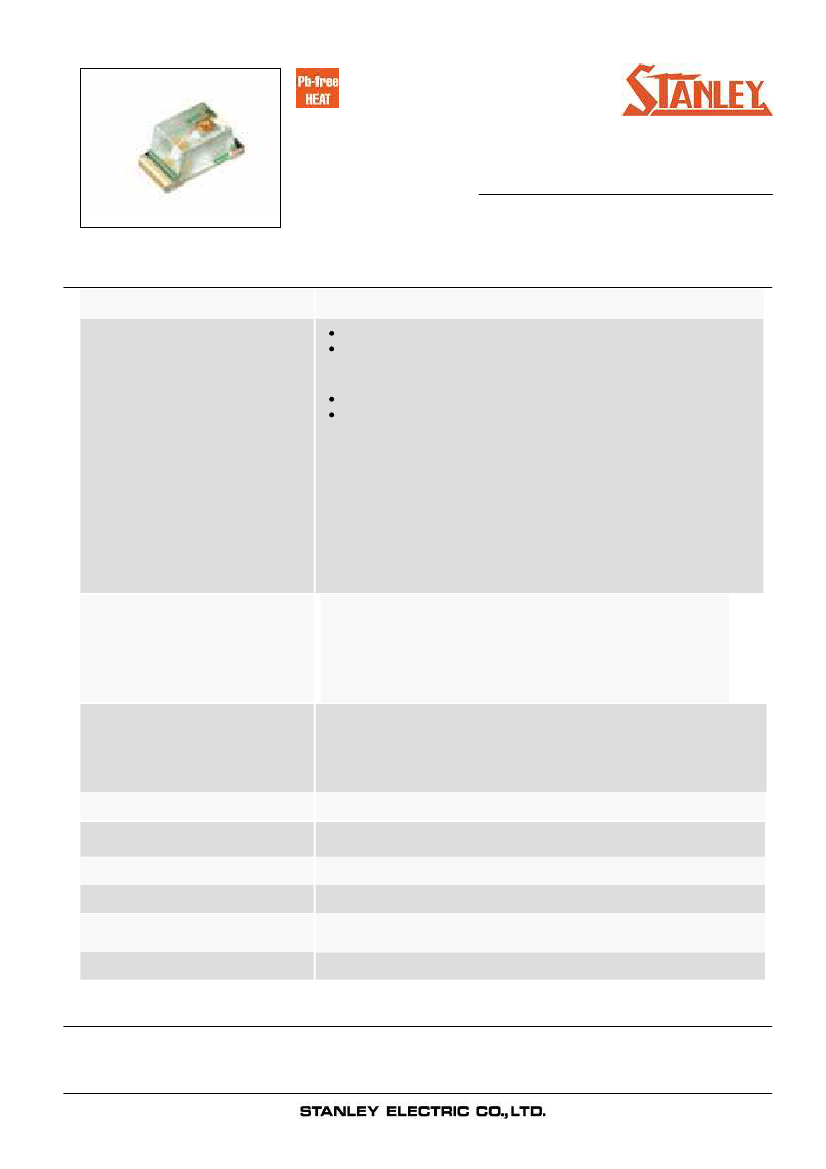

1111C Series

Single Color Ultra High Brightness Type

Features

Package

Product features

1608 (h=0.7mm) Type, Milky White resin

Outer Dimension 1.6 x 0.8 x 0.7mm ( L x W x H )

Temperature range

Storage Temperature : -40℃∼100℃

Operating Temperature : -40℃∼85℃

Lead–free soldering compatible

RoHS compliant

Dominant wavelength

Blue

Blue Green

Green

Yellow

Red

SB, SG

UB, UC, UG

UY, UR

: 470nm(SB,UB)

: 508nm(UC)

: 530nm(SG,UG)

: 590nm(UY)

: 630nm(UR)

:θx = 150 deg.,

θy

=150 deg.

:θx = 150 deg.,

θy

=165 deg.

:θx = 150 deg.,

θy

=140 deg.

Half Intensity Angle

Die materials

Rank grouping parameter

Assembly method

Soldering methods

Taping and reel

ESD

SB,SG,UB,UC,UG : InGaN

UY,UR : AlGalnP

Sorted by luminous intensity and wavelength per rank taping

Auto pick & place machine (Auto Mounter)

Reflow soldering

4,000pcs per reel in a 8mm width tape. (Standard)

Reel diameter:φ180mm

InGaN : Up to 1kV(HBM),

AlGaInP : Up to 2kV (HBM)

Recommended Applications

Communication Machine, Electric Household Appliances, OA/FA, Other General Applications

2009.10.30

Page 1
