605-43-085-13-081048 datasheet, PDF

Datasheet> All Categories > The connector> socket> 605-43-085-13-081048

605-43-085-13-081048: DescriptionIC Socket, PGA85, 85 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size380KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

605-43-085-13-081048 Overview

IC Socket, PGA85, 85 Contact(s), ROHS COMPLIANT

605-43-085-13-081048 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Tin (Sn)
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	PGA85
Shell material	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER
JESD-609 code	e3
Number of contacts	85
Base Number Matches	1

Preview

Download Datasheet

View All

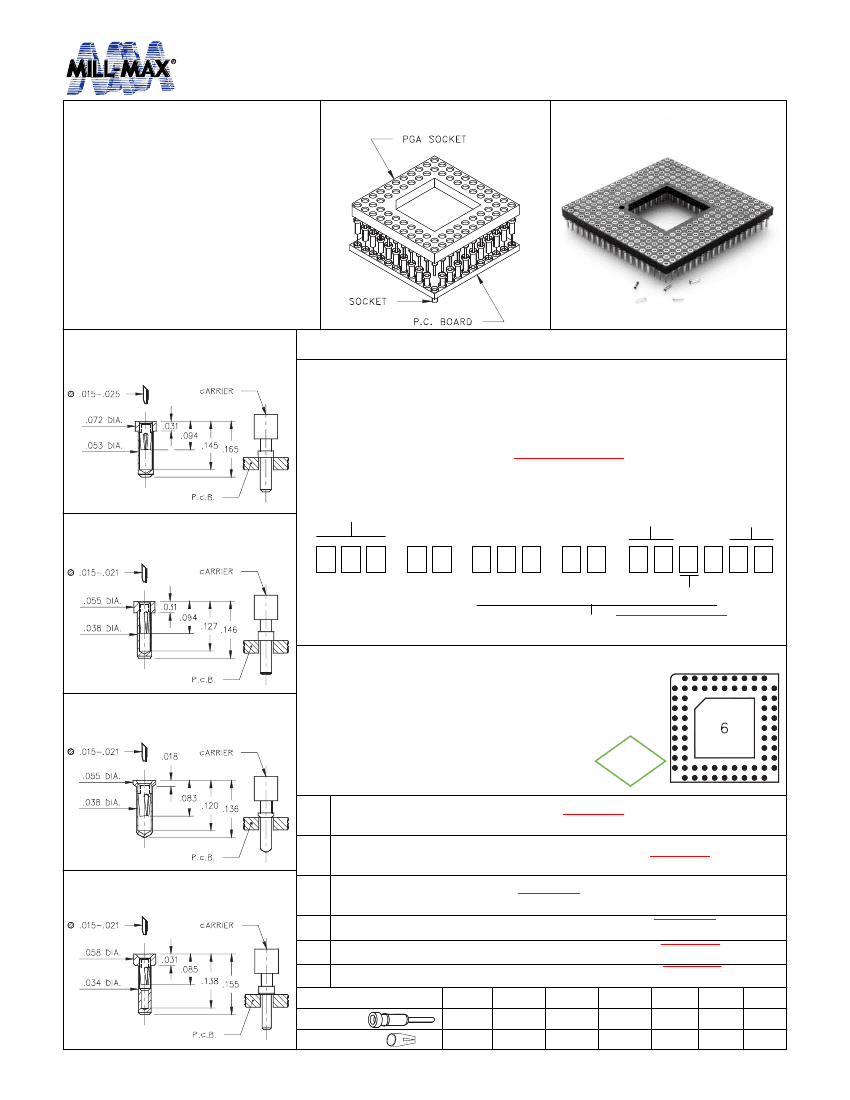

PIN GRID ARRAY SOCKETS

Carrier Type

•

Series 614 & 605 PGA carrier

sockets offer 4 receptacle styles.

•

Many combinations of

receptacles and clips to cover

all applications.

•

Hi-Temp PCT polyester insulator

material suitable for all forms of

soldering.

•

Carrier sockets provide a

convenient way of loading groups

of receptacles onto a PC board.

APPLICATION OF

PGA SOCKET CARRIERS

Series 614, 605

LOW PROFILE

SERIES 614...001, 002, 003

Ordering Information

1. Select receptacle type at left in combination with receptacle chart below

to determine series prefix & suffix numbers.

2. Specify 2-digit plating code from chart at bottom of page

3. Locate footprint pattern from pages 107 to 111, the middle 8 digits of

the part number will be located under the pattern.

MINIATURE

SERIES 614...007

Series

Plating

Code

Window

Suffix

No. of pins

Grid size

Pattern #

Determined from footprint pattern pages 107 to 111

EXAMPLE OF COMPLETE PART NUMBER:

614-43-068-11-061001

This is a 68 pin (11x11 grid) insulator with a .6” square

window and fitted with low profile receptacles. Pin

sleeve is tin plated, inner contacts are Mill-Max #32

and are plated 30μ” gold.

Suffix

Receptacle/ Clip Chart

Low Profile Mill-Max #32 clip, standard low force, recommended for

devices with less than 150 pins. See page 208 for details.

Low Profile Mill-Max #35 clip, ultra low force, recommended for devices

with more than 150 pins, but less than 250 pins. See page 209 for details.

Low Profile Mill-Max #43 clip, “ultra lite”, recommended for devices

with more than 250 pins. See page 209 for details.

LOWEST PROFILE

SERIES 614...012

REDUCED BARREL

SERIES 605...048

07 Miniature Mill-Max #21 clip, standard low force.See page 206 for details.

12 Lowest Profile Mill-Max #21 clip,standard low force.See page 206 for details.

48 Reduced Barrel Mill-Max #21 clip,standard low force.See page 206 for details.

SPECIFY PLATING CODE XX=

10µ” Au

30µ” Au

10µ” Au

30µ” Au

200µ”Sn/Pb

10µ” Au

Sleeve (Pin)

Contact (Clip)

200µ” Sn/Pb

200µ”Sn/Pb 200µ”Sn

200µ”Sn

30µ” Au

200µ”Sn

w w w. m i l l - m a x . c o m

100

516-922-6000
