LRA515-RW-W/024V datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> LRA515-RW-W/024V

LRA515-RW-W/024V: DescriptionRocker Switch, SPST, Latched, 10A, 30VDC, Wire Terminal, Panel Mount; CategoryMechanical and electronic products switch; File Size130KB，1 Pages; ManufacturerCarling Technologies; Environmental Compliance

Download Datasheet Parametric View All

LRA515-RW-W/024V Overview

Rocker Switch, SPST, Latched, 10A, 30VDC, Wire Terminal, Panel Mount

LRA515-RW-W/024V Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
body width	15.75 mm
body height	18.41 mm
Body length or diameter	27.17 mm
Contact (AC) maximum rated R load	10A@30VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@30VDC
Maximum contact voltage (AC)	30 V
Maximum contact voltage (DC)	30 V
Electrical life	100000 Cycle(s)
Manufacturer's serial number	LRA
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	ROCKER SWITCH
Termination type	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

Carling

Technologies

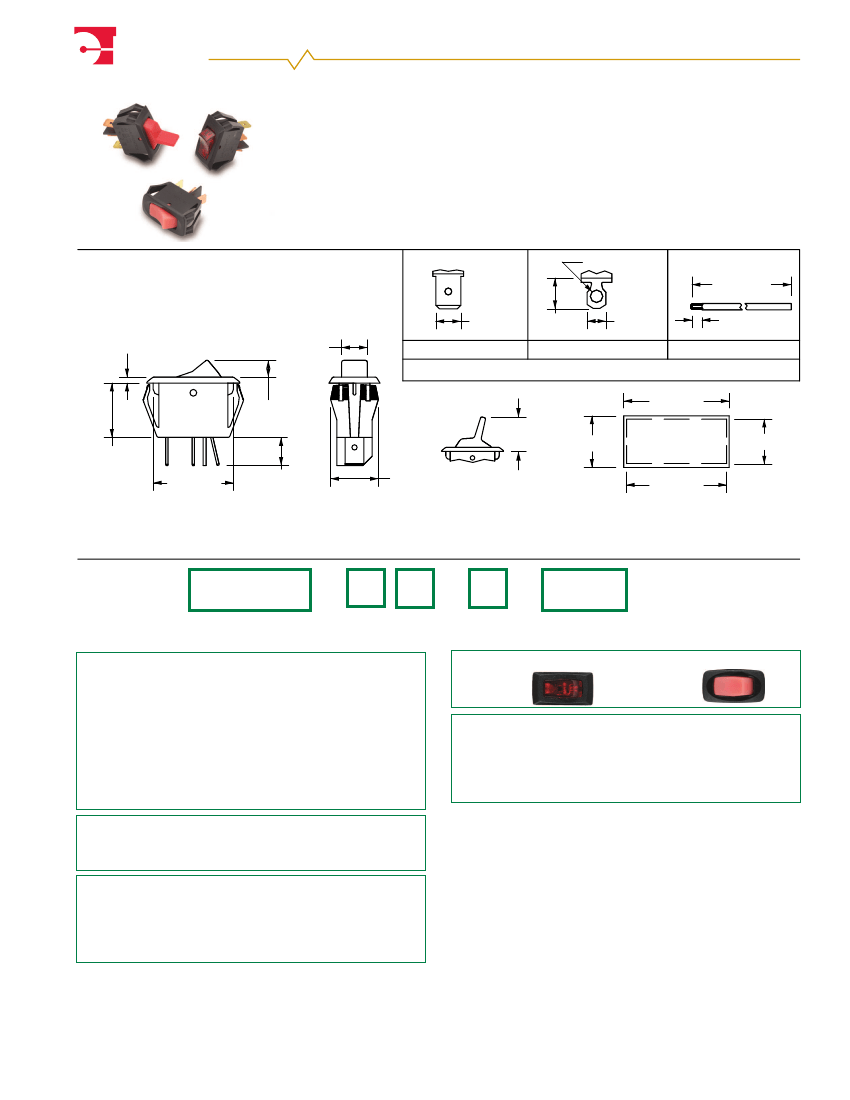

Curvette LRA-Series Single Pole Lighted Rocker & Paddle Switches

™

Curvette LRA-Series Single Pole Lighted Rocker & Paddle Switches

Since its introduction, the Curvette switch has become the

barometer for versatility and performance in the miniature

switch market. This lighted version features the very same

self cleaning contacts, International approvals, along with a

wide variety of circuits, ratings, and actuator options makes

the Curvette the switch of choice for sundry other markets

including HVAC, Office Lighting, Transportation, Commercial

Food and Lawn and Garden.

Dielectric Strength

UL/CSA:

1000V-live to dead metal parts

VDE:

4000V - live to dead metal parts;

750V - across open contacts

Electrical Life

100,000 cycles

Mechanical Life

100,000 cycles

Operating Temperature

32°F to 185°F (0°C to 85°C)

.125[3.18] DIA

6.000[152.40]

.250[6.35]

.080[2.03]

.375[9.52]

.250 TAB (Q.C.)

.250[6.35]

.187[4.75]

.500[12.70]

WIRE LEAD

SOLDER LUG

TERMINAL TYPE

.187[4.75]

.710[18.03]

.550[13.97]

.725[18.41]

.375[9.53]

.620[15.75]

PADDLE

1.072[27.23]

MOUNTING HOLE

Panel Thickness: .025 min. - .187 max.

Specific cutout dimension range

dependent on panel thickness and material.

Consult factory.

1.125[28.58]

TEST CUT HOLE

IN ACTUAL

MATERIAL

.480[12.19]

1.070[27.17]

LRA911

R S

250N

Base Part Number

Actuator

Style

Actuator

Color

Bezel

Color/Style

Lamp Voltage

1 BASE PART NUMBER: SERIES/CIRCUITRY/RATING

/TERMINATION

125 neon lamp (use 125N in Selection 5 Lamp Voltage)

10A 250VAC; 16A 125VAC; 10(4)A 125VACu

Solder Lugs

.250 Tabs

Wire Leads

OFF-NONE-ON

LRA210

LRA211

LRA215

250 neon lamp (select 250N in selection 5 Lamp Voltage)

15A 250 VAC; 10A 250VAC; 16A 125vAC; 10(4)A 250 T85

Solder Lugs

.250 Tabs

Wire Leads

OFF-NONE-ON

LRA910

LRA911

LRA915

Incandescent lamp (select 006V-024V in selection 5 Lamp Voltage)

10A 30V

Solder Lugs

.250 Tabs

Wire Leads

OFF-NONE-ON

LRA510

LRA511

LRA515

2 ACTUATOR STYLE

paddle

rocker translucent

rocker clear

3 ACTUATOR COLOR

translucent

amber

white

yellow

red

pale red

4 BEZEL COLOR/STYLE

STANDARD

black

white

5 LAMP VOLTAGE

006V

6 volts incandescent

012V

12 volts incandescent

018V

18 volts incandescent

024V

24 volts incandescent

125N

125 volts neon

250N

250 volts neon

OVAL

black

white

clear

amber

clear

green

blue

red

NOTES

LED illumination, PC terminals, independent lamps, and additional color options are available. Consult factory.

Neon lamps not available with blue or green actuators.

Consult factory for additional ratings.

www.carlingtech.com
