Preset counters mechanic
Meter and revolution counters, adding
Display 5 digits, manual reset by lever
ME280, UE280
Features
– Preset counter with one or two presets
– Meter or revolution counter
– Adding
– Display 5-digits
– Reset by lever

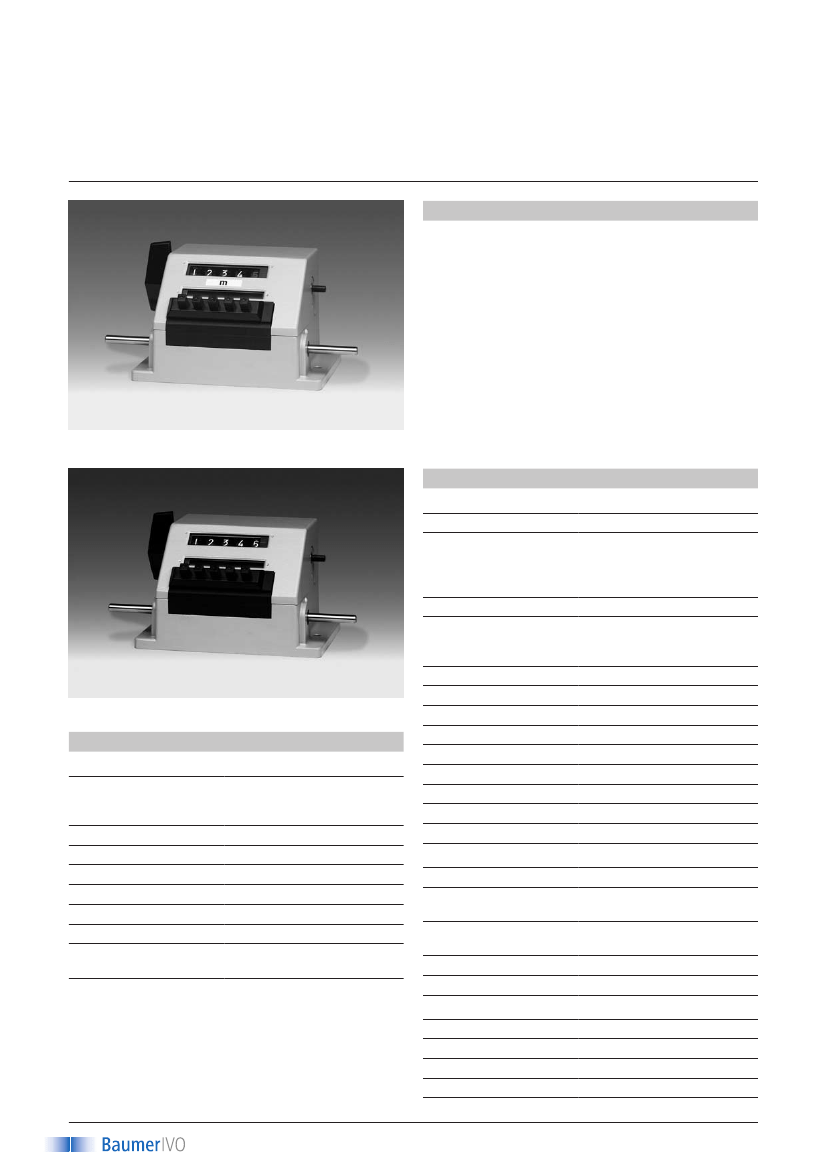

ME280 - Meter counter
Technical data - mechanical design
Number of digits
Digit height
Count mode
5-digits
7 mm
Adding in a rotational direction
to be indicated, subtracing in
reverse direction.
See part number key
Both sides, ø7 mm
By reset lever to preset value.
Do not let snap lever or make
jerky movements.
0...+60 °C
Surface mount housing
Grey
120 x 105 x 95 mm
Base plate, 4 mounting holes
1400 g
Aluminium die cast alloy
Terminal block connector
Meter counter with preset
White numbers on black
Decimal digits in red
2 revs. = 1 digit = <3000 m/min
2 revs. = 10 di. = <300.0 m/min
1 m, 1 dm
9 999.9 m and 99 999 m
Revolution counter with preset
White numbers on black
≤6000 rpm
99 999
Subject to modification in technic and design. Errors and omissions excepted.
2/12/2008
Drive shaft
Reset
Operating temperature
UE280 - Revolution counter
Technical data - electrical ratings
Preset
Preset setting
2 presets
Press reset button and hold.
Enter desired value in any
order. Release reset button.
Trigger at preset 1 (adding)
Trigger at preset 2
Change-over contact
230 VAC / VDC
2A
100 VA / 30 W
Recommended for inductive
load
Measuring speed
Measuring precision
Measuring range
UE280
Function
Display
Operating speed
Measuring range
Housing type
Housing colour
Dimensions W x H x L
Mounting
Weight approx.
Material
E-connection
ME280
Function
Display
Dimensions mounting plate 158 x 105 mm
Limit switch
Precontact
Output contact
Switching voltage
Switching current
Switching capacity
Spark extinguisher
1
www.baumerivo.com
Meter and revolution counters, adding
Display 5 digits, manual reset by lever
Preset counters mechanic
ME280, UE280
Part number
Meter counter
ME280.0
0A
Measuring range
A
99 999 m
B
9999.9 m
07
08
13
14
Count mode /Direction of rotation
2 revs. = 10 digits / I
2 revs. = 10 digits / II
2 revs. = 1 digit / I
2 revs. = 1 digit / II
Revolution counter
UE280.0
0A
A
Measuring range
A
99 999
Count mode /Direction of rotation
11
1 rev. = 1 digit / I
12
1 rev. = 1 digit / II
Preset / reset
1
1 preset / reset lever, permanent contact
3
2 presets / reset lever, permanent contact
Direction of strokes and rotation
Preset / reset
1
1 preset / reset lever, permanent contact
3
2 presets / reset lever, permanent contact
Away from user
Sense of rotation I
Accessories
Measuring wheels for ME280
Towards user
Sense of rotation II
MR512.07A Circumf. 50 cm, knurled aluminium
MR542.07D Circumf. 50 cm, smooth Hytrel TPE-E
MR552.07A Circumf. 50 cm, smooth Vulkollan PUR
MR562.07A Circumf. 50 cm, knopped rubber NBR Nitril
MR592.07D Circumf. 50 cm, grooved Hytrel TPE-E
Dimensions
120
Subject to modification in technic and design. Errors and omissions excepted.
2/12/2008
ø7
28
20
43
68
105
52
18
ø6.4
137
158
210
2
www.baumerivo.com
8
67
95
