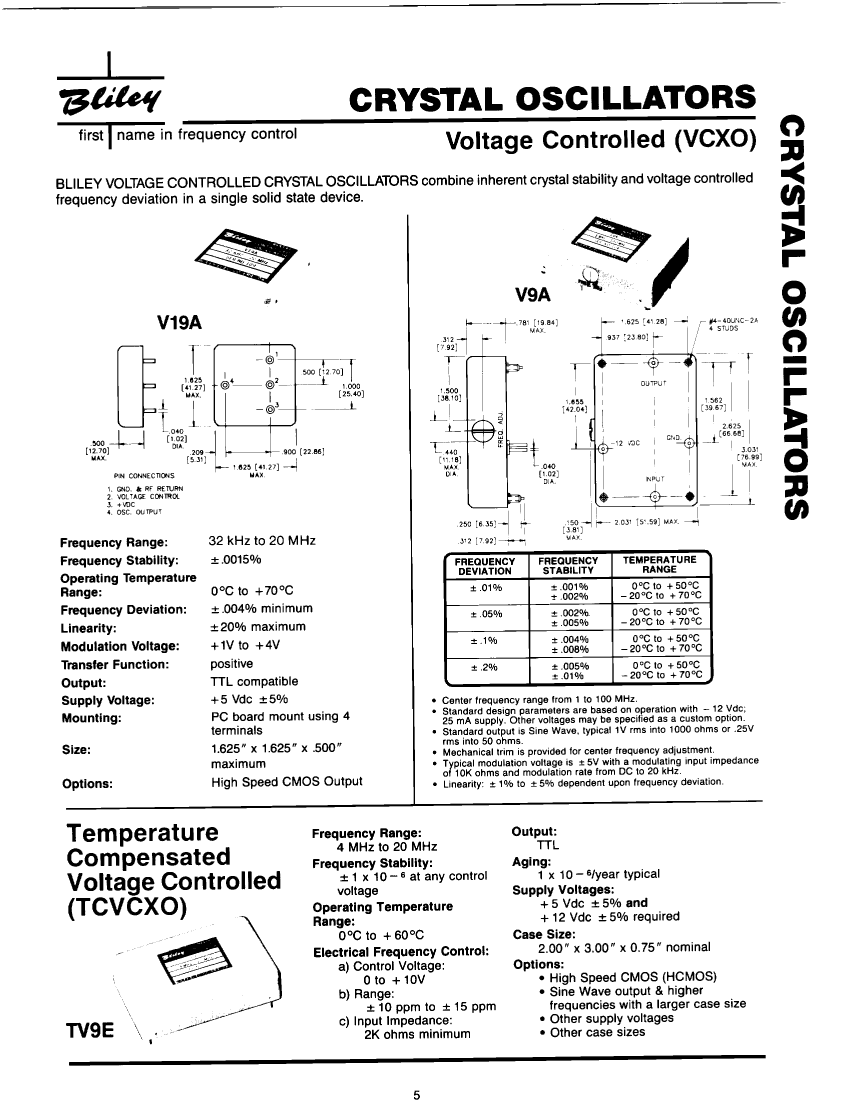

Sine Output Oscillator, 1MHz Min, 100MHz Max
| Parameter Name | Attribute value |
| Reach Compliance Code | unknown |
| Maximum control voltage | 5 V |
| Minimum control voltage | -5 V |
| Frequency Adjustment - Mechanical | YES |
| Frequency offset/pull rate | 1000 ppm |
| frequency stability | 80% |
| linearity | 5% |
| Manufacturer's serial number | V9A |
| Installation features | SPECIAL |
| Maximum operating frequency | 100 MHz |
| Minimum operating frequency | 1 MHz |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | -20 °C |
| Oscillator type | SINE |
| Output impedance | 50 Ω |
| Output level | 0.7071 V |
| physical size | 76.99mm x 51.59mm x 19.84mm |
| Nominal supply voltage | -12 V |
| surface mount | NO |
| Base Number Matches | 1 |
| V9A-FREQ-OUT1-STBY5-DEVN3 | TV9E-FREQ-OUT3-V1 | V19A-FREQ-OUT29 | TV9E-FREQ-OUT3-V2 | V9A-FREQ-OUT1-STBY3-DEVN4 | V9A-FREQ-OUT1-STBY4-DEVN3 | V9A-FREQ-OUT1-STBY2-DEVN2 | |
|---|---|---|---|---|---|---|---|
| Description | Sine Output Oscillator, 1MHz Min, 100MHz Max | TTL Output Clock Oscillator, 4MHz Min, 20MHz Max | HCMOS/TTL Output Clock Oscillator, 0.032MHz Min, 20MHz Max | TTL Output Clock Oscillator, 4MHz Min, 20MHz Max | Sine Output Oscillator, 1MHz Min, 100MHz Max | Sine Output Oscillator, 1MHz Min, 100MHz Max | Sine Output Oscillator, 1MHz Min, 100MHz Max |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknow |
| Maximum control voltage | 5 V | 10 V | 4 V | 10 V | 5 V | 5 V | 5 V |
| Minimum control voltage | -5 V | - | 1 V | - | -5 V | -5 V | -5 V |
| Frequency Adjustment - Mechanical | YES | NO | NO | NO | YES | YES | YES |
| Frequency offset/pull rate | 1000 ppm | 15 ppm | 40 ppm | 15 ppm | 2000 ppm | 1000 ppm | 500 ppm |
| frequency stability | 80% | 1% | 15% | 1% | 50% | 40% | 20% |
| Manufacturer's serial number | V9A | TV9E | V19A | TV9E | V9A | V9A | V9A |
| Installation features | SPECIAL | THROUGH HOLE MOUNT | THROUGH HOLE MOUNT | THROUGH HOLE MOUNT | SPECIAL | SPECIAL | SPECIAL |
| Maximum operating frequency | 100 MHz | 20 MHz | 20 MHz | 20 MHz | 100 MHz | 100 MHz | 100 MHz |
| Minimum operating frequency | 1 MHz | 4 MHz | 0.032 MHz | 4 MHz | 1 MHz | 1 MHz | 1 MHz |
| Maximum operating temperature | 70 °C | 60 °C | 70 °C | 60 °C | 50 °C | 50 °C | 50 °C |
| Oscillator type | SINE | TTL | HCMOS/TTL | TTL | SINE | SINE | SINE |
| physical size | 76.99mm x 51.59mm x 19.84mm | 76.2mm x 50.8mm x 19.05mm | 41.27mm x 41.27mm x 12.7mm | 76.2mm x 50.8mm x 19.05mm | 76.99mm x 51.59mm x 19.84mm | 76.99mm x 51.59mm x 19.84mm | 76.99mm x 51.59mm x 19.84mm |
| Nominal supply voltage | -12 V | 5 V | 5 V | 12 V | -12 V | -12 V | -12 V |
| surface mount | NO | NO | NO | NO | NO | NO | NO |
| linearity | 5% | - | 20% | - | 5% | 5% | 5% |
| Output impedance | 50 Ω | - | - | - | 50 Ω | 50 Ω | 50 Ω |
| Output level | 0.7071 V | - | - | - | 0.7071 V | 0.7071 V | 0.7071 V |
| Maker | - | Bliley Technologies Inc | - | Bliley Technologies Inc | Bliley Technologies Inc | Bliley Technologies Inc | Bliley Technologies Inc |
