CX5032GAFREQ2H0QSWZZ: DescriptionQuartz Crystal, QUARTZ CRYSTAL RESONATOR, 12 MHz - 13.999 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-2; CategoryPassive components Crystal/resonator; File Size141KB，1 Pages; ManufacturerKyocera; Environmental Compliance

Download Datasheet Parametric Compare View All

CX5032GAFREQ2H0QSWZZ Overview

Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 12 MHz - 13.999 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-2

CX5032GAFREQ2H0QSWZZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kyocera
Reach Compliance Code	unknown
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.02%
frequency tolerance	100 ppm
load capacitance	12 pF
Installation features	SURFACE MOUNT
Maximum operating frequency	13.999 MHz
Minimum operating frequency	12 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
physical size	L5.0XB3.2XH1.3 (mm)/L0.197XB0.126XH0.051 (inch)
Series resistance	150 Ω
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

Crystal Units

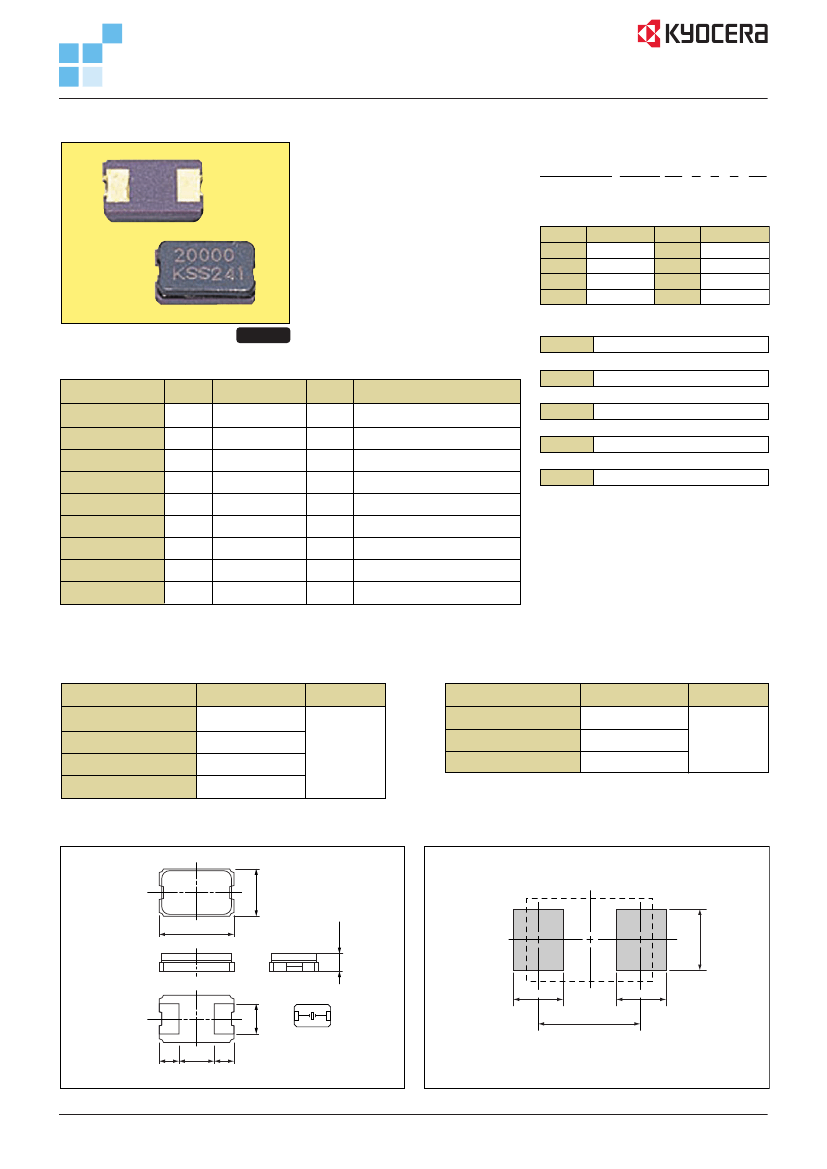

Surface Mount Type CX5032GA (CX-53G)

5.0×3.2mm for Automotive

Features

• Crystal unit for automotive electronics

• Small and low profile (5.0x3.2x1.3mm)

• Ceramic package

• Product with lead free terminations

• Reflow compatible

How to Order

CX5032GA 16000 H0 Q S W ZZ

①

②

③ ④⑤ ⑥ ⑦

Freq.(kHz)

18000.000

20000.000

24000.000

25000.000

①Code

②Typical

Frequencies

Code Freq.(kHz)

10000

10000.000

12000

12000.000

15000

15000.000

16000

16000.000

③Load

Capacitance

H0

12pF

④Frequency

Stability

10010

-6

Q

⑤Operating

Temperature Range

40°C

to

125°C

S

⑥Frequency

Temperature Stability

W

20010

-6

Applications

• Engine Control

Code

18000

20000

24000

25000

*Please inquire about frequencies other than the above.

RoHS Compliant

Specifications

Items

Frequency Range

Overtone Order

Frequency Tolerance

Frequency Temp. Characteristics

Symbol

f

_nom

OT

f

_tol

f

_tem

R1

DL

CL

T

_use

T

_stg

Specification

9843.75 to 40000

Fundamental

100

200

Table 1

Table 2

12

40

to

125

40

to

150

Units

kHz

––––

10

-6

10

-6

ohm

W

pF

°C

@ 25°C

Remarks

ref.@ 25°C Over Operating Temp. Range

⑦Special

ZZ

Custom Specification

Motional Series Resistance

Level of Drive

Load Capacitance

Operating Temp. Range

Storage Temp. Range

* Please inqurie about specifications other than the above.

Table1 Motional Series Resistances

Frequency Range

9843.75 to 11999kHz

12000 to 13999kHz

14000 to 29999kHz

30000 to 40000kHz

Motional Series Resistance

200

150

100

50

ohm

Units

Table2 Level of Drive

Frequency Range

9843.75 to 15999kHz

16000 to 24999kHz

25000 to 40000kHz

Level of Drive

10 (500 max.)

10 (300 max.)

10 (100 max.)

W

Units

Dimensions

3.20.2

(Unit : mm)

Recommended Land Pattern

(Unit : mm)

1.30.2

5.00.2

1.9

2.0

4.1

CONNECTION

1.3

2.4

1.3

1.9

2.4

CX5032GAFREQ2H0QSWZZ Related Products

	CX5032GAFREQ2H0QSWZZ	CX5032GAFREQ3H0QSWZZ	CX5032GAFREQ1H0QSWZZ
Description	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 12 MHz - 13.999 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-2	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 14 MHz - 29.999 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-2	Parallel - Fundamental Quartz Crystal, 9.84375MHz Min, 11.999MHz Max, ROHS COMPLIANT, CERAMIC PACKAGE-2
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	compliant
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
Drive level	10 µW	10 µW	10 µW
frequency stability	0.02%	0.02%	0.02%
frequency tolerance	100 ppm	100 ppm	100 ppm
load capacitance	12 pF	12 pF	12 pF
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	13.999 MHz	29.999 MHz	11.999 MHz
Minimum operating frequency	12 MHz	14 MHz	9.84375 MHz
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
physical size	L5.0XB3.2XH1.3 (mm)/L0.197XB0.126XH0.051 (inch)	L5.0XB3.2XH1.3 (mm)/L0.197XB0.126XH0.051 (inch)	L5.0XB3.2XH1.3 (mm)/L0.197XB0.126XH0.051 (inch)
Series resistance	150 Ω	100 Ω	200 Ω
surface mount	YES	YES	YES
Base Number Matches	1	1	1
Is it lead-free?	Lead free	Lead free	-
Maker	Kyocera	-	Kyocera
