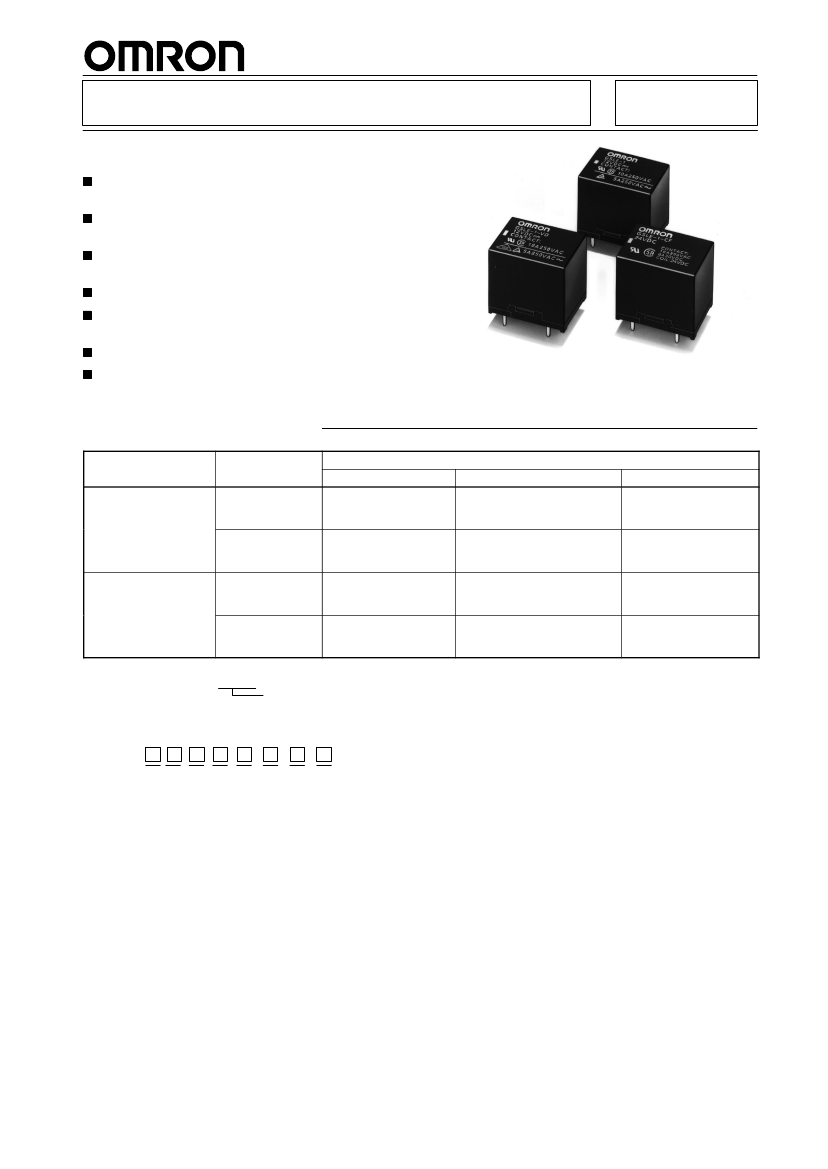

PCB Relay
A Cubic, Single-pole 10-A Power Relay
Subminiature “sugar cube” relay with universal
terminal footprint.
Conforms to VDE0435 (VDE approval: B250
Insulation grade), UL508, CSA22.2.
UL class-F coil insulation model available (UL
class-B coil insulation for standard model).
High switching capacity: 10 A.
Two types of seal available; flux protection and
plastic-sealed.
Withstands impulse of up to 4,500 V.
400-mW and 360-mW coil power consumption
types available.
New G5LE
XRCE
VDE
Ordering Information
Seal
Flux protection
Contact form
AgSnO
2
SPDT
G5LE-1
G5LE-1-VD
G5LE-1-CF
G5LE-1A
G5LE-1A-VD
G5LE-1A-CF
G5LE-14
G5LE-14-VD
G5LE-14-CF
G5LE-1A4
G5LE-1A4-VD
G5LE-1A4-CF
Contact material
AgSnIn
G5LE-1-ASI
G5LE-1-ASI-VD
G5LE-1-ASI-CF
G5LE-1A-ASI
G5LE-1A-ASI-VD
G5LE-1A-ASI-CF
G5LE-14-ASI
G5LE-14-ASI-VD
G5LE-14-ASI-CF
G5LE-1A4-ASI
G5LE-1A4-ASI-VD
G5LE-1A4-ASI-CF
AgCdO
G5LE-1-ACD
G5LE-1-ACD-VD
G5LE-1-ACD-CF
G5LE-1A-ACD
G5LE-1A-ACD-VD
G5LE-1A-ACD-CF
G5LE-14-ACD
G5LE-14-ACD-VD
G5LE-14-ACD-CF
G5LE-1A4-ACD
G5LE-1A4-ACD-VD
G5LE-1A4-ACD-CF
SPST-NO
Plastic-sealed
SPDT
SPST-NO
Note:
When ordering, add the rated coil voltage to the model number.
Example: G5LE-1 12 VDC
Rated coil voltage
Model Number Legend
G5LE -
1 2
1.
2.
-
3
4
-
5
-
6
-
7
-
8
5.
Contact Material
None: AgSnO
2
ASI: AgSnIn
ACD: AgCdO
Insulation System
None: Class B
CF:
Class F (UL and CSA only)
Coil Power Consumption/Coil Characteristic
None: Approx. 400 mW
36:
Approx. 360 mW
Approved Standards
None: UL, CSA, TÜV
VD: UL, CSA, TÜV and VDE
(Not applicable with “-CF.”)
Number of Poles
1:
1 pole
Contact Form
None: SPDT
A:
SPST-NO
Sealing
None: Flux protection
4:
Plastic-sealed
Terminal Arrangement with Pre-Soldered
None: Standard
6.
3.
7.
4.
8.
1
New G5LE
New G5LE
Specifications
Coil Ratings
400-mW Type
Rated voltage
Rated current
Coil resistance
Must operate voltage
Must release voltage
Max. voltage
Power consumption
Note:
5 VDC
79.4 mA
63
Ω
9 VDC
45 mA
200
Ω
12 VDC
33.3 mA
360
Ω
24 VDC
16.7 mA
1,440
Ω
48 VDC
8.33 mA
5,760
Ω
75% of rated voltage (max.)
10% of rated voltage (min.)
130% of rated voltage at 70°C, 170% of rated voltage at 23°C
Approx. 400 mW
The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of
±10%.
360-mW Type
Rated voltage
Rated current
Coil resistance
Must operate voltage
Must release voltage
Max. voltage
Power consumption
Note:
5 VDC
72 mA
70
Ω
9 VDC
40 mA
225
Ω
12 VDC
30 mA
400
Ω
24 VDC
15 mA
1,600
Ω
48 VDC
7.5 mA
6,400
Ω
75% of rated voltage (max.)
10% of rated voltage (min.)
130% of rated voltage at 70°C, 170% of rated voltage at 23°C
Approx. 360 mW
The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of
±10%.
Contact Ratings
Load
Rated load
Rated carry current
Max. switching voltage
Max. switching current
Max. switching capacity
Min. permissible load
Resistive load (cosφ = 1)
10 A at 120 VAC; 8 A at 30 VDC
10 A
250 VAC, 125 VDC (30 VDC when UL/CSA standard is applied)
AC: 10 A; DC: 8 A
1,200 VA, 240 W
100 mA at 5 VDC
Characteristics
Contact resistance
Operate time
Release time
Bounce time
Max. switching frequency
Insulation resistance
Dielectric strength
Impulse withstand voltage
Vibration resistance
Shock resistance
Life expectancy
Ambient temperature
Ambient humidity
Weight
100 mΩ max.
10 ms max.
5 ms max.
Operate: Approx. 0.6 ms
Release: Approx. 7.2 ms
Mechanical: 18,000 operations/hr
Electrical: 1,800 operations/hr (under rated load)
100 MΩ min. (at 500 VDC)
750 VAC, 50/60 Hz for 1 min between contacts of same polarity
2,000 VAC, 50/60 Hz for 1 min between coil and contacts
4,500 V between coil and contacts
Destruction: 10 to 55 Hz, 1.5-mm double amplitude
Malfunction: 10 to 55 Hz, 1.5-mm double amplitude
Destruction: 1,000 m/s
2
(approx. 100G)
Malfunction: 100 m/s
2
(approx. 10G)
Mechanical:10,000,000 operations min. (at 18,000 operations/hr)
Electrical: 100,000 operations min. (at 1,800 operations/hr)
Operating: –40°C to 85°C
Operating: 35% to 85%
Approx. 12 g
2
New G5LE
Approved Standards
New G5LE
UL114, UL478, UL325, UL508, UL1409, UL1950 (File No. E41643)/CSA C22.2 No. 14 (File No. LR34815)
Model
G5LE
Coil rating
3 to 48 VDC
Contact rating
12 A, 120 VAC (resistive load 30,000 cycles)
10 A, 250 VAC (general use)
8 A, 30 VDC (resistive load)
6 A, 277 VAC (general use)
NO:
1/6 hp, 120 VAC (50,000 cycles)
1/3 hp, 125 VAC, 70°C 30K with Class 130B system
65°C 30K with Class 105 Coil insulation system
NC:
1/8 hp, 120 VAC (50,000 cycles)
1/10 hp, 120 VAC (50,000 cycles)
TÜV DIN VDE 0435, IEC 255 (File No. R9151267)
Model
G5LE
Coil rating
Approx. 400 mW
3, 5, 6, 9, 12, 24 VDC
Approx. 360 mW
5, 6, 9, 12, 24 VDC
Contact rating
2.5 A, 250 VAC (cosφ = 0.4)
5 A, 250 VAC (resistive load)
8 A, 30 VDC (resistive load)
VDE DIN VDE 0435, IEC 255 (File No. 6850ÜG)
Model
G5LE
Coil rating
Approx. 400 mW
3, 5, 6, 9, 12, 24, 48 VDC
Approx. 360 mW
3, 5, 6, 9, 12, 24, 48 VDC
Contact rating
5 A, 250 VAC (resistive load, 50,000 cycles)
at 85°C.

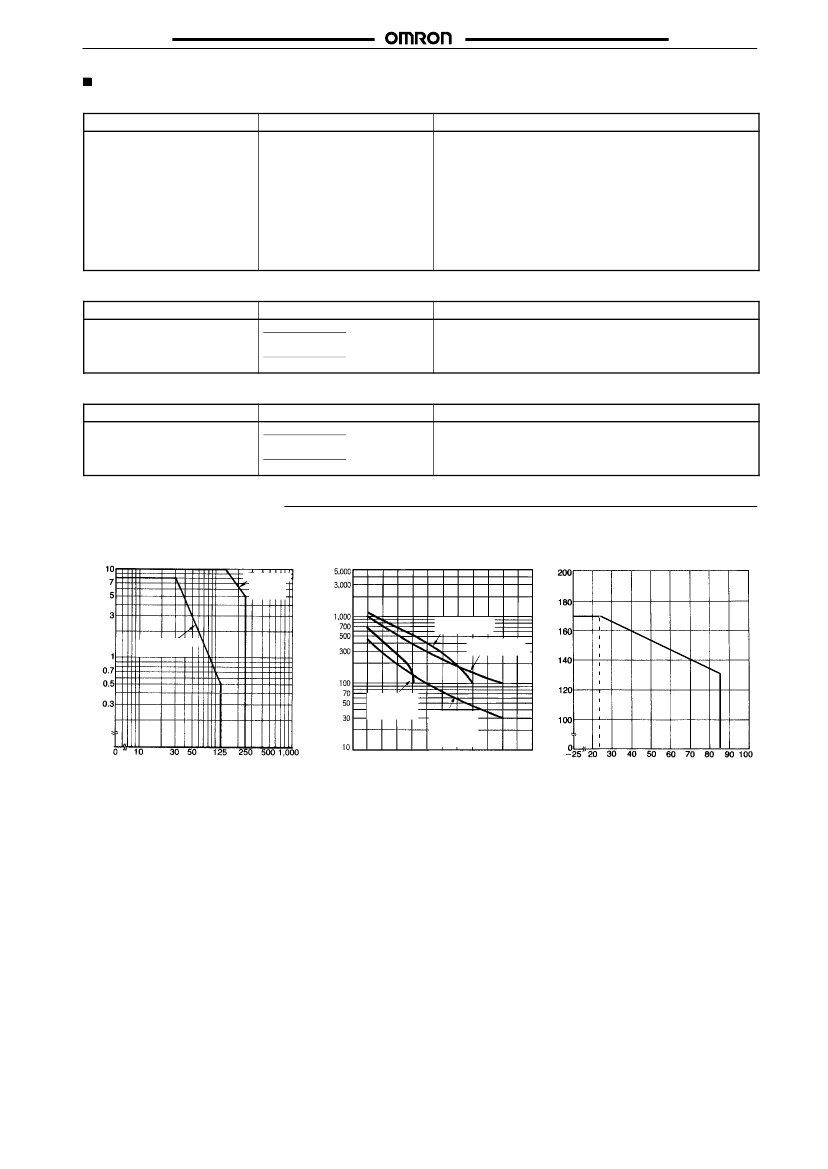

Engineering Data
Max. Switching Capacity
G5LE
AC re-
sistive
load
Life Expectancy
G5LE
Life expectancy (x10
3
operations)
Ambient Temperature
vs. Maximum Voltage
Switching current (A)
DC resistive
load
30-VDC
resistive load
120-VAC
resistive load
30-VDC
inductive
(L/R=7 ms)
0
2
4
120-VAC
inductive
cosφ=0.4
(see note)
6
8
10
12
Maximum voltage (%)
23
Switching voltage (V)
Note:
Switching current (A)
Same curve as for 250-VAC
resistive load
Ambient temperature (°C)
3
New G5LE
New G5LE

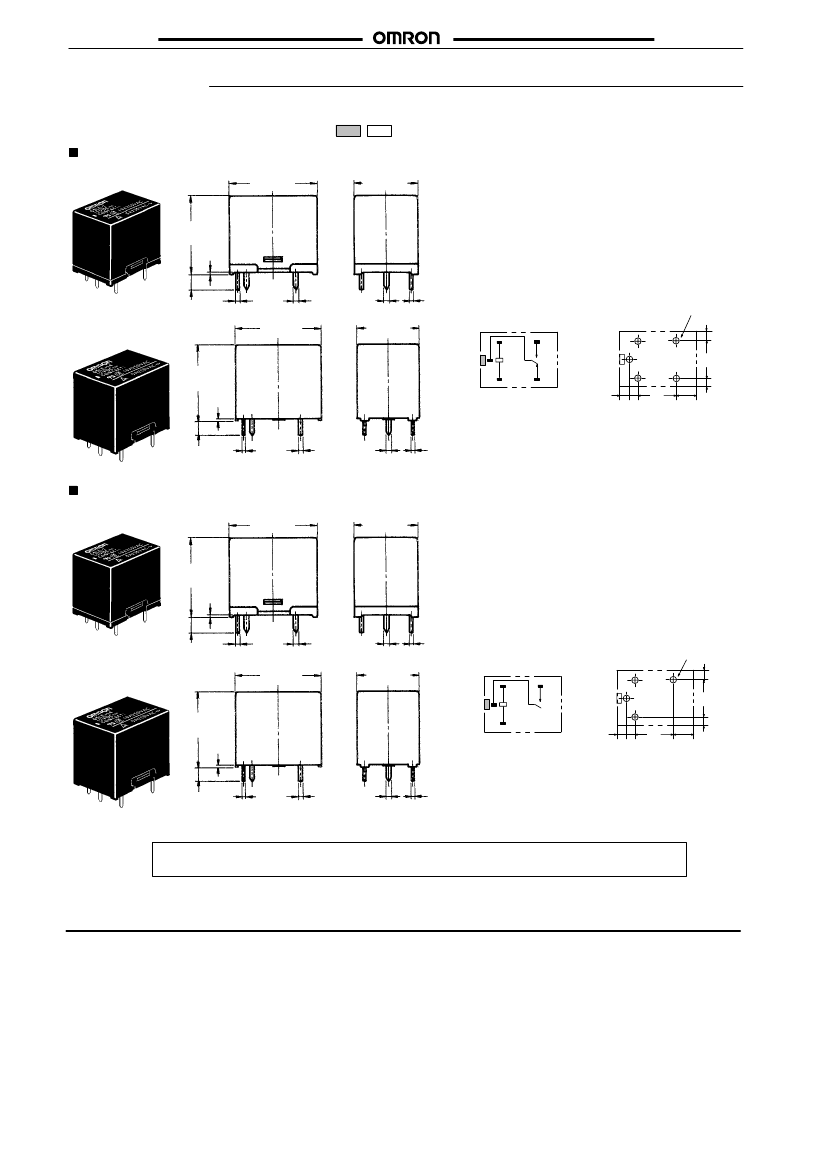

Dimensions
Note:
1. All units are in millimeters unless otherwise indicated.
2. Orientation marks are indicated as follows:
SPDT Types
G5LE-1
(21.6)*
22.5 max.
(15.6)*
16.5 max.
(18.5)*
19.0 max.
0.5
3.5
0.2
(21.6)*
22.5 max.
1
1.2
(15.6)*
16.5 max.
2
1
5
4
(2.55)
2
12.2
(5.75)
(2.25)
3
12
0.4
Terminal
Mounting Holes
Arrangement/Internal
(Bottom View)
Connections (Bottom View)
Tolerance:
±0.1
mm
Five, 1.3-dia. holes
SPDT
SPDT
(2.25)
G5LE-14
(18.5)*
19.0 max.
0.5
*Average value
3.5
0.2
1
1.2
0.4
SPST Types
G5LE-1A
(21.6)*
22.5 max.
(15.6)*
16.5 max.
(18.5)*
19.0 max.
0.5
3.5
0.2
(21.6)*
22.5 max.
1
1.2
(15.6)*
16.5 max.
2
1
(18.5)*
19.0 max.
0.5
5
(2.55)
12.2
(5.75)
(2.25)
3
12
0.4
Terminal
Mounting Holes
Arrangement/Internal
(Bottom View)
Connections (Bottom View)
Tolerance:
±0.1
mm
Four, 1.3-dia. holes
SPST-NO
SPST-NO
(2.25)
G5LE-1A4
*Average value
2
3.5
0.2
1
1.2
0.4
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
Cat. No. K100-E1-2
In the interest of product improvement, specifications are subject to change without notice.
