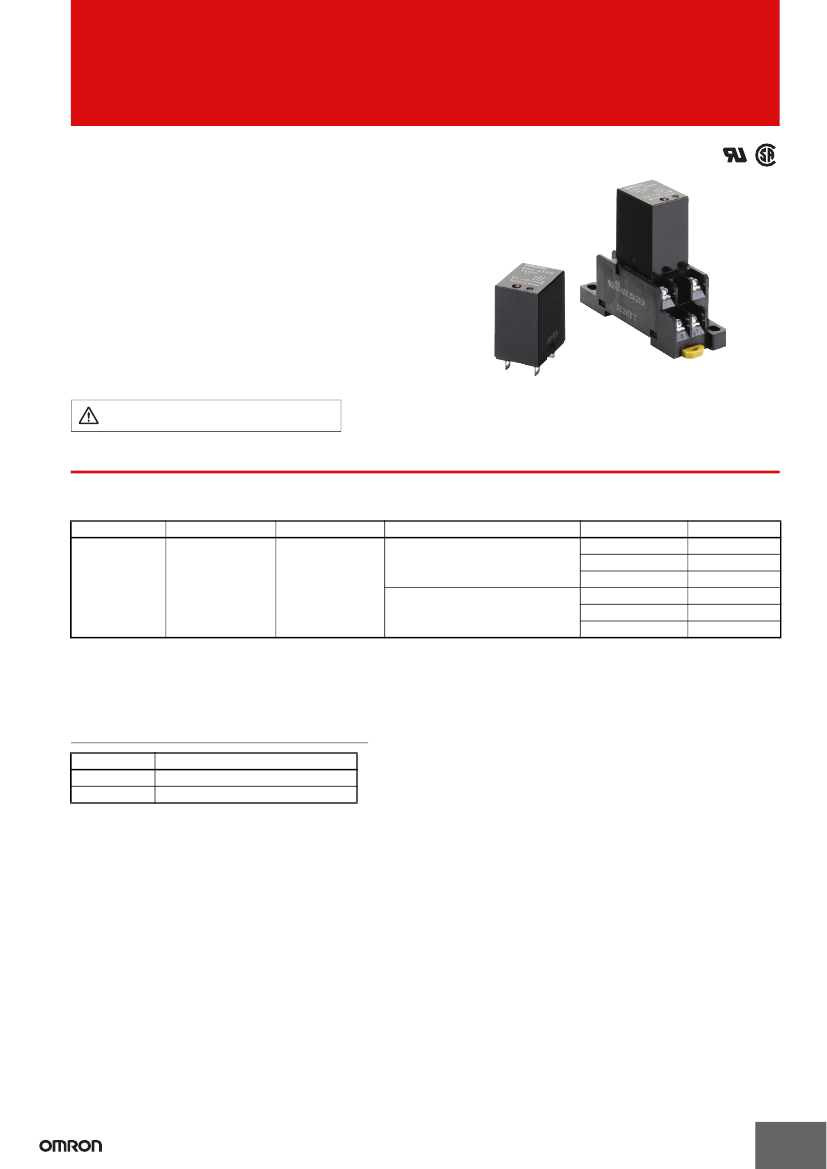

Hybrid Power Relay
G9H
CSM_G9H_DS_E_3_1
Hybridization of a Magnetic Relay and an
SSR Achieves 10-A Switching for 10 Million
Operations.
• Using a triac to open and close the circuit reduces chattering
and arching, thereby increasing the electrical durability to 10
million operations.
• Relays contacts for power ON and 10-A switching with high-
capacity are provided in a compact body without the need of
radiators. Plus, there is almost no effect on heat generation or
ambient temperature.
• Operation indicators to easily check operation.
• Built-in temperature fuse prevents internal burning due to triac
or relay malfunctions.
• Socket-type Relays the same size as the 1-pole and 2-pole LY
Relays.
Refer to
Safety Precautions for All Solid State
Relays.
Ordering Information
■
List of Model
Isolation method Zero cross function Operation indicator Applicable output load (See note.) Rated input voltage
Relay
No
Yes
5A
100 to 240 VAC
10 A
100 to 240 VAC
5 VDC
12 VDC
24 VDC
5 VDC
12 VDC
24 VDC
Note: 1.
The actual product is labeled "250 VAC."
2.
For information on products that are certified for international standards, consult your OMRON sales representatives
Model
G9H-205S DC5
G9H-205S DC12
G9H-205S DC24
G9H-210S DC5
G9H-210S DC12
G9H-210S DC24
■
Accessories (Order Separately)
Connecting Socket Mounting Plate
Model
PYP-1
PYP-18
Minimum quantity packaged (units)
10
1
Note:
Order the models above in increments of the minimum quantity packaged.
1
G9H
Specifications
■
Ratings
Input
Rated voltage
DC
Item
5V
12 V
24 V
Operating voltage
4 to 6 VDC
9.6 to 14.4 VDC
19.2 to 28. 8 VDC
Coil resistance
104
Ω
600
Ω
2,400
Ω
Must operate voltage
4 VDC max.
9.6 VDC max.
19.2 VDC max.
Must release voltage
0.5 VDC min.
1.2 VDC min.
2.4 VDC min.
Power consumption
Approx. 240 mW
Note: 1.
The coil resistance is measured at a coil temperature of 23°C with a tolerance of
±10%.
2.
Performance characteristic data are measured at a coil temperature of 23°C.
Output
Item
Model
G9H-205S
G9H-210S
Rated load voltage
100 to 240 VAC
75 to 264 VAC
Applicable load
Load voltage range
Load current (See note.)
50 mA to 5 A (at 55°C)
50 mA to 10 A (at 55°C)
Inrush current resistance
80 A (60 Hz, 1 cycle)
170 A (60 Hz, 1 cycle)
Note:
The load current depends on the ambient temperature. For details, refer to
Load Current vs. Ambient Temperature
in Engineering Data.
■
Characteristics
Item
Operate time
Release time
Output ON voltage drop
Leakage current
Inrush current resistance
Temperature rise
Insulation resistance
Dielectric strength
Vibration resistance
Destruction
Malfunction
Shock resistance (See note.) Destruction
Malfunction
Life expectancy
Storage temperature
Ambient operating temperature
Ambient operating humidity
Weight
Note:
Value when excited.
Mechanical
Electrical
Model
10 ms max.
1/2 cycle max. + 10 ms
1.6 V max. (RMS) (at 5 A)
5 mA max. at 250 VAC
80 A
100 MΩ min. (at 500 VDC)
2,000 VAC 50/60 Hz 1 min
10 to 55 to 10 Hz, 1-mm single amplitude (2-mm double amplitude)
10 to 45 to 10 Hz, 1-mm single amplitude (2-mm double amplitude)
1,000 m/s
2
100 m/s
2
10 million operations min. (switching frequency: 18,000 operations/hour)
10 million operations min. (resistive load and switching frequency: 18,000 operations/hour)
−25
to 70°C (with no icing or condensation)
−25
to 60°C (with no icing or condensation)
35% to 85%
Approx. 25 g
170 A
50°C max. (rated voltage applied using resistance method)
1.6 V max. (RMS) (at 10 A)
G9H-205S
G9H-210S
Connection
■
Layout
LED
Input
Temperature
fuse
Coil
C
Varistor Output
R
R
Triac
R
Load
X
1
X
2
2
G9H
■
Accessories (Order Separately)
Connecting Socket
Use the PTF08A (-E), PT08, PT08-0, or PT08QN.
Connecting Socket Mounting Plate (t =
1.6)
Use a Mounting Plate when two or more Connecting Sockets are
mounted side by side.
Types of Mounting Plates are available: the PYP-1 (for mounting one
Unit) and the PYP-18 (for mounting up to 18 Units). The Mounting
Plate for 18 Units can be cut to the desired length before use.
PYP-1
PYP-18
Two, 3.4-dia. holes
21.6
492
17
×
27.4 = 465.8
±0.6
4.5
3.4
13.1
72 oval holes
R1.7
42
49
28
42
±0.1
49
21.6
17
×
27.4 = 465.8
±0.6
17
×
27.4 = 465.8
±0.6
Safety Precautions
Refer to
Safety Precautions for All Solid State Relays.
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
In the interest of product improvement, specifications are subject to change without notice.
