QS5919-100Q datasheet, PDF - EEWORLD Datasheet

QS5919-100Q: DescriptionLow Skew Clock Driver, QS5 Series, 8 True Output(s), 0 Inverted Output(s), CMOS, PDSO28, QSOP-28; Categorylogic logic; File Size455KB，7 Pages; ManufacturerQuality Semiconductor Inc

Download Datasheet Parametric View All

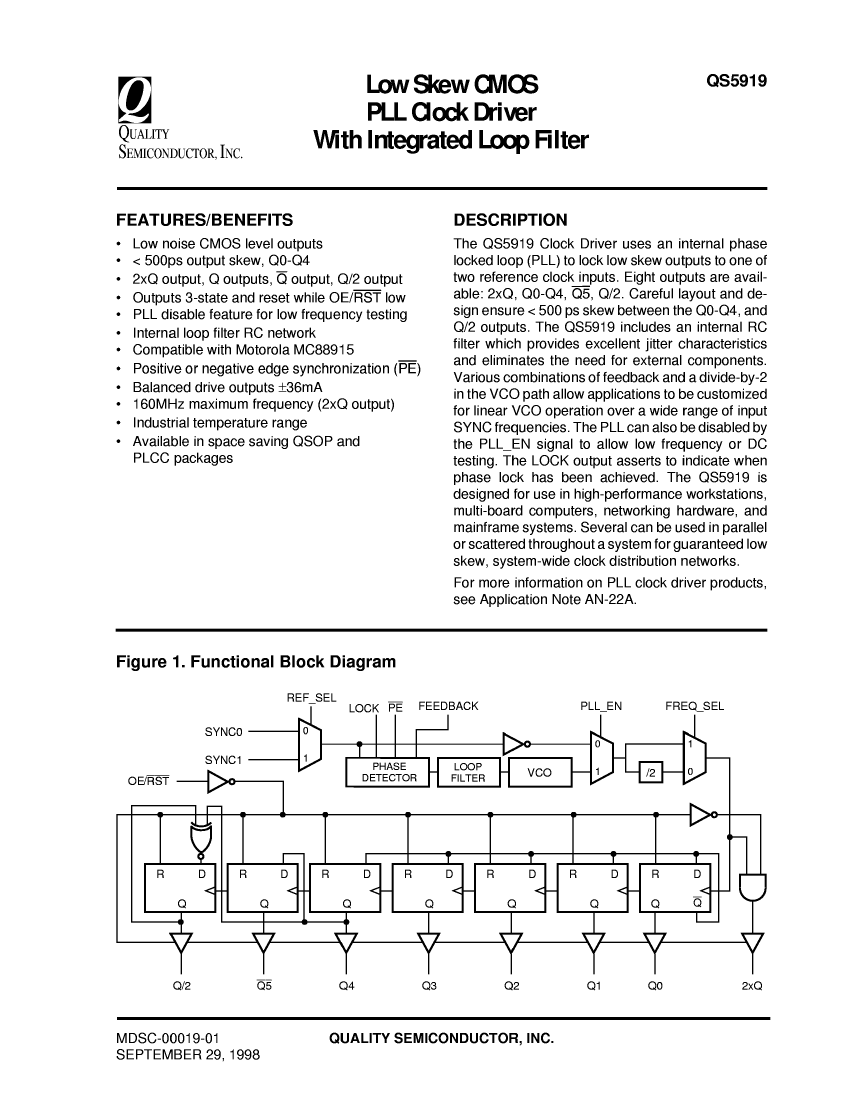

QS5919-100Q Overview

Low Skew Clock Driver, QS5 Series, 8 True Output(s), 0 Inverted Output(s), CMOS, PDSO28, QSOP-28

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	QSOP-28
Reach Compliance Code	unknown
series	QS5
Input adjustment	MUX
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
Logic integrated circuit type	LOW SKEW CLOCK DRIVER
MaximumI(ol)	0.036 A
Number of functions	1
Number of inverted outputs

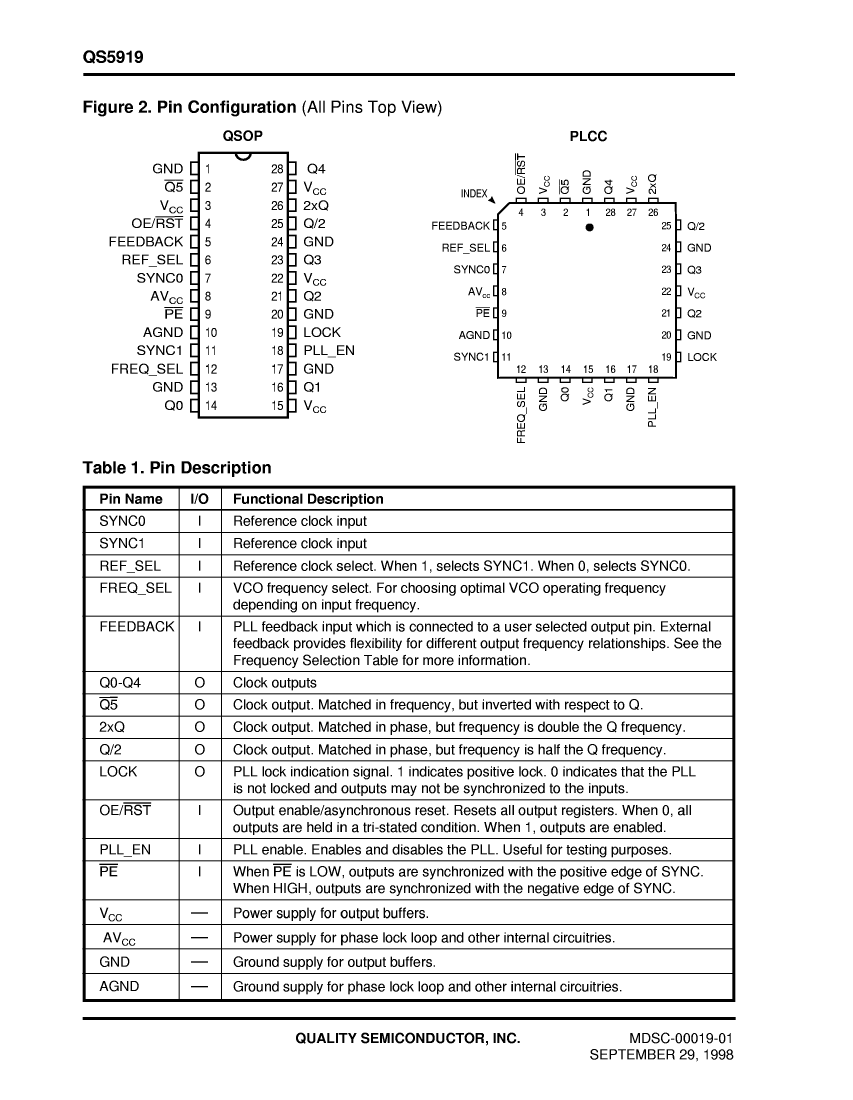

Number of terminals	28
Actual output times	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP28,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED

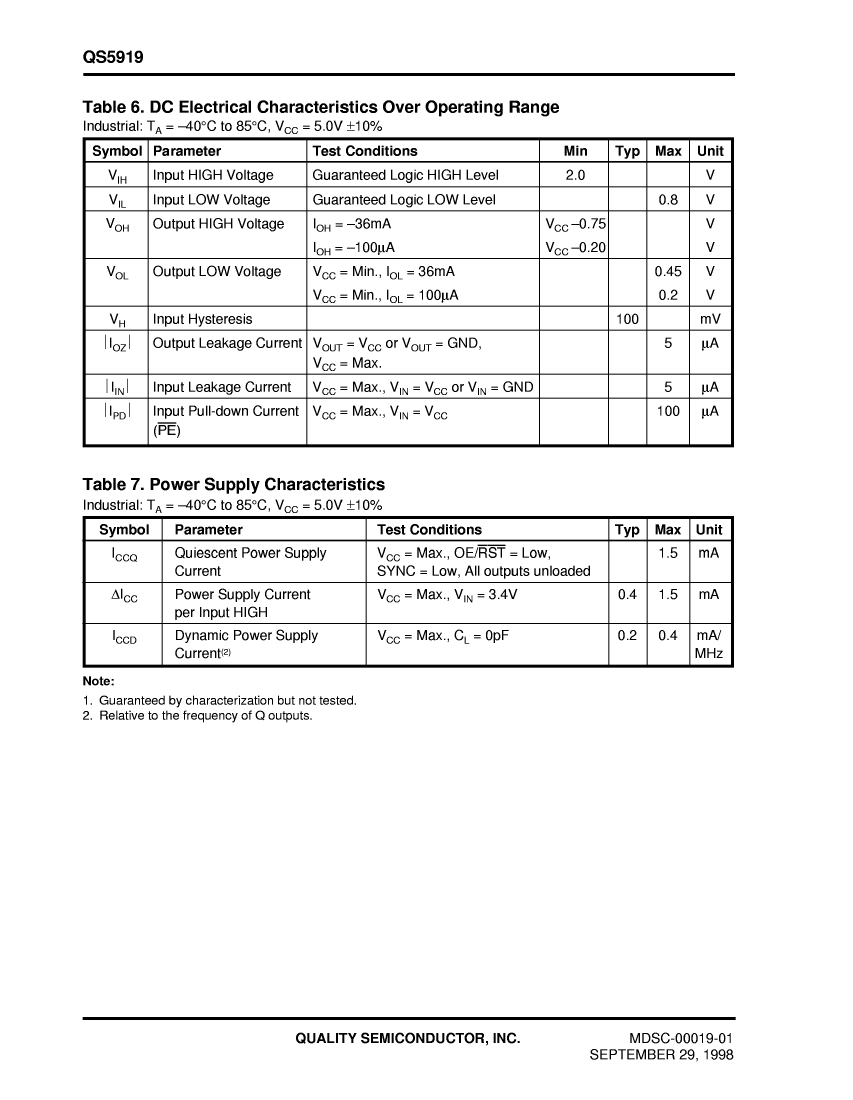

power supply	5 V
Certification status	Not Qualified

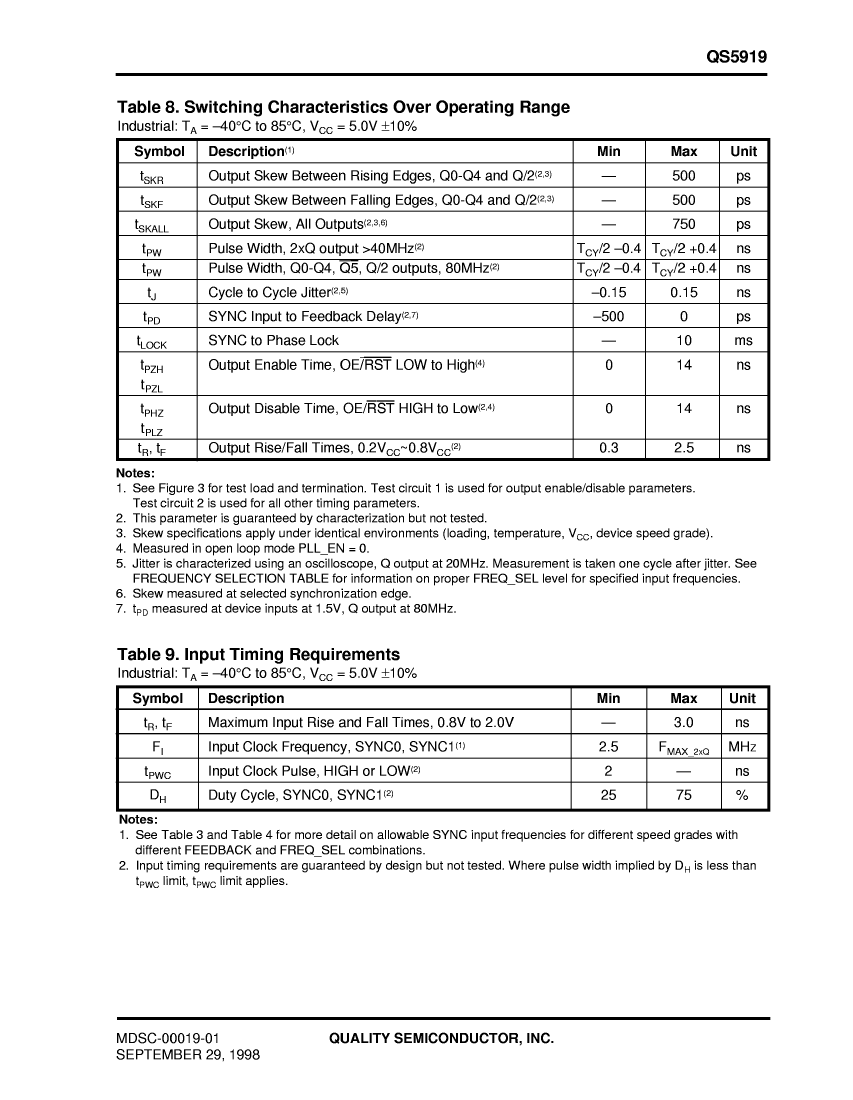

Same Edge Skew-Max（tskwd）	0.75 ns
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

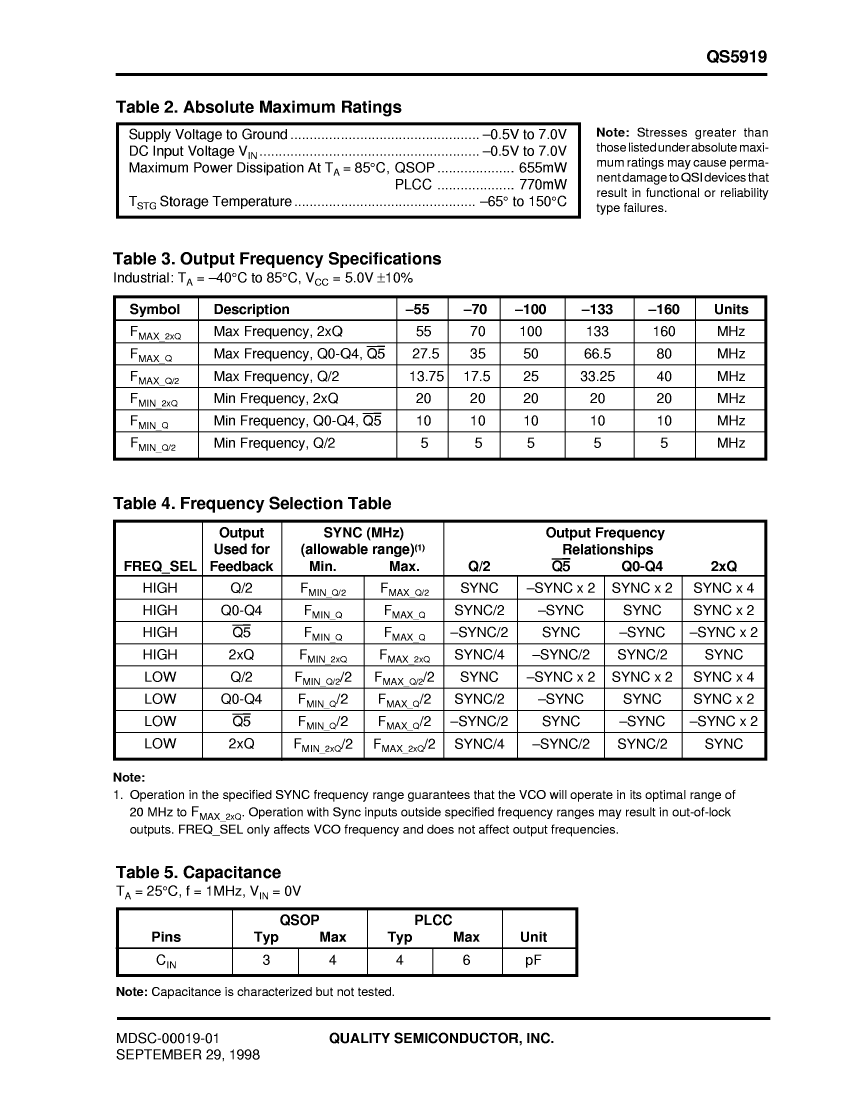

minfmax	100 MHz
Base Number Matches	1
