D50P24B6PL00 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> D50P24B6PL00

D50P24B6PL00: DescriptionD Subminiature Connector, 50 Contact(s), Male, Solder Terminal; CategoryThe connector The connector; File Size140KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

D50P24B6PL00 Overview

D Subminiature Connector, 50 Contact(s), Male, Solder Terminal

D50P24B6PL00 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	D
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	5/D
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

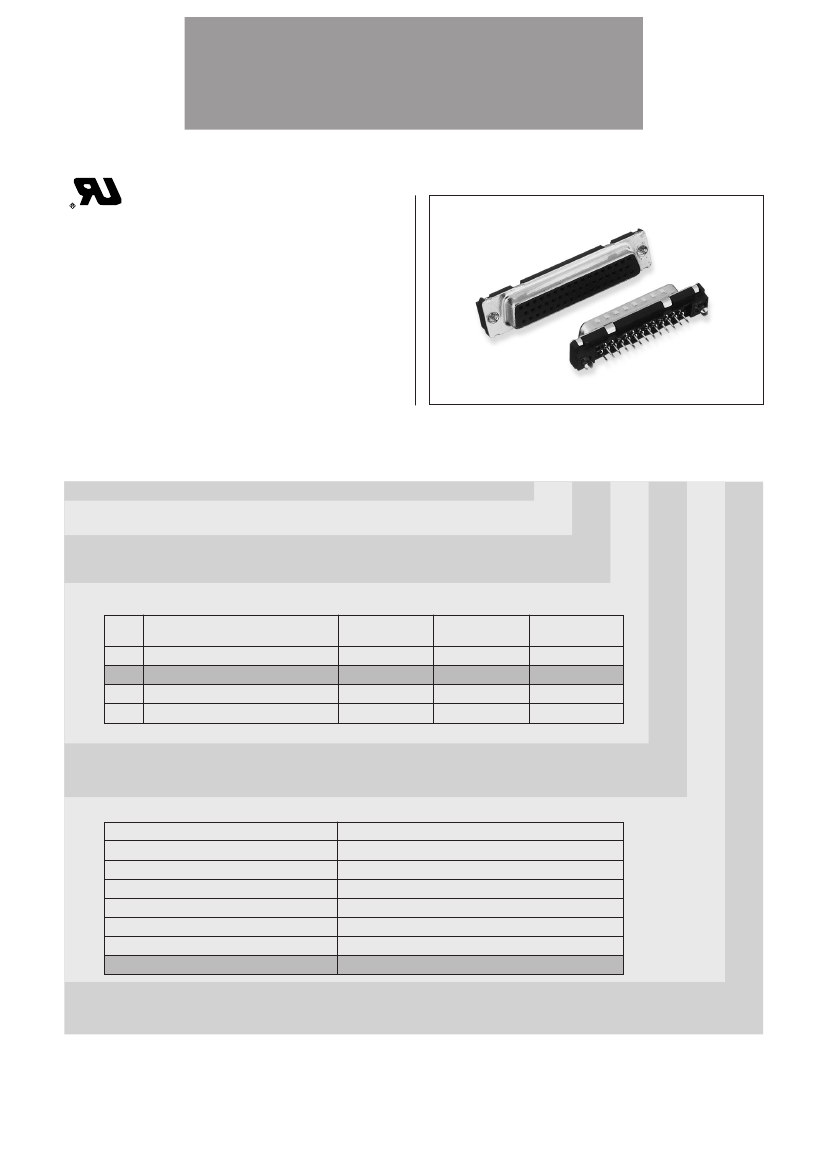

DELTA D

Straight solder

UL Recognized File E 118235 (R)

Ordering information

Series

Number of contacts

09, 15, 25, 37, 50

Contacts

Terminations

Code

14 A

Type

Straight version (low profile)

Straight version

Foot print/Pitch

5.6 / 2.84 mm

6 / 2.84 mm

6.9 / 2.84 mm

Length of

termination

2.90

3.70

2.90

PCB

thickness

1.6

2.4

1.6

Socket

24 A

GV 00LF

☺

24 A

24 B

34 A

Plating

Standard class (≥ 200 mating / unmating)

High performance class (≥ 500 mating / unmating) - LNZ 4404 -

Mounting options

(see cover page 61)

Options

Standard hole

Threaded insert M3

Threaded insert UNC 4-40

Female screw UNC 4-40

Harpoons + insert M3 + elec. continuity

Harpoons + insert UNC 4-40 + elec. continuity

Harpoons + Female screw UNC 4-40 + elec. continuity

☺

Other options

Standard series, non RoHS compatible

00LF :

Standard series, RoHS compatible

Technical characteristics – page 6

☺

Preferred option
