T215K-SULF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> T215K-SULF

T215K-SULF: DescriptionToggle Switch, DPST, Latched, 15A, 30VDC, Screw Terminal, Panel Mount-threaded, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size699KB，17 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric View All

T215K-SULF Overview

Toggle Switch, DPST, Latched, 15A, 30VDC, Screw Terminal, Panel Mount-threaded, ROHS COMPLIANT

T215K-SULF Parametric

Parameter Name	Attribute value
Maker	Panasonic
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
body width	19.5 mm
body height	30.3 mm
Body length or diameter	33 mm
Contact (AC) maximum rated R load	15A@250VAC
Maximum contact current (AC)	15 A
Maximum contact current (DC)	15 A
Contact (DC) maximum rated R load	15A@30VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	30 V
Electrical life	30000 Cycle(s)
Manufacturer's serial number	T15
Installation features	PANEL MOUNT-THREADED
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
seal	IP40
surface mount	NO
Switch action	LATCHED
switch function	DPST
Switch type	TOGGLE SWITCH
Termination type	SCREW

Preview

Download Datasheet

View All

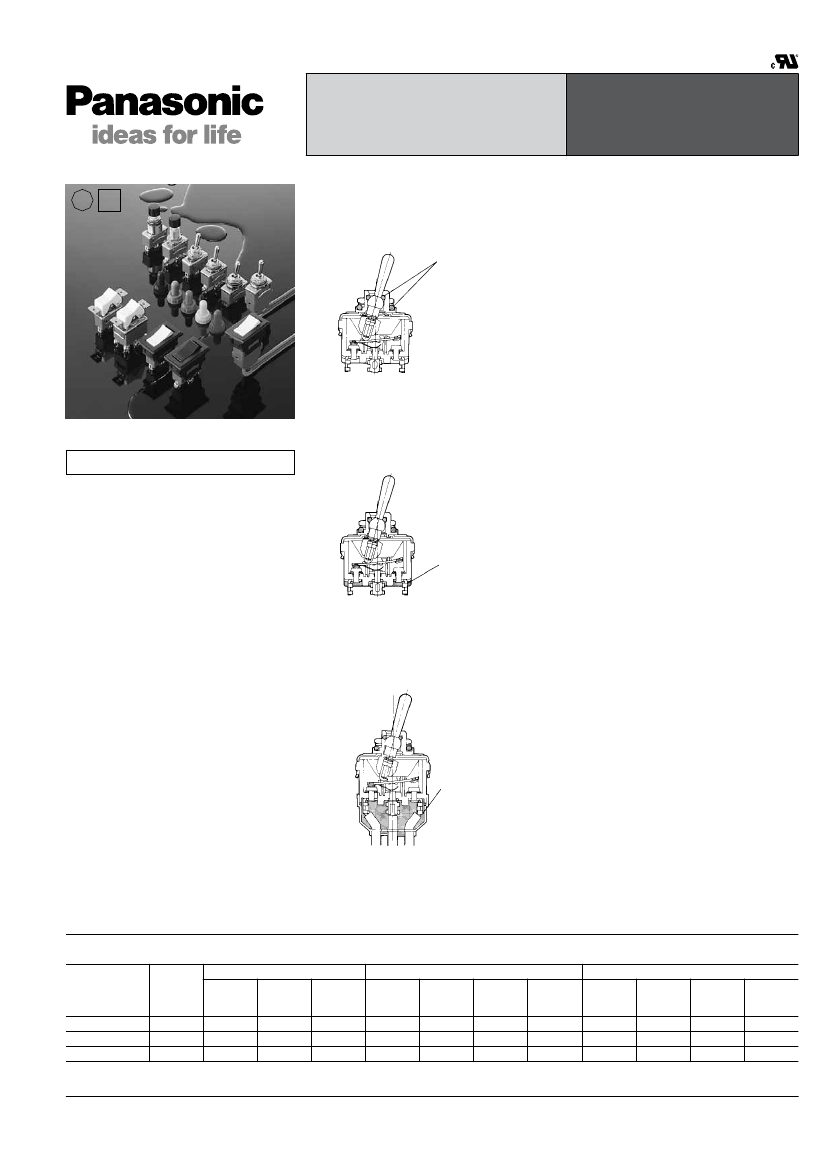

T15

15A HIGH SNAP SWITCHES

TOGGLE, ROCKER AND

PUSH-BUTTON TYPES

• Panel-sealed type

Entry of water, oil, dust and gas from the

front of the panel is prevented.

(Panel front: IP67*; Inside of panel: IP40)

Prevention of water, oil,

dust, and gases from

entering through the

panel with O-rings

T15 SERIES

SWITCHES

3. Rubber cap also available in silicon

type for excellent weather resistance.

• 5 colors available so you can distinguish

switches by purpose.

Black: For main power supply

Grey: For setting and switching

Red: For resetting

• With a usable ambient temperature

range of –25°C to +85°C, use is possible

in environments that require resistance

against heat and cold.

12 dia.

Angled

hole

Toggle Rocker

Push-

button

Compliance with RoHS Directive

• Terminal-sealed type

Both switch body and terminals have

been sealed to protect from dust and gas

that enters from the panel.

(Panel front: IP67*; Inside of panel: IP60)

Sealing the joint part

of switch body with

packing rubber.

PRECAUTIONS WHEN

USING CADMIUM-FREE

CONTACT TYPE

Models with cadmium-free contacts have

been introduced in order to reduce

environmentally harmful substances. (“F”

is afﬁxed to the end of the part number.)

We ask customers who are currently

using products with cadmium-containing

contacts (no “F” at the end of the part

number) to please make the switch to

models with cadmium-free contacts.

When switching, operating life may differ

depending on the load. Please be sure to

verify this by conducting an evaluation

using actual equipment.

Terminal area is sealed

with epoxy resin.

• Wire lead type

Furthermore, a cover is provided for the

terminals to keep out water and oil that

enters from the panel.

(Panel front: IP67*; Inside of panel: IP67)

FEATURES

1. Series now includes rocker and

push-button switches.

Based on the well-established T-15

Series switch, the mechanism is kept as

is and a rocker type and push-button type

have been added to the series. (Note that

the push-button type is rated at 10 A.)

2. Sealed type added for use in

different environments.

Packing is used where parts join and an

O-ring is used to seal moving parts. New

to the series, this type can be used in

harsh environments such as those with

water, oil, dust, and gas.

Sealing with a cover

and epoxy resin.

Remark: The asterisk in “Panel front: IP67*” means

this only applies to toggle and push-button

types.

The panel surface for the rocker type is IP64.

Please see NOTES 1 and 2 regarding use of

the sealed type.

ASSORTMENT

Sealed type

Kind of actuator

Standard

type

Available

Panel-

sealed

type

Available

Terminal-

sealed

type

Available

—

Wire leads

type

Available

—

Available

Number of pole

Available

Solder

terminal

Available

Shape of terminal

Screw

terminal

Available

.250 Quick-

connect

Wire lead

terminal

Available*

—

Available*

—

Toggle type

Rocker type

Push-button type

Available*

—

Remarks: *1: Only standard type

*2: Only wire leads type
