HA1-2540-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> HA1-2540-5

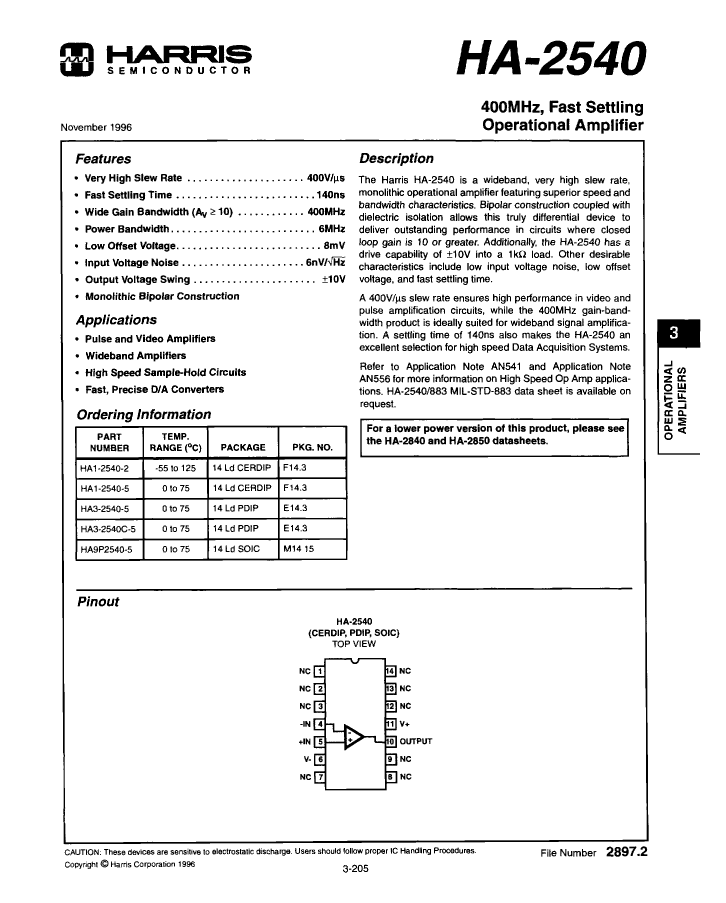

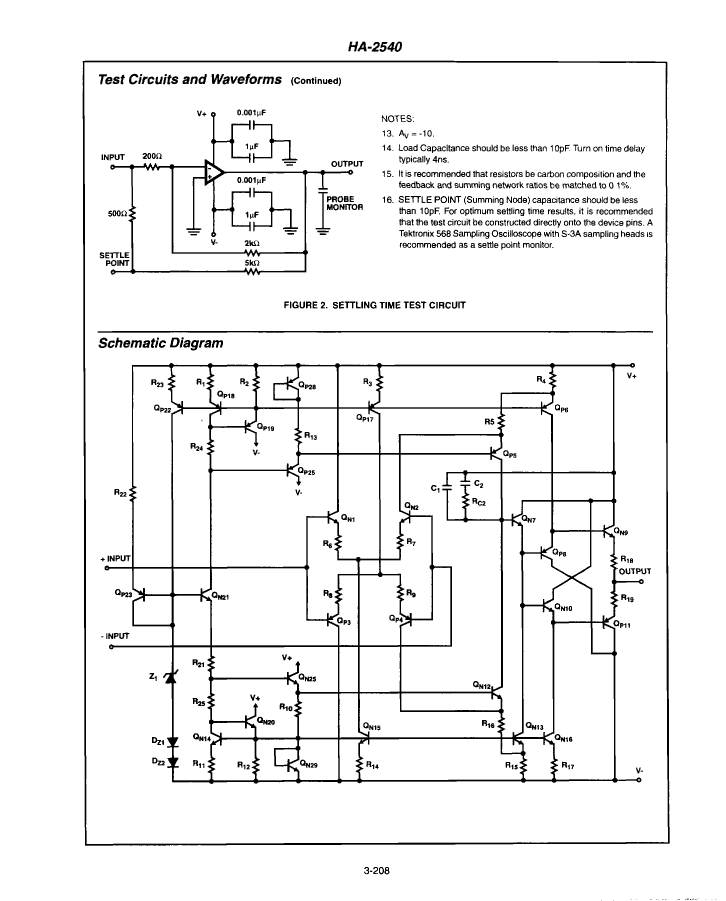

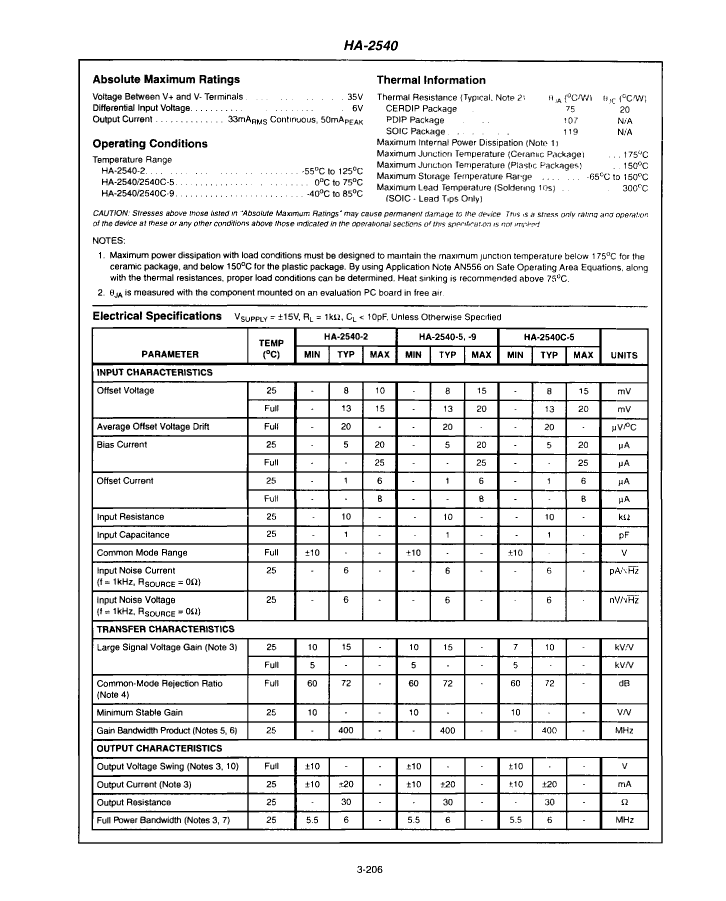

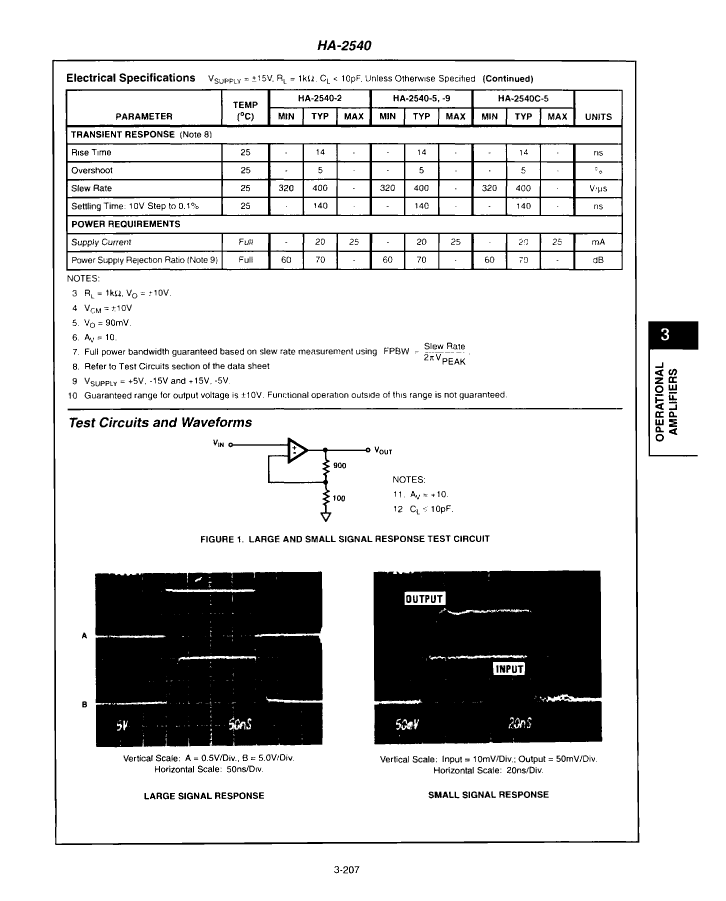

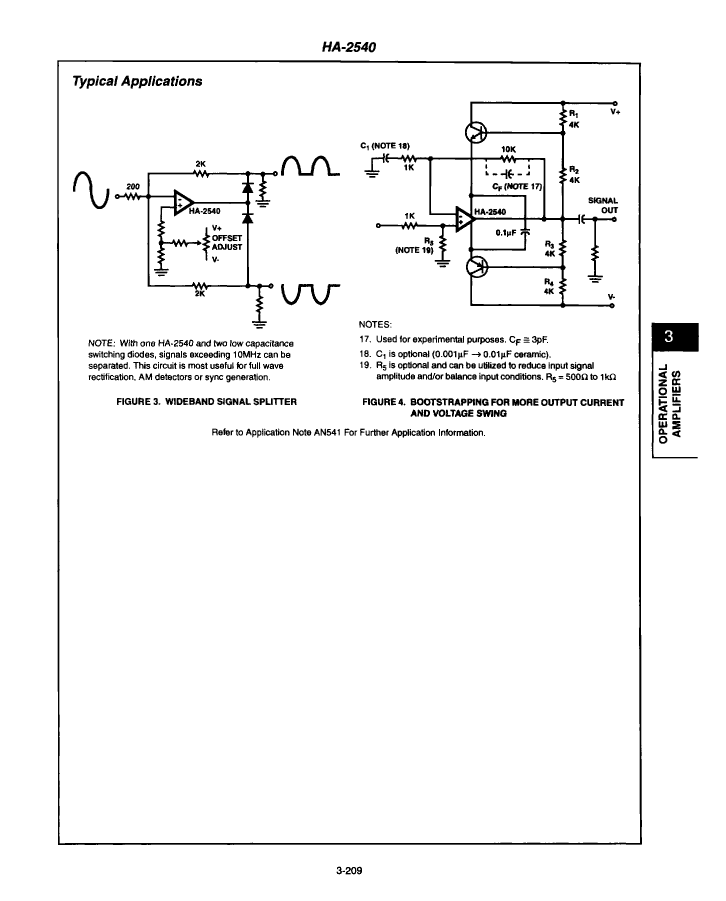

HA1-2540-5: DescriptionOperational Amplifier, 1 Func, 20000uV Offset-Max, BIPolar, CDIP14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size258KB，8 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

HA1-2540-5 Overview

Operational Amplifier, 1 Func, 20000uV Offset-Max, BIPolar, CDIP14

HA1-2540-5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	25 µA
Maximum bias current (IIB) at 25C	20 µA
Minimum Common Mode Rejection Ratio	60 dB
Nominal Common Mode Rejection Ratio	72 dB
frequency compensation	YES (AVCL>=10)
Maximum input offset voltage	20000 µV
JESD-30 code	R-GDIP-T14
JESD-609 code	e0
low-dissonance	NO
Negative supply voltage upper limit	-17.5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	14
Maximum operating temperature	75 °C
Minimum operating temperature
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
minimum slew rate	320 V/us
Nominal slew rate	400 V/us
Maximum slew rate	25 mA
Supply voltage upper limit	17.5 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	400000 kHz
Minimum voltage gain	10000
broadband	YES
Base Number Matches	1

Preview

Download Datasheet

View All

HA1-2540-5 Related Products

	HA1-2540-5	HA3-2540C-5	HA3-2540-5	HA9P2540-5
Description	Operational Amplifier, 1 Func, 20000uV Offset-Max, BIPolar, CDIP14	Operational Amplifier, 1 Func, 20000uV Offset-Max, BIPolar, PDIP14,	Operational Amplifier, 1 Func, 20000uV Offset-Max, BIPolar, PDIP14,	Operational Amplifier, 1 Func, 20000uV Offset-Max, BIPolar, PDSO14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	SOP, SOP14,.25
Reach Compliance Code	unknown	unknow	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	25 µA	25 µA	25 µA	25 µA
Maximum bias current (IIB) at 25C	20 µA	20 µA	20 µA	20 µA
Minimum Common Mode Rejection Ratio	60 dB	60 dB	60 dB	60 dB
Nominal Common Mode Rejection Ratio	72 dB	72 dB	72 dB	72 dB
frequency compensation	YES (AVCL>=10)	YES (AVCL>=10)	YES (AVCL>=10)	YES (AVCL>=10)
Maximum input offset voltage	20000 µV	20000 µV	20000 µV	20000 µV
JESD-30 code	R-GDIP-T14	R-PDIP-T14	R-PDIP-T14	R-PDSO-G14
JESD-609 code	e0	e0	e0	e0
low-dissonance	NO	NO	NO	NO
Negative supply voltage upper limit	-17.5 V	-17.5 V	-17.5 V	-17.5 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1
Number of terminals	14	14	14	14
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	SOP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	SOP14,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE
power supply	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
minimum slew rate	320 V/us	320 V/us	320 V/us	320 V/us
Nominal slew rate	400 V/us	400 V/us	400 V/us	400 V/us
Maximum slew rate	25 mA	25 mA	25 mA	25 mA
Supply voltage upper limit	17.5 V	17.5 V	17.5 V	17.5 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Nominal Uniform Gain Bandwidth	400000 kHz	400000 kHz	400000 kHz	400000 kHz
Minimum voltage gain	10000	7000	10000	10000
broadband	YES	YES	YES	YES
Base Number Matches	1	1	1	-
