8
7
6
5
4
REV
B
C
D
D
3
DESCRIPTION
2
REVISIONS
DATE
1
APPROVED
D. PARHAM
D. PARHAM
D.GRIFFIN
DFP
03/07/07
03/19/08
4/11/08
03/31/09
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE
WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.
ECN#2761: STRAIN RELIEF MATERIAL WAS SEMI-TRANSPARENT
ECN#3240: ADDED 1, 2, 20, 30, 40,60,80 & 90 FT LENGTHS
ECN 3279: UPDATE METER DIM FOR TRD815GR-40 FROM [15.24] TO [12.19]
ECN99999: UPDATED DRAWING FORMAT
D
LENGTH
(SEE SHEETS 2 AND 3)
D
POSITION 1
C
C
NOTES:
B
MATERIAL:
PLUG HOUSING: POLYCARBONATE, CLEAR, UL94V-0
CONTACTS: PHOSPHOR BRONZE
CABLE JACKET: PVC

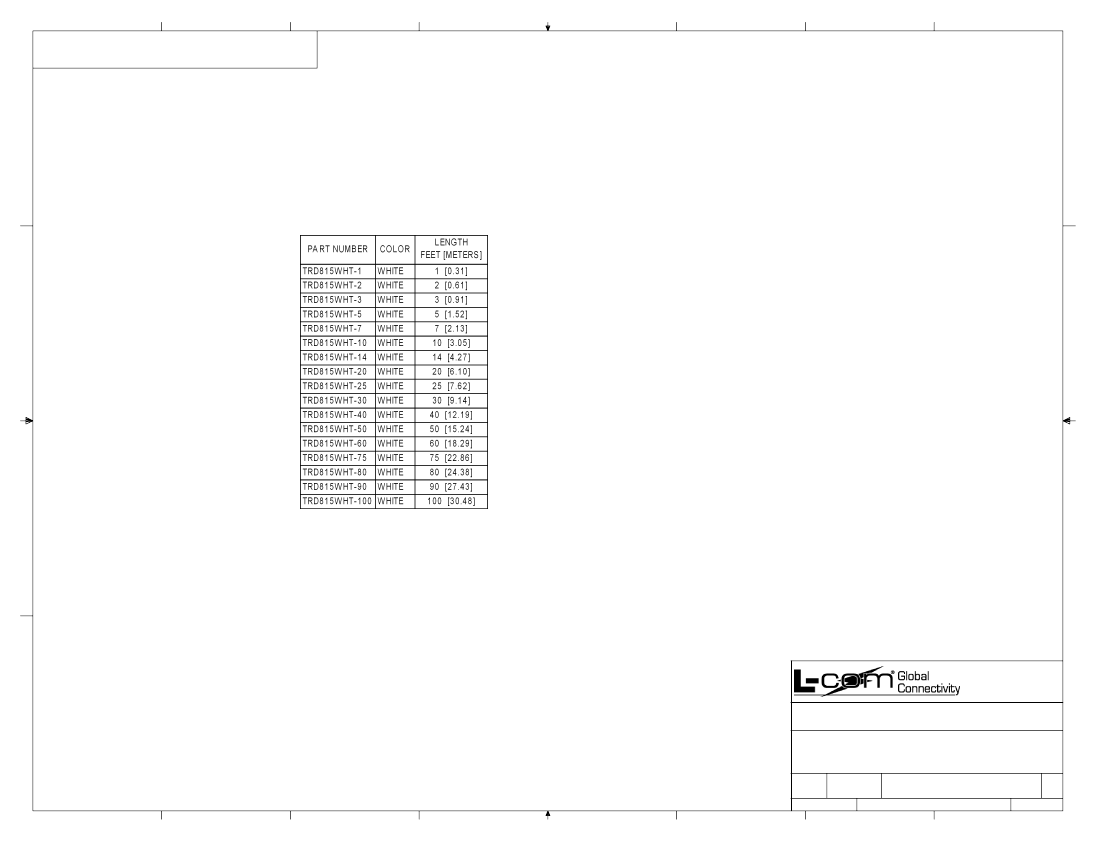

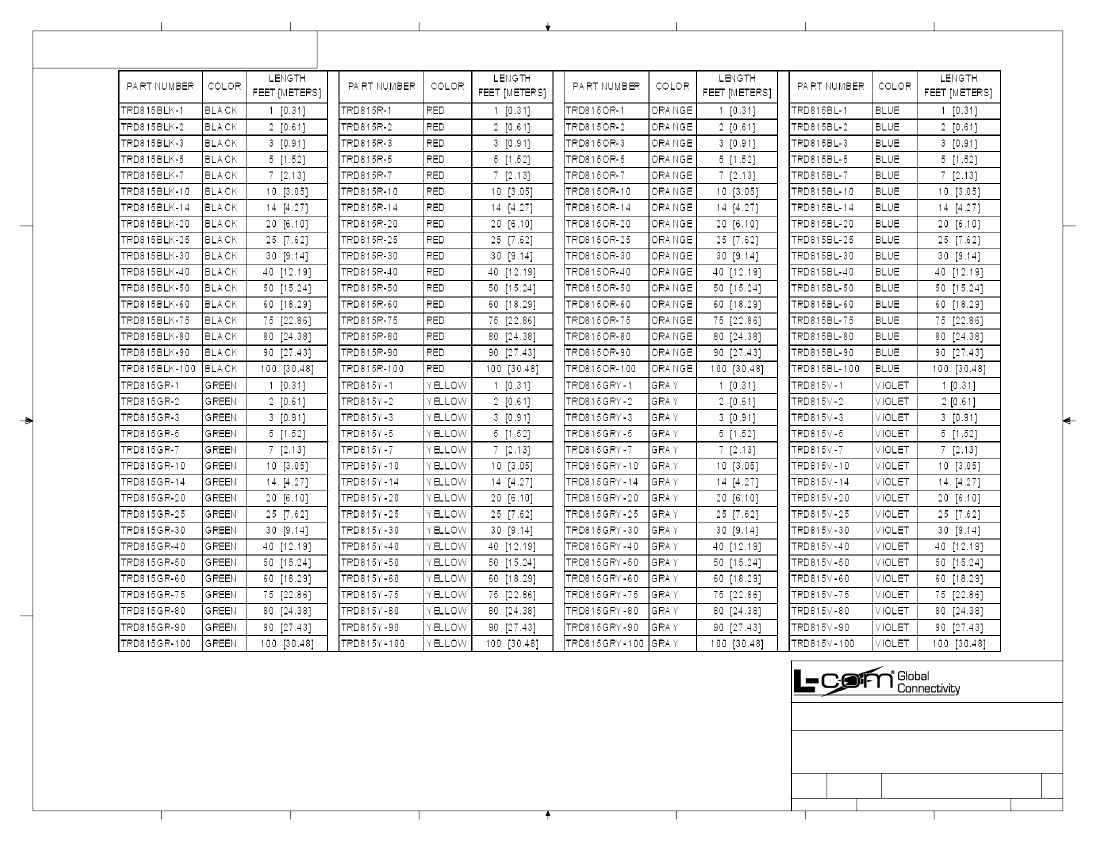

JACKET COLOR: SEE SHEETS 2 AND 3
STRAIN RELIEF: PVC, CLEAR
FINISH:
CONTACTS: 50 µINCHES GOLD IN CONTACT
AREA OVER 100 µINCHES NICKEL PLATE OVERALL
CABLE CHARACTERISTICS:
CATEGORY 5E, UTP, 24 AWG STRANDED COPPER
A
MISCELLANEOUS:
ASSEMBLY WIRED PER 568B SEQUENCE
PLUG CONFORMS TO TIA-1096
OPERATING TEMPERATURE RANGE: -20°C TO +60°C
CABLES TO BE TESTED FOR CONTINUITY
CABLES TO BE INDIVIDUALLY PACKAGED IN A POLY BAG
B
RoHS Compliant
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES [mm]
OVERALL CABLE LENGTH TOLERANCE:
≤12 [305] = +1 [25] / -0
>12 [305] ≤60 [1524] = +2 [51] / -0
>60 [1524] ≤120 [3048] = +4 [102] / -0
>120 [3048] ≤300 [7620] = +6 [152] / -0
>300 [7620] = +5% / -0%
ALL OTHER DIMENSIONAL TOLERANCES:
.X = ± .3
.XX = ± .15
PROJECTION
APPROVALS
DRAWN BY
DATE
01/04/2007
01/05/2007
01/05/2007
PRODUCT DESCRIPTION
CATEGORY
D. PARHAM
CHECKED BY
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
J. KIEZULAS
APPROVED BY
J. ROBERTS
MODULAR
CATEGORY 5E PATCH CORD
SIZE
A
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
COLOR VARIATIONS
MAY OCCUR
A
43321
2
FSCM NO.
DWG. NO.
TRD815-B
1
REV.
SHEET 1 OF 3
SCALE: NONE
CAD FILE:
TRD815-B.SLDDRW
D
8
7
6
5
4
3
