SMBJ SERIES
Elektronische Bauelemente
5V ~ 440V
600W Peak Power Surface Mount TVS
RoHS Compliant Product
A suffix of “-C” specifies halogen-free and lead-free
FEATURES
For surface mount application
Build-in strain relief
Excellent clamping capability
Low profile package
Fast response time: Typically less than 1.0ps from 0 volt to BV min.
Typical I
R
less than 1mA above 10V
High temperature soldering guaranteed:
260°C / 10 seconds at terminals
SMB
B
A
C
H
MECHANICAL DATA
Case: Molded Plastic
Epoxy: UL 94V-0 rate flame retardant
Lead: Solder-able per MIL-STD-202,
Method 208 Guaranteed
Polarity: Color band denotes cathode end except bidirectional
Mounting position: Any
Weight: 0.093 grams
D
G
E
F
REF.
A
B
C
D
Millimeter
Min.
Max.
1.91
2.11
4.06
4.7
3.3
3.94
2.13
2.44
REF.
E
F
G
H
Millimeter
Min.
Max.
-
0.203
5.08
5.59
0.76
1.27
0.15
0.31
PACKAGE INFORMATION
Package
SMB
MPQ
3K
LeaderSize
13’ inch
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(Rating 25°C ambient temperature unless otherwise specified. Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.)
Ratings
Peak Power Dissipation @ T
A
=25° T
P
=1ms
C,
1
Symbol
P
PK
I
FSM
Value
600 (Min.)
100
Units
W
A
Peak Forward Surge Current @ 8.3ms single Half Sine-Wave
superimposed on rated load
2
(JEDEC method)
Maximum Instantaneous Forward voltage @ 35A
for unidirectional only
Operating and Storage Temperature Range
V
F
T
J,
T
STG
3.5
-55 ~ 150
V
°
C
Notes:
1. Non-repetitive current pulse per Fig. 3 and derated above T
A
=25° per Fig. 2.
C
2. 8.3ms single half sine-wave, duty cycle = 4 pulses per minute maximum.
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
26-Jan-2011 Rev. C
Page 1 of 4
SMBJ SERIES
Elektronische Bauelemente
5V ~ 440V
600W Peak Power Surface Mount TVS

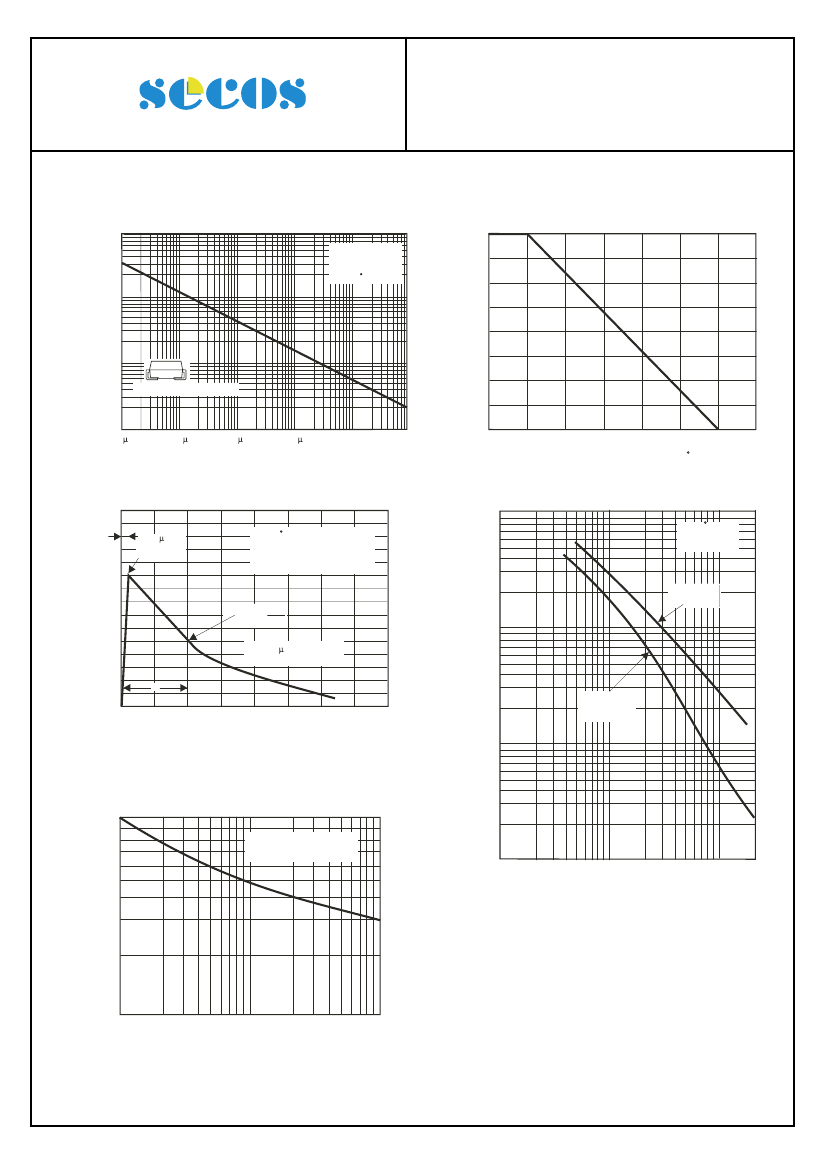

RATINGS AND CHARACTERISTIC CURVES
FIG.1-PEAK PULSE POWER DERATING CURVE
Non-Repetitive
Pulse Waveform
Shown in Fig. 3
T
A
=25 C
10
PEAK PULSE POWER(P
PP
) OR CURRENT(I
PP
)
DERATING IN PERCENTAGE
FIG.2-PULSE DERATING CURVE
100
100
P
PPM
, PEAK PULSE POWER, KW
75
50
1.0
5.0mm COPPER PAD AREAS
2
25
0.1
0.1 s
0
1.0 s
10 s
100 s
1.0ms
10ms
0
25
50
75
100
125
150
175
td, PULSE WIDTH, sec.
T
A
, AMBIENT TEMPERATURE ( C)
FIG.3-PULSE WAVE FORM
150
I
PPM
, PEAK PULSE CURRENT, %
tf=10 s
Peak Value
I
PPM
T
A
=25 C
Pulse Width (td) is defined
as the point where the Peak
Current Decays to 50% of Ipp
10,000
FIG.4-TYPICAL JUNCTION CAPACITANCE
T
J
=25 C
f=1.0MHz
Vsig=50mVp-p
5,000
100
2,000
Half Value-I
PPM
2
Measued at
Zero Bias
1,000
50
10/1000 sec Waveform
as Defined by R.E.A.
C
J
, CAPACITANCE, pF
500
td
e-kt
0
0
1.0
2.0
3.0
4.0
200
Measured at
Stand-Off
Voltage(V
MW
)
t, TIME, ms
100
FIG.5-MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
100
80
T
J
=T
J
max
8.3ms Single Half Sine-wave
JEDEC Method
50
20
I
FSM
, PEAK FORWARD SURGE
CURRENT, AMPERES
60
10
1.0
2.0
5.0
10
20
50
100
200
V(BR), BREAKDOWN VOLTAGE, VOL
TS
40
20
10
1
5
10
20
50
100
NUMBER OF CYCLES AT 60Hz
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
26-Jan-2011 Rev. C
Page 2 of 4
SMBJ SERIES
Elektronische Bauelemente
5V ~ 440V
600W Peak Power Surface Mount TVS
PART
NUMBER
(See Note)
REVERSE
STANDOFF
VOLTAGE
V
RWM
BREAKDOWN
VOLTAGE
Min
Max
V
BR
@ I
T
V
BR
@ I
T
MAX
PEAK
TEST
CLAMPING
PULSE
CURRENT VOLTAGE CURRENT
V
C
@ I
PP
I
PP
REVERSE
LEAKAGE
I
R
@ V
RWM
Uni
-direction
SMBJ5.0A
SMBJ6.0A
SMBJ6.5A
SMBJ7.0A
SMBJ7.5A
SMBJ8.0A
SMBJ8.5A
SMBJ9.0A
SMBJ10A
SMBJ11A
SMBJ12A
SMBJ13A
SMBJ14A
SMBJ15A
SMBJ16A
SMBJ17A
SMBJ18A
SMBJ20A
SMBJ22A
SMBJ24A
SMBJ26A
SMBJ28A
SMBJ30A
SMBJ33A
SMBJ36A
SMBJ40A
SMBJ43A
SMBJ45A
SMBJ48A
SMBJ51A
Bi
-direction
SMBJ5.0CA
SMBJ6.0CA
SMBJ6.5CA
SMBJ7.0CA
SMBJ7.5CA
SMBJ8.0CA
SMBJ8.5CA
SMBJ9.0CA
SMBJ10CA
SMBJ11CA
SMBJ12CA
SMBJ13CA
SMBJ14CA
SMBJ15CA
SMBJ16CA
SMBJ17CA
SMBJ18CA
SMBJ20CA
SMBJ22CA
SMBJ24CA
SMBJ26CA
SMBJ28CA
SMBJ30CA
SMBJ33CA
SMBJ36CA
SMBJ40CA
SMBJ43CA
SMBJ45CA
SMBJ48CA
SMBJ51CA
V
5
6
6.5
7
7.5
8
8.5
9
10
11
12
13
14
15
16
17
18
20
22
24
26
28
30
33
36
40
43
45
48
51
V
6.4
6.67
7.22
7.78
8.33
8.89
9.44
10.0
11.1
12.2
13.3
14.4
15.6
16.7
17.8
18.9
20
22.2
24.4
26.7
28.9
31.1
33.3
36.7
40.0
44.4
47.8
50.0
53.3
56.7
V
7.25
7.67
8.3
8.95
9.58
10.23
10.82
11.5
12.8
14.0
15.3
16.5
17.9
19.2
20.5
21.7
23.3
25.5
28.0
30.7
33.2
35.8
38.3
42.2
46.0
51.1
54.9
57.5
61.3
65.2
mA
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
V
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
A
65.2
58.3
53.6
50
46.5
44.1
41.7
39
35.3
33
30.2
27.9
25.8
24
23.1
21.7
20.5
18.5
16.9
15.4
14.2
13.2
12.4
11.3
10.3
9.3
8.6
8.3
7.7
7.3
µA
800
800
500
200
100
50
10
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Note：
1. Suffix ’A’ denotes 5% tolerance device. Without ‘A’ denotes 10% tolerance device.
2. For Bidirectional use CA suffix for types SMBJ5.0CA thru SMBJ440CA.
3. Electrical Characteristics apply in both directions.
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
26-Jan-2011 Rev. C
Page 3 of 4
SMBJ SERIES
Elektronische Bauelemente
5V ~ 440V
600W Peak Power Surface Mount TVS
PART NUMBER
(See Note)
REVERSE
STANDOFF
VOLTAGE
V
RWM
BREAKDOWN
VOLTAGE
Min
V
BR
@ I
T
Max
V
BR
@ I
T
MAX
PEAK
TEST
CLAMPING
PULSE
CURRENT VOLTAGE CURRENT
V
C
@ I
PP
I
PP
REVERSE
LEAKAGE
I
R
@ V
RWM
Uni
-direction
SMBJ54A
SMBJ58A
SMBJ60A
SMBJ64A
SMBJ70A
SMBJ75A
SMBJ78A
SMBJ85A
SMBJ90A
SMBJ100A
SMBJ110A
SMBJ120A
SMBJ130A
SMBJ150A
SMBJ160A
SMBJ170A
SMBJ180A
SMBJ190A
SMBJ200A
SMBJ220A
SMBJ250A
SMBJ300A
SMBJ350A
SMBJ400A
SMBJ440A
Bi
-direction
SMBJ54CA
SMBJ58CA
SMBJ60CA
SMBJ64CA
SMBJ70CA
SMBJ75CA
SMBJ78CA
SMBJ85CA
SMBJ90CA
SMBJ100CA
SMBJ110CA
SMBJ120CA
SMBJ130CA
SMBJ150CA
SMBJ160CA
SMBJ170CA
SMBJ180CA
SMBJ190CA
SMBJ200CA
SMBJ220CA
SMBJ250CA
SMBJ300CA
SMBJ350CA
SMBJ400CA
SMBJ440CA
V
54
58
60
64
70
75
78
85
90
100
110
120
130
150
160
170
180
190
200
220
250
300
350
400
440
V
60.0
64.4
66.7
71.1
77.8
83.3
86.7
94.4
100
111
122
133
144
167
178
189
200
211
224
246
279
335
391
447
492
V
69.0
74.1
76.7
81.8
89.5
95.8
99.7
108.2
115.5
128
140.5
153
165.5
192.5
205
217.5
220
232
247
272
309
371
432
494
543
mA
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
V
87.1
93.6
96.8
103
113
121
126
137
146
162
177
193
209
243
259
275
292
308
324
356
405
486
567
648
713
A
6.9
6.4
6.2
5.8
5.3
4.9
4.7
4.4
4.1
3.7
3.4
3.1
2.9
2.5
2.3
2.2
2.06
1.95
1.9
1.7
1.5
1.3
1.1
0.9
0.9
µA
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Note：
1. Suffix ’A’ denotes 5% tolerance device. Without ‘A’ denotes 10% tolerance device.
2. For Bidirectional use CA suffix for types SMBJ5.0CA thru SMBJ440CA.
3. Electrical Characteristics apply in both directions.
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
26-Jan-2011 Rev. C
Page 4 of 4
