SDR0603TTEB390K datasheet, PDF

Datasheet> All Categories > Passive components> inductor> SDR0603TTEB390K

SDR0603TTEB390K: DescriptionGENERAL PURPOSE INDUCTOR; CategoryPassive components inductor; File Size173KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric View All

SDR0603TTEB390K Overview

GENERAL PURPOSE INDUCTOR

SDR0603TTEB390K Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	SDR
Base Number Matches	1

Preview

Download Datasheet

View All

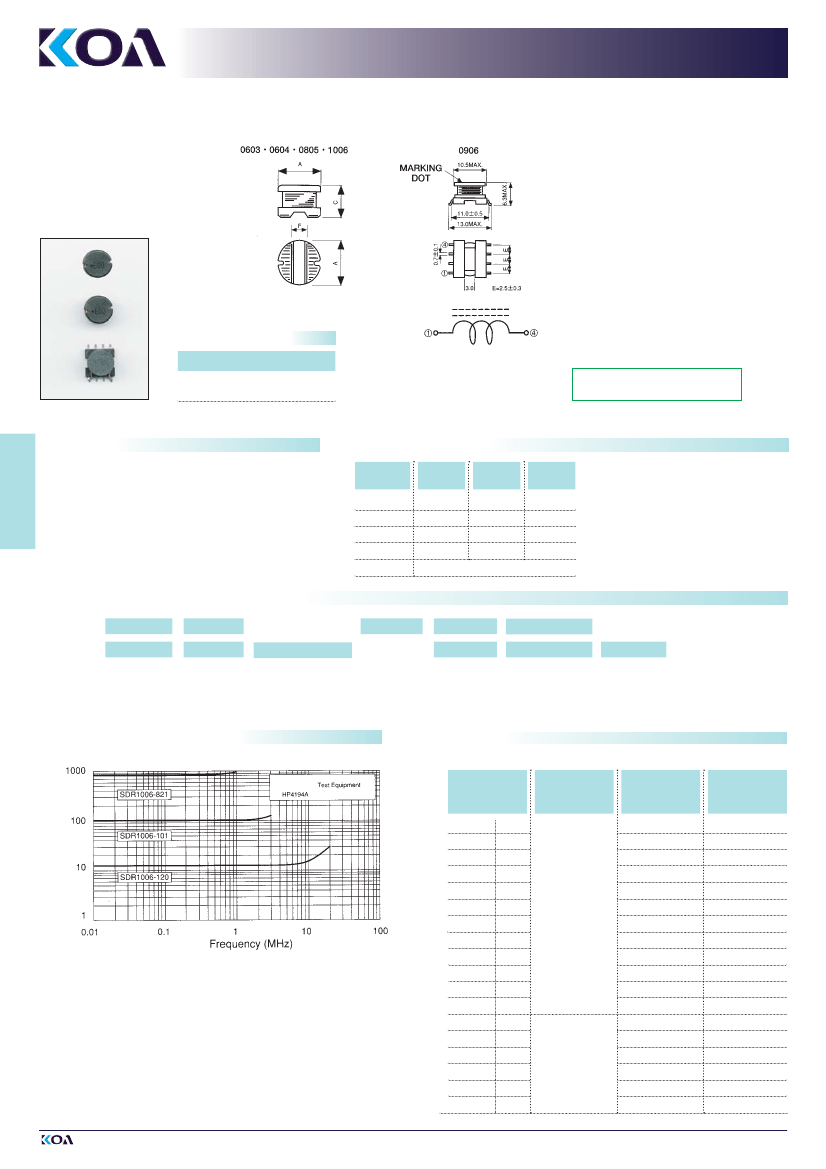

INDUCTORS

TECHNOLOGY OF TOMORROW

FERRITE CORE

POWER CHOKE COIL

SDR

IDENTIFICATION

MARKING

Black, 3 digits and marking dot

Products with Pb-free terminations

meet RoHS requirements

FEATURES

INDUCTORS

■

Large permissible DC current and low DC resistance

Small surface area allows high mounting density

Operating temperature range: - 20° C ... + 80° C

Measuring frequency: 1kHz

Suitable for reflow soldering

DIMENSIONS (mm)

TYPE

SDR0603

SDR0604

SDR0805

SDR1006

SDR0906

∅

(TYP.)

Specifications given herein may be changed at any time without prior notice.

Please confirm technical specifications before you order and/or use.

5.6 ± 0.2 3.7 ± 0.3

1.8

5.6 ± 0.2 4.5 ± 0.3

1.8

7.5 ± 0.3 5.0 ± 0.3

2.6

9.5 ± 0.3 5.5 ± 0.3

2.9

(please refer to above figure)

TYPE DESIGNATION (HOW TO ORDER)

Old Part No.

New Part No.

(Pb-free)

SDR

PRODUCT

CODE

0603

STYLE

TERMINATION

SURFACE MATERIAL

T: Sn

L: Sn/Pb

1R5

NOMINAL

INDUCTANCE

3 digits

(Unit: µH)

INDUCTANCE

TOLERANCE

K: ±10%

Y: ±15%

M: ±20%

INDUCTANCE

TOLERANCE

TAPING*

TE: Tape embossed 7‘‘

TEB: Tape embossed 13‘‘

BK: Bulk

*Please see “PACKAGING”

L-Frequency Characteristics

RATING

SDR0603

NOMINAL

INDUCTANCE

AND CODE

INDUCTANCE

TOLERANCE

TE: 400pcs/7‘‘ reel; TEB: 1.500pcs/13‘‘ reel

RESISTANCE

(MAX.)

0.040

Ω

0.045

Ω

0.050

Ω

0.070

Ω

0.110

Ω

0.120

Ω

0.150

Ω

0.160

Ω

0.180

Ω

0.250

Ω

0.275

Ω

0.300

Ω

0.450

Ω

0.460

Ω

0.550

Ω

0.615

Ω

0.720

Ω

0.840

Ω

ALLOWABLE

DC CURRENT

(MAX.)

3.00 A

2.35 A

2.10 A

1.60 A

1.38 A

1.29 A

1.14 A

1.02 A

0.93 A

0.82 A

0.75 A

0.67 A

0.61 A

0.56 A

0.52 A

0.48 A

0.44 A

0.40 A

Inductance L(µH)

1.5 µH

2.5 µH

3.9 µH

5.0 µH

6.8 µH

7.5 µH

10 µH

12 µH

15 µH

18 µH

22 µH

27 µH

33 µH

39 µH

47 µH

56 µH

68 µH

82 µH

1R5

2R5

3R9

5R0

6R8

7R5

100

120

150

180

220

270

330

390

470

560

680

820

M (± 20%)

K (± 10%)

EUROPE GmbH • Kaddenbusch 6 • D-25578 Dägeling / ITZEHOE • PHONE: +49 (0) 48 21 / 89 89-0 • FAX: +49 (0) 48 21/ 89 89 89 • Internet: www.koaeurope.de

Revision: 5. Nov. 2004
