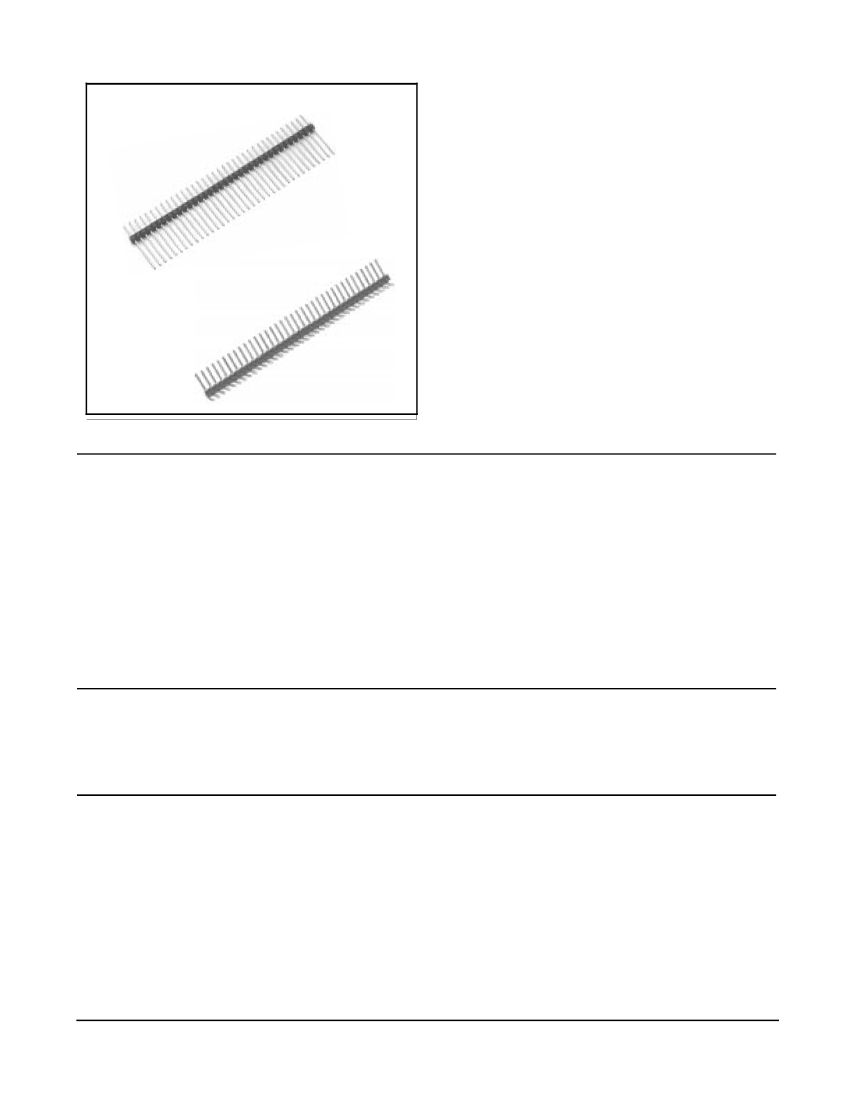

.100″, .235″/.318″ Mating Length, Straight & Right Angle, Solder Tails
929 Series
• Stackable
• Tin Lead or gold plating available
• Solder stand-offs facilitate production wave
soldering
• Board pin retention feature available
• RoHS compliant* versions (EU and RK
plating suffixes) available
Date Modified: August 22, 2006
TS-0769-05
Sheet 1 of 5
Physical
Insulation
Material:
Flammability:
Color:
Contact
Material:
Plating
Underplating:
Wiping Area & Solder Tails:
Glass Filled Polyester (PBT) or PCT (RoHS compliant)
UL 94V-0
Black
Copper Alloy
50 µ" [1.27µm] Nickel
See ordering information
Note:The location and thickness of the contact plating is determined by the part number. Refer to ordering information.
Electrical
Current Rating:
2.5 A
Insulation Resistance:
> 5
×
10
9
Ω
at 500 VDC
Withstanding Voltage:
1500 Vrms at Sea Level
Environmental
Temperature Rating:
-40°C to +105°C
Process Rating:
260°C (per J-STD-020C) for PCT parts only
PBT parts are not intended for reflow processing
*RoHS = Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment
"RoHS compliant" means that the product or part does not contain any of the following substances in excess of the following maximum concentration values
in any homogeneous material, unless the substance is in an application that is exempt under RoHS: (a) 0.1% (by weight) for lead, mercury, hexavalent
chromium, polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing,
this information represents 3M's knowledge and belief based upon information provided by third party suppliers to 3M.
UL File No.: E68080
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

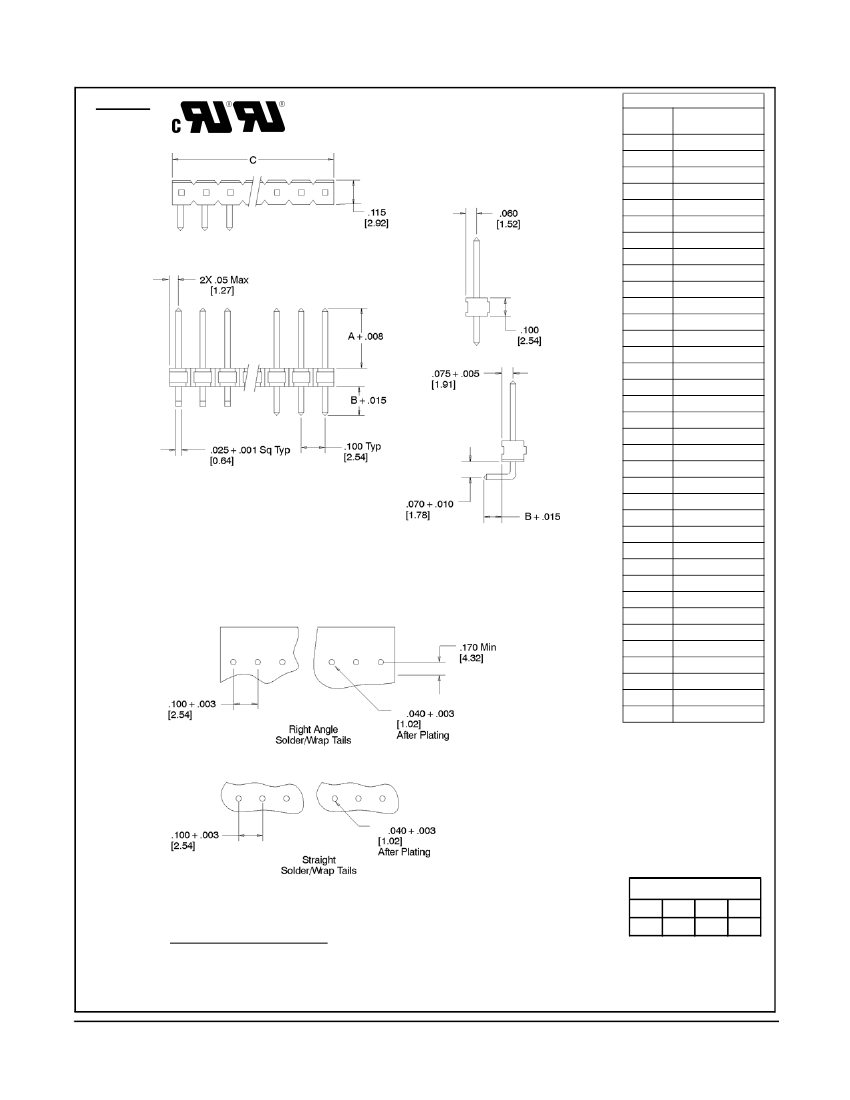

Pin Strip Header
.100″, .235″/.318″ Mating Length, Straight & Right Angle, Solder Tails
One Row
Pin
Quantity
929 Series
Table 2
Dimension C
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
(see note 1)
0.10 [2.5]
0.20 [ 5.1]
0.30 [ 7.6]
0.40 [10.2]
0.50 [12.7]
0.60 [15.2]
0.70 [17.8]
0.80 [20.3]
0.90 [22.9]
1.00 [25.4]
1.10 [27.9]
1.20 [30.5]
1.30 [33.0]
1.40 [35.6]
1.50 [38.1]
1.60 [40.6]
1.70 [43.2]
1.80 [45.7]
1.90 [48.3]
2.00 [50.8]
2.10 [53.3]
2.20 [55.9]
2.30 [58.4]
2.40 [61.0]
2.50 [63.5]
2.60 [66.0]
2.70 [68.6]
2.80 [71.1]
2.90 [73.7]
3.00 [76.2]
3.10 [78.7]
3.20 [81.3]
3.30 [83.8]
3.40 [86.4]
3.50 [88.9]
3.60 [91.4]
In c h
[m m ]
T o le ra n ce U n le s s N o ted
.0
.0 0
.0 00
in c h
± .1
± .0 1 ± .00 5
Recommended Hole Pattern
Notes:
1.Dimension C is a maximum when the pin strip is cut to length, not when the strip is broken to length.
2.Board pin retention feature available: change from ‘‘926'' to ‘‘9R9'' when ordering.
[ ] D im e n sio n s fo r R e fe re nce
O n ly
TS-0769-05
Sheet 2 of 5
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pin Strip Header
.100″, .235″/.318″ Mating Length, Straight & Right Angle, Solder Tails
One Row
929 Series

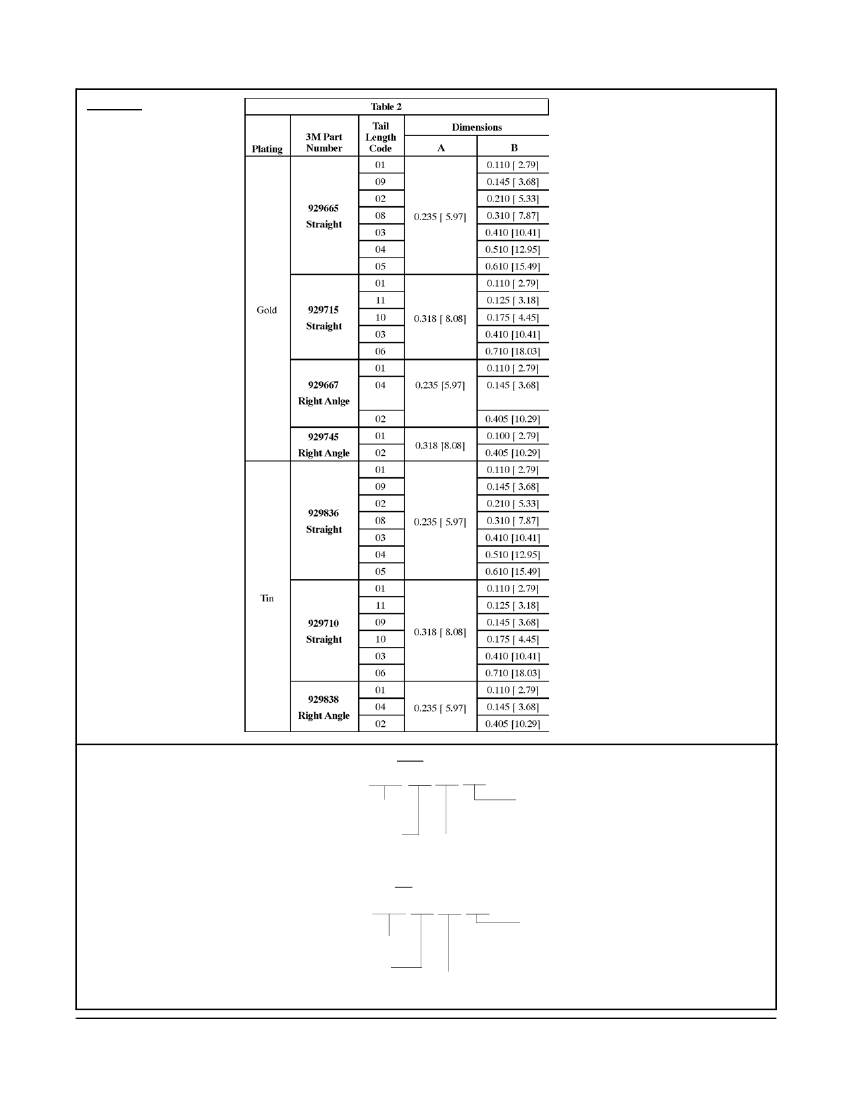

Ordering Information
Gold
929XXX-XX-XX-XX
Mating Length Dim A
(see table1)
Tail Length Code
(see table 1)
Pin Quantity
(see table 2)
Gold Plating Suffix
Location & Thickness (see table 1)
I = 10
μ″
[0.25
μ
m] all over, PBT insulator
EU = 10
μ″
[0.25um] all over, PCT insulator
(RoHS compliant)
Tin
929XXX-XX-XX-XX
Mating Length Dim B
(see table 1)
Tail Length Code
(see table 1)
Plating Suffix:
blank = 100u" [2.54um] tin-lead,
PBT insulator
RK = 200 u" [5 um] matte tin,
PCT insulator (RoHS compliant)
Pin Quantity
(see table 2)
TS-0769-05
Sheet 3 of 5
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pin Strip Header
.100″, .235″/.318″ Mating Length, Straight & Right Angle, Solder Tails
Two Row

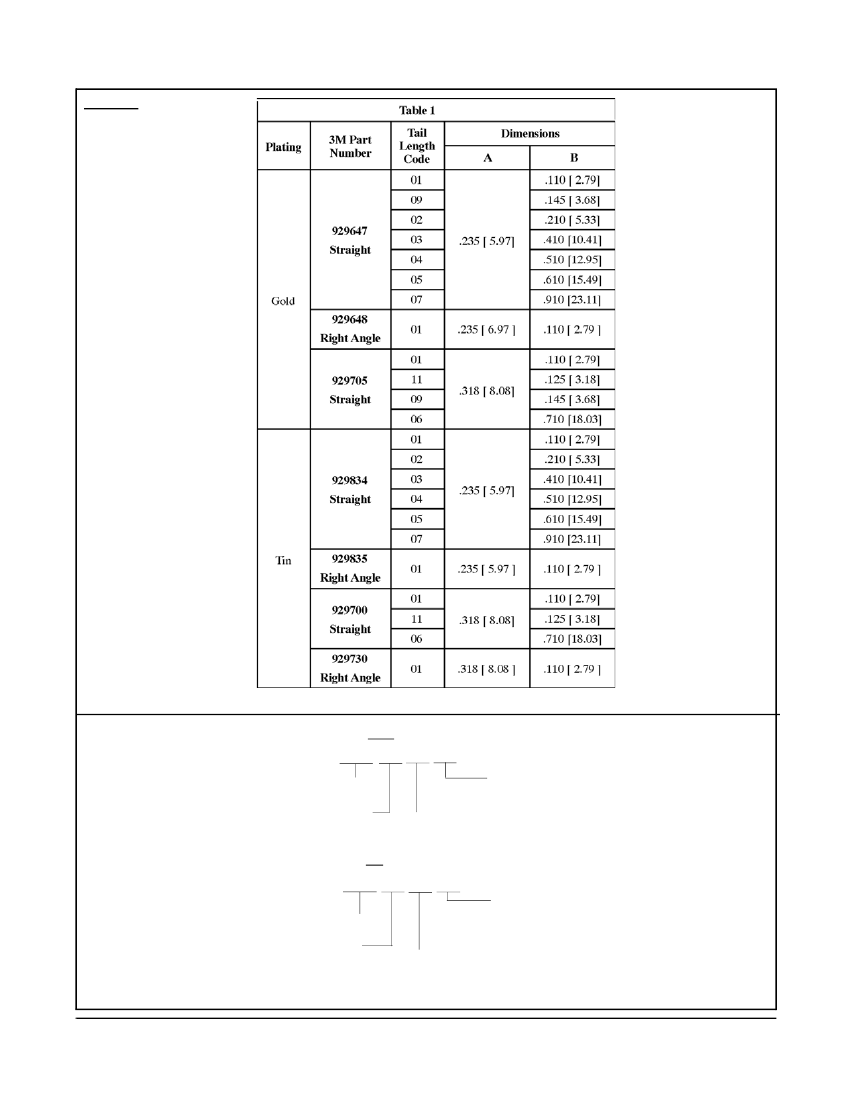

Table 1
Pin
Quantity
Total Pin
Quantity
Dimension C
929 Series
(see note 1)
0.10 [ 2.5 ]
0.20 [ 5.1]
0.30 [ 7.6]
0.40 [10.2]
0.50 [12.7]
0.60 [15.2]
0.70 [17.8]
0.80 [20.3]
0.90 [22.9]
1.00 [25.4]
1.10 [27.9]
1.20 [30.5]
1.30 [33.0]
1.40 [35.6]
1.50 [38.1]
1.60 [40.6]
1.70 [43.2]
1.80 [45.7]
1.90 [48.3]
2.00 [50.8]
2.10 [53.3]
2.20 [55.9]
2.30 [58.4]
2.40 [61.0]
2.50 [63.5]
2.60 [66.0]
2.70 [68.6]
2.80 [71.1]
2.90 [73.7]
3.00 [76.2]
3.10 [78.7]
3.20 [81.3]
3.30 [83.8]
3.40 [86.4]
3.50 [88.9]
3.60 [91.4]
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
02
04
06
08
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72
In c h
[m m ]
T o le ra n c e U n le s s N o ted
.0
in c h
Notes:
1.Dimension C is a maximum when the pin strip is cut to length, not when the strip is broken to length. Breaking of dual
row parts is not recommended.
2.Board pin retention feature available: change from ‘‘926'' to ‘‘9R9'' when ordering.
.0 0
.0 00
± .1
± .0 1 ± .0 05
[ ] D im e n sio n s for R e fe re n ce
O n ly
TS-0769-05
Sheet 4 of 5
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pin Strip Header
.100″, .235″/.318″ Mating Length, Straight & Right Angle, Solder Tails
