Power Bipolar Transistor, 10A I(C), 600V V(BR)CEO, 1-Element, NPN, Silicon, TO-204AA, Metal, 2 Pin

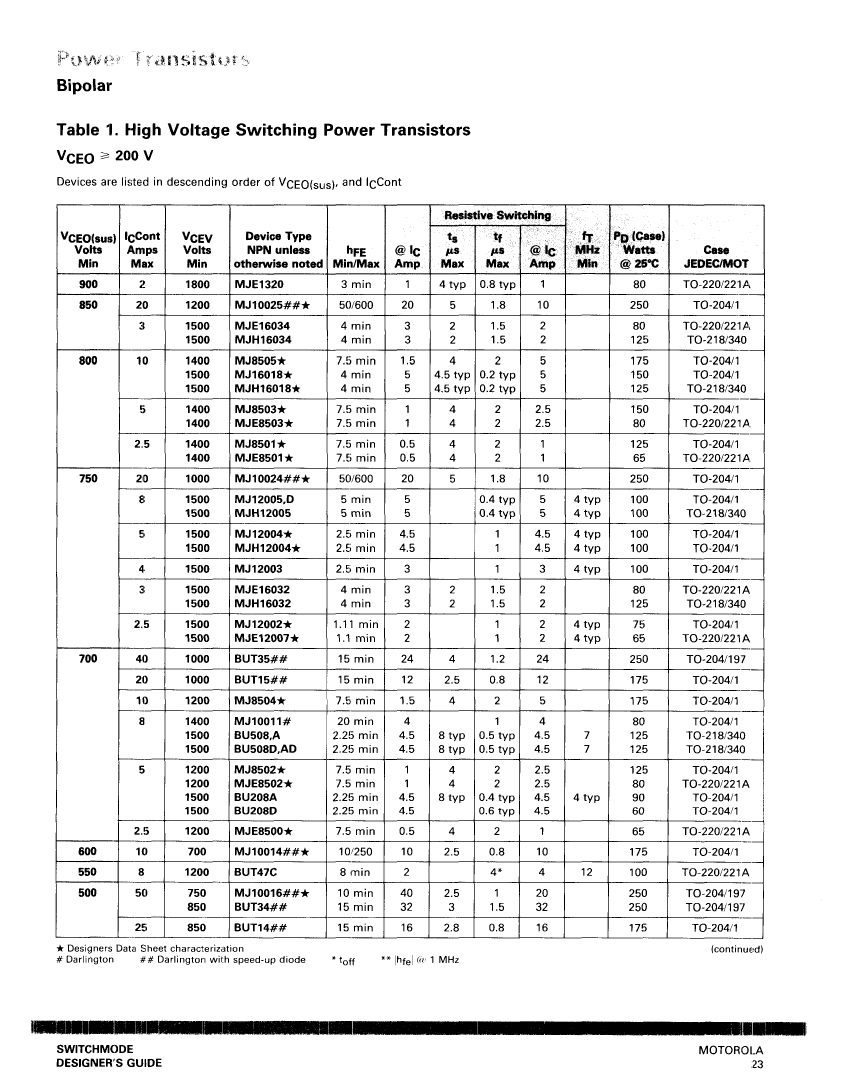

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| package instruction | FLANGE MOUNT, O-MBFM-P2 |
| Reach Compliance Code | unknown |
| Shell connection | COLLECTOR |
| Maximum collector current (IC) | 10 A |
| Collector-emitter maximum voltage | 600 V |
| Configuration | DARLINGTON |
| Minimum DC current gain (hFE) | 10 |
| JEDEC-95 code | TO-204AA |
| JESD-30 code | O-MBFM-P2 |
| JESD-609 code | e0 |
| Number of components | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 200 °C |
| Package body material | METAL |
| Package shape | ROUND |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Polarity/channel type | NPN |
| Maximum power consumption environment | 175 W |
| Maximum power dissipation(Abs) | 175 W |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | PIN/PEG |
| Terminal location | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Maximum off time (toff) | 3300 ns |
| Base Number Matches | 1 |
| MJ10014 | BUT14 | BUT15 | MJE8503 | MJ12004 | MJ12003 | MJ12005 | |
|---|---|---|---|---|---|---|---|
| Description | Power Bipolar Transistor, 10A I(C), 600V V(BR)CEO, 1-Element, NPN, Silicon, TO-204AA, Metal, 2 Pin | Transistor | Transistor | Transistor | Power Bipolar Transistor, 5A I(C), 750V V(BR)CEO, 1-Element, NPN, Silicon, TO-204AA, Metal, 2 Pin | Transistor | Power Bipolar Transistor, 8A I(C), 750V V(BR)CEO, 1-Element, NPN, Silicon, TO-204AA, Metal, 2 Pin |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknow |
| Maximum collector current (IC) | 10 A | 25 A | 20 A | 5 A | 5 A | 4 A | 8 A |
| Configuration | DARLINGTON | DARLINGTON | DARLINGTON | Single | SINGLE | Single | SINGLE |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Polarity/channel type | NPN | NPN | NPN | NPN | NPN | NPN | NPN |
| surface mount | NO | NO | NO | NO | NO | NO | NO |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Minimum DC current gain (hFE) | 10 | 30 | 30 | 7.5 | 2.5 | - | 5 |
| Maximum operating temperature | 200 °C | 200 °C | 200 °C | 125 °C | - | 150 °C | 150 °C |
| Maximum power dissipation(Abs) | 175 W | 175 W | 175 W | 80 W | - | 100 W | 100 W |
| Base Number Matches | 1 | 1 | 1 | 1 | - | - | - |
| Maker | - | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
