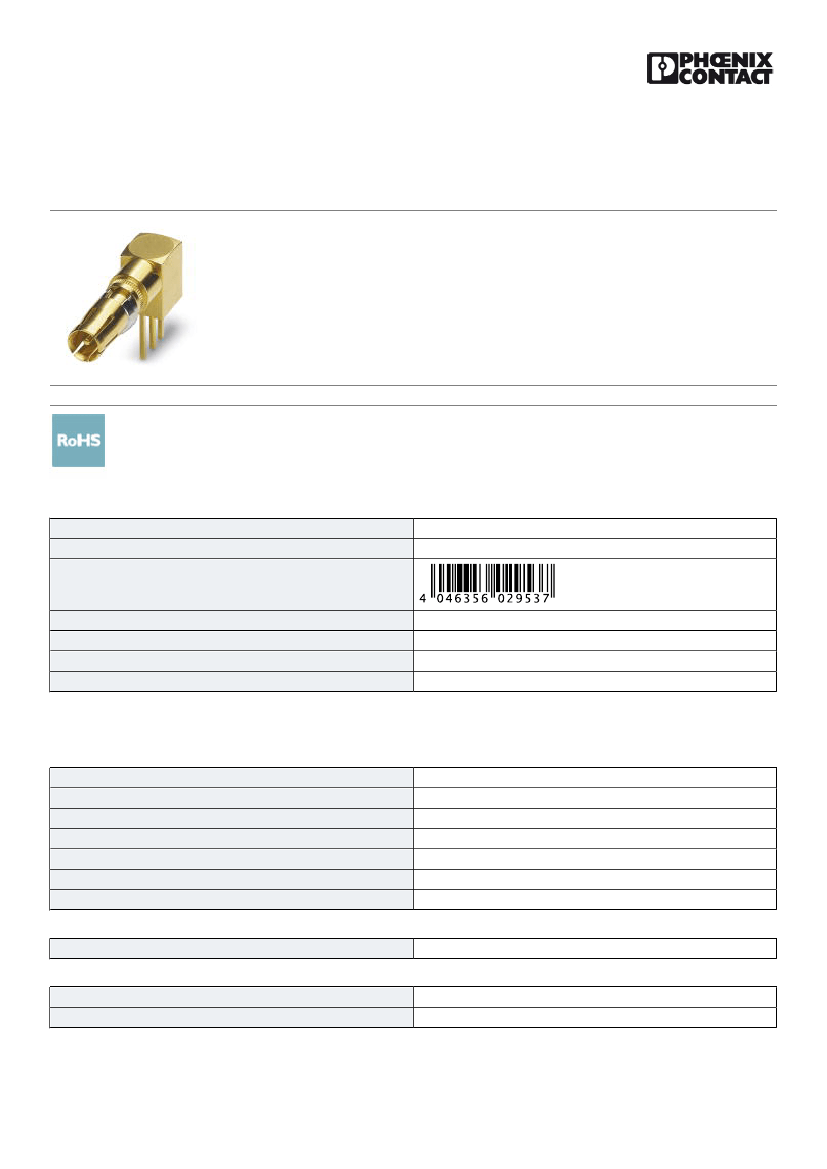

D-SUB coaxial contact - VS-ST-KX-75-LP - 1655645
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Coaxial contact, for D-SUB combination inserts, for PCB assembly, pin, angled, gold-plated
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
4046356029537
3.960 g
85366910
Germany
10 pc
10 pc
Technical data
Mechanical characteristics
Insertion/withdrawal cycles
Connection method
Type of contact
Insertion force per signal contact
Extraction force per signal contact
Insulation resistance
Contact type
≥ 500
PCB mounting
Coaxial
≤ 7.00 N
≤7N
10 TΩ
turned
Ambient conditions
Ambient temperature (operation)
-55 °C ... 135 °C
Material data
Contact material
Contact surface material
Copper alloy
Hard gold-plated over nickel
12/27/2018 Page 1 / 3
https://www.phoenixcontact.com/in/products/1655645
D-SUB coaxial contact - VS-ST-KX-75-LP - 1655645
Technical data
Electrical characteristics
Rated current
Rated voltage (III/3)
2A
250 V
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27140816
27260701
27260701
27261200
27261200
27440204
27440204
27440204
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
ETIM 6.0
EC000796
EC000796
EC000796
EC000796
EC000796
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211923
39121522
39121522
39121522
39121522
Approvals
Approvals
Approvals
EAC
12/27/2018 Page 2 / 3
https://www.phoenixcontact.com/in/products/1655645
D-SUB coaxial contact - VS-ST-KX-75-LP - 1655645
Approvals
Ex Approvals
Approval details
EAC
B.01742
Accessories
Accessories
Assembly tool
Contact removal tool - HC-M4-KOAX-EWZ - 1676747
Contact removal tool for coaxial contacts
