L-934ZH/1ID: DescriptionSingle Color LED, High Efficiency Red, Diffused Red, T-1, 3mm,; CategoryLED optoelectronic/LED photoelectric; File Size158KB，6 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric Compare View All

L-934ZH/1ID Overview

Single Color LED, High Efficiency Red, Diffused Red, T-1, 3mm,

L-934ZH/1ID Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	IC COMPATIBLE, HIGH RELIABILITY
color	HIGH EFFICIENCY RED
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	DIFFUSED RED
Nominal luminous intensity	25.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	11.43 mm
method of packing	BULK
peak wavelength	627 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	60 deg
Base Number Matches	1

Preview

Download Datasheet

View All

T-1 (3mm) RIGHT ANGLE LED INDICATORS

L-934ZH/1ID

L-934ZH/1SRD

L-934ZH/1YD

L-934ZH/1GD

HIGH EFFICIENCY RED

SUPER BRIGHT RED

YELLOW

GREEN

Features

PRE-TRIMMED

I.C.

Description

LEADS FOR PC MOUNTING.

The High Efficiency Red source color devices are made

with Gallium Arsenide Phosphide on Gallium Phosphide

Orange Light Emitting Diode.

The Super Bright Red source color devices are made with

Gallium Aluminum Arsenide Red Light Emitting Diode.

The Yellow source color devices are made with Gallium

Arsenide Phosphide on Gallium Phosphide Yellow Light

Emitting Diode.

The Green source color devices are made with Gallium

Phosphide Green Light Emitting Diode.

COMPATIBLE.

ARE DESIGNED FOR POSITIONING

PILLARS

THE HOUSING ON P.C. BOARD.

BLACK

WIDE

HIGH

CASE ENHANCES CONTRAST RATIO.

VIEWING ANGLE.

RELIABILITY LIFE MEASURED IN YEARS.

MATERIAL: TYPE 66 NYLON.

RATING : 94V-0.

HOUSING

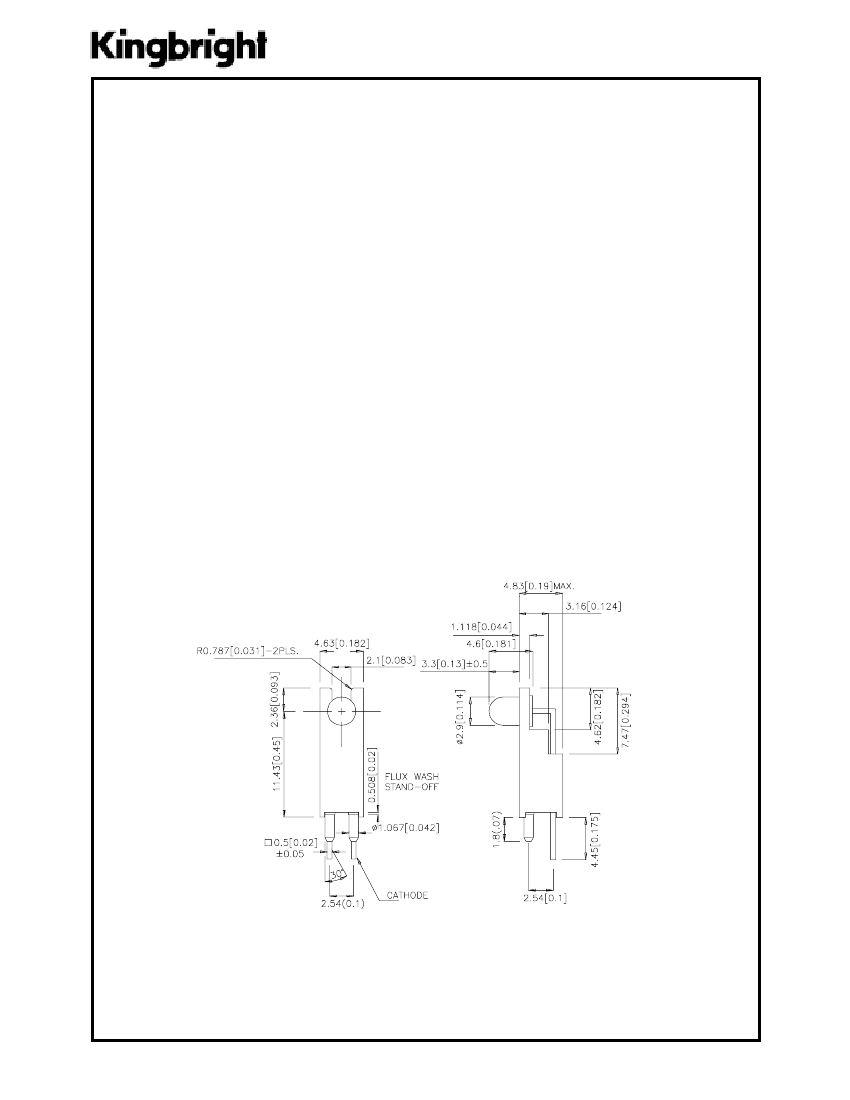

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

3. Lead spacing is measured where the lead emerge package.

4. Specifications are subject to change without notice.

SPEC NO: DSAD0566

APPROVED: J.LU

REV NO: V.1

CHECKED: Allen Liu

DATE: MAR/10/2003

DRAWN: F.Y.YUAN

PAGE: 1 OF 6
