Datasheet> All Categories > Discrete semiconductor> diode> BAT64-05B5003

BAT64-05B5003: DescriptionRectifier Diode, Schottky, 2 Element, 0.12A, Silicon, SOT-23, 3 PIN; CategoryDiscrete semiconductor diode; File Size1MB，13 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

BAT64-05B5003 Overview

Rectifier Diode, Schottky, 2 Element, 0.12A, Silicon, SOT-23, 3 PIN

BAT64-05B5003 Parametric

Parameter Name	Attribute value
Parts packaging code	SOT-23
package instruction	R-PDSO-G3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Number of components	2
Number of terminals	3
Maximum output current	0.12 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.25 W
Certification status	Not Qualified
Maximum reverse recovery time	0.005 µs
surface mount	YES
technology	SCHOTTKY
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

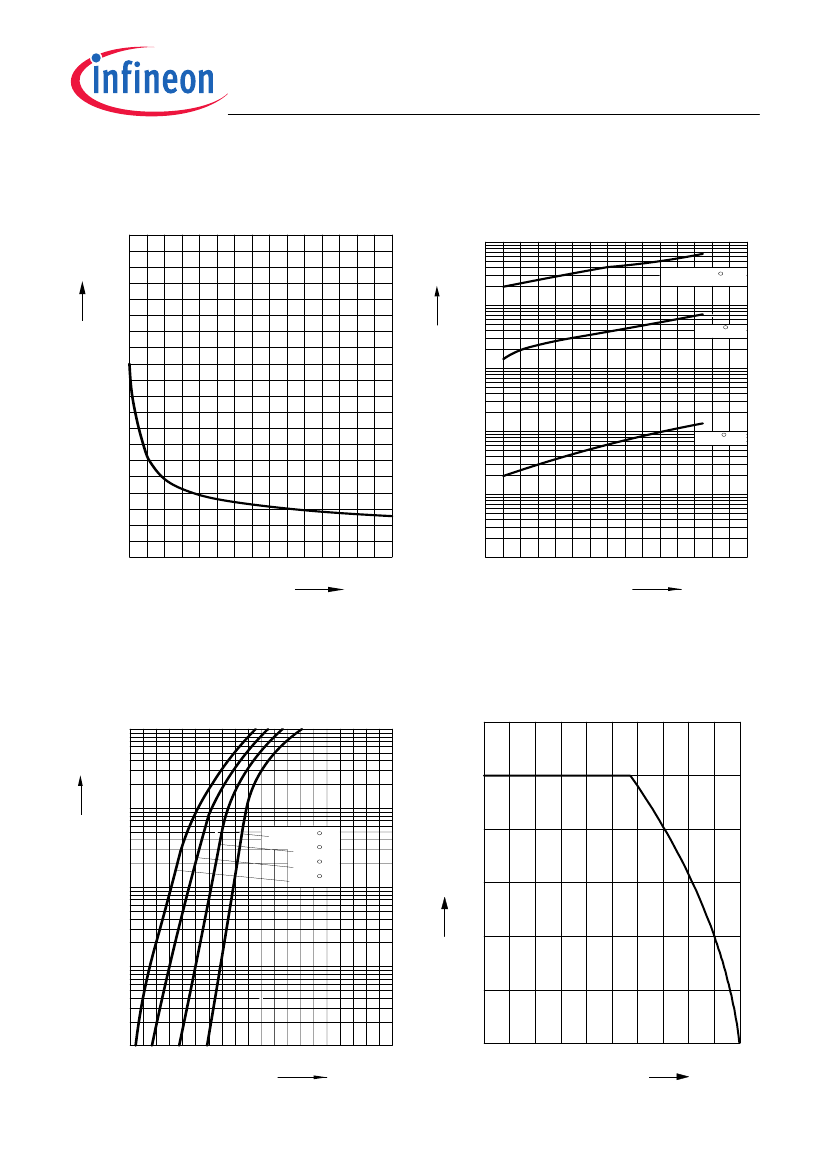

BAT64...

Silicon Schottky Diodes

•

For low-loss, fast-recovery, meter protection,

bias isolation and clamping application

•

Integrated diffused guard ring

•

Low forward voltage

•

Pb-free (RoHS compliant) package

•

Qualified according AEC Q101

BAT64

BAT64-02W

BAT64-02V

BAT64-04

BAT64-04W

BAT64-05

BAT64-05W

BAT64-06

BAT64-06W

ESD

(

lectro

tatic

ischarge) sensitive device, observe handling precaution!

Type

BAT64

BAT64-02V

BAT64-02W*

BAT64-04

BAT64-04W

BAT64-05

BAT64-05W

BAT64-06

BAT64-06W

* Not for new design

Package

SOT23

SC79

SCD80

SOT23

SOT323

SOT23

SOT323

SOT23

SOT323

Configuration

single

series

common cathode

common anode

(nH)

1.8

0.6

1.8

1.4

1.8

1.4

1.8

1.4

Marking

63s

64s

65s

66s

2014-02-11

BAT64-05B5003 Related Products

	BAT64-05B5003	BAT64E6327	BAT64-05E6327	BAT64-04E6433	BAT64-04TE6327	BAT64B5003	BAT64-04B5003	BAT64-06B5003
Description	Rectifier Diode, Schottky, 2 Element, 0.12A, Silicon, SOT-23, 3 PIN	Rectifier Diode, Schottky, 1 Element, 0.12A, 40V V(RRM), Silicon, SOT-23, 3 PIN	Rectifier Diode, Schottky, 2 Element, 0.12A, 40V V(RRM), Silicon, SOT-23, 3 PIN	Rectifier Diode, Schottky, 2 Element, 0.12A, 40V V(RRM), Silicon,	Rectifier Diode, Schottky, 0.12A, 40V V(RRM),	Rectifier Diode, Schottky, 1 Element, 0.12A, Silicon, SOT-23, 3 PIN	Rectifier Diode, Schottky, 2 Element, 0.12A, 40V V(RRM), Silicon, SOT-23, 3 PIN	Rectifier Diode, Schottky, 2 Element, 0.12A, Silicon, SOT-23, 3 PIN
Reach Compliance Code	unknown	compliant	compliant	compliant	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum output current	0.12 A	0.12 A	0.12 A	0.12 A	0.12 A	0.12 A	0.12 A	0.12 A
Maximum reverse recovery time	0.005 µs	0.005 µs	0.005 µs	0.005 µs	0.005 µs	0.005 µs	0.005 µs	0.005 µs
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Parts packaging code	SOT-23	SOT-23	SOT-23	-	-	SOT-23	SOT-23	SOT-23
package instruction	R-PDSO-G3	SOT-23, 3 PIN	SOT-23, 3 PIN	-	-	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Contacts	3	3	3	-	-	3	3	3
Configuration	COMMON CATHODE, 2 ELEMENTS	SINGLE	COMMON CATHODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	-	SINGLE	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	-	SILICON	SILICON	SILICON
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	-	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e3	e3	e3	e3	-	e3	e3	e3
Number of components	2	1	2	2	-	1	2	2
Number of terminals	3	3	3	3	-	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	0.25 W	0.25 W	0.25 W	0.25 W	-	0.25 W	0.25 W	0.25 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Terminal surface	MATTE TIN	Tin (Sn)	Tin (Sn)	Matte Tin (Sn)	-	MATTE TIN	MATTE TIN	MATTE TIN
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	-	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	-	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	-	-	-
Maker	-	Infineon	Infineon	Infineon	Infineon	Infineon	Infineon	Infineon
Maximum repetitive peak reverse voltage	-	40 V	40 V	40 V	40 V	-	40 V	-
