TT11EGPC40 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> TT11EGPC40

TT11EGPC40: DescriptionToggle Switch, TOGGLE SWITCH, DPST, LATCHED, 3A, PANEL MOUNT-THREADED; CategoryMechanical and electronic products switch; File Size114KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

TT11EGPC40 Overview

Toggle Switch, TOGGLE SWITCH, DPST, LATCHED, 3A, PANEL MOUNT-THREADED

TT11EGPC40 Parametric

Parameter Name	Attribute value
Brand Name	Alcoswitch
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	LARGE FLAT TYPE
Body length or diameter	12.4 mm
Maximum contact current (AC)	3 A
Maximum contact current (DC)	3 A
Manufacturer's serial number	TT
Installation features	PANEL MOUNT-THREADED
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	LATCHED
switch function	DPST
Switch type	TOGGLE SWITCH
Termination type	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

My Account

Tyco Electronics

(C hange)

Se a rch by Ke yword or Pa rt #

Products

Documentation

Resources

My Account

Customer Support

Home

Products

By Type

Switches

Product Feature Selector

> Product Details

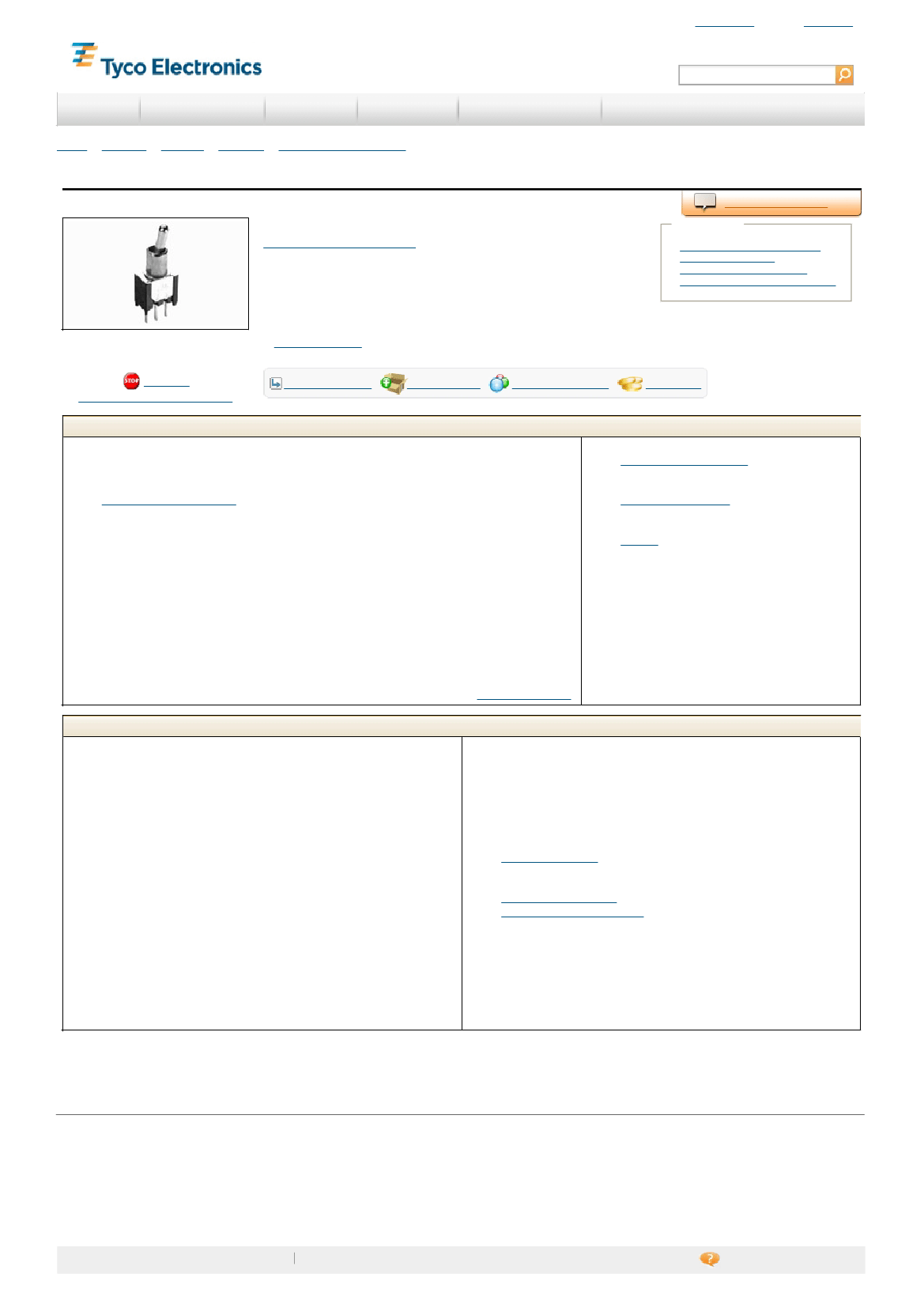

TT11EGPC40 Product Details

Live Product Chat

Toggle Switches

Not EU R oHS or ELV C om plia nt

Quick Links

C heck Pricing & Availability

Search for Tooling

Product Feature Selector

C ontact Us About This Product

TT11EGPC40

(5-1437561-5)

T E I nternal N umber: 5 - 1 4 3 7 5 6 1 - 5

Product Highlights:

TT (Tiny) Series

Double Pole - Single Throw C onfiguration (Pole-Throw)

C urrent Rating = 3 Amps.

Mount Style = Panel

Termination Type = Vertical, Wire Lugs

View all Features

Obsolete

Search for Replacement Parts

A dd to M y P art L is t

Reques t Sample

Find Similar P roduc ts

Buy P roduc t

Documentation & Additional Information

Product Drawings:

None Available

Catalog Pages/Data Sheets:

ALC OSWITC H PRODUC TS

(PDF, English)

Product Specifications:

None Available

Application Specifications:

None Available

Instruction Sheets:

None Available

CAD Files:

None Available

List all Documents

Product Features

(Please use the Product Drawing for all design activity)

Product Type Features:

C onfiguration (Pole-Throw) = Double Pole - Single Throw

Termination Type = Vertical, Wire Lugs

C omment = Pinned for anti-rotation; Wire lug terminals accept two

No. 20 AWG wires.

Electrical Characteristics:

C urrent Rating (Amps.) = 3

Termination Related Features:

Seal Type = Terminal Seal (epoxy)

Body Related Features:

Series = TT (Tiny)

Mount Style = Panel

Flammability Rating = UL 94V-0

UL Rating = Qualified

Contact Related Features:

C ontact Plating = Silver

Housing Related Features:

Toggle Style = Large Flat with Bushing

Toggle Length (mm [in]) = 12.40 [0.490]

Process Sealed = No

Bushing Style = Threaded

Bushing Type = 1/4-40

Configuration Related Features:

Operating Function

= On None On

Industry Standards:

RoHS/ELV C ompliance

= Not ELV/RoHS compliant

Lead Free Solder Processes

= Wave solder capable to 240?C , Wave

solder capable to 260?C , Wave solder capable to 265?C

Other:

Brand = Alcoswitch

Additional Information:

Product Line Information

Additional Product Images:

Dimensional Drawing

TT11EGPC40 Related Products

	TT11EGPC40	5-1437561-5
Description	Toggle Switch, TOGGLE SWITCH, DPST, LATCHED, 3A, PANEL MOUNT-THREADED	Toggle Switch, TOGGLE SWITCH, DPST, LATCHED, 3A, PANEL MOUNT-THREADED
Brand Name	Alcoswitch	Alcoswitch
Is it Rohs certified?	incompatible	incompatible
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Actuator type	LARGE FLAT TYPE	LARGE FLAT TYPE
Body length or diameter	12.4 mm	12.4 mm
Maximum contact current (AC)	3 A	3 A
Maximum contact current (DC)	3 A	3 A
Manufacturer's serial number	TT	1437561
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
seal	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED
surface mount	NO	NO
Switch action	LATCHED	LATCHED
switch function	DPST	DPST
Switch type	TOGGLE SWITCH	TOGGLE SWITCH
Termination type	WIRE	WIRE
