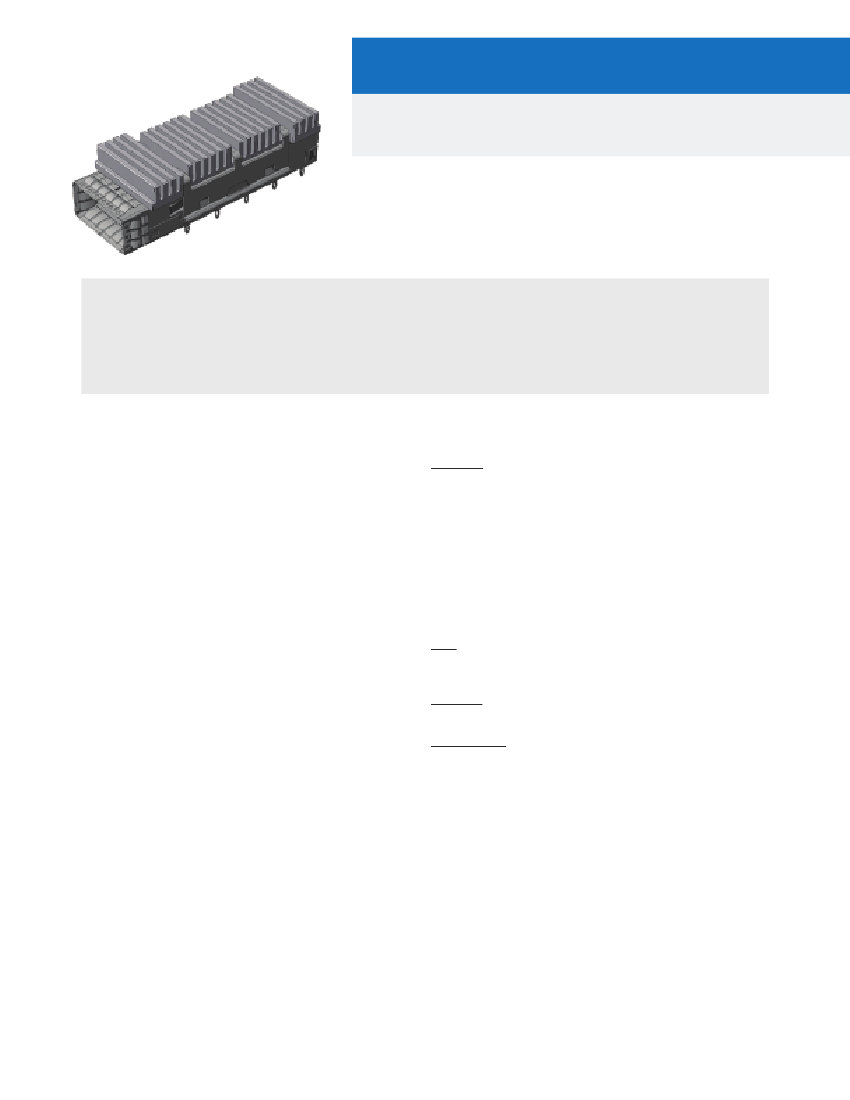

QSFP
The interconnect system comprises a 38 position 0.8mm pitch connector and a
press-fit cage designed to comply with the Quad Small Form-factor Pluggable
(QSFP) Transceiver Specifications.
The connector system is capable of data rates beyond 5 Gigabits per channel
(4 channels) and is intended for external connections (38 position connector).
Applications
• Clusters
• Servers
• Storage devices
Supporting multiple data transfer protocols:
• Infiniband – 4x SDR/DDR
• SONET/SDH – OC-12/OC-48
• 10 Gigabit Ethernet / 4 x 3.125 Gb/s
• Quad Fibre Channel (1/2/4 Gb/s)
• PCI Express 4x
Product Specification for QSFP connector system
Connector Mechanical Characteristics
Insertion force: 40 N maximum
Withdrawal force: 30 N maximum
Durability: 250 mating cycles
Cage Mechanical Characteristics
Cages available with and without Heat Sinks
Cages are press-fit into PCBs
Cage is keyed according to QSFP MSA
Connector Electrical Characteristics
Maximum current: 0.5A per contact
Maximum voltage: 30V per contact
LLCR: 80 m
Ω
max
Insulation Resistance: 1000 M
Ω
at 100V DC for 60 seconds
DWV: 300 V minimum DC for 60 seconds
Signal Integrity Requirements
Return Loss: 10dB
Near end isolation: -40dB (frequencies up to 3 GHz)
Insertion loss: 0.13 dB maximum (frequencies up to 1.25 GHz)
0.25 dB maximum (frequencies 1.25 – 2.50 GHz)
0.25 dB maximum (frequencies 2.50 – 5.00 GHz)
Differential impedance: 90 – 110 _
Rise time for impedance measurement: 25 ps
Within pair skew: <1 ps
NEXT:
≤
2%
Materials
Connector
• Contacts
• Base material – phosphor bronze
• Contact Normal Force – 100 g nominal
• Cut edge
• Plating
Mating area – refer to p/n table
Solder tails – refer to p/n table
• Housings: black color, glass-reinforced, lead-free solder
reflow process compatible thermoplastic, UL94V-0 rated
Temperature rise: Meets the requirement of 30°C
∆T
Cage
• Base material – copper alloy
• Plating – 100µ" Nickel plated
Heat Sink
• Base material – anodized aluminum
Heat Sink Clip
• Base material – steel
Operating temperature -40° to +85°C
Storage temperature -40° to +85°C
www.amphenolcanada.com/qsfp
Telephone: (416) 291-4401 Fax: (416) 754-8668 E-Mail: sales@amphenolcanada.com
All specifications are subject to change without notice.
P.15
QSFP

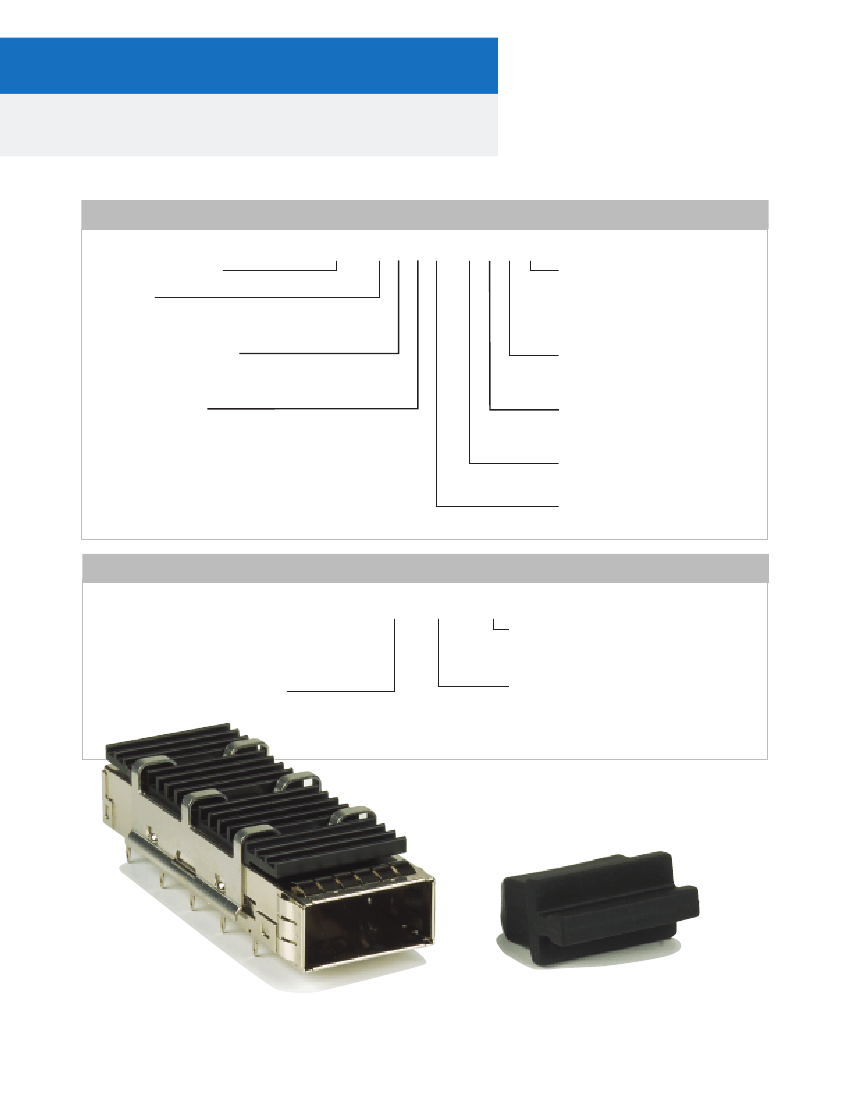

Ordering Information
Contact Amphenol for additional options
QSFP Cage
SERIES DESIGNATION
STYLE
A
- One row
C
- One row 1° version
NUMBER OF PORT IN ROW
1
- Single port
Other options being developed
HEAT SINK OPTION
1
- No Heat Sink
2
- 6.5mm tall Heat Sink and clip
3
- 4.2 mm tall Heat Sink and clip
4
- 13.5 mm tall Heat Sink and clip
Other options available
U90 - X X X 1 - X X X X
PACKAGING
1
- Tray packaging
T
- Tape and reel packaging
A
- Tray packaging, heat sink and clip
already assembled on cage
LIGHT PIPES OPTION
0
- Standard, Light pipes and clips supplied separately
1
- With light pipes installed
OPTIONAL DUST COVER
0
- Without dust cover
D
- With dust cover (Ship loose)
PLATING
1
- Nickel plated cage
APPLICATION
1
- Press Fit Pins - 3 mm Long
Ordering Information
Contact Amphenol for additional options
QSFP
Connector
Part Numbers
R38
- 38 position connector
FS1 - R38 - X 0 0 X
OPTIONS
0
- Standard connector
1
- Connector with hold down tabs
PLATING
2
- 50µ” nickel under-plate all over,
30µ” gold in mating area/ 100µ” matte tin on tails
3
- 50µ” nickel under-plate all over,
15µ” gold in mating area/ 100µ” matte tin on tails
QSFP with 4.2mm Heat Sink option
www.amphenolcanada.com/qsfp
P.16
Telephone: (416) 291-4401 Fax: (416) 754-8668 E-Mail: sales@amphenolcanada.com
All specifications are subject to change without notice.
