REVISION AG
X
= ASO ONLY (APPLICATION SPECIFIC
ORDER)
QTE-XXX-XX-XXX-D-DP-XXX
No OF POSITIONS
-014, -028, -042,
*-056,*-070
(PER ROW)
(*SEE NOTE 12)
LEAD STYLE
-01: .1680 [4.267] (SEE FIG.1)
-02: .2861 [7.264] (SEE FIG.1)
-03: .4042 [1.123] (SEE FIG.1)
-04: .600[15.24]
(SEE FIG. 4, SHT. 3)
-05: .718[18.237]
(SEE FIG. 4, SHT. 3)
-06: .835[21.209]
(SEE FIG. 4, SHT. 3)
-07: .954[24.232]
-08: 1.151[29.24]
-09: .522[13.258]
-10: .5606[14.239]
C1
(No OF POSITIONS / 14) x .7875[20.003]
.095 2.40 REF
.032 0.80 REF
01
DO NOT
SCALE FROM
THIS PRINT
.155 3.94 REF
02
.033 0.84
REF
.632 16.05
6 SPACES
@ .0945[2.40]
.235 5.97 REF
.008 0.20 REF
.788 20.00 REF
X
X
X
X
X
X
X
T-1G1-01-XXX
QTE-20-01-D-XX
"B" REF
PLATING SPECIFICATION
-F: FLASH SELECTIVE GOLD WITH MATTE TIN TAILS
(USE T-1SXX-XX-F, T-1G1-XX-F)
-L: LIGHT SELECTIVE GOLD WITH MATTE TIN TAILS
(USE T-1SXX-XX-L, T-1G1-XX-L)
-H: HEAVY GOLD WITH FLASH GOLD TAILS
(USE T-1SXX-XX-H, T-1G1-XX-G)
-C: ELECTRO-POLISHED SELECTIVE
(USE T-1SXX-XX-C, T-1G1-XX-L)
-STL: HEAVY SELECTIVE GOLD WITH TIN LEAD TAILS
(USE T-1SXX-XX-STL, T-1G1-XX-STL)
-FTL: FLASH SELECTIVE GOLD WITH TIN LEAD TAILS
(USE T-1SXX-XX-FTL, T-1G1-XX-FTL)
AG
OPTION
-A: ALIGNMENT PINS
-LC: LOCKING CLIPS(SEE NOTE 13)
(USE LC-08-TM-01)
-K: POLYIMIDE FILM
(USE K-DOT-.276-.375-.005)
(SEE FIG. 2, SHT. 2)
(N/A ON STYLES -07 & -08)
-GP: GUIDE POSTS
(AVAILABLE ON -01 ONLY)
(USE QTE-20-01-D-XX-X-GP)
(SEE FIG. 3, SHT. 2)
-TR: TAPE & REEL (42 POS. MAX)
(NOT AVAILABLE ON -05, -06,
-07, -08 LEAD STYLES)
(028 POS MAX FOR -GP OPTION)
-RT1: RETENTION OPTION (SEE FIG. 7, SHEET 4)
(ONLY AVAILABLE ON -01 LEAD STYLE)
(MUST USE -A OPTION)
(USE QTE-20-01-D-XX-A-RT1 & T-1R36-01-F)
(NOT AVAILABLE WITH -LC, -GP, -SD, OR -FL)
(NOT AVAILABLE ON -056 & -070 POS)
-L: LATCHING OPTION (28 POS. MAX.)
(SEE FIG. 8, SHEET 5) (MUST USE -A OPTION)
(AVAILABLE ON -01 ONLY)
(NOT AVAILABLE WITH -LC, -GP, -SD, -FL,
OR -RT1)
BODY STYLE
-DP: DIFFERENTIAL PAIRS
ROW SPECIFICATION
-D: DOUBLE (USE QTE-20-XX-D-XX &
QTEH-20-XX-D-XX)
"A"
.055 1.40
C3
T-1SXX-XX-XXX
(SEE TABLE 1)
'A'
"A"
.003[.08]
.002[.05]
(SEE NOTE 5, 6 & 10)
C2
No OF BANKS
SEE TABLE 2
.006 0.15
REF
"A"
.010 0.25 REF
.745 18.92 REF
(((No OF POSITIONS / 14) x .7875[20.003])
-.060[1.52]) .003[.08]
LC-08-01-T
.023 0.57 REF
.015 0.38 REF
.056 1.42 REF
.280 7.112 REF

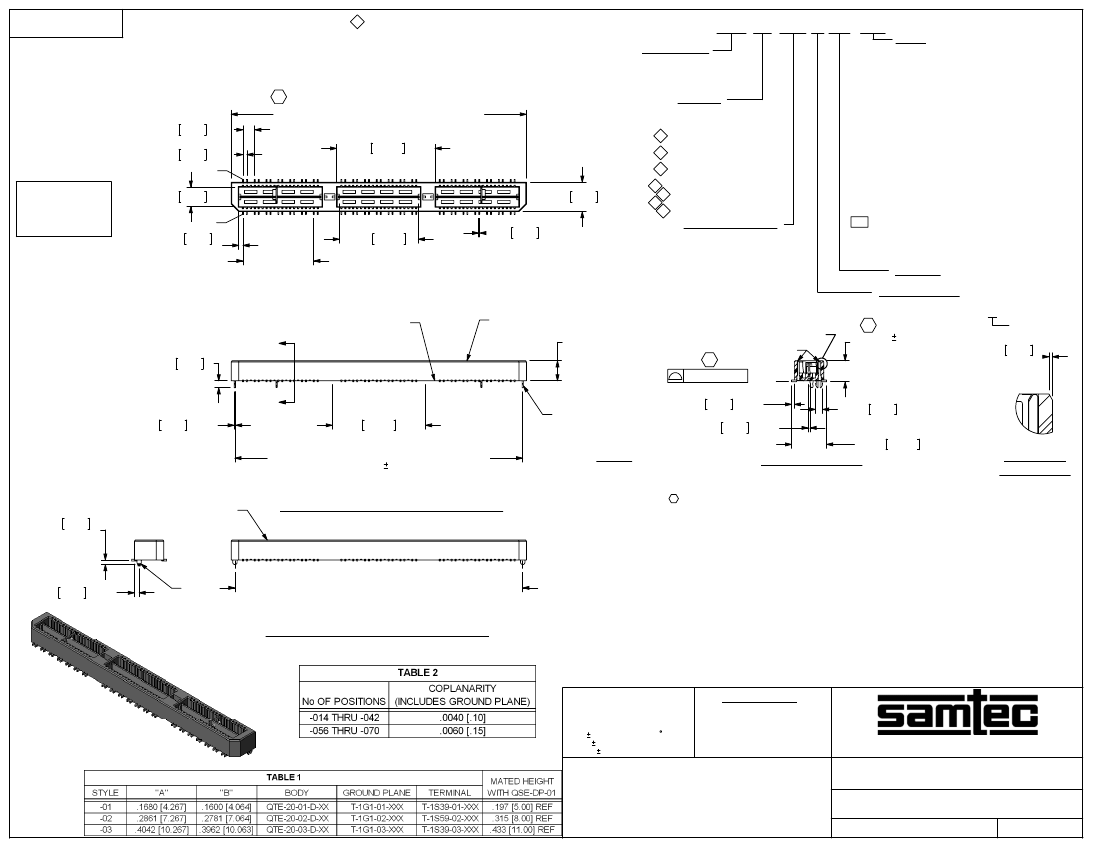

FIG. 1
.036 0.91
REF
.038 0.95 REF
QTE-042-01-XXX-D-DP-LC SHOWN
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
-LC: LOCKING CLIP OPTION SHOWN
QTE-20-01-D-XX-A
2. MINIMUM TERMINAL RETENTION: 5 OZ.
3. MINIMUM GROUND PLANE RETENTION: 1 LB.
4. PARTS TO BE MOLDED TO POSITION.
5. MAXIMUM VARIANCE OF .002 [.05].
6. DIMENSION APPLIES TO TERMINALS AND GROUND PLANE.
7. DELETED.
8. DELETED.
R
9. -L PLATING CAN BE SUBSTITUTED FOR -F PLATING.
(((No OF POSITIONS / 14) x .7875[20.003]) - .060[1.52]) REF
10. GROUND PLANE PRESS HEIGHT MUST BE .003[.08] LESS THAN THE MAX HEIGHT
OR .001[.03] GREATER THAN THE MINIMUM HEIGHT OF THE TERMINALS.
11. T-1R36 RETENTION TO BODY TO BE 1.0 LBF.
-A: ALIGNMENT PIN OPTION SHOWN
12. FOR NEW APPLICATIONS REQUIRING THESE POSITIONS, PLEASE CONTACT
SAMTEC INTERCONNECT PROCESSING GROUP.
(STYLES -01, -02 & -03)
13. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE –LC OPTION IS
NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC RECOMMENDS MANUAL
PLACEMENT FOR ALL ASSEMBLIES WITH THE –LC OPTION.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
.XX: .01[.3]
.XXX: .005[.13]
.XXXX: .0020[.051]
MATERIAL:
SECTION "A"-"A"
DETAIL 'A'
SCALE 6 : 1
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
DECIMALS
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DO NOT SCALE DRAWING
SHEET SCALE: 1.25:1
INSULATOR: LCP, BLACK
TERMINAL: PHOS BRONZE
GROUND PLANE: PHOS BRONZE
F:\DWG\MISC\MKTG\QTE-XXX-XX-XXX-D-DP-XXX-MKT.SLDDRW
.8mm DIFFERENTIAL PAIRS HS TERMINAL ASSEMBLY
DWG. NO.
BY:
DEAN P
QTE-XXX-XX-XXX-D-DP-XXX
4/28/2000
SHEET
1
OF
5
REVISION AG
-K: POLYIMIDE FILM PAD
[USE K-DOT-.276-.375-.005]
"R" REF
"S"

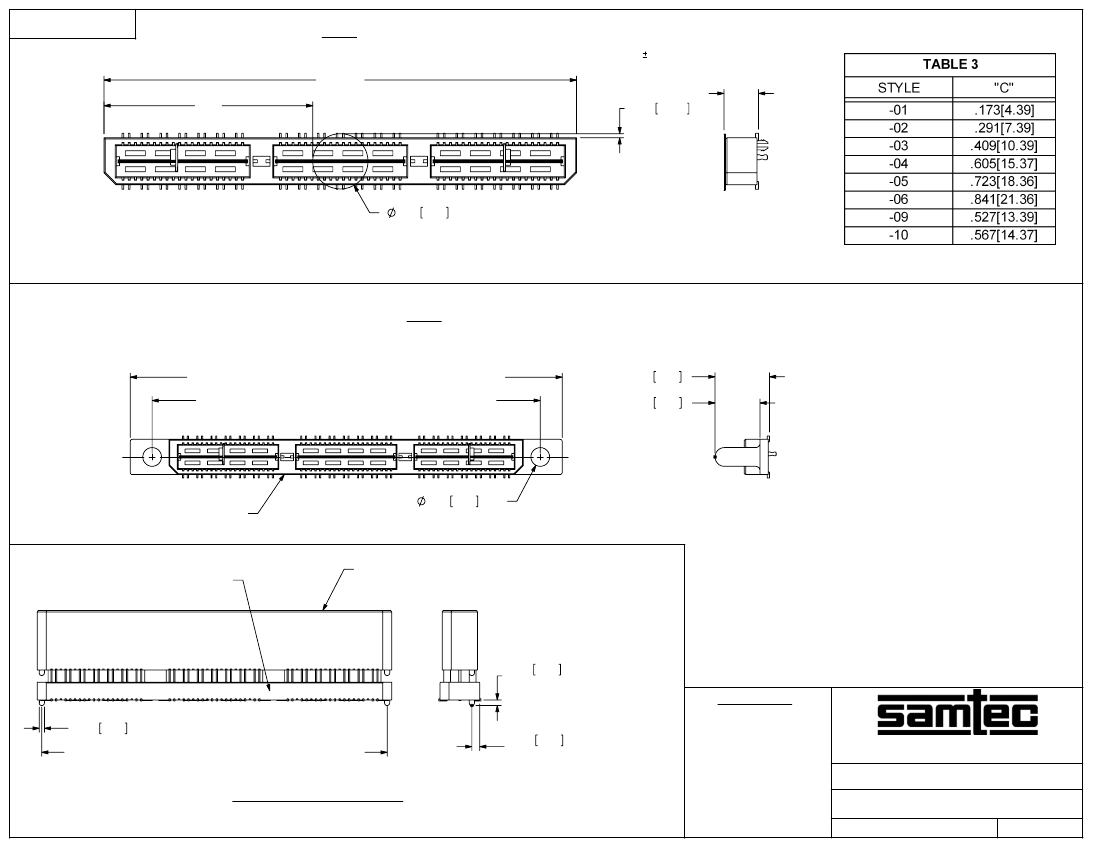

FIG. 2
NOTE: "R" = (No OF POSITIONS / 14) x .7875[20.003]
"S" = (("R" - .276[7.01]) / 2) .020[.51]
"C"
.021 0.521
.276 7.01
-GP: GUIDE POST OPTION
(-01 LEAD STYLE ONLY)
(SAME AS FIG. 1, UNLESS OTHERWISED STATED)
((No OF POSITIONS / 14) x .7875[20.003]) + .5175[13.145] REF
((No OF POSITIONS / 14) x .7875[20.003]) + .225[5.72] REF
.363 9.22
.300 7.62
FIG. 3
C
L
QTE-20-01-D-XX-X-GP
.125 3.18 REF
QTEH-20-XX-D-XX-A
QTE-20-03-D-XX-A
(-LC BODY MAY BE USED TO SUBSTITUTE)
.038 0.95
REF
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.035 0.89 REF
((No OF POSITIONS / 14) x .7875[20.003]) - .060 [1.52] REF
.053 1.33
REF
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
-A: ALIGNMENT PIN OPTION
(STYLES -04, -05, -06, -07, -08, -09, -10)
F:\DWG\MISC\MKTG\QTE-XXX-XX-XXX-D-DP-XXX-MKT.SLDDRW
.8mm DIFFERENTIAL PAIRS HS TERMINAL ASSEMBLY
SHEET SCALE: 2:1
BY:
DEAN P
QTE-XXX-XX-XXX-D-DP-XXX
4/28/2000
SHEET
2
OF
5
REVISION AG
01
02
"B"
QTE-20-03-D-XX-A
(-LC BODY MAY BE USED TO SUBSTITUTE)
.396 10.06 REF

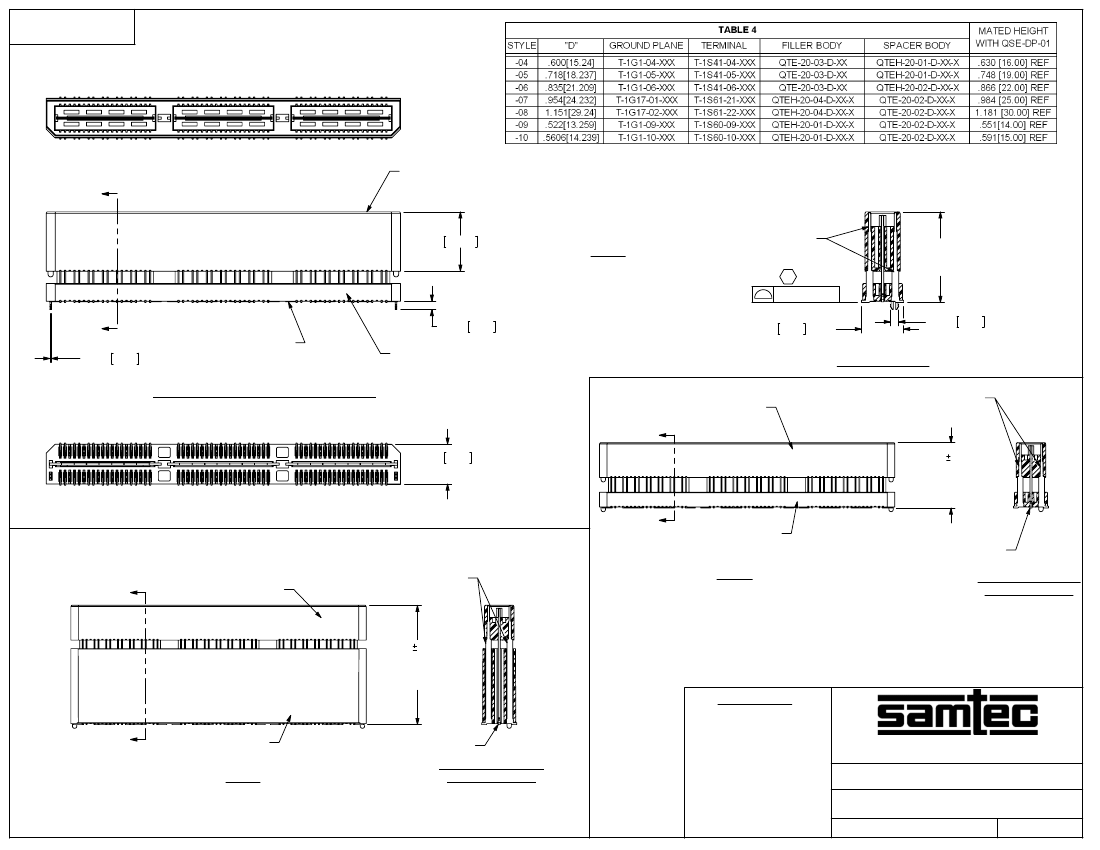

FIG. 4
QTE-042-04-X-D-DP-LC SHOWN
(SAME AS FIG. 1, UNLESS OTHERWISE STATED)
(STYLES -04, -05, & -06)
T-1S41-XX-XXX
C5
"D"
.001[.03]
(SEE TABLE 4)
(SEE NOTE 5)
.003[.08]
SEE TABLE 2
.281 7.14 REF
.056 1.42 REF
"B"
T-1G1-XX-X
.010 0.25 REF
.055 1.40
QTEH-20-XX-D-XX
SECTION "B"-"B"
QTE-20-02-D-XX-A
T-1S60-XX-XXX
-LC: LOCKING CLIP OPTION SHOWN
"D"
.265 6.73
REF
"D"
.001[.03]
(SEE TABLE 4)
(SEE NOTES
6 & 10)
.003[.08]
"D"
QTEH-20-01-D-XX-A
T-1G1-XX-XXX
"C"
QTE-20-02-D-XX-A
T-1S61-XX-XXX
QTE-042-09-X-D-DP-A SHOWN
[DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 4]
(STYLES -09 & -10)
FIG. 6
SECTION "D"-"D"
SCALE 1.25 : 1
"D"
.001[.03]
(SEE TABLE 4)
(SEE NOTES
6 & 10)
.003[.08]
F:\DWG\MISC\MKTG\QTE-XXX-XX-XXX-D-DP-XXX-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
"C"
QTEH-20-04-D-XX-A
T-1G17-XX-XXX
QTE-042-07-X-D-DP-A SHOWN
[DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 4]
(STYLES -07 & -08)
FIG. 5
SECTION "C"-"C"
SCALE 1.25 : 1
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.666667
.8mm DIFFERENTIAL PAIRS HS TERMINAL ASSEMBLY
BY:
DEAN P
QTE-XXX-XX-XXX-D-DP-XXX
4/28/2000
SHEET
3
OF
5
REVISION AG
-RT1: RETENTION OPTION
(ONLY AVAILABLE ON -01 LEAD STYLE)(MUST USE -A OPTION)
(NOT AVAILABLE WITH -LC, -GP, -SD, OR -FL OPTIONS)
(NOT AVAILABLE ON -056 & -070 POSITIONS)
(SAME AS FIG. 1, UNLESS OTHERWISE STATED)
FIG. 7
((No OF BANKS) x .7875[20.003]) + .650[16.51] REF
QTE-20-01-D-XX-A-RT1
C6
(((No OF BANKS) x .7875[20.003]) + .341[8.66]) .004[0.10]
'F'
.069 1.76
REF
.062 1.57
REF
T-1R36-01-F (2X)
C7
.190 4.83
(SEE NOTE 11)
.100 2.54 REF
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.070 1.78 REF
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
.8mm DIFFERENTIAL PAIRS HS TERMINAL ASSEMBLY
DETAIL 'F'
SCALE 5 : 1
F:\DWG\MISC\MKTG\QTE-XXX-XX-XXX-D-DP-XXX-MKT.SLDDRW
SHEET SCALE: 1:0.4
BY:
DEAN P
QTE-XXX-XX-XXX-D-DP-XXX
4/28/2000
SHEET
4
OF
5
REVISION AG
-L: LATCHING OPTION
(28 POS. MAX.)
(MUST USE -A OPTION)
(AVAILABLE ON -01 LEAD SYTLE ONLY)
(NOT AVAILABLE WITH -LC, -GP, -SD, -FL, OR -RT1)
(SAME AS FIG. 1, UNLESS OTHERWISE STATED)
(No OF POS / 14) x .7875 [20.003] + .1180[2.997] REF 43.00

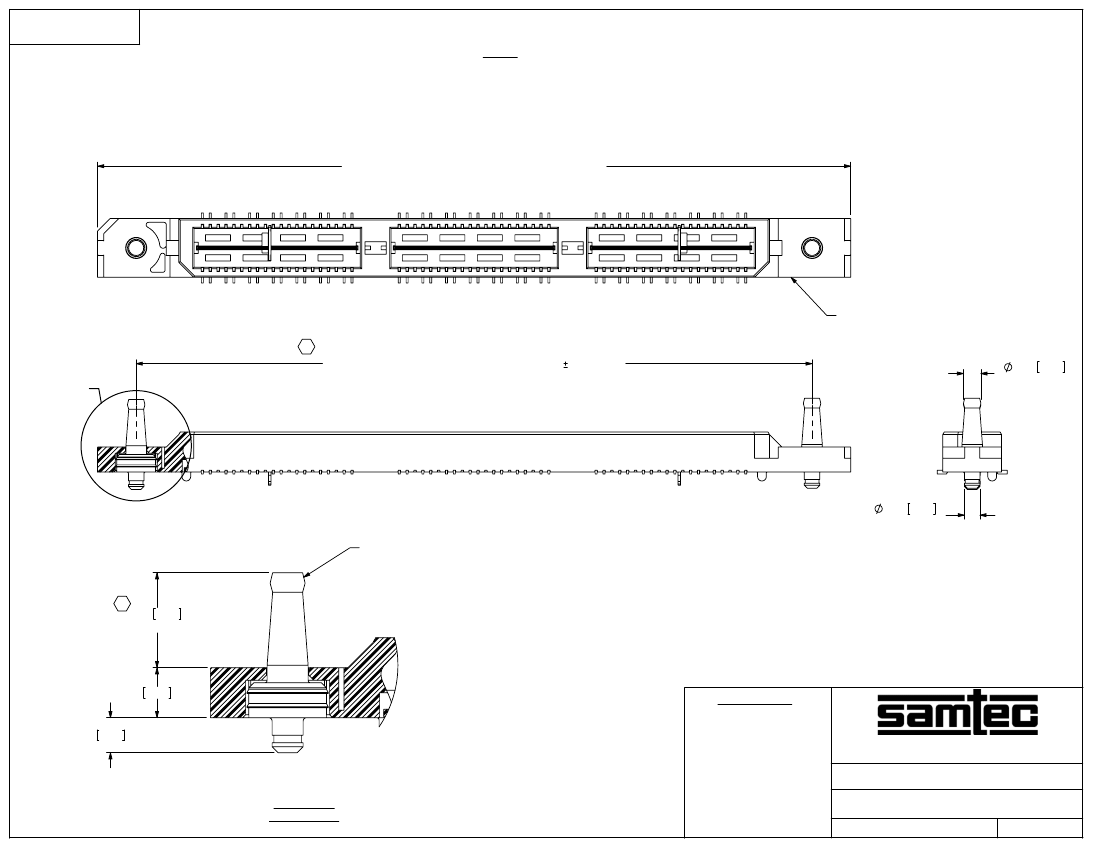

FIG. 8
AG
C8
(No OF POS / 14) x .7875 [20.00] +.1310[3.327] 43.17
QTE-20-01-D-XX-A-L
C10
.053±.002 1.35±0.051
WT-56-01-T
.010 0.25 REF
.025 0.64
REF
(No OF POS / 14) x .7875 [20.00] +.0665 [1.689] 41.62
C9
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.4
.8mm DIFFERENTIAL PAIRS HS TERMINAL ASSEMBLY
DWG. NO.
F:\DWG\MISC\MKTG\QTE-XXX-XX-XXX-D-DP-XXX-MKT.SLDDRW
BY:
DEAN P
QTE-XXX-XX-XXX-D-DP-XXX
4/28/2000
SHEET
5
OF
5
