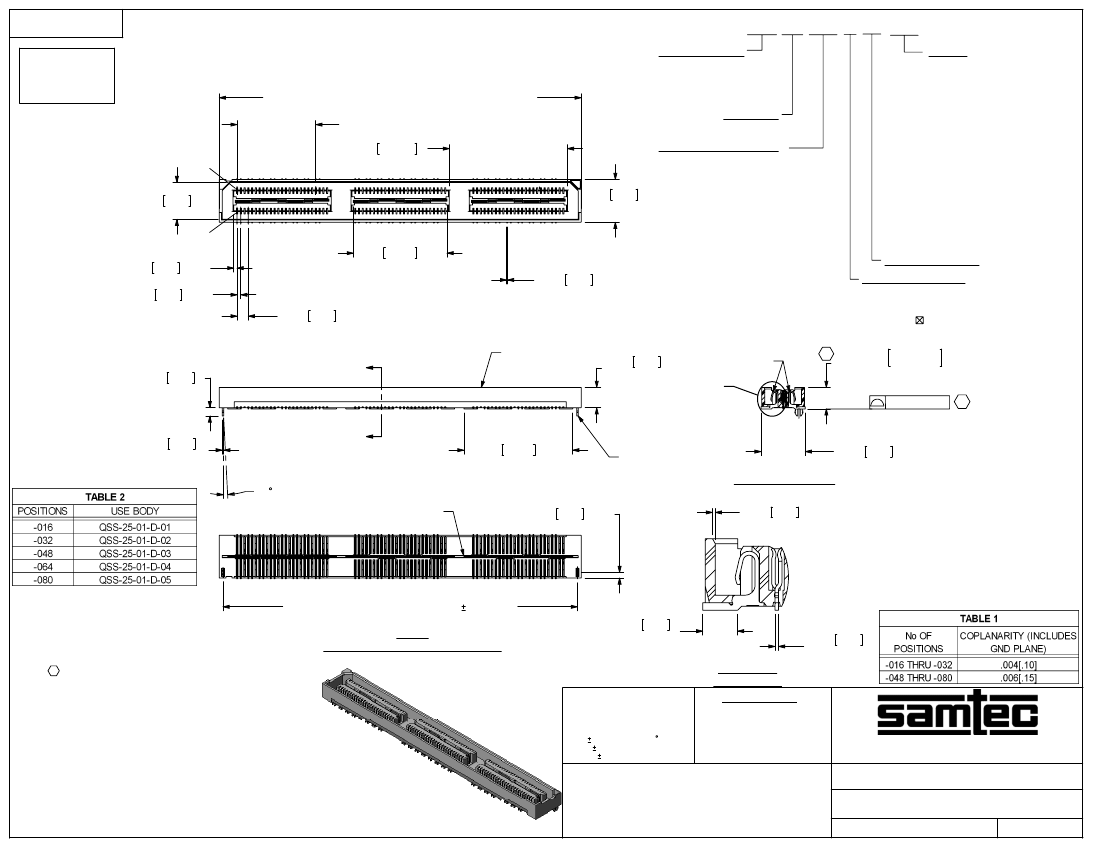

REVISION T
DO NOT
SCALE FROM
THIS PRINT
ASO ONLY (APPLICATION SPECIFIC ORDER)
QSS-XXX-XX-XXX-D-DP-XXX
No OF POSITIONS
-016, -032, -048,
*-064,*-080
(PER ROW)
* SEE NOTES 10 & 11
LEAD STYLE
-01: .1430[3.632]
OPTION
-A: ALIGNMENT PINS
(SEE FIG. 2, SHEET 2)
(USE QSS-25-01-D-XX-A)
-LC: LOCKING CLIPS
(SEE FIG. 1)(USE LC-08-TM-01)
(SEE NOTE 12)
-K: POLYIMIDE FILM PAD
(SEE FIG. 3, SHEET 2)
(USE K-850-650)
-TR: TAPE & REEL (48 POS MAX)
(32 POS MAX FOR -GP OPTION)
-GP: GUIDE POSTS
(SEE FIG. 4, SHEET 2)
(USE QSS-25-01-D-XX-X-GP)
-LS2: LOCKING SCREW
(USE QSS-25-01-D-XX-LS2)
(SEE FIG. 5, SHEET 3)
( FOR MATING WITH
QTS-...-RA..LS2)
DIFFERENTIAL PAIRS
{(No OF POS/16) x .7875[20.003]} + .0500[1.270] REF
7 EQ SPACES @ .075[1.91]
.7875 20.003
02
.245 6.22 REF
01
.625 15.88 REF
.022 0.55 REF
.025 0.64 REF
.075 1.91 REF
.055 1.40
"A"
PLATING SPECIFICATION
-F: FLASH SELECTIVE GOLD
WITH MATTE TIN TAILS
(USE C-126-21-F & T-1G2-01-F)
(SEE NOTES 7 & 9)
.285 7.24 -L: LIGHT SELECTIVE GOLD
REF
WITH MATTE TIN TAILS
(USE C-126-21-L & T-1G2-01-L)
(SEE NOTE 9)
-H: HEAVY GOLD
(USE C-126-21-H & T-1G2-01-G)
(SEE NOTE 9)
-STL: LIGHT SELECTIVE GOLD
ROW SPECIFICATION
.006 0.15 REF
WITH TIN LEAD TAILS
-D: DOUBLE (USE QSS-25-01-D-XX)
(USE C-126-21-STL & T-1G2-01-STL)
[SEE TABLE 2]
(SEE NOTE 9)
-FTL: FLASH SELECTIVE GOLD
= NOT ENGINEERING
WITH TIN LEAD TAILS
APPROVED
(USE C-126-21-FTL & T-1G2-01-FTL)
(SEE NOTE 9)
QSS-25-01-D-XX
+.003
+0.08
C1
.1430
- .001
3.632
- 0.03
C-126-21-XXX
.135 3.43
(SEE NOTE 5, 6 & 8)
REF
'A'
SEE TABLE 1
(SEE NOTE 6 & 8)
C2
.010 0.25
REF
2 MAX SWAY
(TYP)
"A"
.725 18.42 REF
LC-08-TM-01
.295 7.49 REF
SECTION "A"-"A"
T-1G2-01-XXX
.038 0.95 REF
.006 0.15 REF
((No OF POS/16) x .7875[20.003]) .003[.08]
NOTES:
-LC: LOCKING CLIP OPTION SHOWN
1. CONTACT RETENTION: 5 OZ MIN
2. GROUND PLANE RETENTION: 8 OZ MIN
3.
C
REPRESENTS A CRITICAL DIMENSION.
4. PARTS ARE MOLD TO POSITION.
5. MAX VARIANCE OF .002[.05].
6. DIMENSION APPLIES TO CONTACTS AND GROUND
PLANES, INDEPENDENT OF EACH OTHER.
7. -L PLATING CAN BE SUBSTITUTED FOR -F PLATING.
8. GROUND PLANE PRESS HEIGHT MUST BE .003[.08] LESS THAN THE
MAXIMUM HEIGHT OR .001[.03] GREATER THAN THE MINIMUM HEIGHT
OF THE SIGNAL PIN.
9. MAY SUBSTITUTE C-126-01-XXX FOR C-126-21-XXX.
10. FOR NEW APPLICATIONS REQUIRING THESE POSITIONS, PLEASE CONTACT
SAMTEC INTERCONNECT PROCESSING GROUP.
11. FOR -064 AND -080 POSITIONS USE C-269-11-XXX. DO NOT SUB C-126-01-XXX
12. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE -LC OPTION
IS NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC RECOMMENDS
MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH THE -LC OPTION.
FIG. 1
.070 1.77
REF
DETAIL 'A'
SCALE 5 : 1
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
.007 0.18
REF
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01[.3]
.XXX: .005[.13]
.XXXX: .0020[.05]
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
INSULATOR: LCP, COLOR: BLACK
CONTACT: PHOS BRONZE
GROUND PLANE: PHOS BRONZE
F:\DWG\MISC\MKTG\QSS-XXX-XX-XXX-D-DP-XXX-MKT.SLDDRW
.635mm DIFFERENTIAL PAIRS HS SOCKET ASSEMBLY
QSS-XXX-XX-XXX-D-DP-XXX
07/10/2000
SHEET
1
OF
3
BY:
KEVIN B
REVISION T

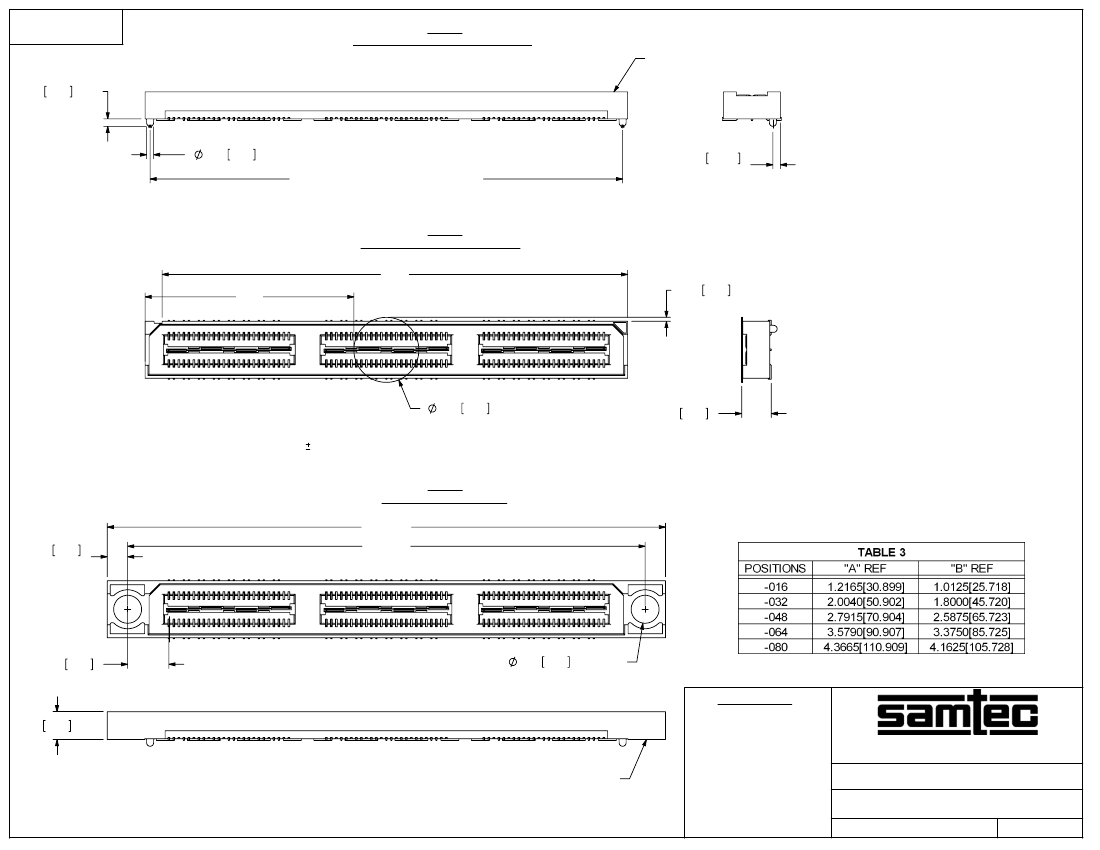

-A: ALIGNMENT PIN OPTION SHOWN
