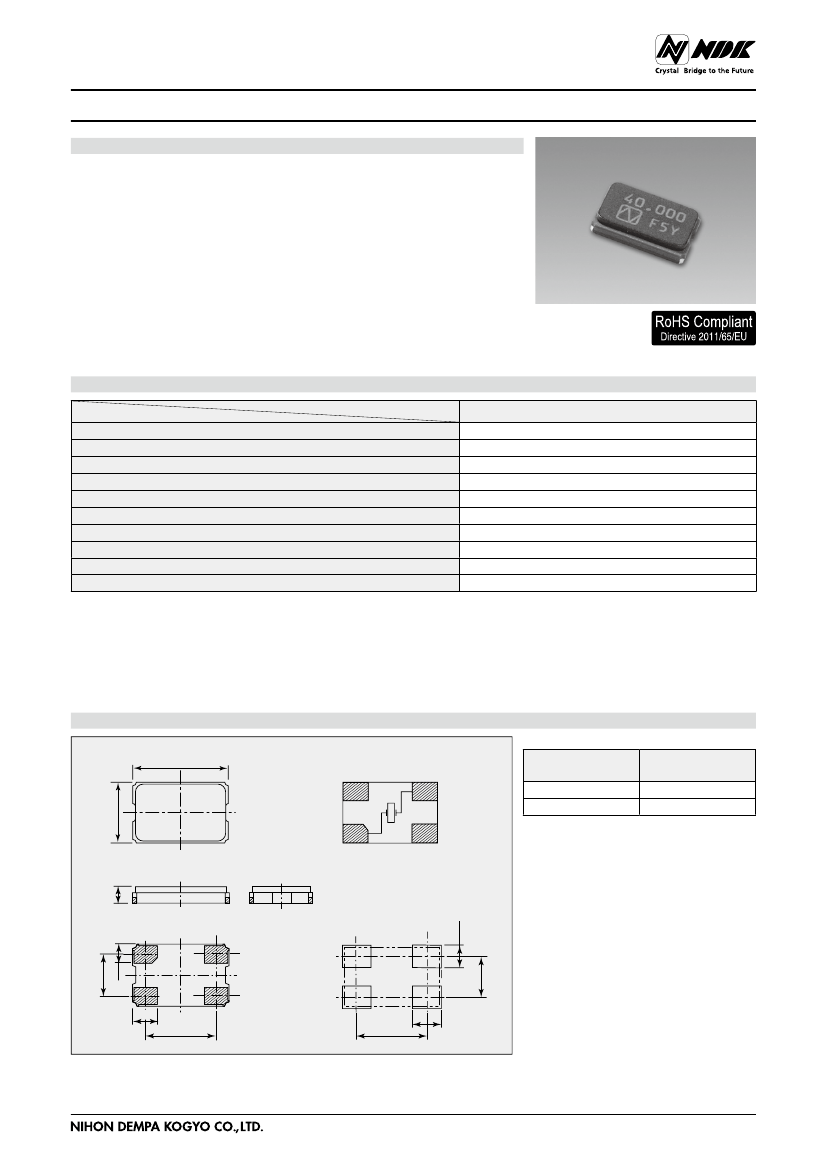

Crystal Units
NX5032GC
■
Features
A low-height surface-mount type crystal unit, suitable for OA (office automation) and
AV (audiovisual) applications.
●Compact and thin. (5.0 × 3.2 × 1.0 mm typ.)
●Excellent electrical performance ideal for OA and AV applications.
●Meets the requirements for re-flow profiling using lead-free solder.
●Supports low height mounting and ideal for notebook computers.
●Glass-sealed product with the same terminal shape (4 terminals) as NX5032SA.
For OA / AV
■
Specifications
Item
Nominal Frequency
Overtone Order
Frequency Tolerance (25 ±3 °C)
Frequency versus Temperature Characteristics (with reference to +25 °C)
Operating Temperature Range
Storage Temperature Range
Equivalent Series Resistance
Level of Drive
Load Capacitance
Specifications Number
Model
NX5032GC
12 to 50 MHz
Fundamental
±15 × 10
−6
±15 × 10
−6
−10 to +75 °C
−40 to +85 °C
Refer to *1
50 μW (Max. 500 μW)
8 pF
STD-CSK-6
■
Dimensions
5.0±0.2
Terminal land connections
(TOP VIEW)
#4
#3
mm
*1 Equivalent Series Resistance
Nominal frequency
(MHz)
12 to15
15 to 50
Equivalent Series
Resistance max. [Ω]
100
50
3.2±0.2
#1
#2
*#2 and #4 are not connected.
It is better to connect with a GND.
But NC is also possible.
1.0±0.2
Land pattern (Typical)
#1
#2
1.25
1.6
3.6
2.15
#4 1.2
3.6±0.1
#3
2.15±0.10
Please specify the model name, frequency, and specification number when you order products.
For further questions regarding specifications, please feel free to contact us.
1503B_NX5032GC_e
0.85
- 29 -
