891-1W01-807 Overview

Single Color LED Display Cluster, White

891-1W01-807 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Reach Compliance Codecompliant
colorWHITE
Maximum forward current0.7 A
JESD-609 codee0
Number of functions1
Optoelectronic device typesSINGLE COLOR LED DISPLAY CLUSTER
Terminal surfaceTin/Lead (Sn/Pb)
Base Number Matches1
FEATURES / BENEFITS
891 Series LED
WAYSIDE SIGNAL LAMP MODULE
With Rear LED Indicator and AREMA
Terminal Block
Features Hi-Flux LEDs to simulate point light source for
enhanced optical performance
Faster on/off response time than incandescent
lamps improves safety
Flicker resistance & reduced current draw
5+ year life reduces maintenance costs
Redundant LED circuits (single LED failure
does not turn off lamp)
Prevents sun phantom effects by eliminating use of
colored inner filter lenses
Designed to fit Safetran, US&S, GRS, and other 6 inch
diameter transit wayside signal heads
Uses existing signal head outer lens
12 volt AC/ DC and 120 Volt AC versions
Power Factor Correction & Reduced THD
Certified for Rail environment
Includes AREMA Terminal Block and complete installa
tion hardware kit
Rear indicator for use by maintenance crew
AREMA Class A Compliant
APPLICATION
The 891 Series LED Wayside Signal Lamp Modules were developed by Dialight specifically for retrofit applications where
replacement of existing incandescent light bulbs is desired. This installation approach provides all the benefits of LEDs without the
complex retrofit of the entire lens and housing assemblies. Installation is nearly as simple as replacement of the incandescent bulb.
Dialight lamp modules have been fully qualified for the Rail environment and incorporate power factor correction and total harmonic
distortion reduction circuitry.

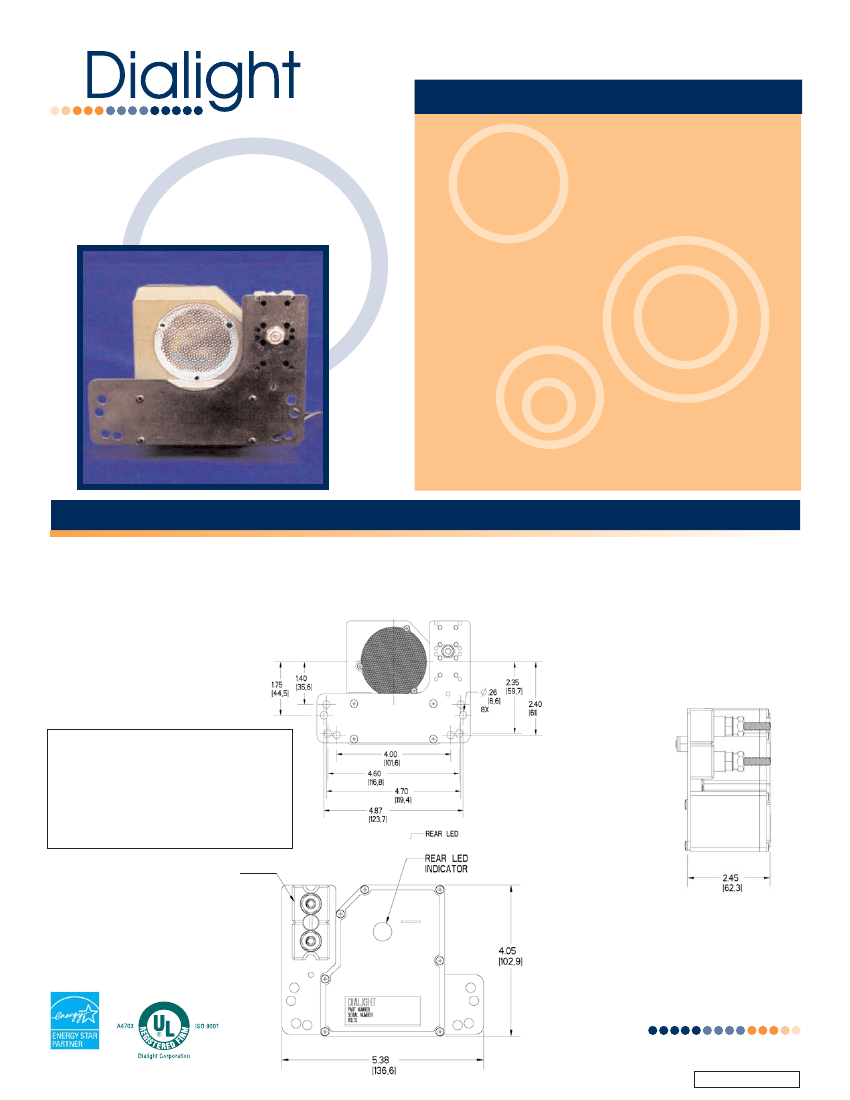

Mechanical Dimensions in
inches and (millimeters)
Dialight is the recognized leader in LED
applications for Transportation Signaling, and
has worked cooperatively with leading Transit
Rail customers to develop this unique solution
to Wayside Signal applications for LEDs. It is
proven to be a preferred product over traditional
5mm LED distributed array solutions.
AREMA TERMINAL BLOCK
Shown without wires for clarity.
Wires would come from the bottom
of the module and be connected to
the AREMA terminal block.
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732.919.3119 • Fax: (1) 732.751.5778 • www.dialight.com
a Roxboro Group Company
MDTR891X001_A

891-1W01-807 Related Products

891-1W01-807 891-1W02-808 891-1R02-804 891-1R01-801 891-1Y01-803 891-1G02-805 891-1Y02-806 891-1G01-802
Description Single Color LED Display Cluster, White Single Color LED Display Cluster, White Single Color LED Display Cluster, Red Single Color LED Display Cluster, Red Single Color LED Display Cluster, Yellow Single Color LED Display Cluster, Green Single Color LED Display Cluster, Yellow Single Color LED Display Cluster, Green
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant
color WHITE WHITE RED RED YELLOW GREEN YELLOW GREEN
Maximum forward current 0.7 A 0.07 A 0.05 A 0.6 A 0.6 A 0.07 A 0.05 A 0.7 A
JESD-609 code e0 e0 e0 e0 e0 e0 e0 e0
Number of functions 1 1 1 1 1 1 1 1
Optoelectronic device types SINGLE COLOR LED DISPLAY CLUSTER SINGLE COLOR LED DISPLAY CLUSTER SINGLE COLOR LED DISPLAY CLUSTER SINGLE COLOR LED DISPLAY CLUSTER SINGLE COLOR LED DISPLAY CLUSTER SINGLE COLOR LED DISPLAY CLUSTER SINGLE COLOR LED DISPLAY CLUSTER SINGLE COLOR LED DISPLAY CLUSTER
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Base Number Matches 1 1 1 1 1 1 - -
