LFSPXO067811CUTT datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> LFSPXO067811CUTT

LFSPXO067811CUTT: DescriptionCMOS Output Clock Oscillator, 18MHz Nom; CategoryPassive components oscillator; File Size206KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFSPXO067811CUTT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO067811CUTT	-	-	View	Buy Now

LFSPXO067811CUTT Overview

CMOS Output Clock Oscillator, 18MHz Nom

LFSPXO067811CUTT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	STANDBY; ENABLE/DISABLE FUNCTION; TAPE
maximum descent time	7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Nominal operating frequency	18 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS
Output load	15 pF
physical size	3.2mm x 2.5mm x 1.2mm
longest rise time	7 ns
Maximum supply voltage	1.89 V
Minimum supply voltage	1.71 V
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	40/60 %
Base Number Matches	1

Preview

Download Datasheet

View All

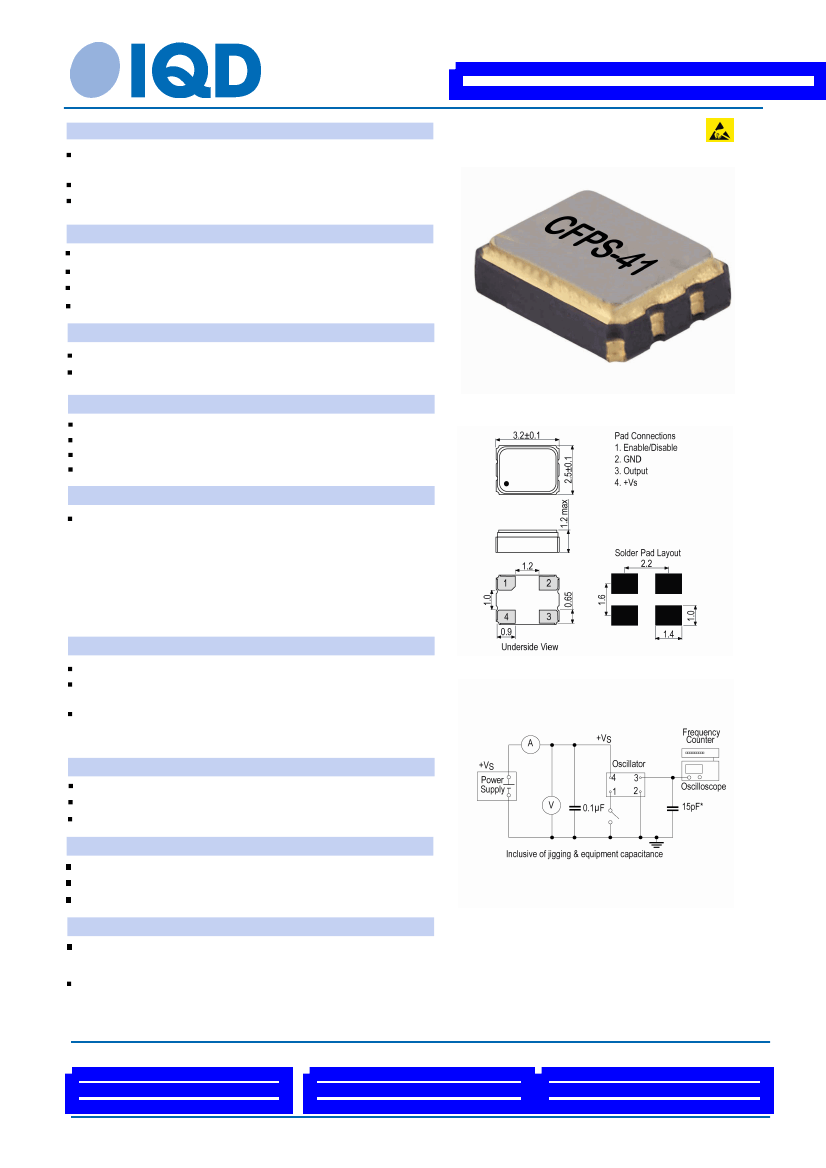

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO067811Cutt

Description

Surface mount 3.2 x 2.5mm crystal oscillator in a hermetically

sealed ceramic package with a seam sealed metal lid.

Model

CFPS-41

Model Issue number

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

18.0MHz

±50.00ppm

-10.00 to 70.00°C

±3ppm max per year @ 25°C

Supply Voltage

Current Draw

Output Details

1.8V ±5%

6.000mA

Output Compatibility

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

CMOS

15pF max

7.0ns max

40/60%

Outline (mm)

Standby Operation:

Logic ‘1’ (>70% VS) to pad 1 enables oscillator output

Logic ‘0’ (<30% VS) to pad 1 disables oscillator output;

when disabled the oscillator output goes to the high

impedance state

No connection to pad 1 enables oscillator output

Standby Current: 10µA max

Start-Up Time: 10ms max

Environmental Parameters

Storage Temperature Range: –55 to 125°C

Shock: MIL-STD-202F, Method 213B: 1000G, 0.5ms, 1/2 sine

wave

Vibration: MIL-STD-202F, Method 204D, Test Condition D:

20G (10Hz-2000Hz), 4hrs in 3 mutually perpendicular planes

(total 12hrs)

Manufacturing Details

Test Circuit

Maximum Process Temperature: 260°C (10secs max)

RoHS Terminations

NiAu

RoHS Reflow Temp

260degC 10s

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Cutt

Pack Size: 100

In tape, cut from a reel

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

Printed on 14 Jan 19 11:38 using Part Data Sheet V1.00015
