UG8AT: DescriptionRectifier Diode, 1 Phase, 1 Element, 8A, 50V V(RRM), Silicon, TO-220AC,; CategoryDiscrete semiconductor diode; File Size77KB，2 Pages; ManufacturerGeneral Instrument Corp

Download Datasheet Parametric Compare View All

UG8AT Overview

Rectifier Diode, 1 Phase, 1 Element, 8A, 50V V(RRM), Silicon, TO-220AC,

UG8AT Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	FREE WHEELING DIODE
application	EFFICIENCY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V
JEDEC-95 code	TO-220AC
JESD-30 code	R-PSFM-T2
Maximum non-repetitive peak forward current	150 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	8 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.03 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

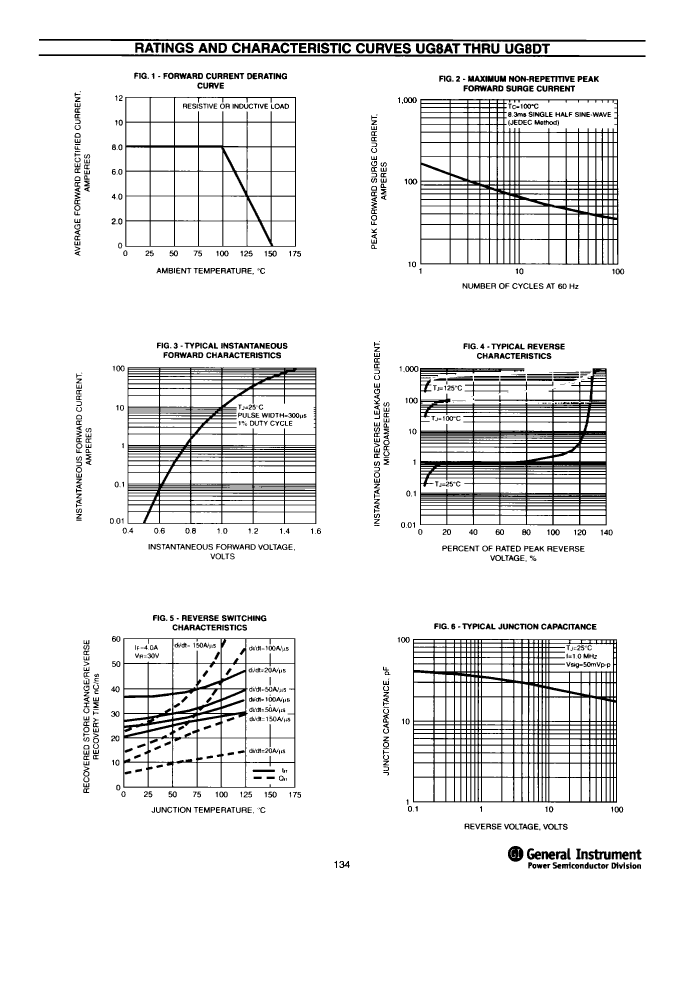

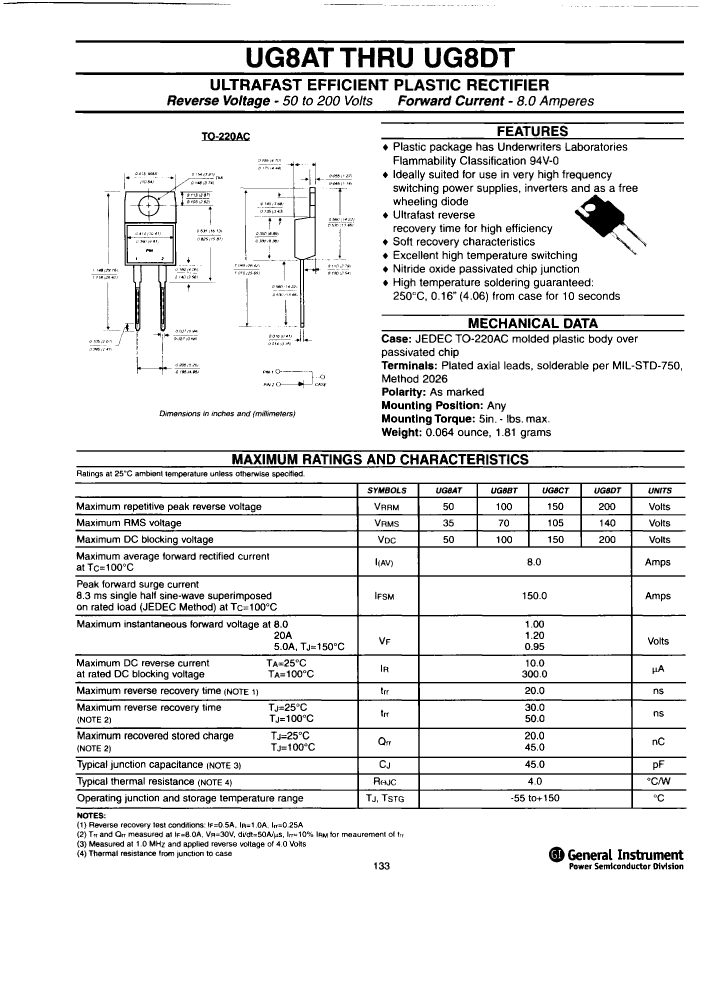

Preview

Download Datasheet

View All

UG8AT Related Products

	UG8AT	UG8CT	UG8DT	UG8BT
Description	Rectifier Diode, 1 Phase, 1 Element, 8A, 50V V(RRM), Silicon, TO-220AC,	Rectifier Diode, 1 Phase, 1 Element, 8A, 150V V(RRM), Silicon, TO-220AC,	Rectifier Diode, 1 Phase, 1 Element, 8A, 200V V(RRM), Silicon, TO-220AC,	Rectifier Diode, 1 Phase, 1 Element, 8A, 100V V(RRM), Silicon, TO-220AC,
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V	1.2 V	1.2 V	1.2 V
JEDEC-95 code	TO-220AC	TO-220AC	TO-220AC	TO-220AC
JESD-30 code	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2
Maximum non-repetitive peak forward current	150 A	150 A	150 A	150 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	8 A	8 A	8 A	8 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	50 V	150 V	200 V	100 V
Maximum reverse current	10 µA	10 µA	10 µA	10 µA
Maximum reverse recovery time	0.03 µs	0.03 µs	0.03 µs	0.03 µs
surface mount	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
