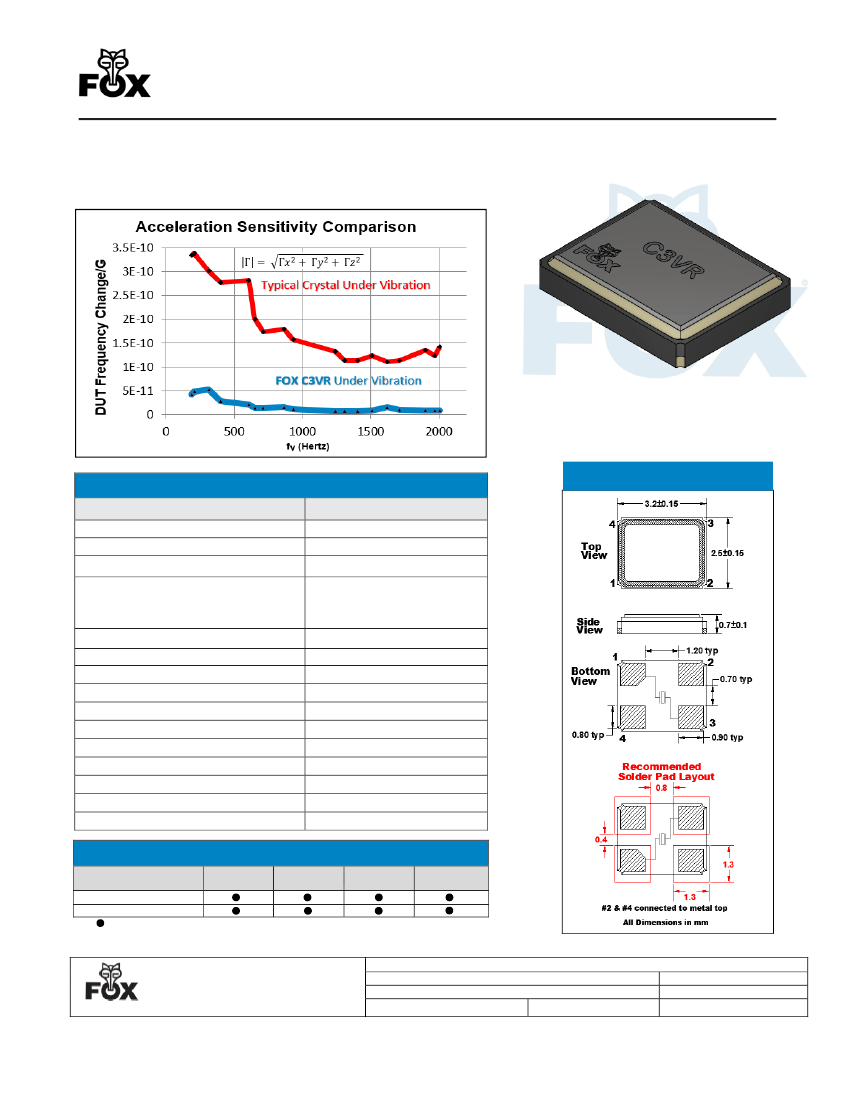

3.2mm x 2.5mm
Vibration Resistant
Crystal
. Low G sensitivity 0.2 ppb/G
. Tolerances down to ±10 ppm
. Custom application inquiries invited
. Patented technology
C3VR
DATASHEET
3D part view for IE and Acrobat Reader
©Fox Electronics 2019
C3VR STANDARD SPECIFICATIONS
PARAMETERS
Frequency Range
Frequency Tolerance @ 25ºC
Frequency Stability, ref 25ºC
Temperature Range
Operating
(T
OPR
)
Storage
(T
STG
)
Shunt Capacitance
(Co)
(C
L
)
Load Capacitance
Drive Level
Aging per year
Vibration Sensitivity
Maximum Soldering Temp / Time
Moisture Sensitivity Level (MSL)
Termination Finish
Seal Method
Lead (Pb) Free
RoHS/REACH Compliant
MAX
(unless otherwise noted)
33 ~ 52 MHz
(See options on page 2)
(See options below)
C3VR
(See options below)
-55ºC ~ +125ºC
3.0 pF
(See options on page 2)
0.1 mW
±5 PPM
0.2 ppb/G
260ºC / 10 Seconds
1
Au over Ni
Seam Seal
Yes
Yes
Available Operating Temperatures and Stabilities
Operating Temperature
-20 ~+70ºC
-40 ~+85ºC
=Available
±20 PPM
±25 PPM
±30 PPM
±50 PPM
Key:
© Copyright 2019 Fox Electronics, All rights reserved
Title / Description:
C3VR SERIES STANDARD SPECIFICATIONS
Drawing Number:
Size:
A
Part Number:
Cage:
61429
Draftsperson: JBN
Approved: BEC
Revision Date: 5/14/2019
Page
1
of
2
3.2mm x 2.5mm
Vibration Resistant
Crystal

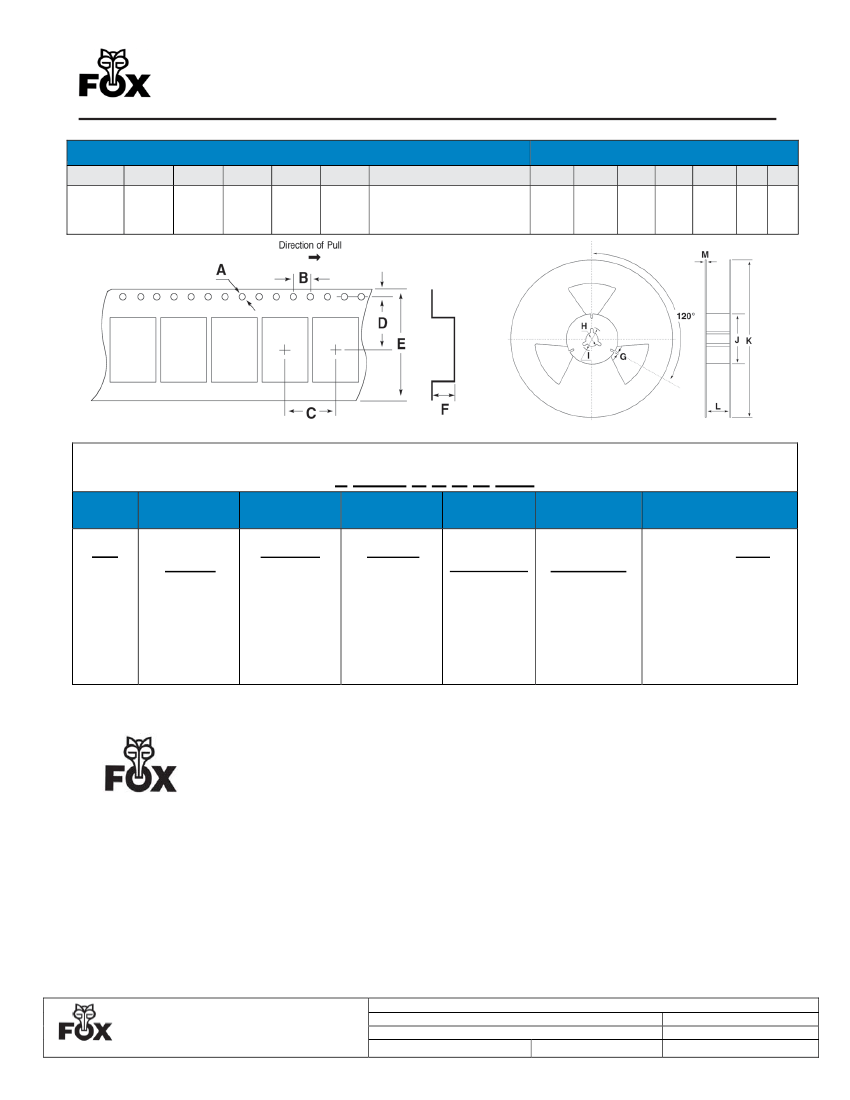

• TAPE SPECIFICATIONS (mm)
A
Ø1.5
B
4.0
C
4.0
D
3.5
E
8.0
F
1.3
Reel QTY
-T3 = 3,000 default
-T2 = 2,000
-T1 = 1,000
1.75
C3VR
DATASHEET
• REEL SPECIFICATIONS (mm)
G
2.0
H
Ø13
I
J
K
L
M
Ø21 Ø80 Ø180
9.0 2.0
Available Options & Part Identification for Crystal Model C3VR
1
F C3VR B B G M 40.0
F
FOX
C3VR
Model
Number
B
Tolerance
B = ±50 PPM
C = ±30 PPM
D = ±25 PPM
E = ±20 PPM
F = ±15 PPM
H = ±10 PPM
B
Stability
B = ±50 PPM
C = ±30 PPM
D = ±25 PPM
E = ±20 PPM
G
Load
Capacitance
2
V = 7 pF
D = 8 pF
W = 9 pF
E = 10 pF
G = 12 pF
J = 15 pF
K = 16 pF
M
Operating
Temperature
F=-20 to +70°C
M=-40 to +85°C
40.0
Frequency (MHz)
1
2
Not all frequency, tolerance, stability, load, and operating temperature combinations may be available.
Listed load capacitances represent the most commonly used. Other load capacitances are available. Contact Fox Technical Support for assistance.
Corporate
Headquarters
Sales
5570 Enterprise Parkway
Fort Myers, FL 33905
http://www.FOXONLINE.com
1-888-GET-2-FOX (1-888-438-2369) or
1-239-693-0099
http://www.FOXONLINE.com/repdisty
http://www.FOXONLINE.com/email
Tech Support
PRODUCT USE:
Fox Electronics reserves the right to modify the products and/or specifications described herein at any time and at Fox Electronics'
sole discretion. All information in this document, including descriptions of product features and performance, is subject to change without notice.
Performance specifications and the operating parameters of the described products are determined in the independent state and are not guaranteed
to perform the same way when installed in customer products. The information contained herein is provided without representation or warranty of any
kind, whether express or implied, including, but not limited to, the suitability of Fox Electronics' products for any particular purpose, an implied
warranty of merchantability, or non-infringement of the intellectual property rights of others. This document is presented only as a guide and does not
convey any license under intellectual property rights of Fox Electronics or any third parties.
Fox Electronics' products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar
devices where the failure or malfunction of a Fox Electronics product can be reasonably expected to significantly affect the health or safety of users.
Anyone using a Fox Electronics product in such a manner does so at their own risk, absent an express, written agreement by Fox Electronics.
Fox Electronics and the Fox logo are registered trademarks of Fox Electronics. Product specification is subject to change without notice. Other
trademarks and service marks used herein, including protected names, logos and designs, are the property of Fox Electronics or their respective
third-party owners.
For datasheet type definitions and a glossary of common terms, visit http://www.foxonline.com/tgcrystals.html.
© Copyright 2019 Fox Electronics, All rights reserved
Title / Description:
C3VR SERIES STANDARD SPECIFICATIONS
Drawing Number:
Size:
A
Part Number:
Cage:
61429
Draftsperson: JBN
Approved: BEC
Revision Date: 5/14/2019
Page
2
of
2
