P.I-8R2LM datasheet, PDF - EEWORLD Datasheet

P.I-8R2LM: DescriptionGeneral Purpose Inductor, 8.2uH, 30%, 1 Element, SMD,; CategoryPassive components inductor; File Size287KB，3 Pages; ManufacturerNEC TOKIN ( KEMET Corporation ); Websitehttp://www.kemet.com

Download Datasheet Parametric Compare View All

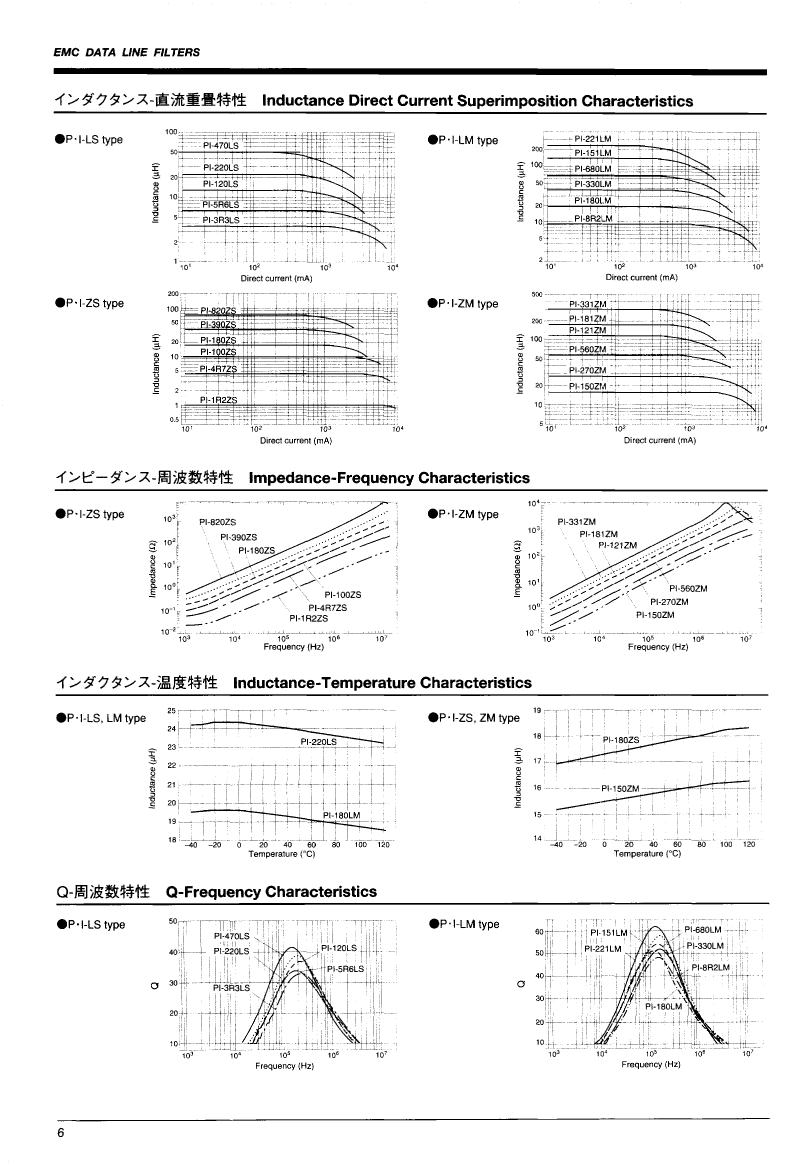

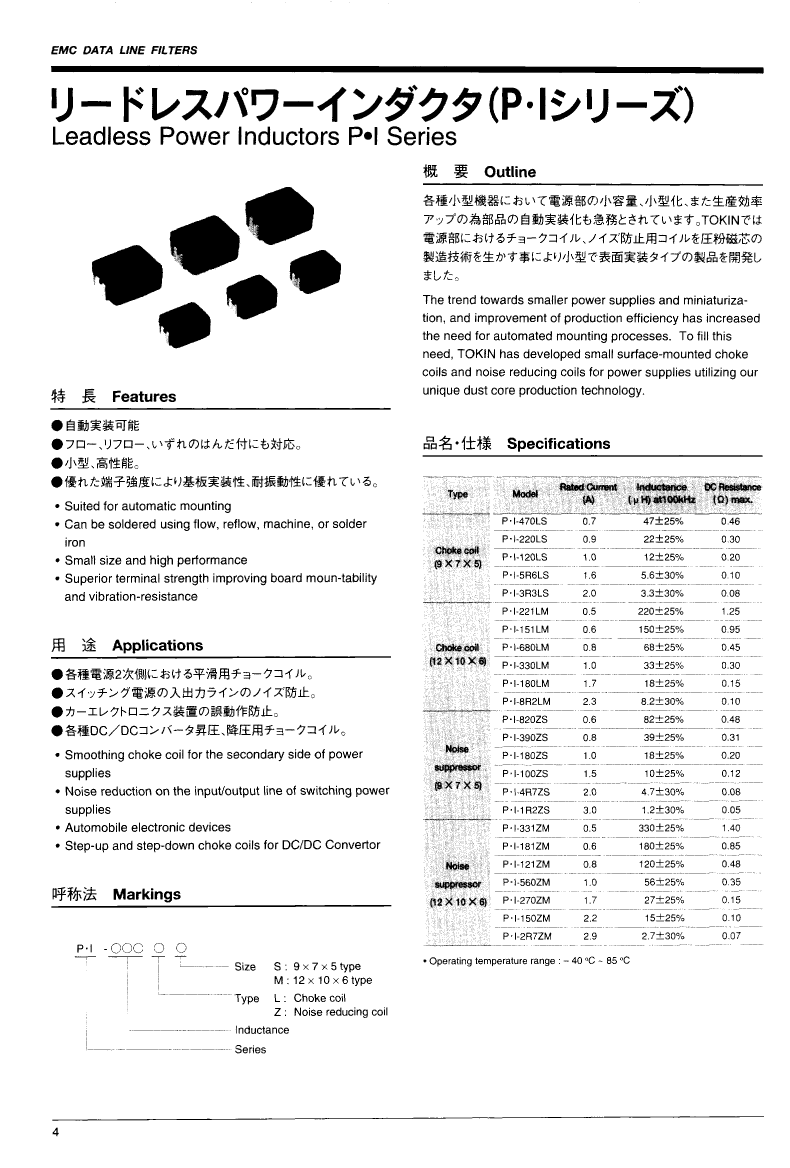

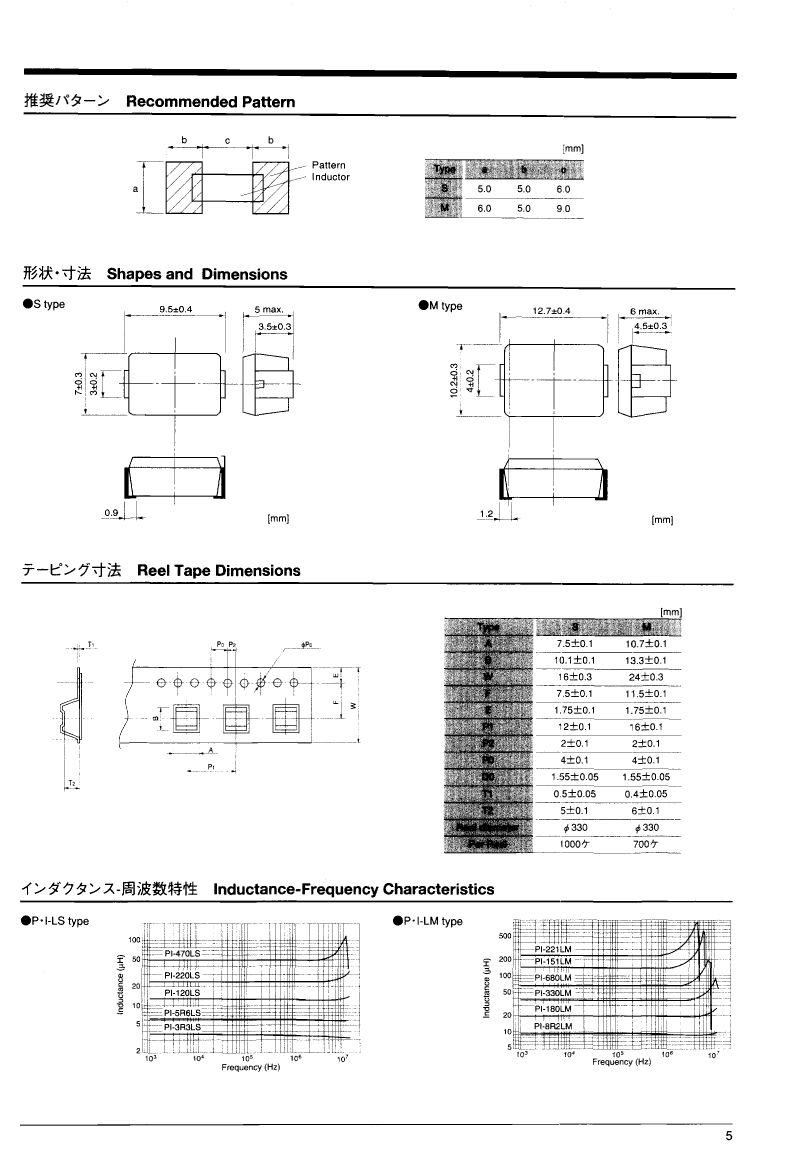

P.I-8R2LM Overview

General Purpose Inductor, 8.2uH, 30%, 1 Element, SMD,

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.1 Ω
Nominal inductance(L)	8.2 µH
Inductor Applications	DC-DC CONVERTER
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum rated current	2.3 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	J BEND
Test frequency	0.1 MHz
Tolerance	30%
Base Number Matches	1

	P.I-8R2LM	P.I-1R2ZS
Description	General Purpose Inductor, 8.2uH, 30%, 1 Element, SMD,	General Purpose Inductor, 1.2uH, 30%, 1 Element, SMD,
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
DC Resistance	0.1 Ω	0.05 Ω
Nominal inductance(L)	8.2 µH	1.2 µH
Inductor Applications	DC-DC CONVERTER	DC-DC CONVERTER
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Maximum rated current	2.3 A	3 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO
surface mount	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED
Terminal shape	J BEND	J BEND
Test frequency	0.1 MHz	0.1 MHz
Tolerance	30%	30%
Base Number Matches	1	1
