M24758-14-16-01 Overview

Adapter for Backshells

Preview

Download Datasheet

View All

Conduit

Systems

Basic Part No.

Conduit Size Code

(See Table I)

A Thread Code

(See Table II)

.531 (13.5)

.010 (.3)

A Thread

.125 (3.2) Ref.

D Dia

K Dia

Straight Knurl

(Medium Coarse)

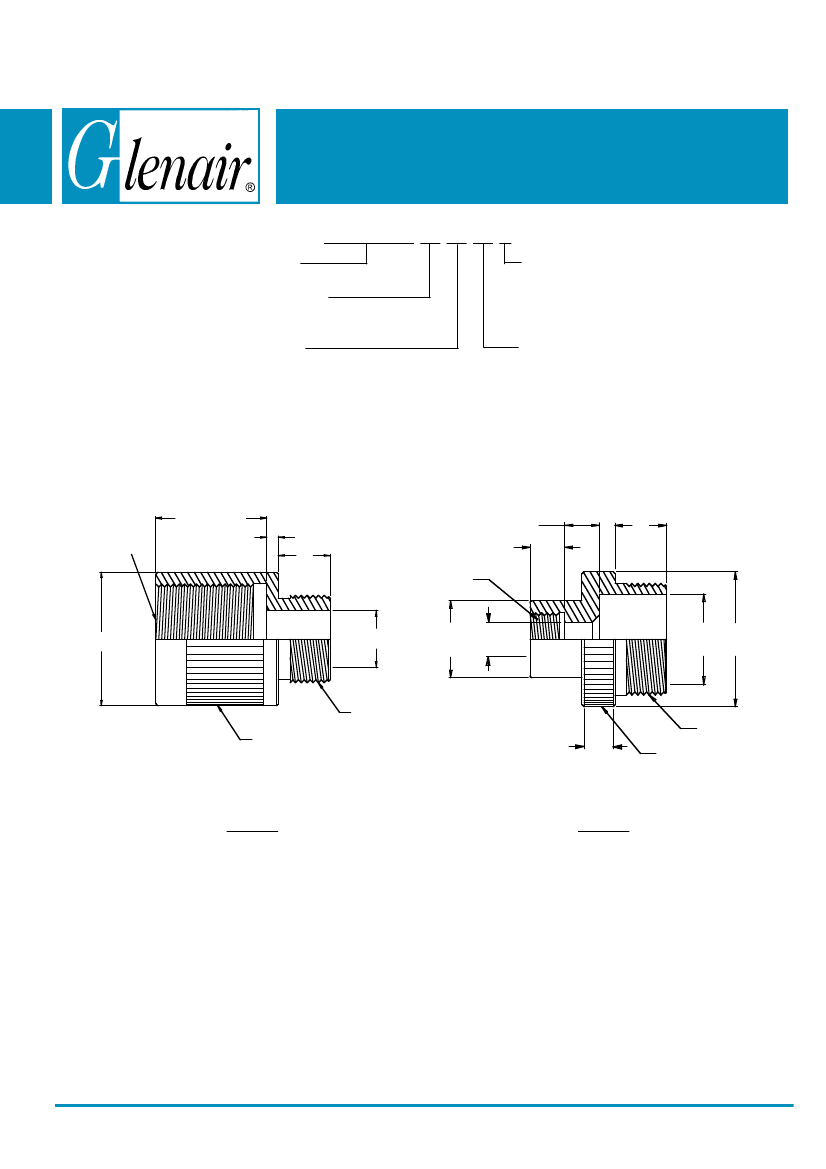

STYLE 01

FOR USE WHEN K DIAMETER IS

SMALLER THAN E DIAMETER

M24758/14 Adapter for

MIL-C-28840 (EC) Backshells

M24758/14-16-01-01-A

Material Designator:

A = Aluminum

B = Brass

C = CRES 316

Style Designator

.125 (3.2) Ref.

.531 (13.5)

.010 (.3)

A Thread

Dia

Dia Dia

C Thread

.250 (6.4) Ref.

Straight Knurl

(Medium Coarse)

STYLE 02

FOR USE WHEN K DIAMETER

IS EQUAL TO OR LARGER THAN E DIAMETER

1. The M24758/14 adapter provides a non-environmental coupling between certain MIL-C-28840 (EC) backshells and

the M24758/2, M24758/3 or M24758/4 fittings, specifically, the A-thread of this adapter mates with the V-thread of

the M28840/6 backshell (straight), the M28840/8 backshell (90

), or the M28840/9 backshell (45

2. Metric dimensions (mm) are indicated in parentheses.

3. For complete dimensions see applicable Military Specification.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
