UMX-320-E12 datasheet, PDF - EEWORLD Datasheet

UMX-320-E12: DescriptionVoltage Controlled Oscillator, 1217MHz Min, 1307MHz Max; CategoryPassive components oscillator; File Size51KB，2 Pages; ManufacturerQorvo; Websitehttps://www.qorvo.com

Download Datasheet Parametric Compare View All

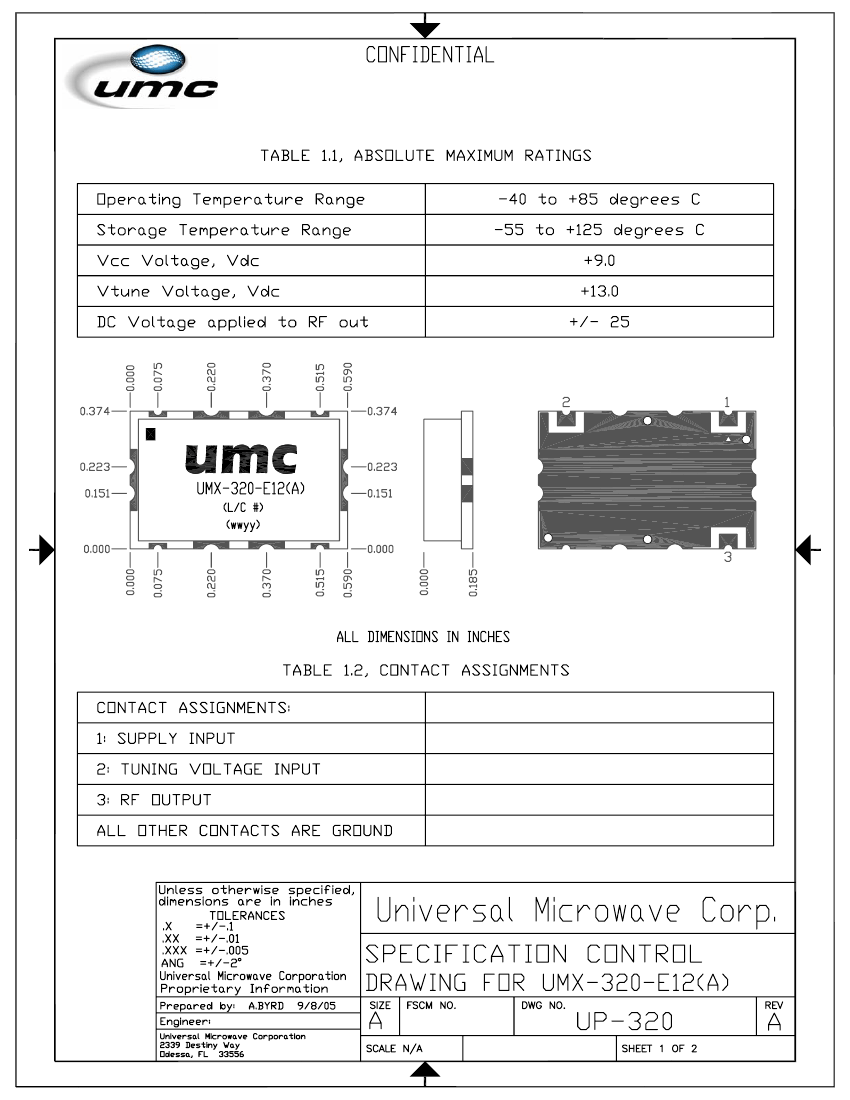

UMX-320-E12 Overview

Voltage Controlled Oscillator, 1217MHz Min, 1307MHz Max

Parameter Name	Attribute value
Reach Compliance Code	unknown
Maximum control voltage	12 V
Minimum control voltage	2 V
Modulation sensitivity	15 MHz/V
Installation features	SURFACE MOUNT
offset frequency	1 kHz
Maximum operating frequency	1307 MHz
Minimum operating frequency	1217 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	5 dBm
phase noise	-83 dBc/Hz
physical size	14.99mm x 9.5mm x 4.7mm
Nominal supply voltage	8 V
surface mount	YES
Base Number Matches	1

	UMX-320-E12	UMX-320-E12(A)
Description	Voltage Controlled Oscillator, 1217MHz Min, 1307MHz Max	Oscillator,
Reach Compliance Code	unknown	compli
Base Number Matches	1	1
