H190C-3-Y/G-B datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> H190C-3-Y/G-B

Preview

H190C-3-Y/G-B: DescriptionOptoelectronic Device; CategoryLED optoelectronic/LED photoelectric; File Size525KB，1 Pages; ManufacturerBivar; Environmental Compliance

Download Datasheet Parametric Compare View All

H190C-3-Y/G-B Overview

Optoelectronic Device

H190C-3-Y/G-B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
color@wavelength	Green/Yellow
Maximum forward current	0.03 A
Maximum forward voltage	2.6 V
Lens type	WHITE DIFFUSED
total height	7.2 mm
perspective	40 deg
Base Number Matches	1

Preview

Download Datasheet

View All

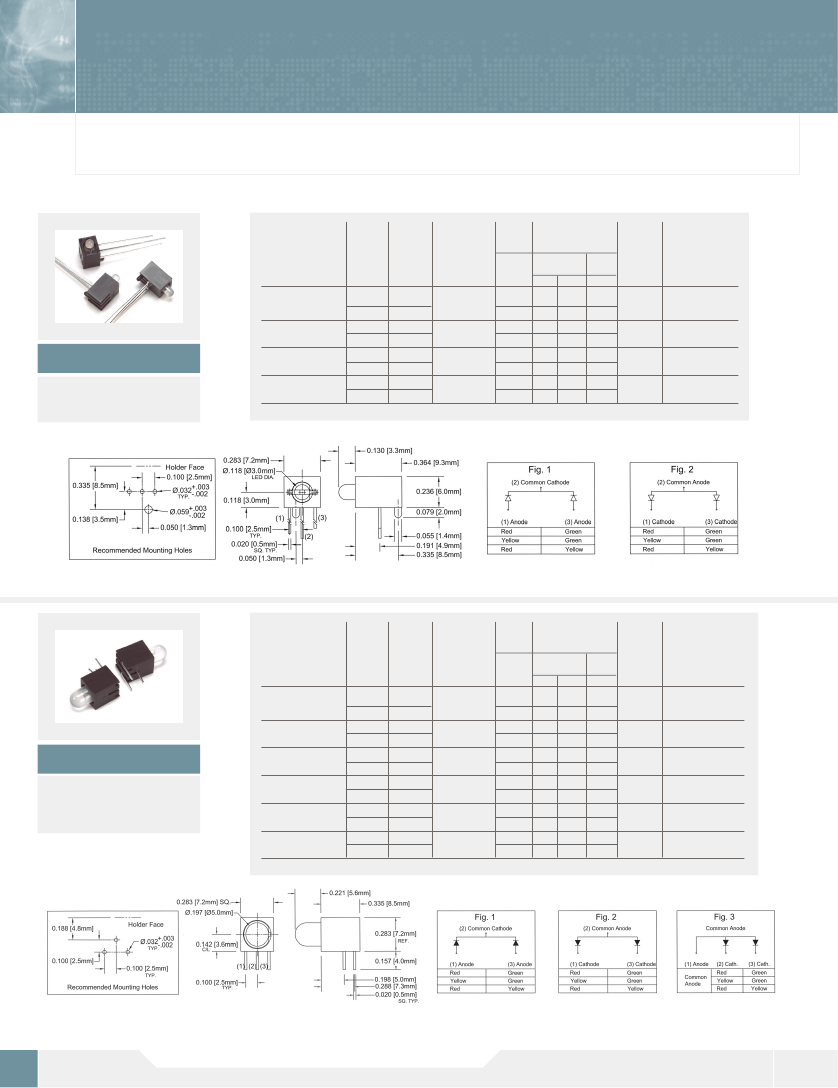

90˚led assemblies

Locating Pin Assemblies

• Extra PCB Retention for Pre-Solder Handling

• Bi-Color/Tri-Color Two Chip LEDs

• Wide Viewing Angles

LED

Assy. No.

Peak

Wave

Length

635

568

585

568

635

568

585

568

Emitted

Color

Lens

Appearance

Abs.

Max.

Rating

If

(mA)

Electro-Optical Viewing

Data @20mA

Angle

Vf

Iv

2

θ

1/2

(V)

(mcd)

(deg)

TYP MAX TYP

2.0

2.2

2.1

2.2

2.0

2.2

2.1

2.2

2.6

35.0

30.0

35.0

30.0

35.0

40

LED P/N

H180CBC-LP

(Fig.1)

H180CBC-LP-Y/G

(Fig.1)

HE RED

GREEN

YELLOW

GREEN

HE RED

GREEN

YELLOW

GREEN

WHITE

DIFFUSED

WHITE

DIFFUSED

WHITE

DIFFUSED

WHITE

DIFFUSED

30

3BC-3-F

3BC-3-Y/G-F

3BC-3-CA-F

3BC-3-Y/G-CA-F

H-180CBC-LP Series

T-1 (3mm) Tri-Leaded/Two Chips

Bi/Tri-Color.

H180CBC-LP-CA

(Fig.2)

H180CBC-LP-Y/G-CA

(Fig.2)

LED

Assy. No.

Peak

Wave

Length

635

568

585

568

635

568

585

568

585

635

585

568

Emitted

Color

Lens

Appearance

Abs.

Max.

Rating

If

(mA)

Electro-Optical Viewing

Data @20mA

Angle

Vf

Iv

2

θ

1/2

(V)

(mcd)

(deg)

TYP MAX TYP

2.0

2.2

2.1

2.2

2.0

2.2

2.1

2.2

2.0

2.2

2.1

2.2

2.6

35.0

30.0

35.0

30.0

35.0

30.0

35.0

40

LED P/N

H190C-3

(Fig.1)

H190C-3-Y/G

(Fig.1)

HE RED

GREEN

YELLOW

GREEN

HE RED

GREEN

YELLOW

GREEN

YELLOW

HE RED

YELLOW

GREEN

WHITE

DIFFUSED

WHITE

DIFFUSED

WHITE

DIFFUSED

WHITE

DIFFUSED

WHITE

DIFFUSED

WHITE

DIFFUSED

30

5BC-3-F

5BC-3-Y/G-F

5BC-3-CA-F

5BC-3-Y/G-CA-F

5BC-3-CA-B-F

5BC-3-Y/G-CA-B-F

H-190C-3 Series

T-1

3

/

4

(5mm) Tri-Leaded/Two

Chips, Bi/Tri-Color

(Third Lead

acts as locating pin).

H190C-3-CA

(Fig.2)

H190C-3-Y/G-CA

(Fig.2)

H190C-3-B

(Fig.3)

H190C-3-Y/G-B

(Fig.3)

79

www.bivar.com

cage code (FSCM)

32559

H190C-3-Y/G-B Related Products

	H190C-3-Y/G-B	H190C-3-B	H190C-3-Y/G	H190C-3-Y/G-CA
Description	Optoelectronic Device	Optoelectronic Device	Optoelectronic Device,	Optoelectronic Device,
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown
color@wavelength	Green/Yellow	Orange-Red/Yellow	Green/Yellow	Green/Yellow
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A
Maximum forward voltage	2.6 V	2.6 V	2.6 V	2.6 V
Lens type	WHITE DIFFUSED	WHITE DIFFUSED	WHITE DIFFUSED	WHITE DIFFUSED
total height	7.2 mm	7.2 mm	7.2 mm	7.2 mm
perspective	40 deg	40 deg	40 deg	40 deg
Base Number Matches	1	1	1	1
