PDM42205L20JI datasheet, PDF - EEWORLD Datasheet

PDM42205L20JI: DescriptionFIFO, 256X18, 11ns, Synchronous, CMOS, PQCC68,; Categorystorage storage; File Size988KB，15 Pages; ManufacturerParadigm Technology Inc

Download Datasheet Parametric View All

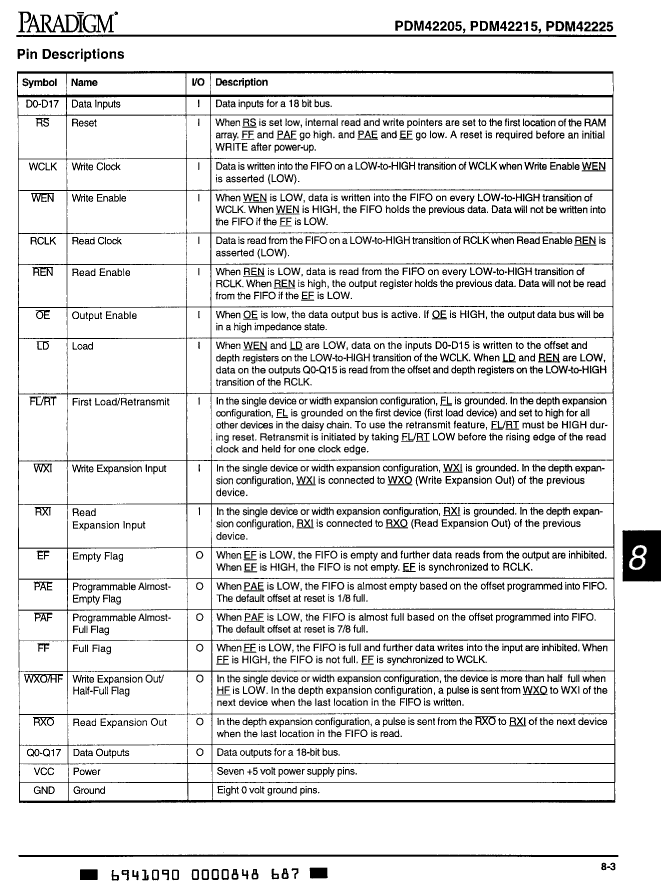

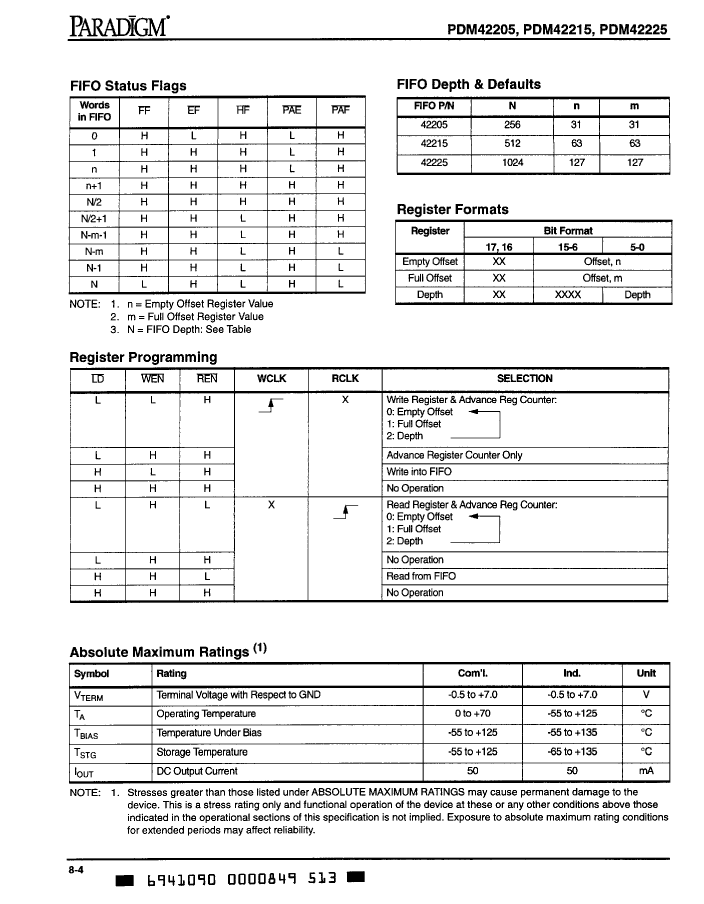

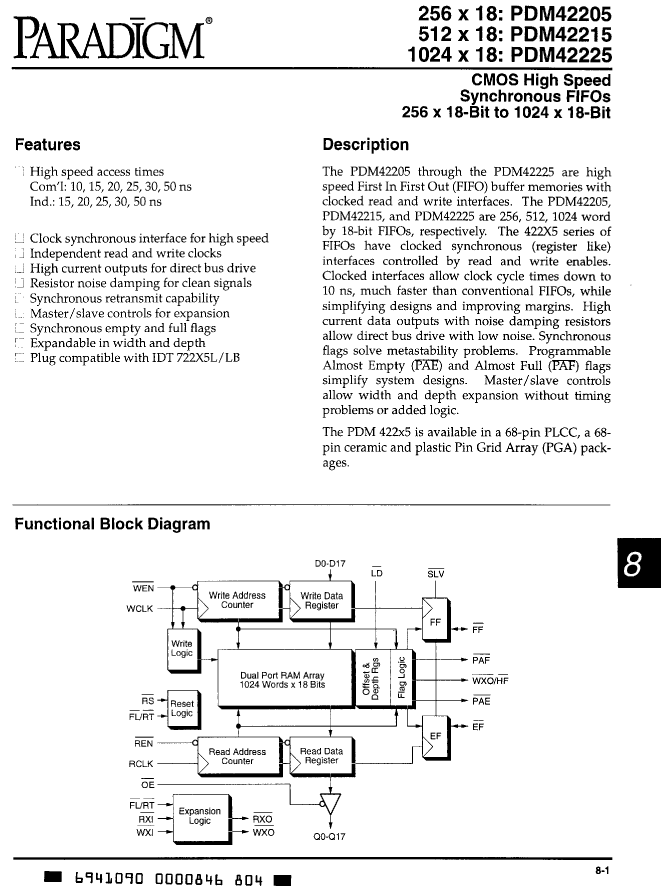

PDM42205L20JI Overview

FIFO, 256X18, 11ns, Synchronous, CMOS, PQCC68,

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	QCCJ, LDCC68,1.0SQ
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	11 ns
Other features	RETRANSMIT
Maximum clock frequency (fCLK)	50 MHz
period time	20 ns
JESD-30 code	S-PQCC-J68
JESD-609 code	e0
memory density	4608 bit
Memory IC Type	OTHER FIFO
memory width	18
Number of functions	1

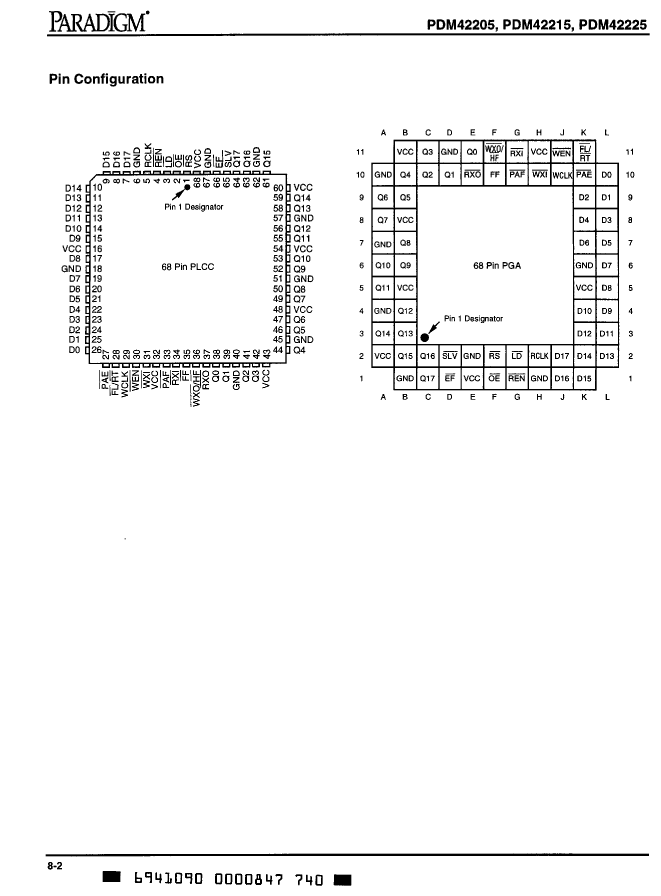

Number of terminals	68
word count	256 words
character code	256
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	256X18
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC68,1.0SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED

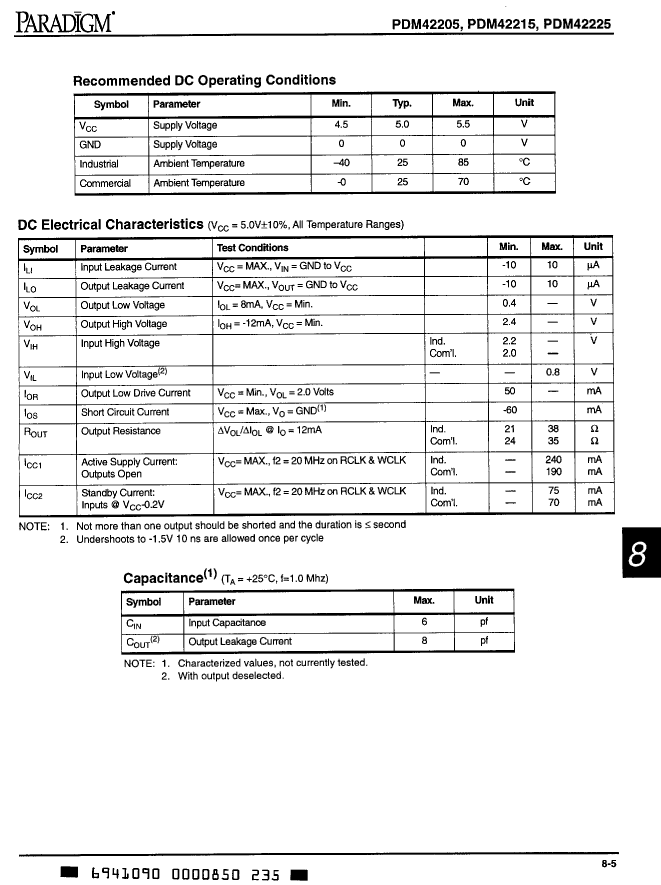

power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.075 A
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1
