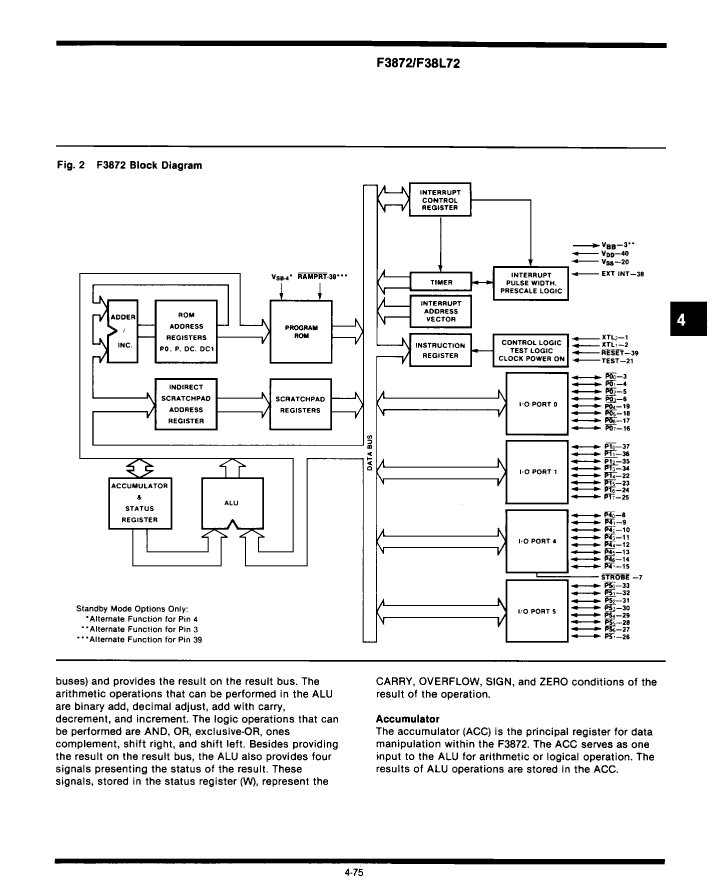

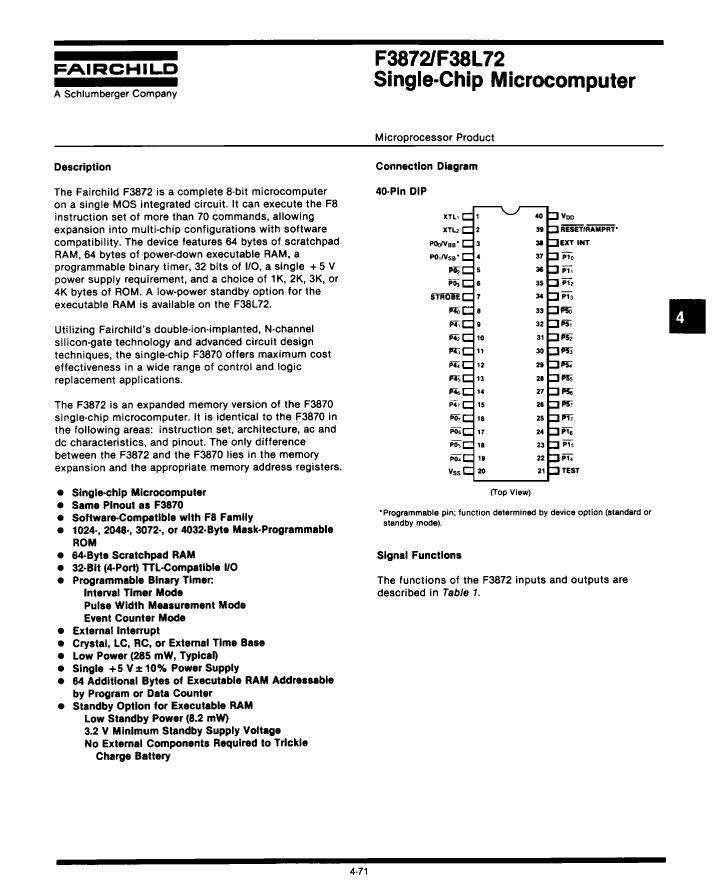

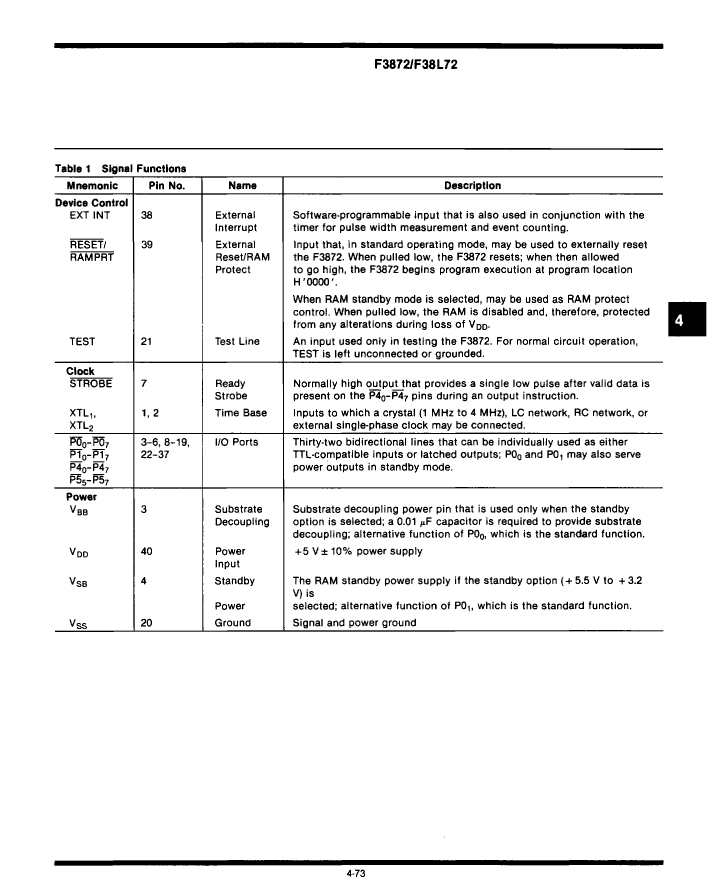

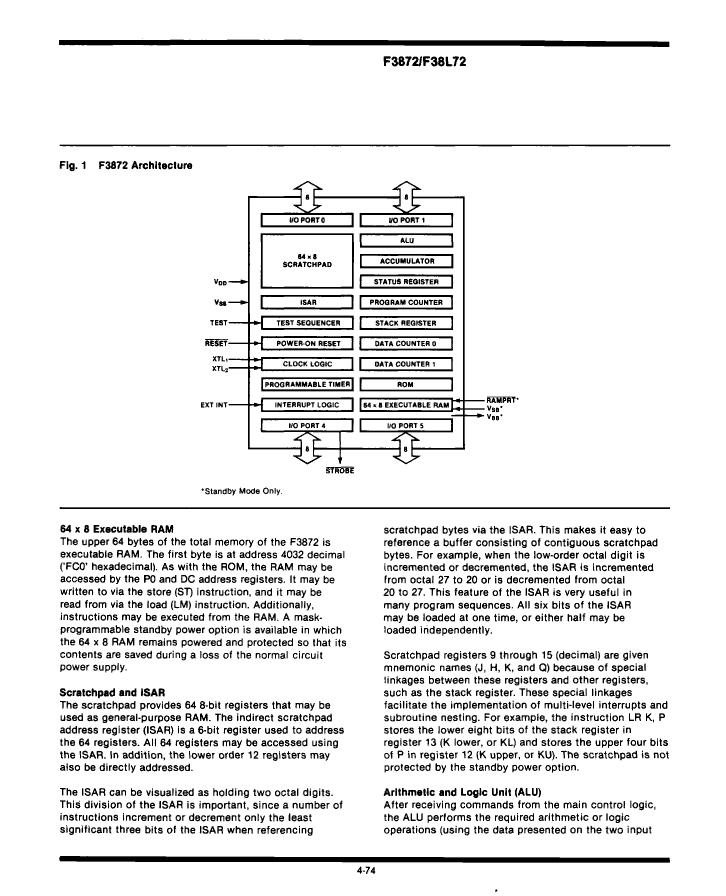

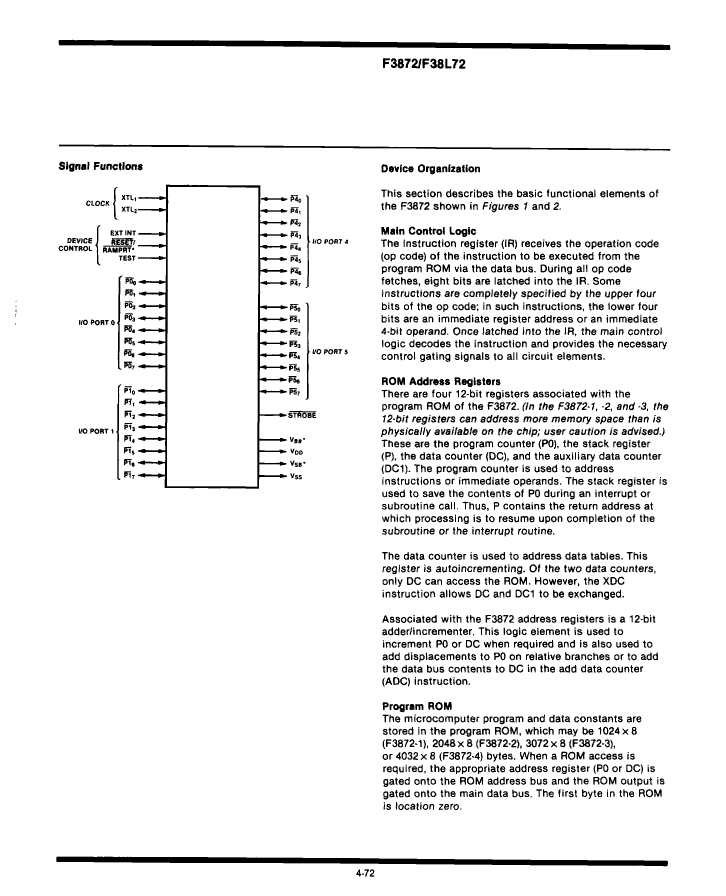

F3872-4DL Overview

Microcontroller, 8-Bit, MROM, 4MHz, CMOS, CDIP40, CERAMIC, DIP-40

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	40
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	8
maximum clock frequency	4 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-GDIP-T40
length	52.1335 mm
Number of I/O lines	32
Number of terminals	40
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
ROM programmability	MROM
Maximum seat height	6.35 mm
speed	4 MHz
Maximum slew rate	100 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1
