HD74HC253RP-EL datasheet, PDF - EEWORLD Datasheet

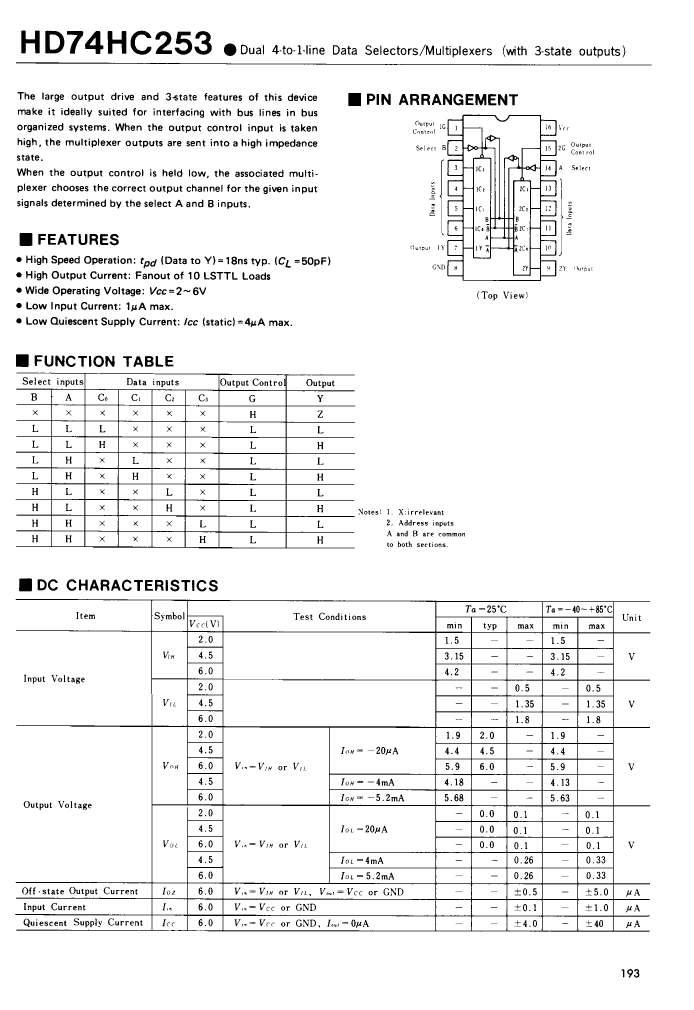

HD74HC253RP-EL: DescriptionMultiplexer, HC/UH Series, 2-Func, 4 Line Input, 1 Line Output, True Output, CMOS, PDSO16, SOP-16; Categorylogic logic; File Size43KB，2 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HD74HC253RP-EL Overview

Multiplexer, HC/UH Series, 2-Func, 4 Line Input, 1 Line Output, True Output, CMOS, PDSO16, SOP-16

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	unknown
series	HC/UH
JESD-30 code	R-PDSO-G16
length	9.9 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
Number of functions	2
Number of entries	4
Output times	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	40 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
Base Number Matches	1

	HD74HC253RP-EL	HD74HC253FP-EL
Description	Multiplexer, HC/UH Series, 2-Func, 4 Line Input, 1 Line Output, True Output, CMOS, PDSO16, SOP-16	Multiplexer, HC/UH Series, 2-Func, 4 Line Input, 1 Line Output, True Output, CMOS, PDSO16, EIAJ, SOP-16
Parts packaging code	SOIC	SOIC
package instruction	SOP,	SOP,
Contacts	16	16
Reach Compliance Code	unknown	unknown
series	HC/UH	HC/UH
JESD-30 code	R-PDSO-G16	R-PDSO-G16
length	9.9 mm	10.06 mm
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER
Number of functions	2	2
Number of entries	4	4
Output times	1	1
Number of terminals	16	16
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	40 ns	40 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	2.2 mm
Maximum supply voltage (Vsup)	6 V	6 V
Minimum supply voltage (Vsup)	2 V	2 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
width	3.9 mm	5.5 mm
Base Number Matches	1	1
