ASPI-8040S-470M

Description
General Purpose Inductor, 47uH, 20%, 1 Element, Non-specified-Core, SMD, 3232, ROHS COMPLIANT
CategoryPassive components    inductor
File Size1MB,2 Pages
ManufacturerAbracon
Websitehttp://www.abracon.com/index.htm
Environmental Compliance
Download Datasheet Parametric View All

ASPI-8040S-470M Overview

General Purpose Inductor, 47uH, 20%, 1 Element, Non-specified-Core, SMD, 3232, ROHS COMPLIANT

ASPI-8040S-470M Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instruction3232
Reach Compliance Codecompliant
ECCN codeEAR99
uppercase and lowercase codes3232
structureChip
core materialNon-Specified
DC Resistance0.136 Ω
Nominal inductance(L)47 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial numberASPI-8040S
Number of functions1
Number of terminals2
Maximum operating temperature120 °C
Minimum operating temperature-25 °C
Package height4 mm
Package length8 mm
Package formSMT
Package width8 mm
method of packingBulk
Maximum rated current1.55 A
self resonant frequency6.4 MHz
seriesASPI-8040S
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldYES
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeONE SURFACE
Test frequency0.1 MHz
Tolerance20%
Base Number Matches1

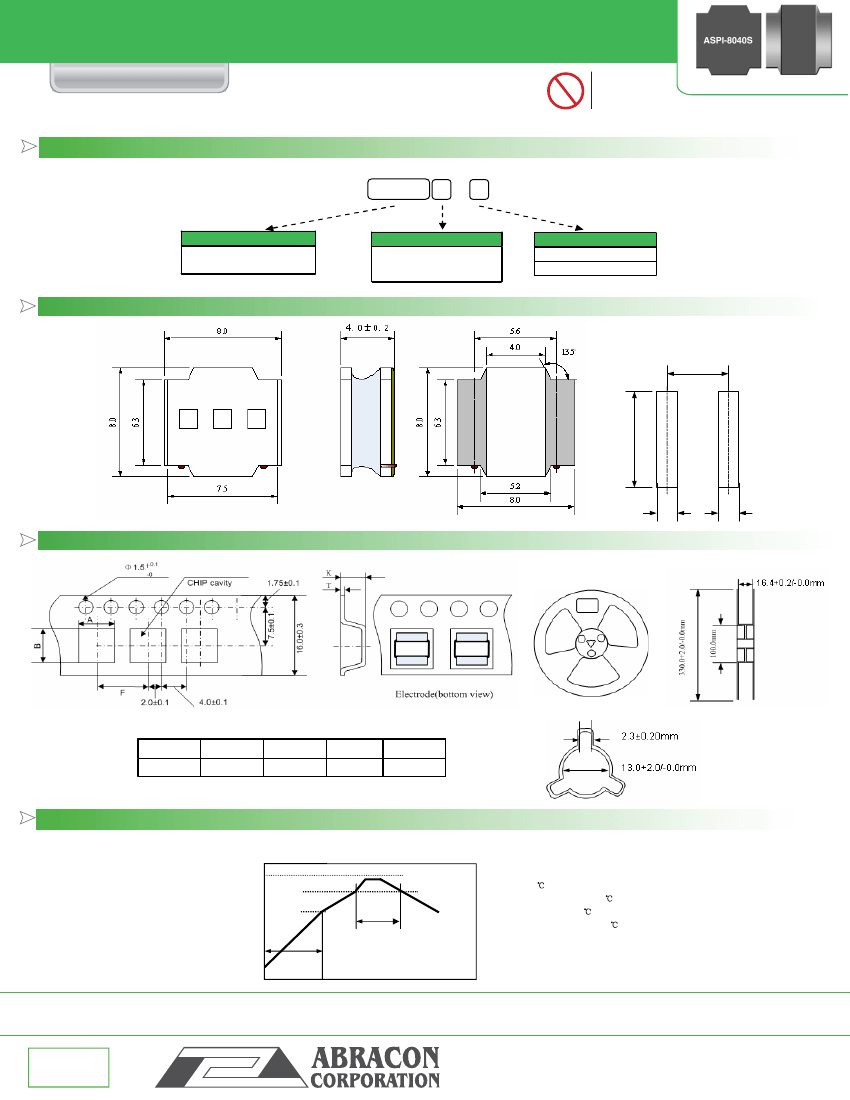

SMD SHIELDED POWER INDUCTOR
ASPI-8040S
FEATURES:
Shielded magnetics, low radiation
Large Terminal surface for good PCB bonding
Low DCR, High Energy storage, suitable for large currents
Ideal for a variety of DC-DC converter inductor applications
Pb
RoHS
Compliant
APPLICATIONS:
Partable communication equipment
OA equipment
LCD, DVD, modem, set-top box
DC/DC converters
8.0 x 8.0 x 4.0mm
ELECTRICAL SPECIFICATIONS:
Abracon P/N:
Operating Temperature:
Storage Temperature:
L
Tolerance
N
N
N
N
N
N
N
N
N
N
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
ASPI-8040S Series
-25ºC to +120ºC
-10ºC to +40ºC and 70% R.H.
Inductance
Test
Condition
100KHz,1v
100KHz,1v
100KHz,1v
100KHz,1v
100KHz,1v
100KHz,1v
100KHz,1v
100KHz,1v
100KHz,1v
100KHz,1v
100KHz,1v
100KHz,1v
100KHz,1v
100KHz,1v
100KHz,1v
100KHz,1v
100KHz,1v
100KHz,1v
100KHz,1v
100KHz,1v
100KHz,1v
100KHz,1v
100KHz,1v
100KHz,1v
100KHz,1v
100KHz,1v
100KHz,1v
100KHz,1v
100KHz,1v
100KHz,1v
DC
Resistance
(N)
DCR
0.008
0.010
0.012
0.012
0.014
0.017
0.017
0.021
0.024
0.026
0.029
0.047
0.053
0.069
0.078
0.097
0.102
0.107
0.113
0.136
0.142
0.148
0.182
0.196
0.211
0.272
0.290
0.334
0.599
0.889
Saturation
Current
A
lsat
9.85
8.15
9.25
7.10
6.10
5.75
5.75
4.45
4.55
4.20
3.60
2.95
2.70
2.40
2.15
2.05
2.00
1.95
1.90
1.75
1.70
1.55
1.50
1.45
1.35
1.20
1.15
1.05
0.85
0.68
Temperature
Rise
Current
A
lrms
6.30
5.65
5.15
5.15
4.70
4.35
4.35
3.85
3.60
3.45
3.30
2.60
2.40
2.10
2.00
1.80
1.75
1.70
1.65
1.55
1.50
1.45
1.30
1.25
1.20
1.05
1.00
0.95
0.80
0.64
Min.
Self-resonant
frequency
MHz
SRF
89
67
43
41
32
26
26
20
20
17
15
12
11
9.5
9.2
7.8
7.8
7.8
7.8
6.4
6.4
6.4
6.4
4.9
4.9
4.9
4.2
3.5
3.5
2.8
1R0
1R5
2R0
2R2
3R0
3R6
3R9
6R2
6R8
8R2
100
150
180
220
270
330
360
390
430
470
510
560
620
680
750
910
101
121
221
331
Marking
Part Number
Inductance
Units
Symbol
ASPI-8040S-1R0N
ASPI-8040S-1R5N
ASPI-8040S-2R0N
ASPI-8040S-2R2N
ASPI-8040S-3R0N
ASPI-8040S-3R6N
ASPI-8040S-3R9N
ASPI-8040S-6R2N
ASPI-8040S-6R8N
ASPI-8040S-8R2N
ASPI-8040S-100M
ASPI-8040S-150M
ASPI-8040S-180M
ASPI-8040S-220M
ASPI-8040S-270M
ASPI-8040S-330M
ASPI-8040S-360M
ASPI-8040S-390M
ASPI-8040S-430M
ASPI-8040S-470M
ASPI-8040S-510M
ASPI-8040S-560M
ASPI-8040S-620M
ASPI-8040S-680M
ASPI-8040S-750M
ASPI-8040S-910M
ASPI-8040S-101M
ASPI-8040S-121M
ASPI-8040S-221M
ASPI-8040S-331M
µH
L
1.0
1.5
2.0
2.2
3.0
3.6
3.9
6.2
6.8
8.2
10
15
18
22
27
33
36
39
43
47
51
56
62
68
75
91
100
120
220
330
Tolerance: N=±30%, M=±20%
a. Ambient Temperature: 20±15℃
b. Relative Humidity: 65%±20%
c. Air Pressure: 86KPa to 106KPa
Test conditions
Inductance (L): ZM2355 LCR meter or equivalent
Direct Current Resistance (DCR): HIOKI 3540 or equivalent
Saturation Current (Isat): Saturation current meter
Definition of saturation current (Isat): DC current at which the inductance drops approximate 30% from its value without current
Temperature rise current (Irms): Electric Power, Electric current meter, Thermometer
ABRACON IS
ISO9001:2008
CERTIFIED
Revised: 04.06.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
