8375-13-38-1: DescriptionBoard Connector, 38 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size65KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

8375-13-38-1 Overview

Board Connector, 38 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator

8375-13-38-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
body width	0.087 inch
subject depth	0.11 inch
body length	2.992 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	100VAC V
Durability	500 Cycles
maximum insertion force	1.946 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYPHENYLENE SULPHIDE
Manufacturer's serial number	8375
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.122 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	38
Evacuation force-minimum value	.1946 N
Base Number Matches	1

Preview

Download Datasheet

View All

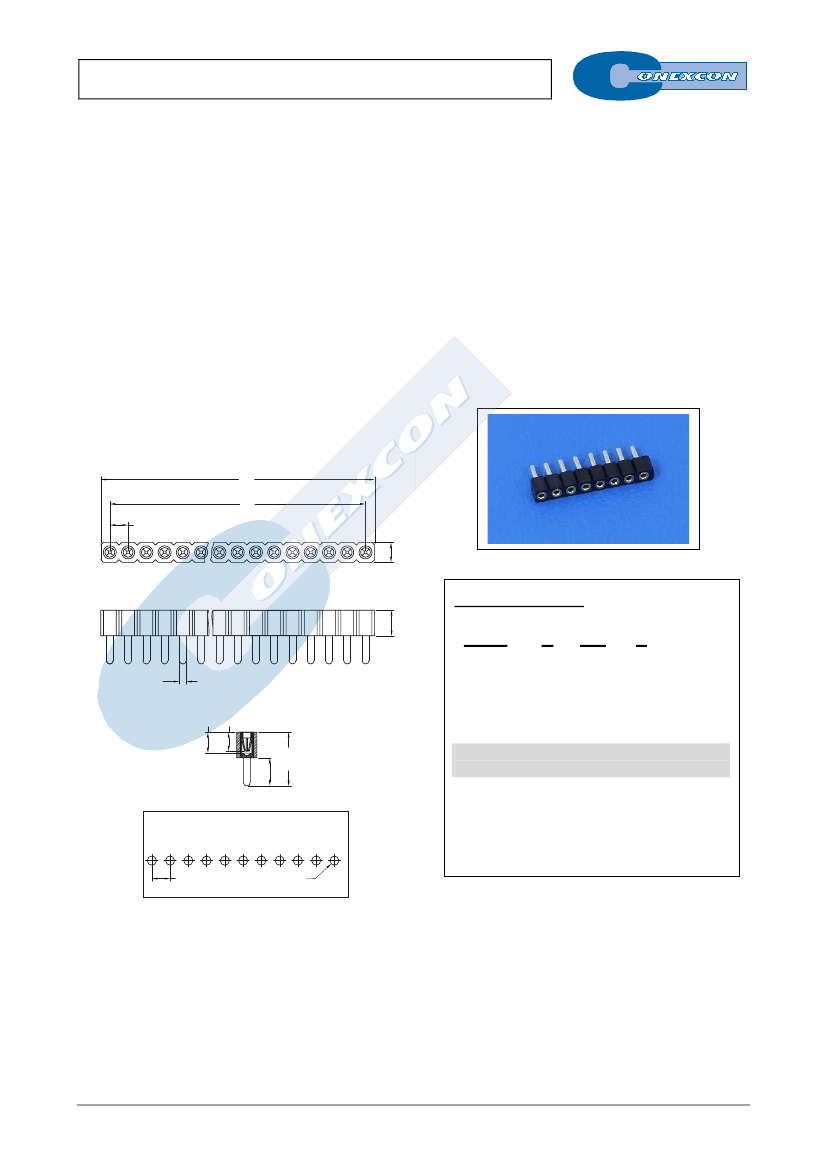

SINGLE ROW VERTICAL SOCKET

8375 SERIES.

2.00 mm. (0.079”) pitch. Machined contact.

General Features

Electrical Features



Available in 2 through 40 circuits



Mates with pin headers 2.00mm pitch 8370, 8372, 8374,

and 8385 series



Accept round pin 0.40 to 0.66mm or square pin 0.50 mm



Low profile 2.80 mm. high



Machined contact with different plating

Materials



Voltage rating: < 250V

Current rating: < 3 A

Contact resistance: < 10 mΩ

Dielectric withstanding Voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Mechanical Features



Insulator: PPS black + 30% GF UL 94 V-0

Contact: Clip(4 fingers): Beryllium copper

Sleeve: Brass

Operating temperature. -40ºC to +105ºC

RoHS compliant



Insertion force per pin: < 0.20 Kgf (round pin 0.46 mm)



Withdrawal force per pin: > 0.02 Kgf (round pin 0.46 mm)



Durability: 500 Cycles

Dimension Information

B

A

2.00±0.10

2.20

Ordering Information:

2.80

8375 -

1

T-

2

XX-

3

1

4

ø0.76±0.05

2.29

2.09

1. Connector Series

2. (T) Contact Plating

5.90



T =

13.

Selec. gold flash over 30-50µ" Ni overall

Recommended Finish

3.10



T =

15.

15µ" selec. gold over 30-50µ" Ni overall



T =

16.

30µ" selec. gold over 30-50µ" Ni overall

3. (XX) Number of circuits

RECOMMENDED PCB LAYOUT

(PCB Tolerance ±0.05)



Available in 2 through 40 circuits

2.00

ø1.00

Dimensions:

(In mm.)

A

= 2.00 x (XX*-1)

B

= 2.00 x (XX*)

* XX

(Number of circuits)

A-XX

FULL LINE CATALOGUE
