74LS367PCQR datasheet, PDF - EEWORLD Datasheet

74LS367PCQR: DescriptionBus Driver, 2-Func, 6-Bit, True Output, TTL, PDIP16; Categorylogic logic; File Size250KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

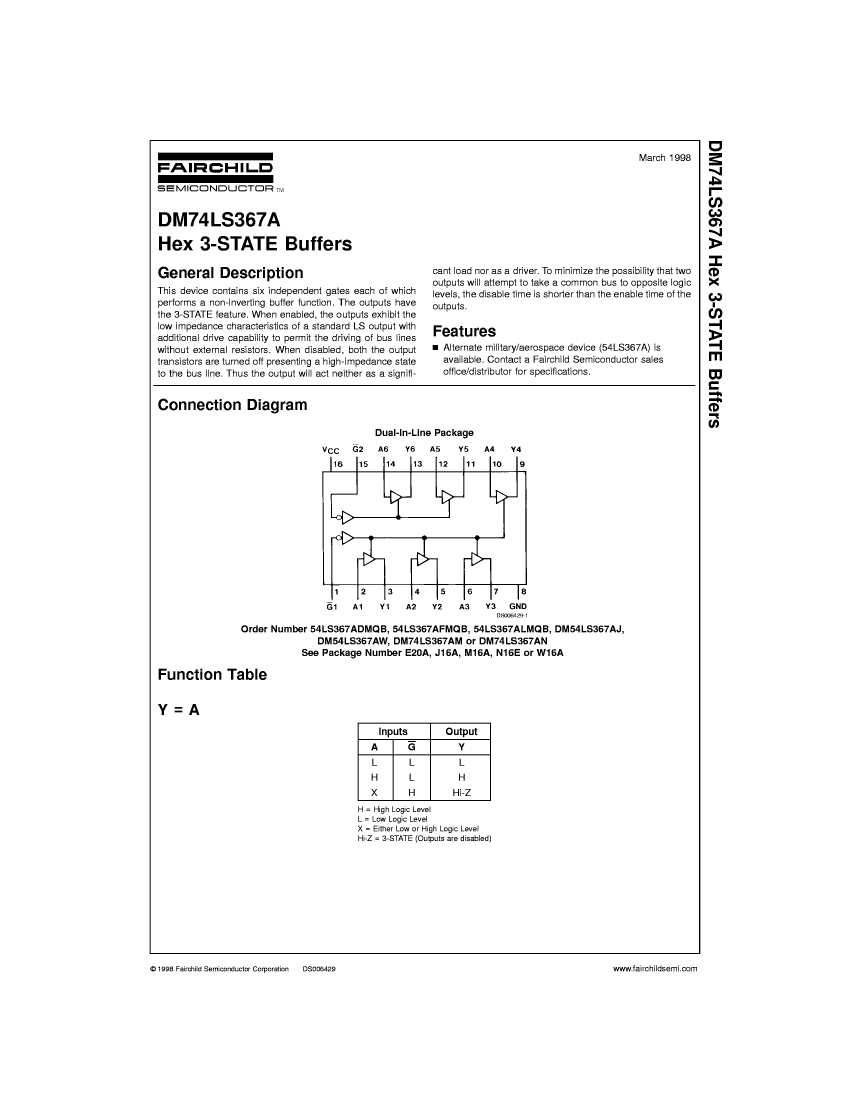

74LS367PCQR Overview

Bus Driver, 2-Func, 6-Bit, True Output, TTL, PDIP16

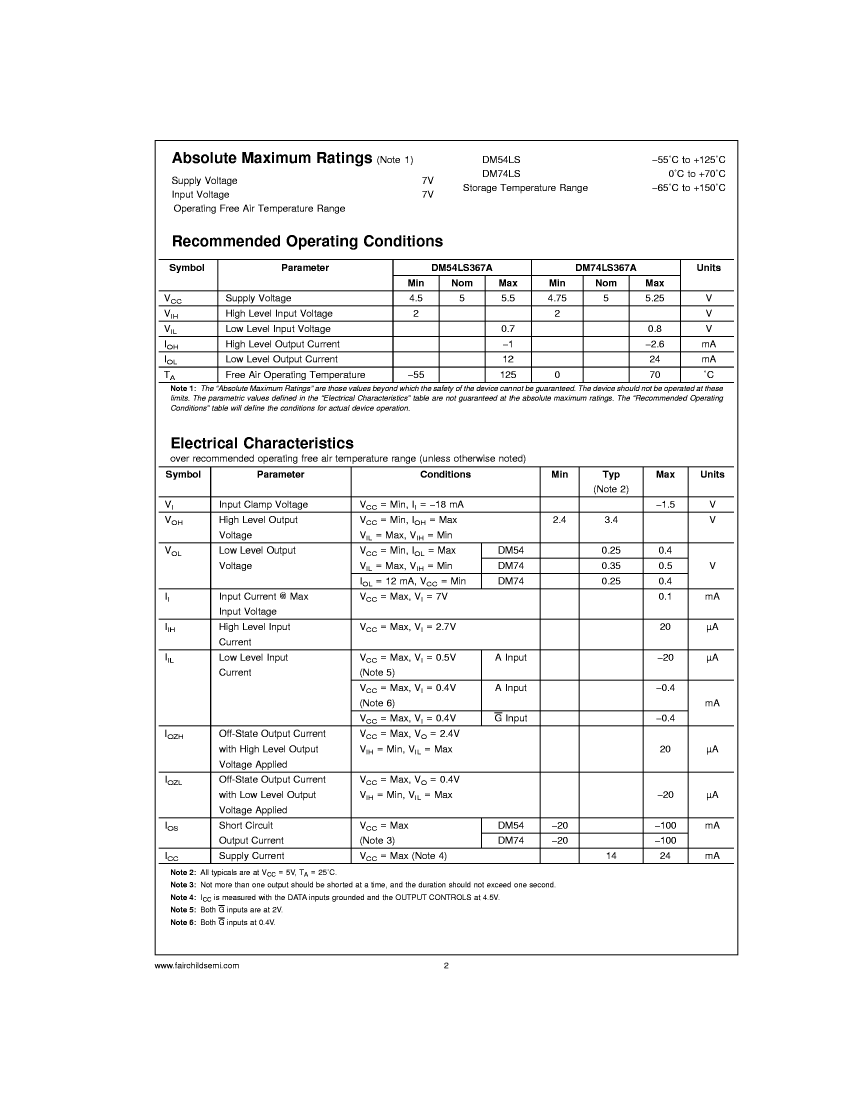

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Control type	ENABLE LOW
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Logic integrated circuit type	BUS DRIVER
Number of digits	6
Number of functions	2
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE

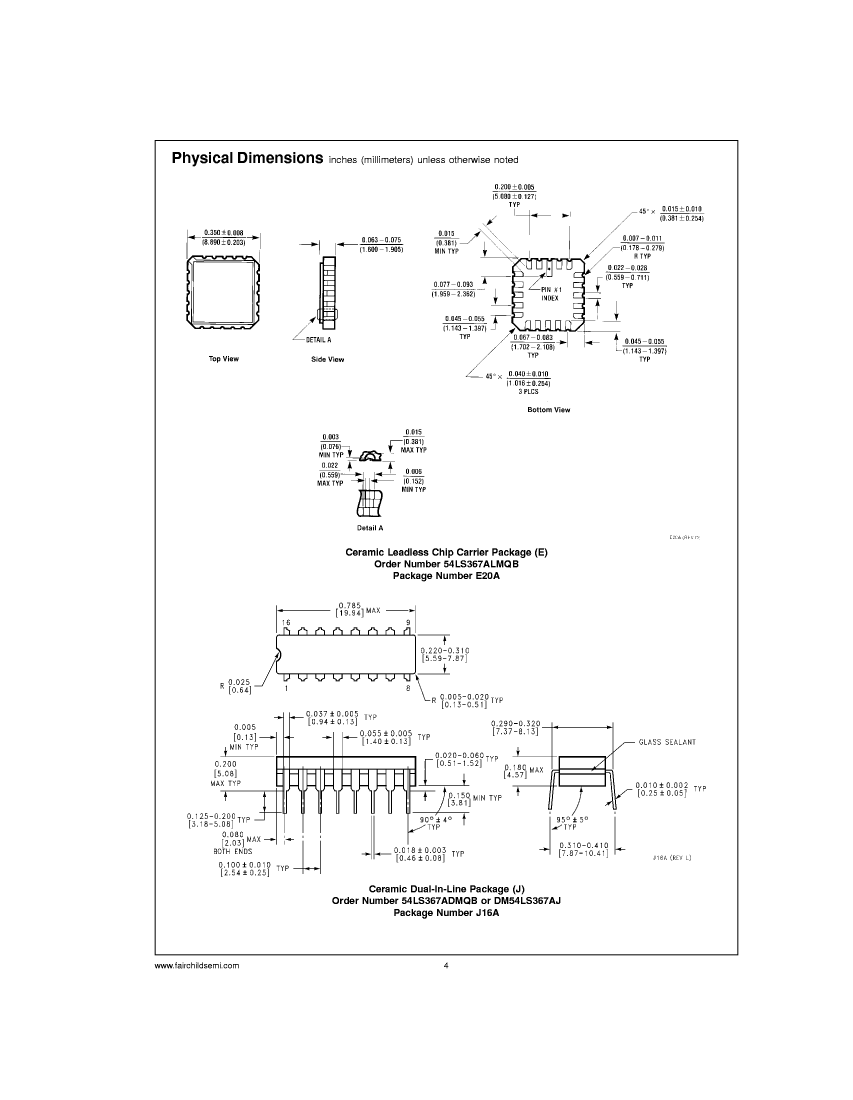

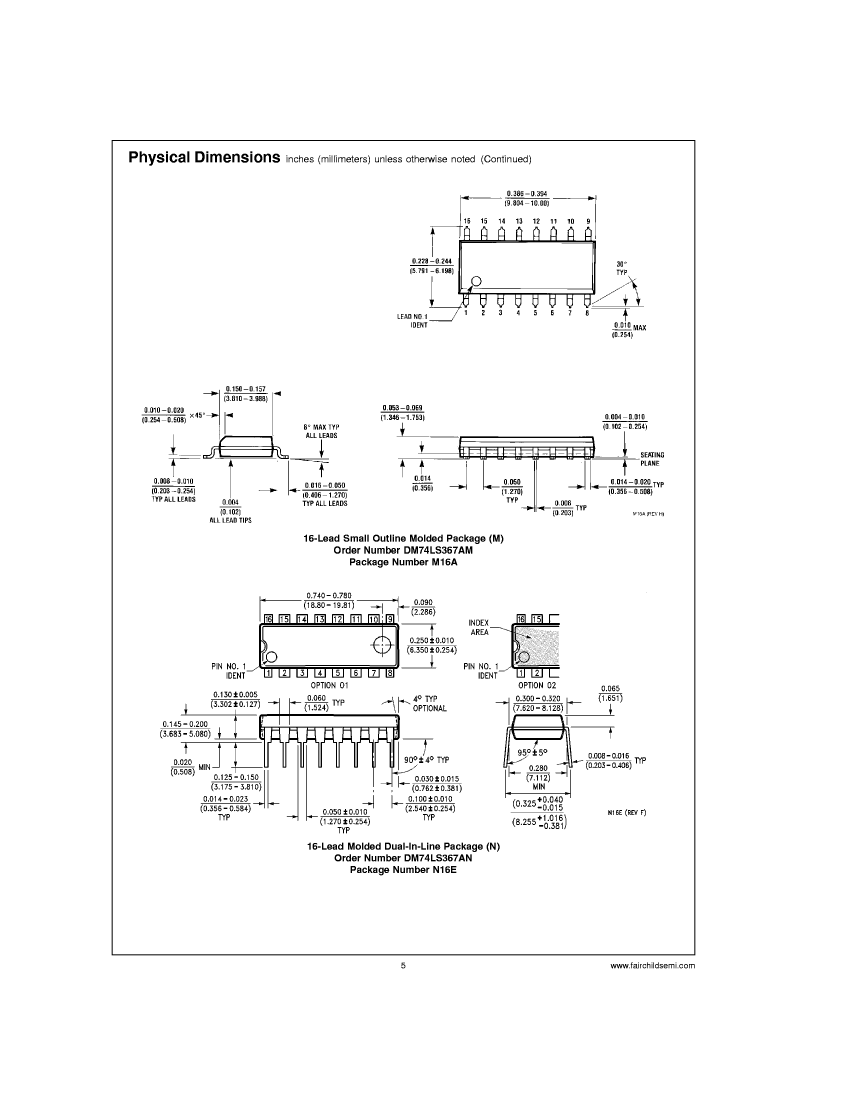

Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1
