KBPC1010 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> KBPC1010

Preview

KBPC1010: DescriptionRectifier, High Current; Max Peak Repetitive Reverse Voltage: 1000; Max TMS Bridge Input Voltage: 700; Max DC Reverse Voltage: 1000; Capacitance: 300; Package: DIGI-R; CategoryDiscrete semiconductor diode; File Size329KB，2 Pages; ManufacturerDigitron; Websitehttp://www.digitroncorp.com

Download Datasheet Parametric Compare View All

KBPC1010 Overview

Rectifier, High Current; Max Peak Repetitive Reverse Voltage: 1000; Max TMS Bridge Input Voltage: 700; Max DC Reverse Voltage: 1000; Capacitance: 300; Package: DIGI-R

KBPC1010 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	S-XUFM-D4
Reach Compliance Code	unknown
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	S-XUFM-D4
JESD-609 code	e0
Maximum non-repetitive peak forward current	200 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	10 A
Package body material	UNSPECIFIED
Package shape	SQUARE
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	1000 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

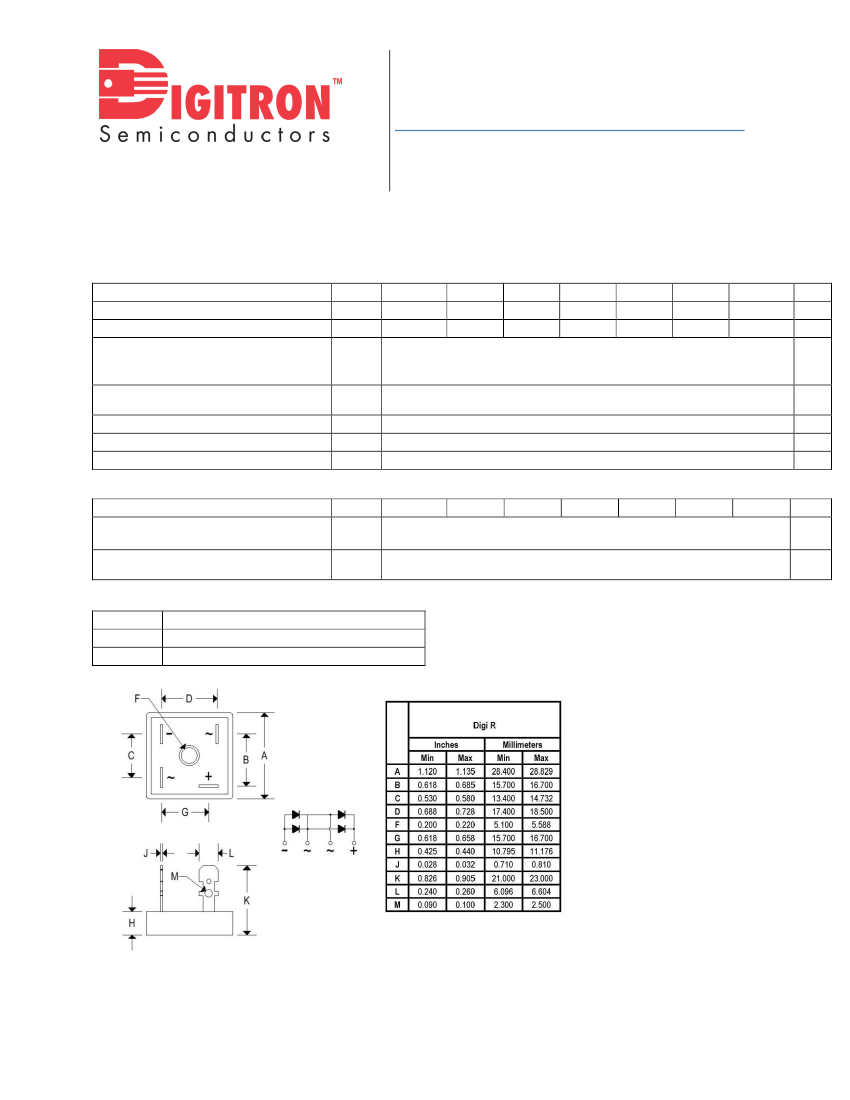

KBPC10005 SERIES

High-reliability discrete products

and engineering services since 1977

FEATURES

•

Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number.

Available as non-RoHS

(Sn/Pb plating), standard, and as RoHS by adding “-PBF” suffix.

SINGLE PHASE BRIDGE RECTIFIER

MAXIMUM RATINGS (T

A

= 25°C UNLESS OTHERWISE NOTED)

Rating

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum average forward output rectified current at

T

A

= 55°C

Peak forward surge current single half-sine wave

superimposed on rated load

Operating temperature range

Storage temperature range

Typical junction capacitance

I

F(AV)

10

I

FSM

T

C

T

stg

C

J

200

-55 to +125

-55 to +150

300

Amps

°C

pF

Amps

Symbol

V

RRM

V

RMS

KBPC10005

50

35

KBPC1001

100

70

KBPC1002

200

140

KBPC1004

400

280

KBPC1006

600

420

KBPC1008

800

560

KBPC1010

1000

700

Unit

Volts

ELECTRICAL CHARACTERISTICS

(T

A

= 25°C unless otherwise specified)

Characteristic

Maximum forward voltage drop per element

@ 5.0 peak

Maximum reverse current at rated DC blocking voltage

per element T

A

= 25°C

Symbol

V

F

I

R

KBPC10005

KBPC1001

KBPC1002

KBPC1004

1.2

1.0

KBPC1006

KBPC1008

KBPC1010

Units

Volts

µA

MECHANICAL CHARACTERISTICS

Case

Marking

Pin out

Digi R

Body painted, alpha-numeric

See below

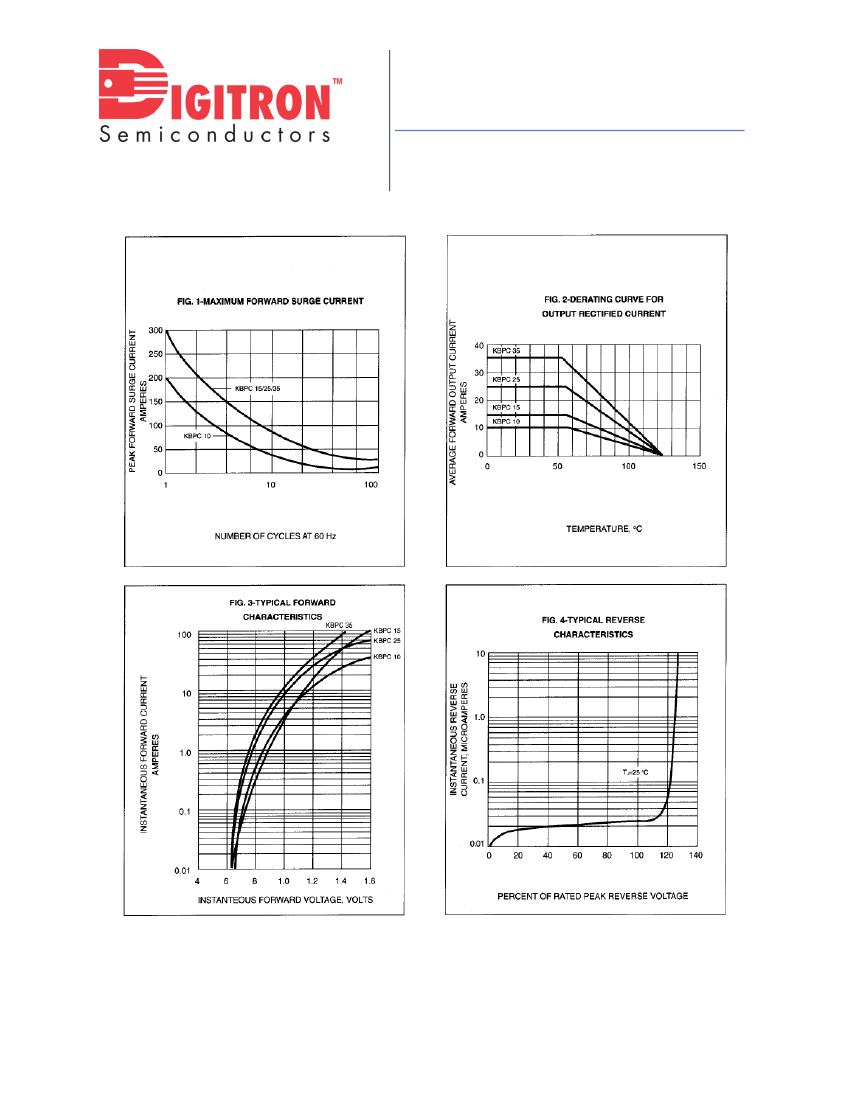

Rev. 20160510

KBPC1010 Related Products

	KBPC1010	KBPC1004	KBPC1002	KBPC1006	KBPC1008
Description	Rectifier, High Current; Max Peak Repetitive Reverse Voltage: 1000; Max TMS Bridge Input Voltage: 700; Max DC Reverse Voltage: 1000; Capacitance: 300; Package: DIGI-R	Rectifier, High Current; Max Peak Repetitive Reverse Voltage: 400; Max TMS Bridge Input Voltage: 280; Max DC Reverse Voltage: 400; Capacitance: 300; Package: DIGI-R	Rectifier, High Current; Max Peak Repetitive Reverse Voltage: 200; Max TMS Bridge Input Voltage: 140; Max DC Reverse Voltage: 200; Capacitance: 300; Package: DIGI-R	Rectifier, High Current; Max Peak Repetitive Reverse Voltage: 600; Max TMS Bridge Input Voltage: 420; Max DC Reverse Voltage: 600; Capacitance: 300; Package: DIGI-R	Rectifier, High Current; Max Peak Repetitive Reverse Voltage: 800; Max TMS Bridge Input Voltage: 560; Max DC Reverse Voltage: 800; Capacitance: 300; Package: DIGI-R
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	S-XUFM-D4	S-XUFM-D4	S-XUFM-D4	S-XUFM-D4	S-XUFM-D4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
JESD-30 code	S-XUFM-D4	S-XUFM-D4	S-XUFM-D4	S-XUFM-D4	S-XUFM-D4
JESD-609 code	e0	e0	e0	e0	e0
Maximum non-repetitive peak forward current	200 A	200 A	200 A	200 A	200 A
Number of components	4	4	4	4	4
Phase	1	1	1	1	1
Number of terminals	4	4	4	4	4
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	10 A	10 A	10 A	10 A	10 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum repetitive peak reverse voltage	1000 V	400 V	200 V	600 V	800 V
surface mount	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1	1	1	1
