KBPSC15-02 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> KBPSC15-02

KBPSC15-02: DescriptionBridge Rectifier Diode, 15A, 200V V(RRM),; CategoryDiscrete semiconductor diode; File Size86KB，1 Pages; ManufacturerFCI / Amphenol

Download Datasheet Parametric Compare View All

KBPSC15-02 Overview

Bridge Rectifier Diode, 15A, 200V V(RRM),

KBPSC15-02 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
Maximum non-repetitive peak forward current	200 A
Number of components	4
Maximum operating temperature	175 °C
Maximum output current	15 A
Maximum repetitive peak reverse voltage	200 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

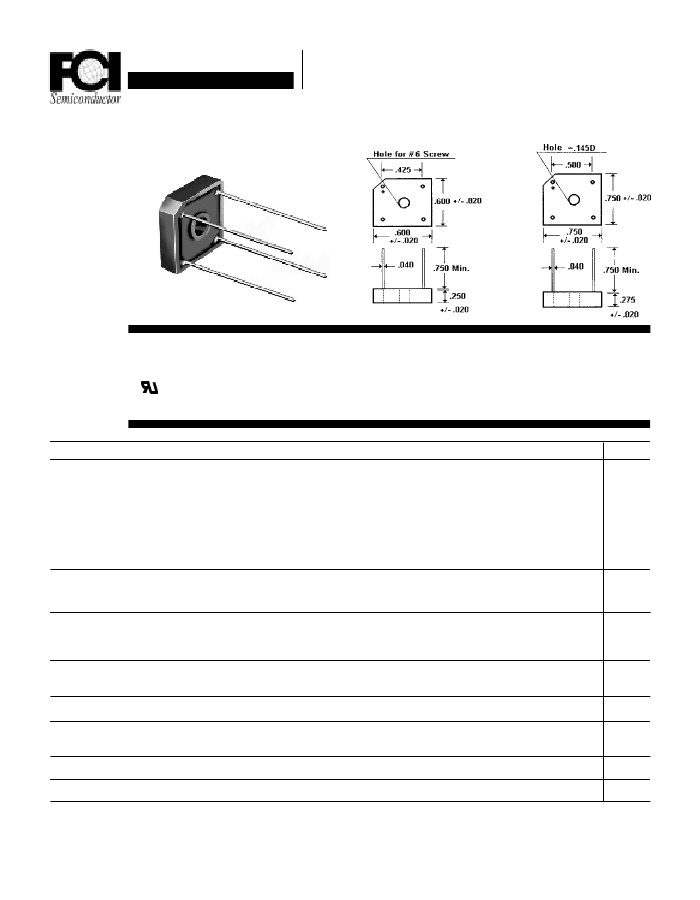

Data Sheet

10 to 15 Amp

SINGLE PHASE SILICON BRIDGE

Mechanical Dimensions

Description

KBPSC10&15Series

Features

BUILT-IN INTEGRAL HEAT SINK

UL RECOGNITION AVAILABLE

SMALL PACKAGE

UP TO 300 AMP SURGE OVERLOAD RATING

LOW LEAKAGE CURRENT,

LESS THAN 1µA

Electrical Characteristics @ 25

Maximum Ratings

Peak Repetitive Reverse Voltage...V

RRM

RMS Reverse Voltage...V

R(rms)

DC Blocking Voltage...V

Average Forward Rectified Current...I

F(av)

Non-Repetitive Peak Forward Surge

Current...I

FSM

Forward Voltage...V

Isolation Voltage Case to Leads...V

ISO

DC Reverse Current...I

@ Rated DC/Element

Thermal Resistance...R

θJC

(Note 1)

Operating & Storage Temperature Range...T

, T

STRG

KBPSC10 . . . 15 Series

-00

-01

100

-02

200

140

200

-04

400

280

400

-06

600

420

600

-08

800

560

800

-10

1000

700

1000

Units

Volts

Amps

Volts

KBPSC10 ............................................. 1 0 ...............................................

KBPSC15 ............................................. 1 5 ...............................................

KBPSC10 ............................................. 200 ...............................................

KBPSC15 ............................................. 300 ...............................................

KBPSC10 ............................................. 1.1 ...............................................

KBPSC15 ............................................. 1.1 ...............................................

............................................. 2000 ............................................... Volts AC

............................................. 1 0 ...............................................

............................................. 1.2 ...............................................

......................................... -65 to175 ..........................................

µAmps

°C

/ W

°C

Page 3-27

KBPSC15-02 Related Products

	KBPSC15-02	KBPSC10-04	KBPSC10-08	KBPSC10-01	KBPSC10-02	KBPSC15-04	KBPSC10-10
Description	Bridge Rectifier Diode, 15A, 200V V(RRM),	Bridge Rectifier Diode, 10A, 400V V(RRM),	Bridge Rectifier Diode, 10A, 800V V(RRM),	Bridge Rectifier Diode, 10A, 100V V(RRM),	Bridge Rectifier Diode, 10A, 200V V(RRM),	Bridge Rectifier Diode, 15A, 400V V(RRM),	Bridge Rectifier Diode, 10A, 1000V V(RRM),
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V
Maximum non-repetitive peak forward current	200 A	200 A	200 A	200 A	200 A	200 A	200 A
Number of components	4	4	4	4	4	4	4
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum output current	15 A	10 A	10 A	10 A	10 A	15 A	10 A
Maximum repetitive peak reverse voltage	200 V	400 V	800 V	100 V	200 V	400 V	1000 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Base Number Matches	1	1	1	1	1	1	-
