HM1W53ZPR308H6P datasheet, PDF

HM1W53ZPR308H6P: DescriptionBoard Connector, 120 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size108KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM1W53ZPR308H6P Overview

Board Connector, 120 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	POLARIZED
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	HM1
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	120
Base Number Matches	1

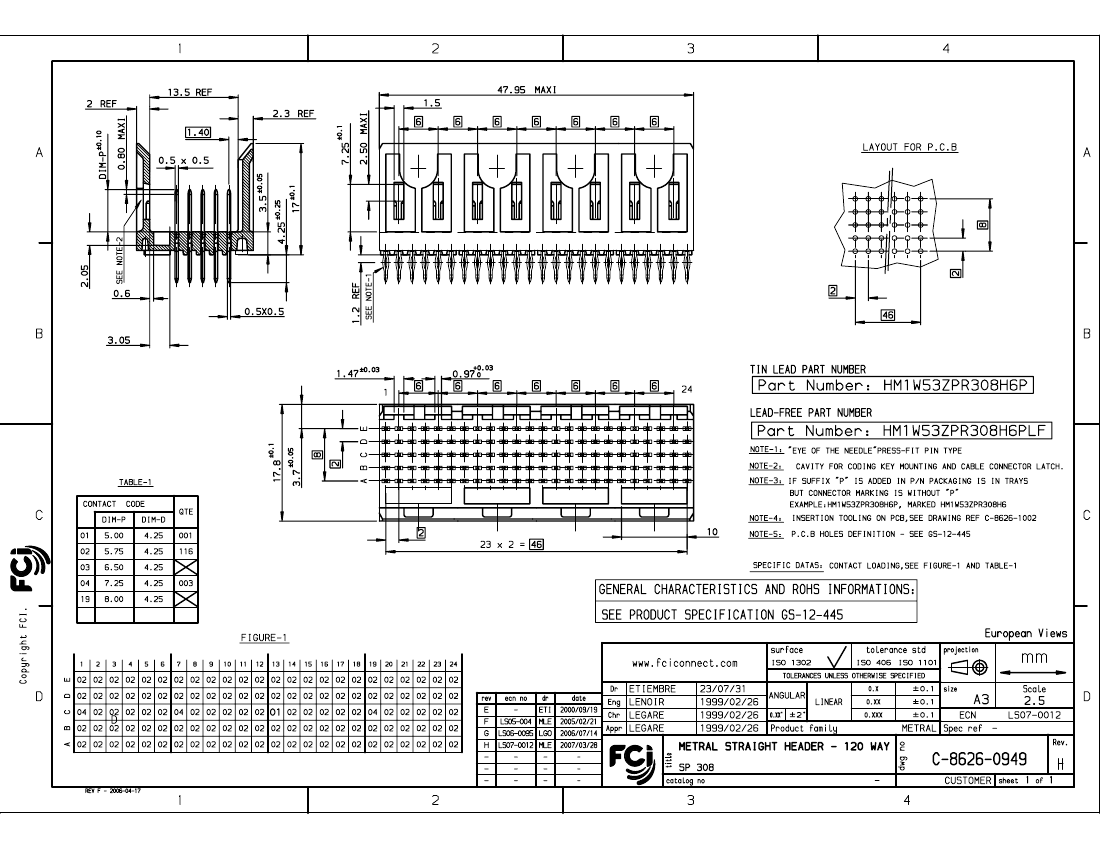

PDM: Rev:H

STATUS:

Released

Printed: Jan 06, 2010

	HM1W53ZPR308H6P	HM1W53ZPR308H6PLF
Description	Board Connector, 120 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 120 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE
Reach Compliance Code	unknown	unknown
Other features	POLARIZED	POLARIZED
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Manufacturer's serial number	HM1	HM1
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of rows loaded	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	120	120
Base Number Matches	1	1
