DATA
SHEET
PRELIMINARY PRODUCT INFORMATION
DATA
SHEET
MOS INTEGRATED CIRCUIT
µ
PD70F3038, 70F3038Y, 70F3040, 70F3040Y
V850/SV1
32-BIT SINGLE-CHIP MICROCONTROLLERS
DESCRIPTION
The
µ
PD70F3038,
µ
PD70F3038Y,
µ
PD70F3040, and
µ
PD70F3040Y are products that substitute flash memory
for the mask ROM of the
µ
PD703038,
µ
PD703038Y,
µ
PD703039, 703040, and 703041, and
µ
PD703039Y, 703040Y,
and 703041Y, respectively. Since the
µ
PD70F3038,
µ
PD70F3038Y,
µ
PD70F3040, and
µ
PD70F3040Y can be read
and written while mounted on the board, these products are ideal for evaluation during system development, multiple-
version small-scale production or quick product release.
Detailed function descriptions are provided in the following user’s manuals. Be sure to read them before
designing.
V850/SV1 User’s Manual Hardware:
U14462E
V850 Series User’s Manual Architecture: U10243E
FEATURES
Pin compatible with
µ
PD703038, 703039, 703040, 703041, 703038Y, 703039Y, 703040Y, and 703041Y
•
For mass production, these can be replaced by a mask ROM version.
µ
PD70F3038→
µ
PD703038
µ
PD70F3038Y→
µ
PD703038Y
µ
PD70F3040→
µ
PD703039, 703040, 703041
µ
PD70F3040Y→
µ
PD703039Y, 703040Y, 703041Y
APPLICATIONS
Camcorders (including DVC)
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all products and/or types are available in every country. Please check with an NEC Electronics
sales representative for availability and additional information.
Document No. U14622EJ2V1DS00 (2nd edition)
Date Published August 2005 NS CP(K)
Printed in Japan
The mark
shows major revised points.
© NEC Electronics Corporation 2000
µ
PD70F3038, 70F3038Y, 70F3040, 70F3040Y
ORDERING INFORMATION
Part Number
Package
180-pin plastic FBGA (13
×
13)
180-pin plastic FBGA (13
×
13)
180-pin plastic FBGA (13
×
13)
180-pin plastic FBGA (13
×
13)
176-pin plastic LQFP (fine pitch) (24
×
24)
176-pin plastic LQFP (fine pitch) (24
×
24)
180-pin plastic FBGA (13
×
13)
180-pin plastic FBGA (13
×
13)
176-pin plastic LQFP (fine pitch) (24
×
24)
176-pin plastic LQFP (fine pitch) (24
×
24)
180-pin plastic FBGA (13
×
13)
180-pin plastic FBGA (13
×
13)
µ
PD70F3038F1-EN2
µ
PD70F3038F1-EN2-A
µ
PD70F3038YF1-EN2
µ
PD70F3038YF1-EN2-A
µ
PD70F3040GM-UEU
µ
PD70F3040GM-UEU-A
µ
PD70F3040F1-EN2
µ
PD70F3040F1-EN2-A
µ
PD70F3040YGM-UEU
µ
PD70F3040YGM-UEU-A
µ
PD70F3040YF1-EN2
µ
PD70F3040YF1-EN2-A
Remark
Products with -A at the end of the part number are lead-free products.
DIFFERENCES BETWEEN V850/SV1 PRODUCTS
Internal ROM
Internal RAM
16 KB
None
Provided
256 KB (flash memory)
16 KB
None
Provided
384 KB (mask ROM)
16 KB
None
Provided
256 KB (mask ROM)
8 KB
None
Provided
16 KB
None
Provided
192 KB (mask ROM)
8 KB
None
Provided
None
IC
2
V
PP
Pin
Provided
µ
PD70F3038
µ
PD70F3038Y
µ
PD70F3040
µ
PD70F3040Y
µ
PD703038
µ
PD703038Y
µ
PD703039
µ
PD703039Y
µ
PD703040
µ
PD703040Y
µ
PD703041
µ
PD703041Y
384 KB (flash memory)
2
Data Sheet U14622EJ2V1DS
µ
PD70F3038, 70F3038Y, 70F3040, 70F3040Y
PIN CONFIGURATION
176-pin plastic LQFP (fine pitch) (24
×
24)
µ
PD70F3040GM-UEU
µ
PD70F3040YGM-UEU
µ
PD70F3040GM-UEU-A
µ
PD70F3040YGM-UEU-A
P12/SCK0/SCL0
Note 2
P13/SI1/RXD0
P14/SO1/TXD0
P15/SCK1/ASCK0
P20/SI2/SDA1
Note 2
P21/SO2
P22/SCK2/SCL1
Note 2
P23/SI3/RXD1
P24/SO3/TXD1
P25/SCK3/ASCK1
P26/TI2/TO2
P27/TI3/TO3
V
DD
V
SS
P30/TI000
P31/TI001
P32/TI010
P33/TI011
P34/TO0
P35/TO1
P36/TI4/TO4
P37/TI5/TO5
P120/SI4
P121/SO4
P122/SCK4
P123/CLO
P124/TI6/TO6
P125/TI7/TO7
P126/TI10/TO10
P127/TI11/TO11
P180
P181
P182
P183
P184
P185
P186
P187
V
DD
V
SS
P190
P191
P192
P193
176
175
174
173
172
171
170
169
168
167
166
165
164
163
162
161
160
159
158
157
156
155
154
153
152
151
150
149
148
147
146
145
144
143
142
141
140
139
138
137
136
135
134
133
P11/SO0
P10/SI0/SDA0
Note 2
P113
P112
P111
P110
WAIT
CLKOUT
P65/A21
P64/A20
P63/A19
P62/A18
P61/A17
P60/A16
P57/AD15
P56/AD14
P55/AD13
P54/AD12
P53/AD11
P52/AD10
P51/AD9
P50/AD8
BV
SS
BV
DD
P47/AD7
P46/AD6
P45/AD5
P44/AD4
P43/AD3
P42/AD2
P41/AD1
P40/AD0
P96/HLDRQ
P95/HLDAK
P94/ASTB
P93/DSTB/RD
P92/R/W/WRH
P91/UBEN
P90/LBEN/WRL
V
SS
V
DD
AV
DD
AV
SS
AV
REF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
132
131
130
129
128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
109
108
107
106
105
104
103
102
101
100
99
98
97
96
95
94
93
92
91
90
89
P87/ANI15
P86/ANI14
P85/ANI13
P84/ANI12
P83/ANI11
P82/ANI10
P81/ANI9
P80/ANI8
P77/ANI7
P76/ANI6
P75/ANI5
P74/ANI4
P73/ANI3
P72/ANI2
P71/ANI1
P70/ANI0
P147
P146
P145/RTPTRG1
P144/TI9/INTTI9
P143/INTCP93
P142/INTCP92
P141/INTCP91
P140/INTCP90
P137/TO81
P136/TO80
P135/TCLR8/INTTCLR8
P134/TI8/INTTI8
P133/INTCP83
P132/INTCP82
P131/INTCP81
P130/INTCP80
V
SS
V
DD
P07/INTP6
P06/INTP5/RTPTRG0
P05/INTP4/ADTRG
P04/INTP3
P03/INTP2
P02/INTP1
P01/INTP0
P00/NMI
P157/RTP17
P156/RTP16
Notes 1.
Connect to V
SS
in the normal operation mode.
2.
SCL0, SCL1, SDA0, and SDA1 are valid only for the
µ
PD70F3040Y.
P194
P195
P196
P197
P170/KR0
P171/KR1
P172/KR2
P173/KR3
P174/KR4
P175/KR5
P176/KR6
P177/KR7
P160/PWM0
P161/PWM1
P162/PWM2
P163/PWM3
P164/CSYNCIN
P165/VSOUT
P166/HSOUT0
P167/HSOUT1
V
PP
Note 1
RESET
XT1
XT2
V
DD
X2
X1
V
SS
P100/RTP00
P101/RTP01
P102/RTP02
P103/RTP03
P104/RTP04
P105/RTP05
P106/RTP06
P107/RTP07
V
DD
V
SS
P150/RTP10
P151/RTP11
P152/RTP12
P153/RTP13
P154/RTP14
P155/RTP15
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
Data Sheet U14622EJ2V1DS
3
µ
PD70F3038, 70F3038Y, 70F3040, 70F3040Y

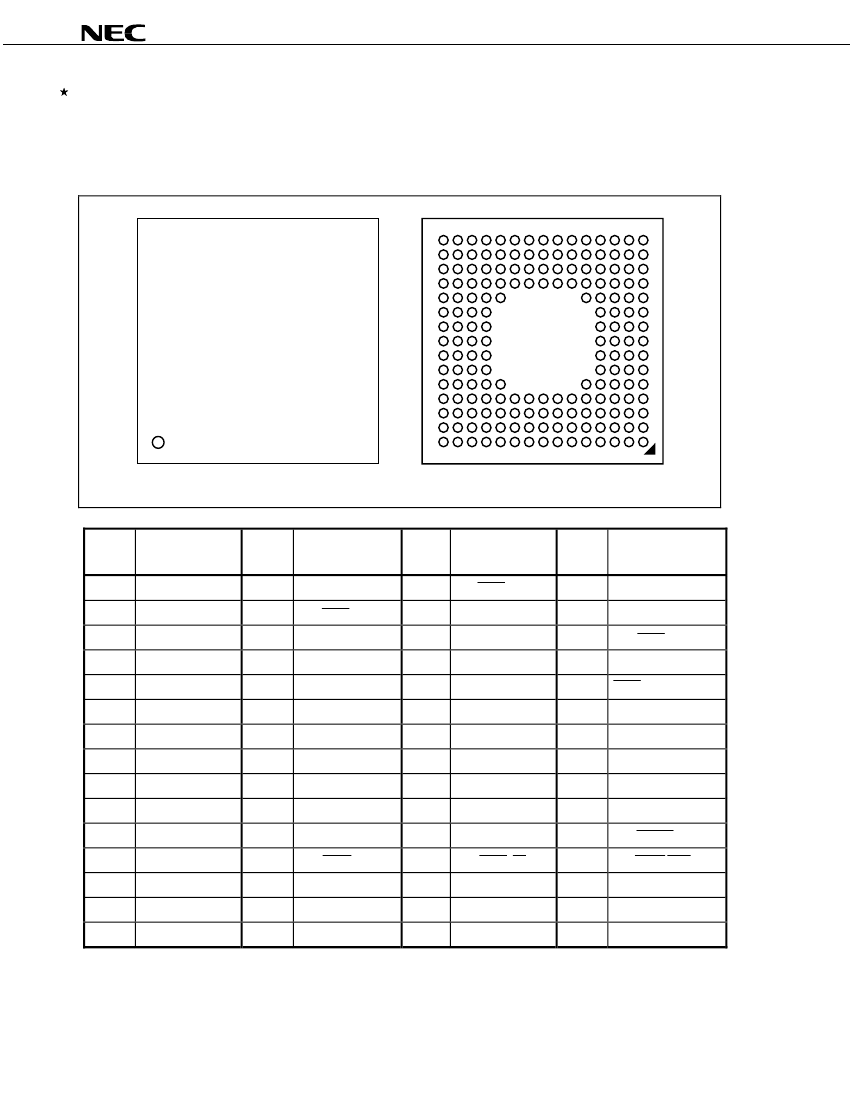

180-pin plastic FBGA (13 × 13)
µ
PD70F3038F1-EN2
µ
PD70F3038YF1-EN2
µ
PD70F3040F1-EN2
µ
PD70F3040YF1-EN2
Top View
µ
PD70F3038F1-EN2-A
µ
PD70F3038YF1-EN2-A
µ
PD70F3040F1-EN2-A
µ
PD70F3040YF1-EN2-A
Bottom View
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
A B C D E F G H J K L M N P R
R
P N M L K J H G F E D C B A
Pin
Number
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
NC
Note 1
Name
Pin
Number
B1
B2
Note 2
Name
Pin
Number
Name
Pin
Number
Name
P13/SI1/RXD0
P12/SCK0/SCL0
P113
P110
P64/A20
P60/A16
P54/AD12
P50/AD8
P46/AD6
P42/AD2
P94/ASTB
P91/UBEN
AV
DD
V
DD
P87/ANI15
Note 2
C1
C2
C3
C4
C5
C6
C7
C8
C9
C10
C11
C12
C13
C14
C15
P15/SCK1/ASCK0
P20/SI2/SDA1
Note 2
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
P23/SI3/RXD1
P21/SO2
P22/SCK2/SCL1
P24/SO3/TXD1
WAIT
P61/A17
P55/AD13
P51/AD9
P47/AD7
P43/AD3
P96/HLDRQ
P90/LBEN/WRL
P81/ANI9
P84/ANI12
P83/ANI11
Note 2
P11/SO0
P10/SI0/SDA0
P112
CLKOUT
P62/A18
P57/AD15
P53/AD11
BV
SS
P45/AD5
P41/AD1
V
SS
AV
SS
AV
REF
NC
Note
1
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
P14/SO1/TXD0
P111
P65/A21
P63/A19
P56/AD14
P52/AD10
BV
DD
P44/AD4
P40/AD0
P93/DSTB/RD
P82/ANI10
P86/ANI14
P85/ANI13
Notes
1.
Leave the NC pin open.
2.
SCL0, SCL1, SDA0, and SDA1 are valid only for the
µ
PD70F3038Y and 70F3040Y.
4
Data Sheet U14622EJ2V1DS
