HI1-0524-2 datasheet, PDF - EEWORLD Datasheet

HI1-0524-2: DescriptionIC,ANALOG MUX,SINGLE,4-CHANNEL,CMOS,DIP,18PIN,CERAMIC; CategoryAnalog mixed-signal IC The signal circuit; File Size212KB，6 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric View All

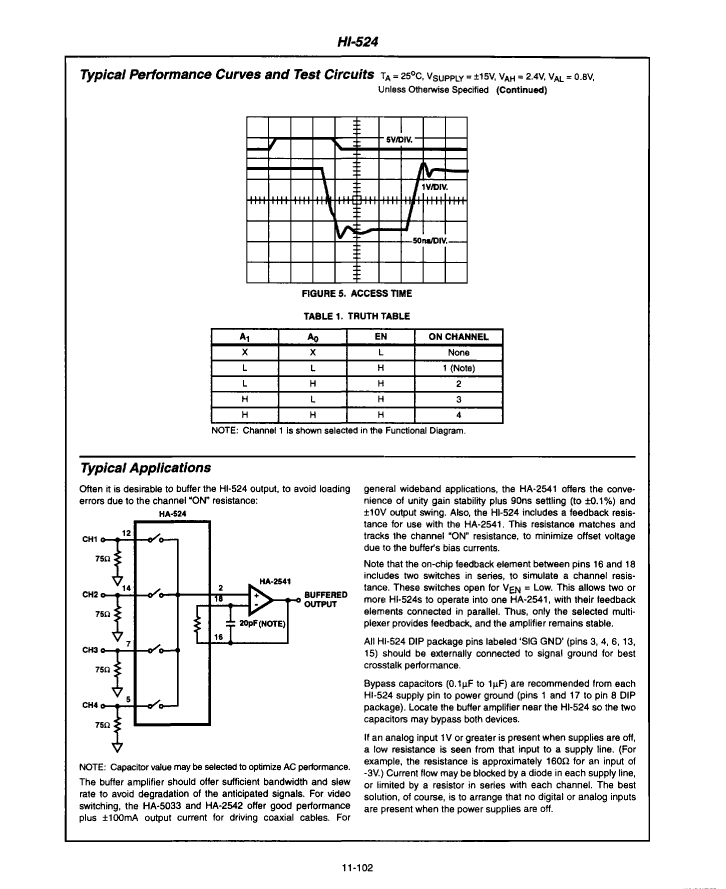

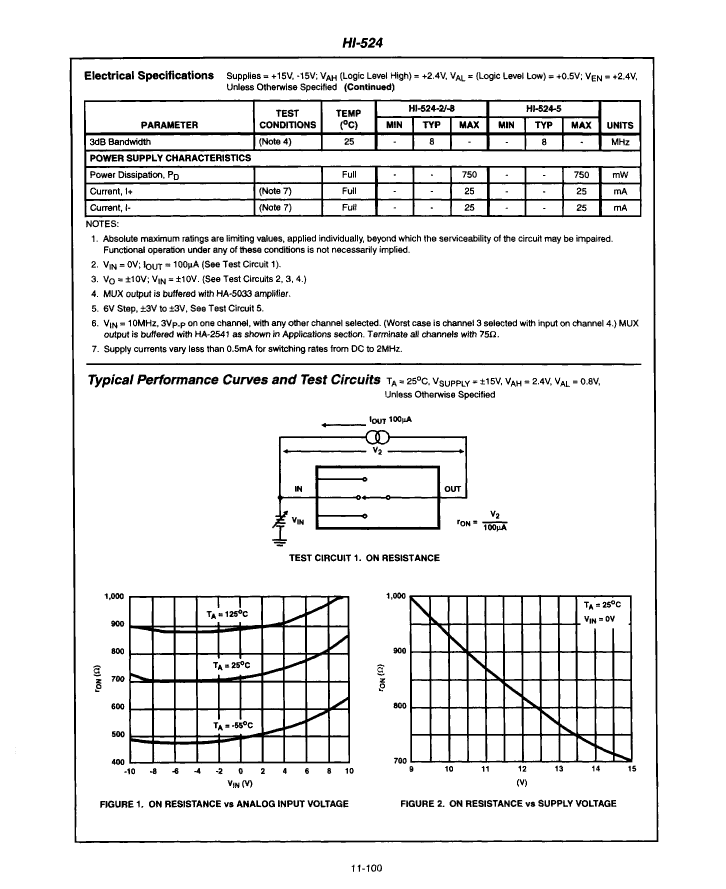

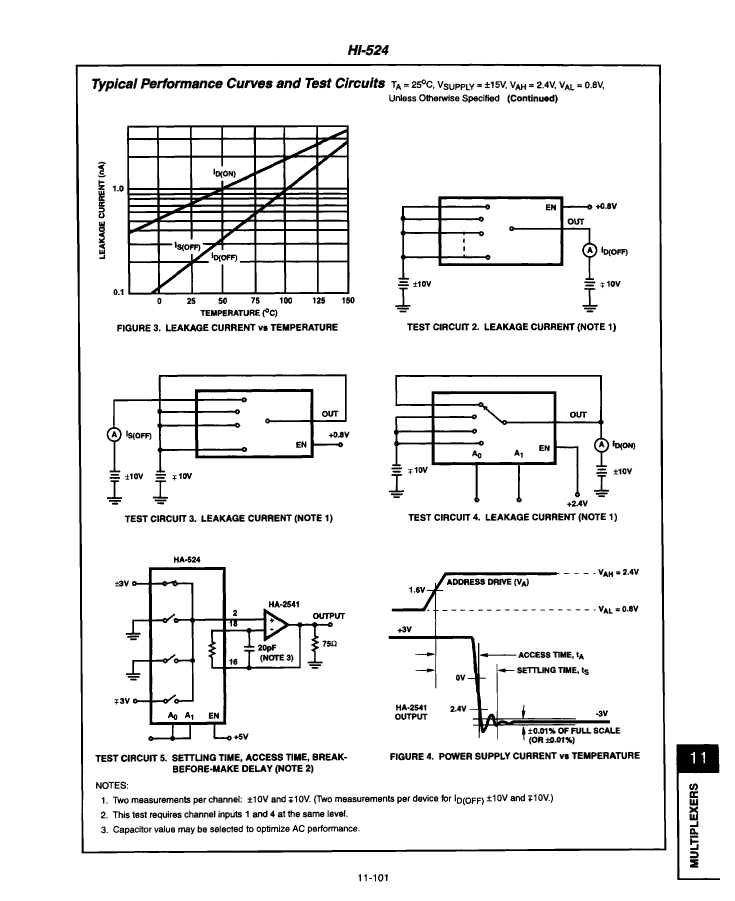

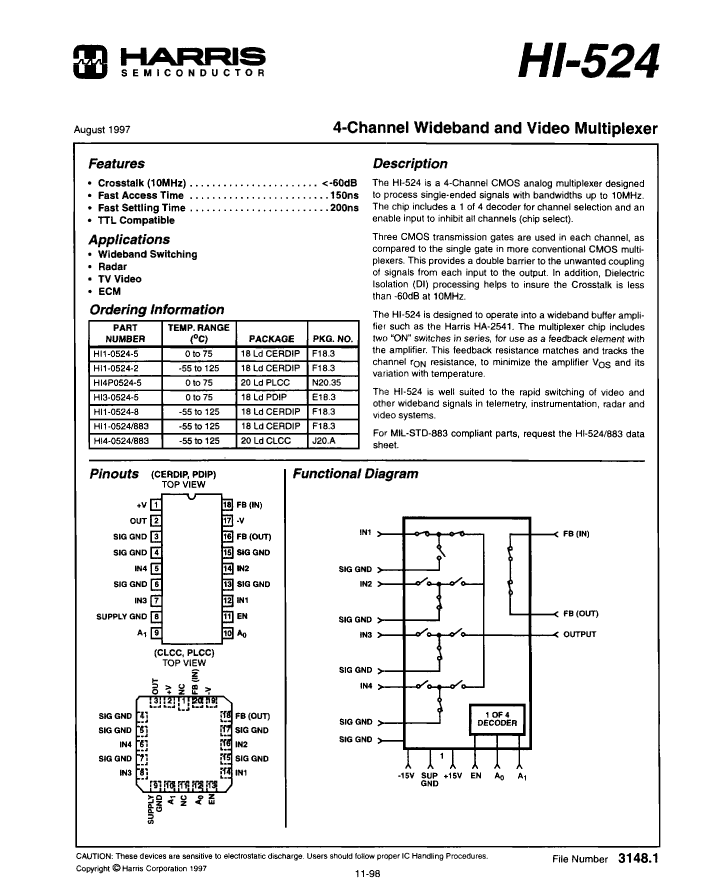

HI1-0524-2 Overview

IC,ANALOG MUX,SINGLE,4-CHANNEL,CMOS,DIP,18PIN,CERAMIC

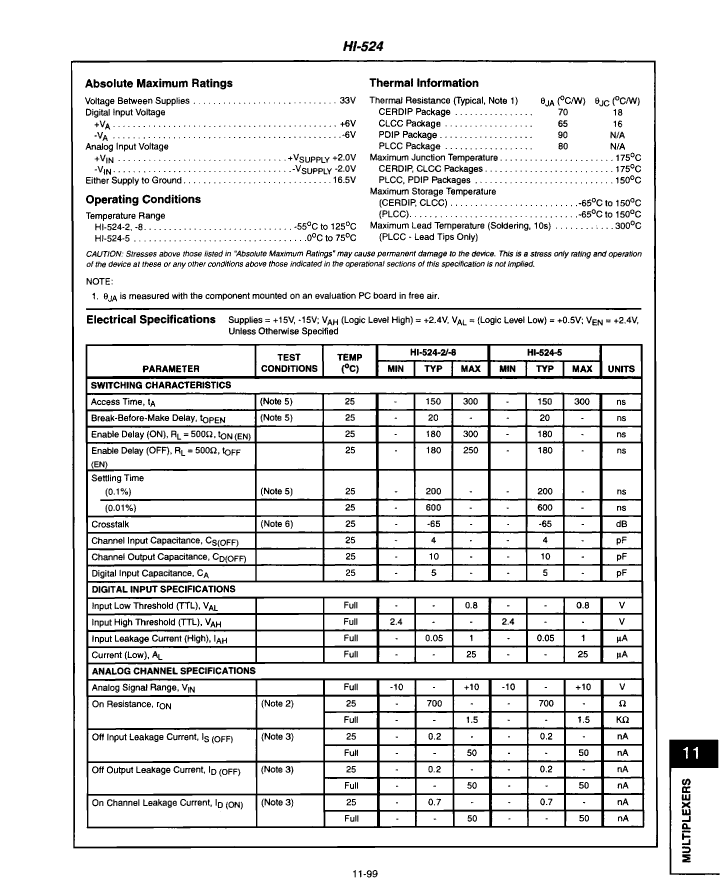

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	not_compliant
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-XDIP-T18
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	4
Number of functions	1
Number of terminals	18
Maximum on-state resistance (Ron)	1500 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Maximum supply current (Isup)	25 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum connection time	300 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1
