XO-543DTED60FREQ2

Description
HCMOS/TTL Output Clock Oscillator, 50MHz Min, 100MHz Max, HALOGEN FREE AND ROHS COMPLIANT, RESISTANCE WELDED, METAL PACKAGE-14/4
CategoryPassive components    oscillator
File Size150KB,3 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

XO-543DTED60FREQ2 Overview

HCMOS/TTL Output Clock Oscillator, 50MHz Min, 100MHz Max, HALOGEN FREE AND ROHS COMPLIANT, RESISTANCE WELDED, METAL PACKAGE-14/4

XO-543DTED60FREQ2 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codeunknown
Other featuresTRI-STATE; ENABLE/DISABLE FUNCTION; BULK
maximum descent time8 ns
Frequency Adjustment - MechanicalNO
frequency stability50%
JESD-609 codee2
Manufacturer's serial numberXO-543
Installation featuresTHROUGH HOLE MOUNT
Maximum operating frequency100 MHz
Minimum operating frequency50 MHz
Maximum operating temperature70 °C
Minimum operating temperature
Oscillator typeHCMOS/TTL
Output load5 TTL, 15 pF
physical size20.4mm x 12.9mm x 5.08mm
longest rise time8 ns
Maximum supply voltage3.63 V
Minimum supply voltage2.97 V
Nominal supply voltage3.3 V
surface mountNO
maximum symmetry45/55 %
Terminal surfaceTin/Copper (Sn/Cu)
Base Number Matches1

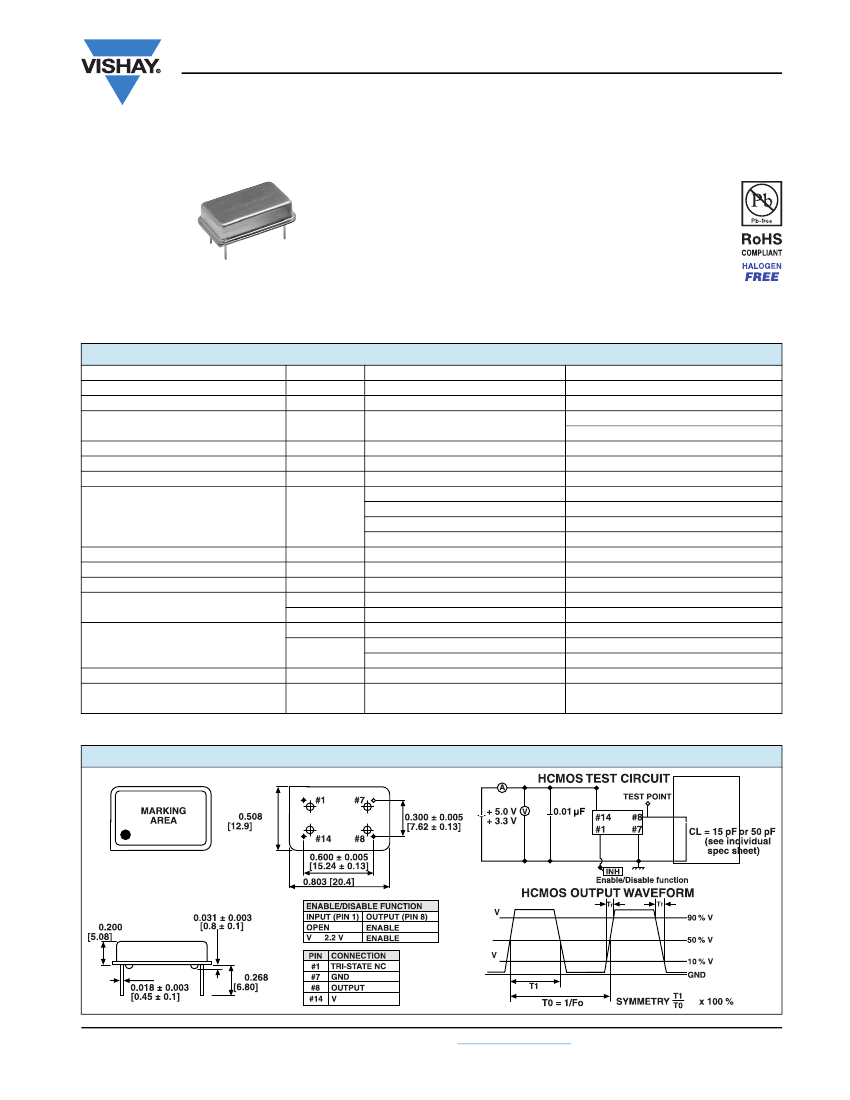

XO-543
Vishay Dale
Full Size Clock Oscillators TTL/HCMOS Compatible
FEATURES
Size: 14 pin full size
Industry standard
Wide frequency range
Low cost
Tri-state enable/disable
Resistance weld package
3.3 V
Compliant to RoHS Directive 2002/95/EC
Halogen-free according to IEC 61249-2-21 definition
The XO-543 series is with 3.3 V power supply. The metal
package with pin 7 case ground acts as shielding to
minimize EMI radiation.
STANDARD ELECTRICAL SPECIFICATIONS
PARAMETER
Frequency range
Frequency stability
(1)
Operating temperature range
Storage temperature range
Power supply voltage
Aging (first year)
Supply current
Output symmetry
Rise time
Fall time
Output voltage
Output load
Start-up time
Pin 1, tri-state function
SYMBOL
F
O
T
OPR
T
STG
V
DD
CONDITION
-
all conditions
-
-
-
25 °C ± 3 °C
1.000 MHz to 23.999 MHz
24.000 MHz to 49.999 MHz
50.000 MHz to 69.999 MHz
70.000 MHz to 100.000 MHz
at ½ V
DD
10 % V
DD
to 90 % V
DD
90 % V
DD
to 10 % V
DD
-
-
-
-
-
-
-
VALUE
1.000 MHz to 100.000 MHz
± 25 ppm, ± 50 ppm, ± 100 ppm
0 ºC to 70 ºC
- 40 ºC to + 85 ºC (option)
- 55 ºC to + 125 ºC
3.3 V ± 10 %
± 5 ppm
15 mA max.
20 mA max.
30 mA max.
45 mA max.
40 %/60 % (45 %/55 % option)
8 ns max.
8 ns max.
90 % V
DD
min.
10 % V
DD
max.
1 TTL to 5 TTL
to 50M: 30 pF
to 125M: 15 pF
10 ms max.
pin 1 = H or open (output active at pin 3)
pin 1 = L (high impedance at pin 3)
I
DD
Sym
t
r
t
f
V
OH
V
OL
TTL load
HCMOS load
t
s
Note
(1)
Include: 25 ºC tolerance, operating temperature range, input voltage change, aging, load change, shock and vibration
DIMENSIONS
in inches [millimeters]
CMOS
LOAD
CL
(1)
max.
Note
(1)
Includes Stray and Probe Capacitance
max.
OH
DD
max.
IH
DC
OL
DD
DD
max.
DD
Document Number: 35038
Revision: 08-Mar-11
For technical questions, contact:
frequency@vishay.com
www.vishay.com
25
