X24042D-2.7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> X24042D-2.7

X24042D-2.7: DescriptionEEPROM, 512X8, Serial, CMOS, CDIP8, MINI, HERMETIC SEALED, CERDIP-8; Categorystorage storage; File Size784KB，15 Pages; ManufacturerXicor Inc.

Download Datasheet Parametric Compare View All

X24042D-2.7 Overview

EEPROM, 512X8, Serial, CMOS, CDIP8, MINI, HERMETIC SEALED, CERDIP-8

X24042D-2.7 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	MINI, HERMETIC SEALED, CERDIP-8
Reach Compliance Code	unknown
Other features	2 WIRE INTERFACE;PAGE WRITE
Maximum clock frequency (fCLK)	0.1 MHz
Data retention time - minimum	100
Durability	100000 Write/Erase Cycles
I2C control byte	1010DDMR
JESD-30 code	R-GDIP-T8
JESD-609 code	e0
memory density	4096 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	512 words
character code	512
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512X8
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3/5 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Serial bus type	I2C
Maximum standby current	0.00005 A
Maximum slew rate	0.003 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Maximum write cycle time (tWC)	10 ms
Base Number Matches	1

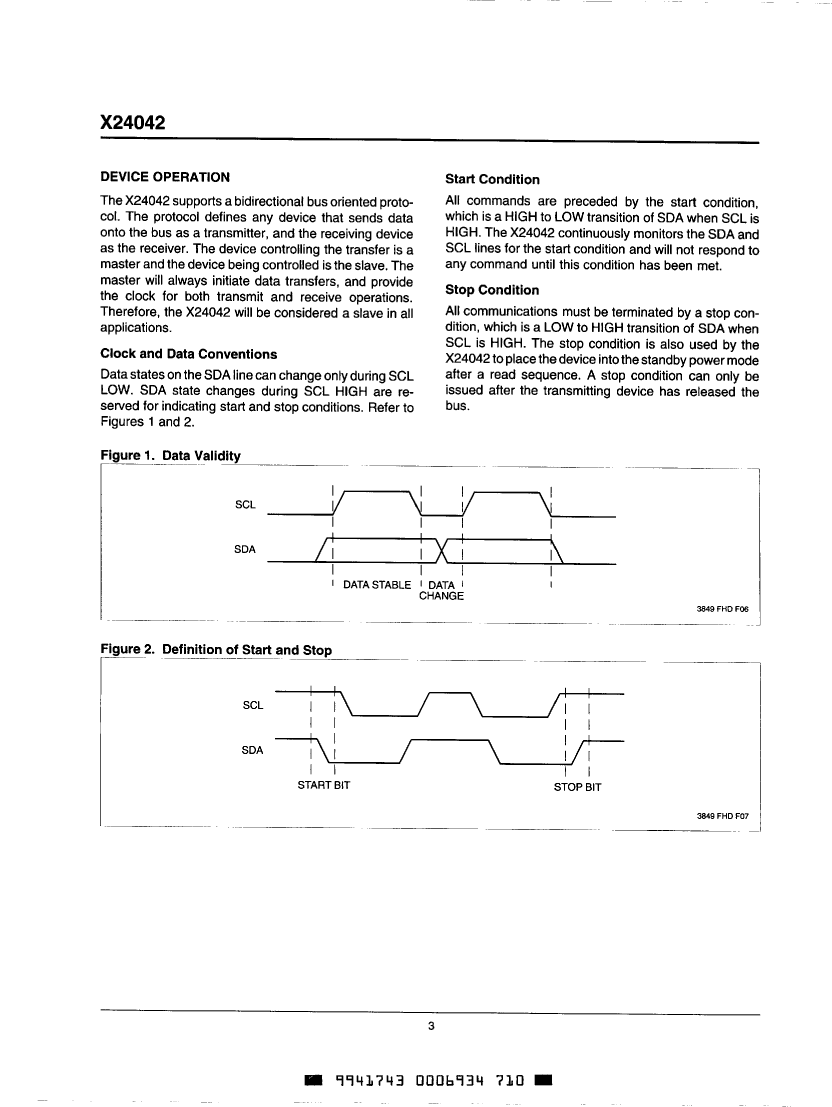

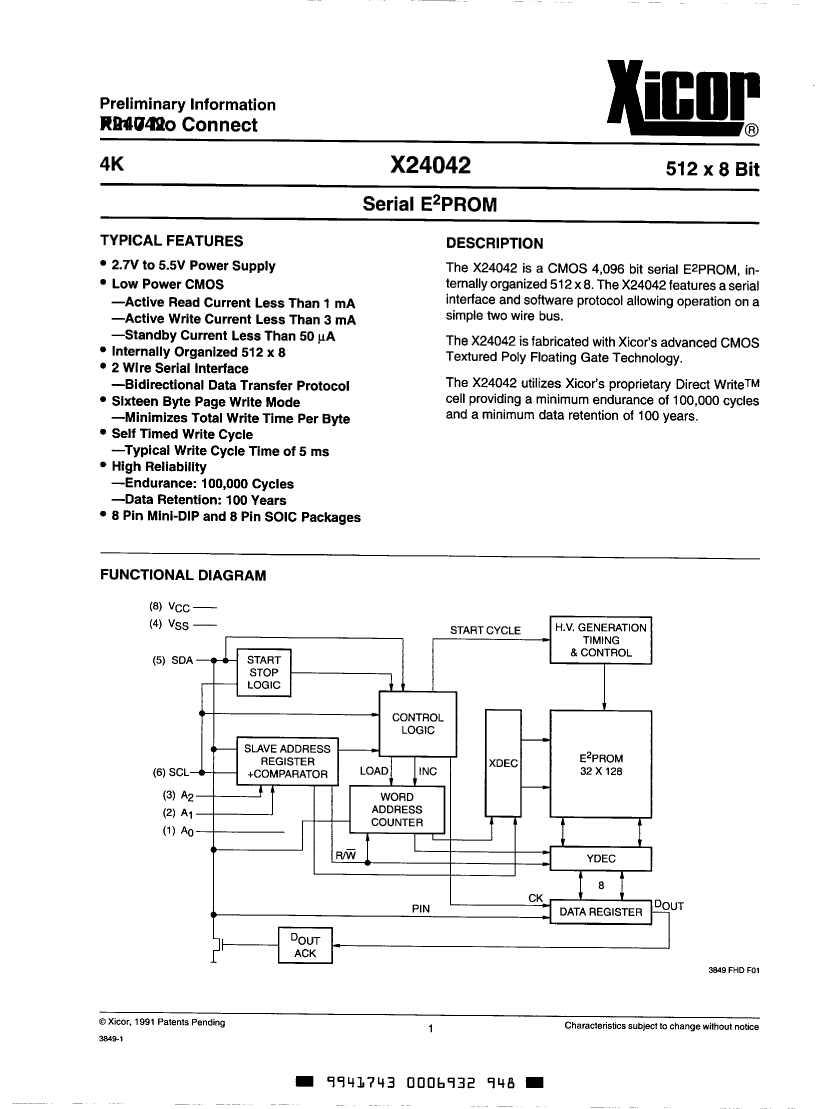

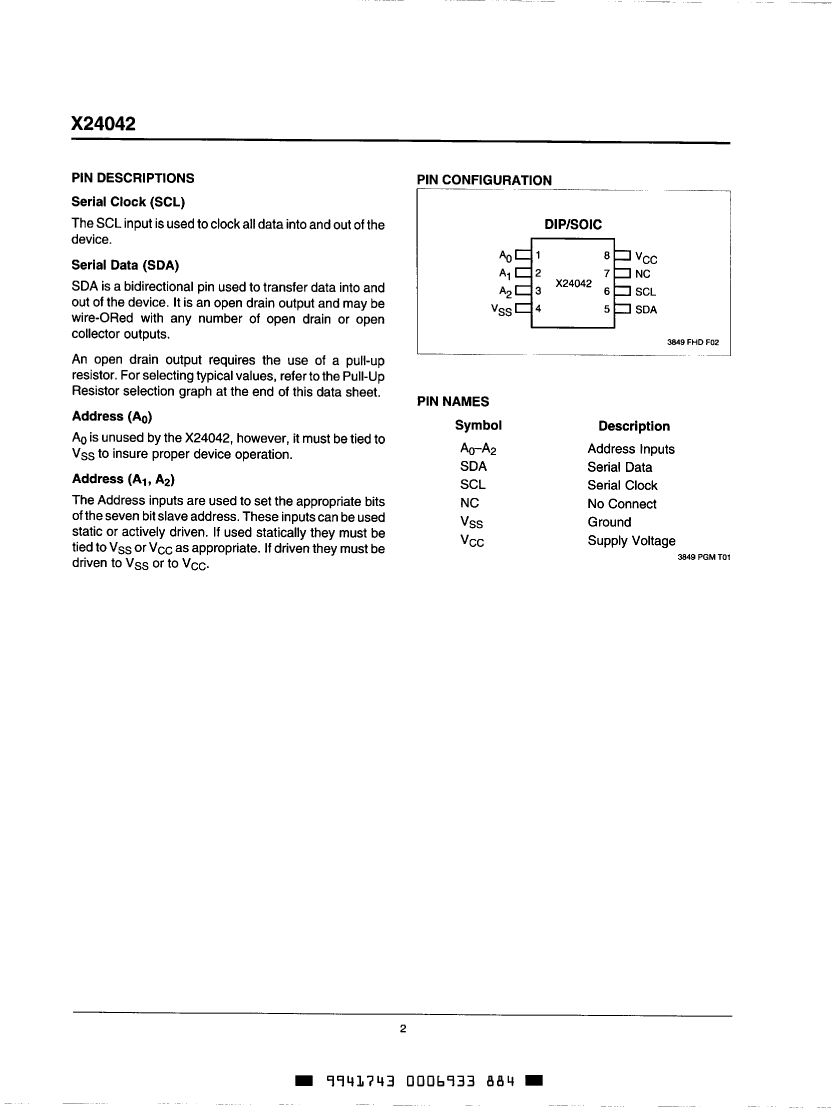

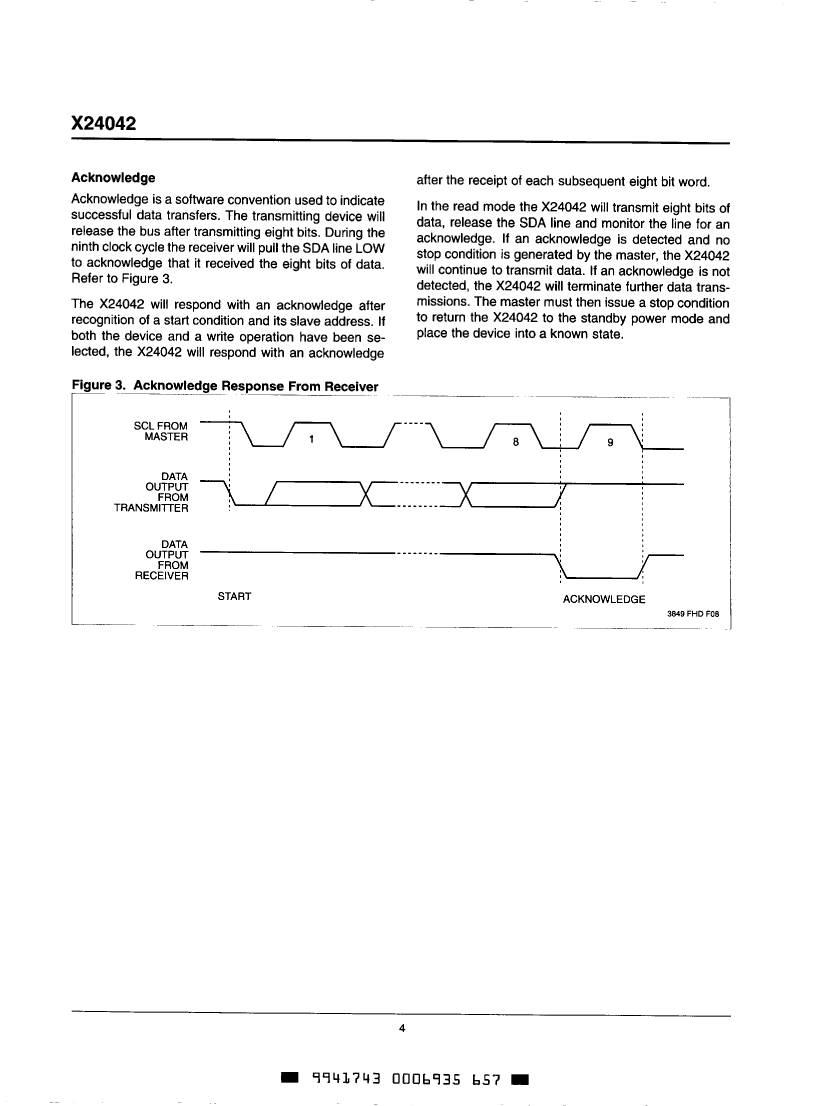

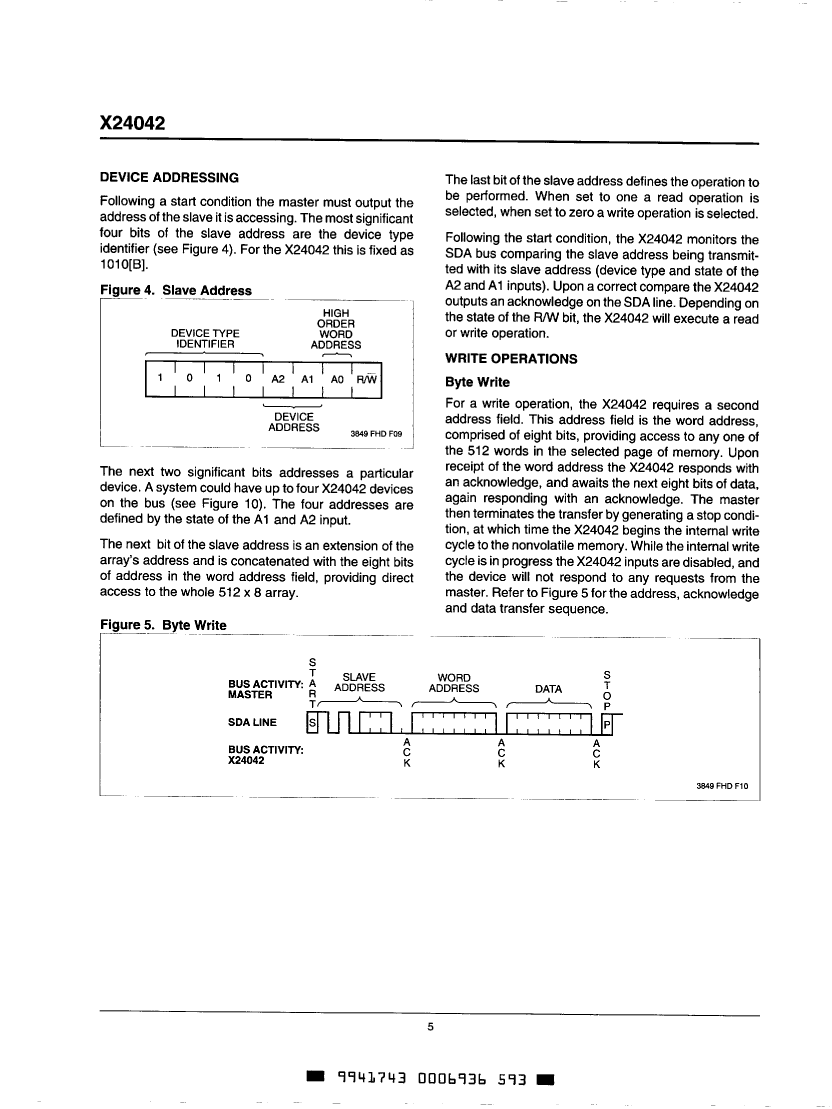

Preview

Download Datasheet

View All

X24042D-2.7 Related Products

	X24042D-2.7	X24042S8C7000	X24042D-3	X24042S8-3C7000	X24042S8IC7000	X24042S8I-2.7C7000	X24042S8I-3C7000	X24042S8MC7000	X24042S8-2.7C7000
Description	EEPROM, 512X8, Serial, CMOS, CDIP8, MINI, HERMETIC SEALED, CERDIP-8	EEPROM, 512X8, Serial, CMOS, PDSO8,	EEPROM, 512X8, Serial, CMOS, CDIP8, MINI, HERMETIC SEALED, CERDIP-8	EEPROM, 512X8, Serial, CMOS, PDSO8,	EEPROM, 512X8, Serial, CMOS, PDSO8,	EEPROM, 512X8, Serial, CMOS, PDSO8,	EEPROM, 512X8, Serial, CMOS, PDSO8,	EEPROM, 512X8, Serial, CMOS, PDSO8,	EEPROM, 512X8, Serial, CMOS, PDSO8,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Data retention time - minimum	100	100	100	100	100	100	100	100	100
Durability	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles
I2C control byte	1010DDMR	1010DDMR	1010DDMR	1010DDMR	1010DDMR	1010DDMR	1010DDMR	1010DDMR	1010DDMR
JESD-30 code	R-GDIP-T8	R-PDSO-G8	R-GDIP-T8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
memory density	4096 bit	4096 bit	4096 bit	4096 bit	4096 bit	4096 bit	4096 bit	4096 bit	4096 bit
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM
memory width	8	8	8	8	8	8	8	8	8
Number of terminals	8	8	8	8	8	8	8	8	8
word count	512 words	512 words	512 words	512 words	512 words	512 words	512 words	512 words	512 words
character code	512	512	512	512	512	512	512	512	512
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	85 °C	85 °C	85 °C	125 °C	70 °C
organize	512X8	512X8	512X8	512X8	512X8	512X8	512X8	512X8	512X8
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	DIP	SOP	SOP	SOP	SOP	SOP	SOP
Encapsulate equivalent code	DIP8,.3	SOP8,.25	DIP8,.3	SOP8,.25	SOP8,.25	SOP8,.25	SOP8,.25	SOP8,.25	SOP8,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL
power supply	3/5 V	5 V	3.3/5 V	3.3/5 V	5 V	3/5 V	3.3/5 V	5 V	3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Serial bus type	I2C	I2C	I2C	I2C	I2C	I2C	I2C	I2C	I2C
Maximum standby current	0.00005 A	0.00005 A	0.00005 A	0.00005 A	0.00005 A	0.00005 A	0.00005 A	0.00005 A	0.00005 A
Maximum slew rate	0.003 mA	0.003 mA	0.003 mA	0.003 mA	0.003 mA	0.003 mA	0.003 mA	0.003 mA	0.003 mA
surface mount	NO	YES	NO	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Nominal supply voltage (Vsup)	5 V	5 V	5 V	-	5 V	-	-	5 V	-
Maker	-	-	-	Xicor Inc.	Xicor Inc.	Xicor Inc.	Xicor Inc.	Xicor Inc.	Xicor Inc.
