INTRODUCING
. . .
S-Series Rocker Switches
S-Series Rocker Switches

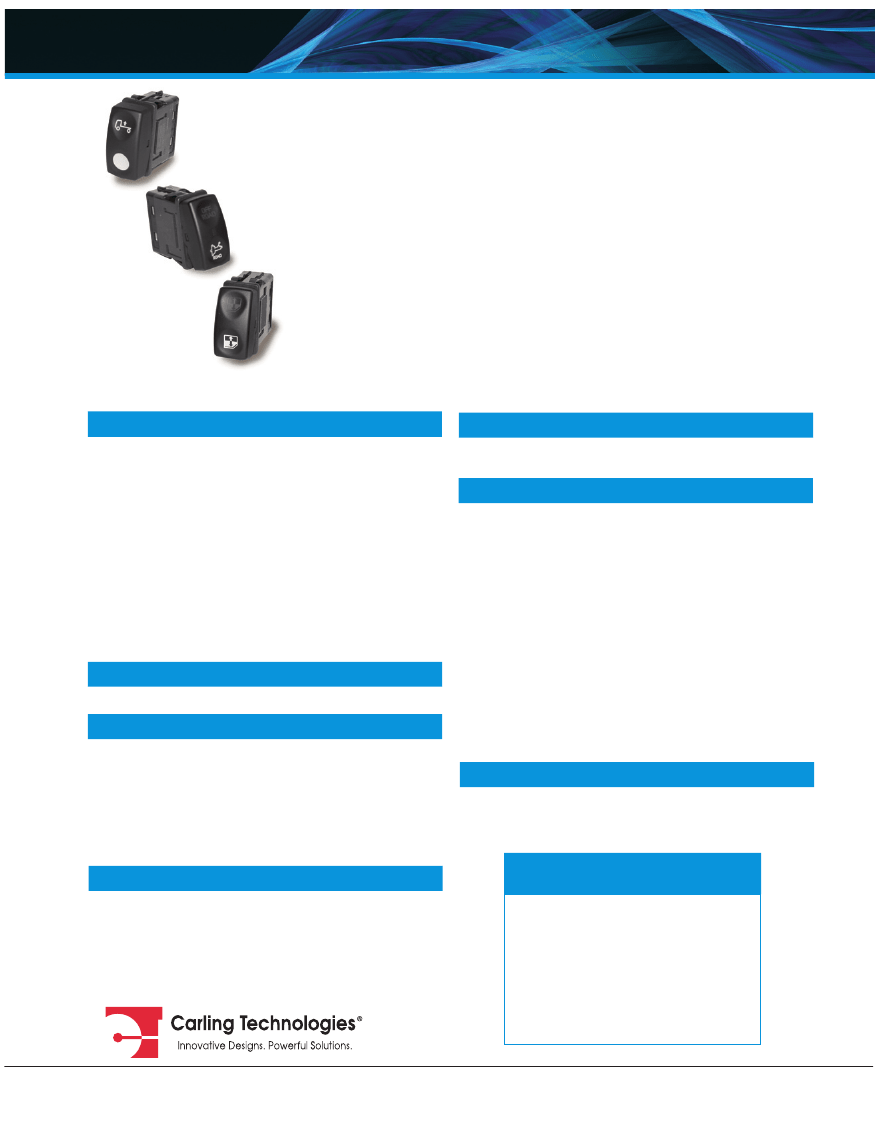

Carling Technologies is pleased to introduce the S-Series rocker switch, designed for use
in the enclosed cabs of todayʼs trucks, providing the vehicle operator with easily
recognizable and simple to operate controls.
FEATURES:
•
Abbreviated travel ½ throw actuators
•
Ergonomic rockers
•
Illumination in up to three detent switch positions
•
A non-teasable snap action circuit
•
10A, 24VDC rating
•
Space saving compact envelope with clean bezel-less design
•
Integrated low insertion force connector and polarized switch base for quick installation
•
Illumination and switch circuitry is easily accommodated with the 10 terminal base
General Specifications:
Electrical
These great features, combined with over 1000 available laser etched or padprinted
legends, allow the S-Series to be seamlessly incorporated into just about any cab interior
environment.
Contact Rating . . . . . . . . 10A @ 24VDC
Dielectric Strength . . . . . . 1500 Volts RMS between pole to
pole
Insulation Resistance . . . 50 Megaohms
Initial Contact Resistance. 10 milliohms max. @ 4VDC
Life . . . . . . . . . . . . . . . .
100,000 cycles maintained circuit,
50,000 cycles momentary circuit at
rated voltage and current
Contact Material. . . . . . . . Silver tin-oxide
Terminals . . . . . . . . . . . . .110 Tabs, Silver Plated Brass
Operating Temperature. . . -40°C to +85°C
Circuitry . . . . . . . . . . . . . . SP, DP 2 & 3 position,
1/2 or full throw
Contact Bounce . . . . . . . . <20 milliseconds
Endurance . . . . . . . . . . .
Lighted . . . . . . . . . . . . . .
Bracket. . . . . . . . . . . . . .
Base . . . . . . . . . . . . . . .
Rocker . . . . . . . . . . . . . .
Weight . . . . . . . . . . . . . .
2 position (1/2 throw). . . . . 12°
3 position (full throw) . . . . 12° from center
Actuator Travel (Angular Displacement)
Mechanical
Physical
250,000 cycles minimum
LED - rated 100,000 hours 1/2 life
(LED is internally ballasted for volt-
ages to 24VDC.)
Acetal
Nylon 66 GF
Polycarbonate
25 gms max.
Operating Temperature . . -40°C to +85°C
Vibration . . . . . . . . . . . .
Per IEC 68-2.6 test Fc and 68-2.47
Test Criteria - no noise or contact
chatter below 10ms.
Cold Test . . . . . . . . . . . . . Per IEC 68-2-1 -40°C for 72 hours
Test Criteria - pre & post test contact
resistance.
Dry Heat Test Criteria . . . . Per IEC 68-2-2 + 85°C for 72 hours
Test Criteria - no loss of circuit during
test, pre & post test contact resist-
ance.
Handling Shock . . . . . . . . Drop from height of 1 meter, 3 times,
4 sides. Test criteria - No loss of cir-
cuit during test, pre & post test con-
tact resistance.
Thermal Shock . . . . . . . . Per IEC 68-2-14, -40°C to +85°C.
Test criteria - pre & post test contact
resistance.
Snap in Mount . . . . . . . .
Environmental

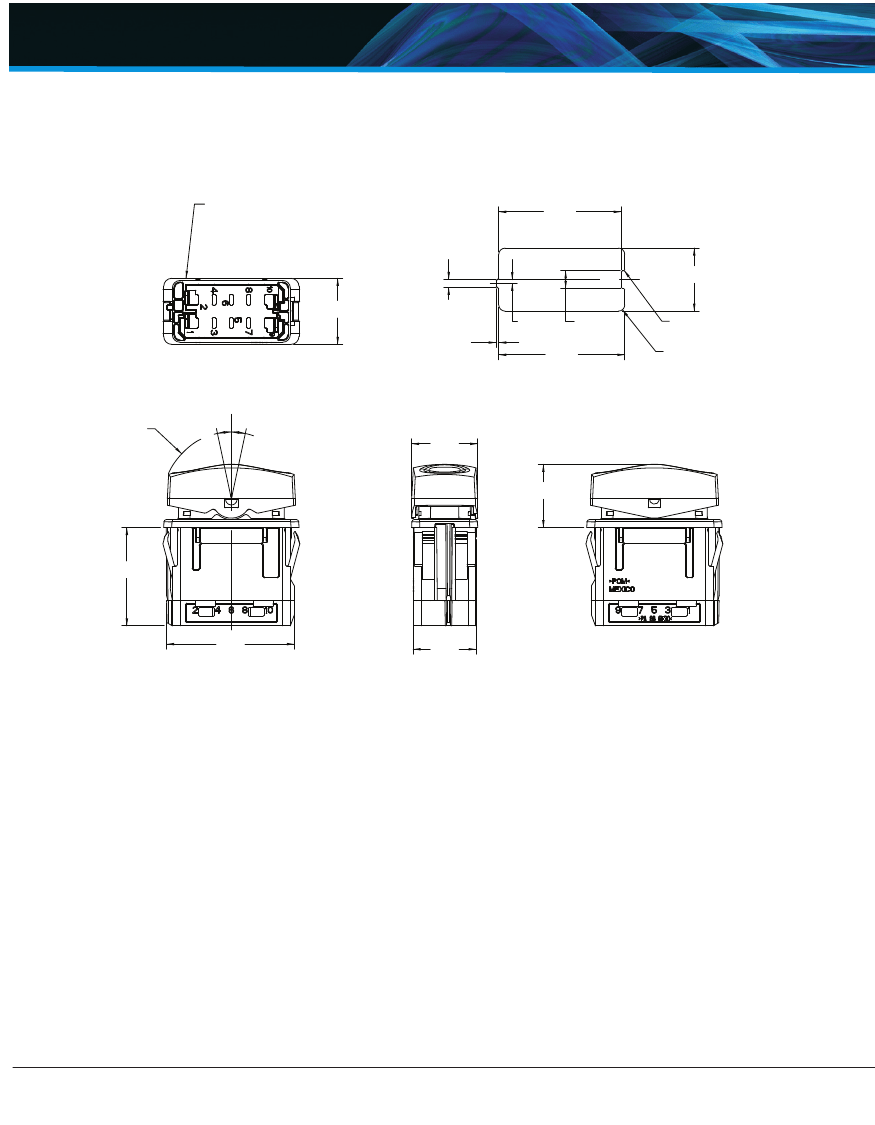

Mounting Specifications
40mm x 20mm keyed hole (see di-
mensional specifications for details.)
Amp/Tyco MCP 2.8 receptacle housing P/N 1418994-1 mates
with Amp/Tyco MCP 2.8 flat type receptacle. Based on wire
size, choose P/N below:
1-968880-1. . . . . . . . . . . . 20-24 awg wire
1-968849-1. . . . . . . . . . . . 17-20 awg wire
1-968851-1. . . . . . . . . . . . 13.5-17 awg wire
Connector
Product Bulletin #129
June 2009
Carling Technologies, Inc.
60 Johnson Avenue
Plainville, CT 06062-1177
Phone:
Fax:
Email:
Web:
(860) 793-9281
(860) 793-9231
sales@carlingtech.com
carlingtech.com
1
Series
S 18 A A R F 0 4
-
4 2 1 Z 00
-
1 00 00
S-Series Rocker Switches
2
Circuit
3
Rating
5
4
Illumination Lamp 1
6
Lamp 2
7
Lamp 3
1 SERIES
S
S-Series
Terminal Connections as viewed
from bottom of switch:
1- -2
3- -4
5- -6
7- -8
9 - - 10
8
Bracket
Color
9
Actuator
Color
5,6,7 LAMP (same coding for all 3 selections)
No lamp
LED
12VDC
24VDC
0
Red
A
B
Orange
C
D
Yellow
E
F
10
Legend
Color 1
11
Legend
Color 2
12
Legend
Color 3
13
Legend 1
14
15
Legend Ori- Legend 2
entation
16
Legend 3
2 CIRCUIT
Selection 5: specifies lamp 1 located above terminals 1 (+) & 2 (-).
Selection 6: specifies lamp 2 located in center of rocker.
Selection 7: specifies lamp 3 located above terminals 9 (+) & 10 (-).
( ) - momentary
SP - single pole uses terminals 3, 5 & 7.
DP - double pole uses terminals 3, 5, 7 & 4, 6, 8.
Position:
1
SP DP
5 & 7, 6 & 8
16
26
ON
18
28
(ON)
SPECIAL CIRCUITS
31
(6 & 8)
41
51
ON
42
52
(ON)
43
53
(ON)
44
54
ON
45
55
(ON)
46
56
NONE
47
57
NONE
75
(5 & 7, 3 & 6)
(5 & 7, 2 & 6)
98
2
2
Connected Terminals
OFF
OFF
4, 5, 6, 7
OFF
OFF
3&5
3&5
OFF
5&7
5&7
5 & 7, 4 & 6
5 & 7, 4 & 6
3 RATING
1
0.4VA 28VDC Resistive
10.5mA 1.5A 28VDC,
A
3
5A 28V 50A Inrush Lamp Load
B
4
3.5A 28VDC, 18A Inrush
C
3
10mA 10A 28VDC
OFF
NONE
1
NONE
1
NONE
1
NONE
1
ON
ON
(ON)
(3 & 5, 4 & 6)
(5 & 9, 4 & 6)
3
3 & 5, 4 & 6
ON
(ON)
8 BRACKET COLOR
1
4
Green
H
J
Black
Dark Carbon
Black
M
Titan Gray
N
Dark Carbon
R
9 ACTUATOR
Standard Rocker, Laser Etched
Z
No legend
1
Clear
10, 11, 12 LEGEND COLOR
00
No legend
13 LEGEND 1
5
14 LEGEND ORIENTATION
0
No legend
1
Orientation 1
2
Orientation 2
3
Orientation 3
4
Orientation 4
M22ZA8-23H-10000
4 ILLUMINATION
LAMPS
ILLUMINATION
LAMP WIRED TO TERMINALS
S
NONE
INDEPENDENT –
A
1
INDEPENDENT 1 (+) 2 (–)
C
1
INDEPENDENT 1 (+) 2 (–)
2
INDEPENDENT 9 (+) 2 (–)
D
1
INDEPENDENT 1 (+) 2 (–)
2
INDEPENDENT 9 (+) 10 (–)
E
1&3
INDEPENDENT 1 (+) 2 (–)
PARALLEL
F
1
INDEPENDENT 1 (+) 10 (–)
SNAP
G
1&2
INDEPENDENT 1 (+) 10 (–)
DEPENDENT
9 (+) 2 (–)
H
1&2
INDEPENDENT 1 (+) 2 (–)
DEPENDENT
9 (+) 10 (–)
J
1, 2 & 3
INDEPENDENT 1 (+) 2 (–)
DEPENDENT
5 (+) 10 (–)
INDEPENDENT 1 (+) 2 (–)
K
1&2
INDEPENDENT 1 (+) 2 (–)
INDEPENDENT 9 (+) 10 (–)
3.3K RESISTOR IN PARALLEL
ORIENTATION
1
M22ZA8-13H-10000
ORIENTATION
4
ORIENTATION
2
ORIENTATION
3
NOTES
1
2
3
4
5
6
00
No legend
15,16 LEGEND 2,3
6
Indicates 1/2 travel for actuator.
Snap-Action Contact Mechanism
Not available with circuit 98.
Available with circuit 98 only.
Located over T1-2.
Legend 2 located in center of rocker, Legend 3 located over T9-10.
Legend 2 options are limited due to a very small marking area. Consult
factory for specifics.
3
